Pointer arithmetic — adding integers to pointers

WHAT is pointer arithmetic?

The key idea: pointer arithmetic is scaled by the pointed-to type.

int *p; → p + 1 moves by sizeof(int) (often 4) bytes.
char *c; → c + 1 moves by sizeof(char) = 1 byte.
double *d; → d + 1 moves by sizeof(double) (often 8) bytes.

WHY does it scale by the type? (Derivation from first principles)

Let's derive it. Suppose an array T arr[N] starts at byte address $A$ .

Each element occupies $s = \texttt{sizeof}(T)$ bytes laid back-to-back. So:

$\text{byteaddr}(\texttt{arr[i]}) = A + i\cdot s$

Now we define the pointer p = arr (so p holds address $A$ ). We demand that *(p + i) equal arr[i]. For that to be true, p + i must produce the byte address $A + i\cdot s$ . Therefore the rule for + on a pointer must be:

$p + i \;\equiv\; (\text{byte address of } p) + i\cdot \texttt{sizeof}(T)$

This is why the equivalence holds:

HOW the compiler computes it

Worked example Stepping an

int*

int a[4] = {10, 20, 30, 40};
int *p = a;          // p -> &a[0]
printf("%d\n", *p);      // 10
printf("%d\n", *(p + 2)); // 30

Why this step? p + 2 = byte address of p plus 2 * sizeof(int) = +8 bytes → points at a[2] = 30. We did not read byte 2; we read element 2.

Worked example Same offset, different type, different bytes

char  *c = (char*)0x1000;   // c + 1 == 0x1001  (jump 1 byte)
int   *i = (int*) 0x1000;   // i + 1 == 0x1004  (jump 4 bytes)
double*d = (double*)0x1000; // d + 1 == 0x1008  (jump 8 bytes)

Why this step? Same numeric +1, but the stride = sizeof(*ptr) differs. The pointer type is what carries that information.

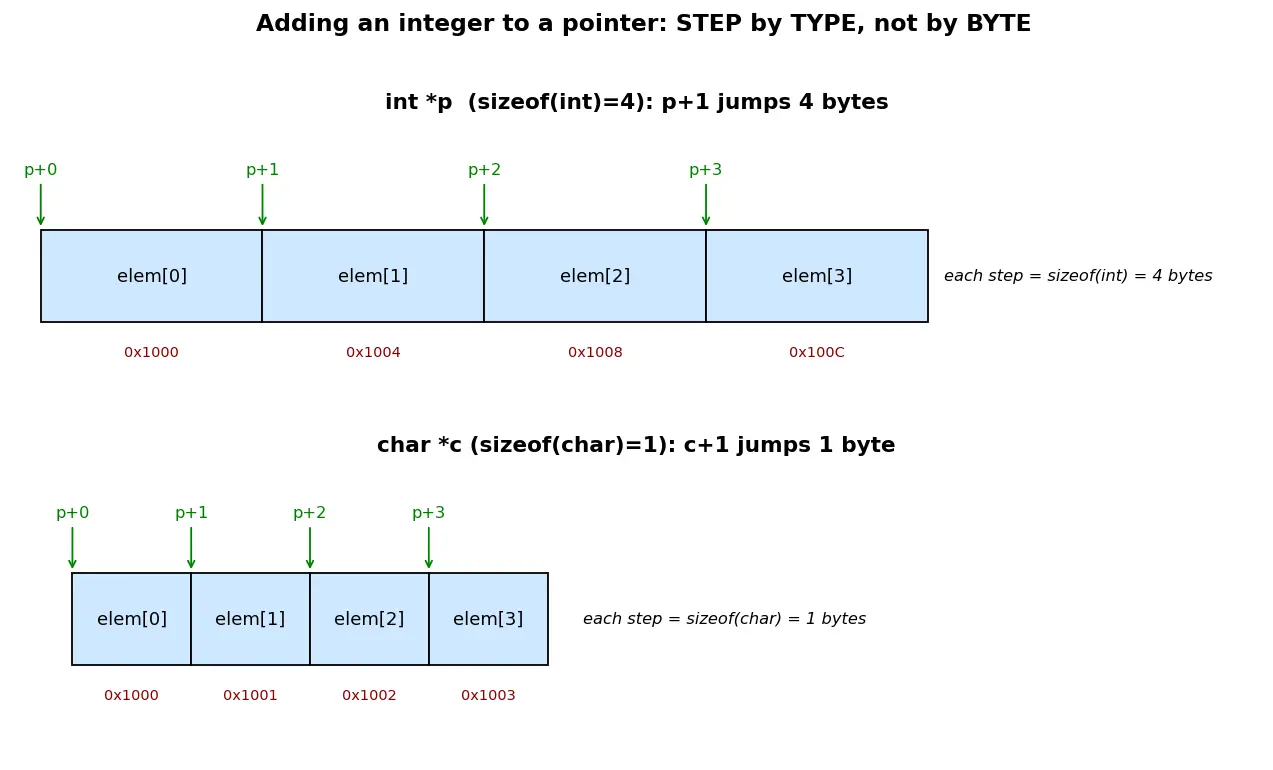

Figure — Pointer arithmetic — adding integers to pointers

Worked example Walking an array with a moving pointer

int a[5] = {2,4,6,8,10};
int *p = a;
int sum = 0;
for (int k = 0; k < 5; k++) {
    sum += *p;   // read current element
    p++;         // p = p + 1  -> next int (4 bytes ahead)
}
// sum == 30

Why this step? p++ is p = p + 1, which advances by one int. After 5 increments p points one-past-the-end (a valid address to hold, never to deref).

Forecast-then-Verify

Recall Forecast before peeking

int a[3]; int *p = a; If &a[0] is 0x200 and sizeof(int)==4, what address does p + 2 hold? And what about ((char*)p) + 2?

Verify:

p + 2 → 0x200 + 2*4 = 0x208 (points at a[2]).
((char*)p) + 2 → 0x200 + 2*1 = 0x202 (points into the middle of a[0]! Usually a bug.)

Common mistakes (Steel-man + fix)

80/20 — the one rule that unlocks everything

Feynman

Recall Explain to a 12-year-old

Imagine a row of identical lockers in a hallway. A pointer is like saying "I'm standing in front of locker #5." If I say "+1", I don't take one step — I move to the next locker, however wide that locker is. Tiny lockers (chars) = one step; fat lockers (doubles) = a big stride. The pointer always knows how wide its lockers are, so "+1" always lands neatly in front of the next one — never stuck halfway between two.

Active Recall

What does p + 1 add to the address, in bytes?

sizeof(*p) bytes (one element), not 1 byte.

arr[i] is exactly equivalent to which pointer expression?

*(arr + i) (and also *(i+arr), i[arr]).

For int *p with sizeof(int)==4, how many bytes does p + 3 move?

3 * 4 = 12 bytes.

Is p + q (two pointers) legal?

No. Only pointer ± int and pointer - pointer are defined.

Why is ((char*)p)+1 different from p+1 for an int *p?

Casting to char* makes stride = 1 byte, so it advances only 1 byte instead of sizeof(int).

What is the difference between *p + 1 and *(p+1)?

*p + 1 = the value at p, plus 1. *(p+1) = the value of the next element. * binds tighter than +.

Is forming arr + N (one past the last element) legal? Is dereferencing it legal?

Forming it is legal; dereferencing it is undefined behavior.

What general rule covers 80% of pointer arithmetic?

p + n moves n * sizeof(*p) bytes and lands on element n — "step by type, not by byte."

Connections

Arrays decay to pointers
Pointer subtraction and ptrdiff_t
sizeof operator
Strings and char pointers
Multidimensional arrays and pointers
Undefined behavior and bounds
Dereference operator and precedence

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, pointer sirf ek address nahi hota — wo address ke saath ye bhi yaad rakhta hai ki jis cheez pe point kar raha hai uska size kitna hai. Isliye jab tum p + 1 likhte ho, C 1 byte add nahi karta; wo 1 * sizeof(*p) bytes add karta hai. Matlab agar p ek int* hai aur int 4 byte ka hai, to p + 1 4 bytes aage jaata hai aur seedha agle element pe land karta hai, beech mein kahin nahi.

Yaad rakhne ka mantra: "Step by TYPE, not by BYTE." Locker wali example socho — tum locker #5 ke saamne khade ho, "+1" bolne par ek kadam nahi, balki agle locker ke saamne chale jaate ho, locker chahe patla ho (char) ya mota (double). Isi wajah se arr[i] aur *(arr + i) bilkul same cheez hai — compiler dono ko ek hi tareeke se scale karta hai.

Galtiyaan jo sab karte hain: p + 1 ko 1 byte samajh lena (galat — wo sizeof jitna jump hai), do pointers ko add karne ki koshish (illegal — sirf pointer±int aur pointer-pointer chalta hai), aur *p + 1 ko *(p+1) samajh lena (* ki precedence zyada hai, dono alag hain). Aur ek baat: array ke 0 se N-1 tak hi deref karo; arr + N banana legal hai par usse deref karna undefined behaviour hai. Bas ye ek rule — n * sizeof(*p) — pakad lo, to 80% pointer sawaal khud solve ho jayenge.
