Pointer arithmetic — adding integers to pointers: Exercises

The one rule we lean on everywhere (from the parent note):

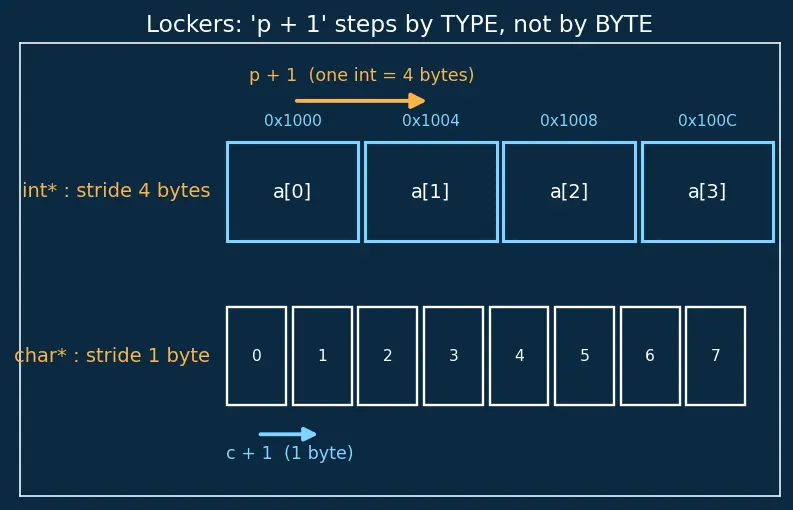

We'll assume the common sizes unless a problem says otherwise: sizeof(char)==1, sizeof(int)==4, sizeof(double)==8, sizeof(short)==2. A picture of the "locker hallway" model to keep in mind:

Figure — Pointer arithmetic — adding integers to pointers

Level 1 — Recognition

Can you read a pointer expression and say what it means?

Recall Solution L1-A

p points at a[0]. Adding 2 steps two elements forward (not two bytes): p + 2 points at a[2]. Dereferencing gives the value stored there. $* (p + 2) = a[2] = 30$ Answer: 30.

Recall Solution L1-B

By the array–pointer identity, indexing is just scaled addition then a dereference: $arr[3] \equiv *(arr + 3) \equiv *(3 + arr)$ Both *(arr+3) and *(3+arr) are correct because + is commutative. (3[arr] is also legal but that isn't "only * and +".) Answer: *(arr + 3) and *(3 + arr).

Recall Solution L1-C

Stride for a char* is sizeof(char) = 1 byte. So five steps $=$ five bytes. $0 x 2000 + 5 \times 1 = 0 x 2005$ Answer: 0x2005.

Level 2 — Application

Plug into the rule with real strides and addresses.

Recall Solution L2-A

Stride $=$ sizeof(int) = 4. Three steps: $0 x 400 + 3 \times 4 = 0 x 400 + 12 = 0 x 40 C$ ( $12$ in hex is 0xC.) Answer: 0x40C.

Recall Solution L2-B

As a double*, stride is 8: $d + 4 = 0 x 1000 + 4 \times 8 = 0 x 1000 + 32 = 0 x 1020$ Cast to char* first, and the stride collapses to 1: $((char*) d) + 4 = 0 x 1000 + 4 \times 1 = 0 x 1004$ 0x1004 lands inside the first double (halfway through its 8 bytes) — usually a bug. See Strings and char pointers. Answer: d + 4 = 0x1020; ((char*)d)+4 = 0x1004.

Recall Solution L2-C

Offset in bytes $= 5 \times sizeof(short) = 5 \times 2 = 10$ bytes. $& s [5] = 0 x 800 + 10 = 0 x 80 A$ Answer: offset 10 bytes; address 0x80A.

Level 3 — Analysis

Reason about what breaks, what's legal, and precedence.

Recall Solution L3-A

* binds tighter than +, so *p + 1 parses as (*p) + 1.

*p + 1 = a[0] + 1 = 7 + 1 = 8
*(p + 1) = a[1] = 8

They give the same number here by coincidence ( $8$ ), but for different reasons. Change the array to {7, 100, 9} and they diverge: *p+1 = 8 but *(p+1) = 100. See Dereference operator and precedence. Answer: *p + 1 = 8 (value-plus-one), *(p + 1) = 8 (next element). Same digit, different meaning.

Recall Solution L3-B

p + 4 → the one-past-the-end pointer. Legal to form, illegal to dereference (undefined behavior).
p + 5 → past one-past-the-end. Illegal even to form — computing it is already undefined behavior.
p - 1 → before the array. Illegal even to form (undefined behavior).

The only "safe zone" for forming is indices 0 through N inclusive; the safe zone for dereferencing is 0 through N-1. See Undefined behavior and bounds. Answer: p+4 form-legal/deref-UB; p+5 UB to form; p-1 UB to form.

Recall Solution L3-C

p + q is illegal — "address plus address" is meaningless; the standard defines only pointer ± int and pointer - pointer.
q - p is legal and gives the element count between them (type ptrdiff_t): $q - p = 4 - 1 = 3$ Note: not bytes — the compiler divides the byte difference by sizeof(int). See Pointer subtraction and ptrdiff_t. Answer: p+q illegal; q-p = 3.

Level 4 — Synthesis

Combine the rule with loops and identities to produce answers.

Recall Solution L4-A

p++ is p = p + 1: each iteration advances one int. We read the current element then step forward:

k=0: read a[0]=2, sum=2
k=1: read a[1]=4, sum=6
k=2: read a[2]=6, sum=12
k=3: read a[3]=8, sum=20
k=4: read a[4]=10, sum=30

After the loop p points at a[5] (one-past-end) — held, never dereferenced. See Arrays decay to pointers. Answer: sum == 30.

Recall Solution L4-B

p starts at a[2] (value 15). Now use the identity x[y] == *(x+y):

p[2] = *(p + 2) = *(a + 4) = a[4] = 25
*(p - 1) = *(a + 1) = a[1] = 10
2[p] = *(2 + p) = *(p + 2) = 25 (commutativity of +)

Answer: p[2] = 25, *(p-1) = 10, 2[p] = 25.

Recall Solution L4-C

Cast to char* gives stride 1, so +12 moves exactly 12 bytes: 0x500 + 12 = 0x50C. Casting back to int*, we ask which element sits at offset 12 bytes: $12/ sizeof(int) = 12/4 = 3$ . So it points at a[3]. $(int*)((char*)a + 12) = & a [3] = 0 x 50 C$ Because 12 is an exact multiple of 4, we land cleanly on an element boundary (no bug this time). Answer: &a[3], address 0x50C.

Level 5 — Mastery

Prove, generalize, and reason about strides you must derive yourself.

Recall Solution L5-A

Let the array start at byte address $A$ and let $s = sizeof(int)$ . Then: $byteaddr (& a [i]) = A + i \cdot s, byteaddr (& a [j]) = A + j \cdot s$ Pointer subtraction is defined as the byte difference divided by the element size: $& a [i] - & a [j] = \frac{( A + i s ) - ( A + j s )}{s} = \frac{( i - j ) s}{s} = i - j$ The $A$ cancels and the $s$ divides out — so the result is i - j independent of the stride. For $i = 7, j = 2$ : $7 - 2 = 5$ . Answer: proven; numeric value 5.

Recall Solution L5-B

The stride for a struct Pt* is sizeof(struct Pt) = 8, not the size of any single field: $p + 3 = 0 x 900 + 3 \times 8 = 0 x 900 + 24 = 0 x 918$ p[3] begins at 0x918. Its field y sits after x (an int, 4 bytes) inside the struct, so y is at byte offset 4 within that struct: $& p [3] . y = 0 x 918 + 4 = 0 x 91 C$ Total byte offset from p to p[3].y is $24 + 4 = 28$ . Answer: p + 3 = 0x918; &p[3].y = 0x91C; offset 28 bytes.

Recall Solution L5-C

Work left to right, tracking the current pointer type because the stride follows the type:

L + 1: L is long*, stride 8. → 0x2000 + 8 = 0x2008.
(int*)(...): reinterpret that address as an int*. Address unchanged: 0x2008, but stride now 4.
... + 1: now an int*, stride 4. → 0x2008 + 4 = 0x200C. $\Rightarrow 0 x 200 C$ The lesson: a cast changes the stride of future arithmetic, never the current address. See Multidimensional arrays and pointers where this stride-switching drives row/element navigation. Answer: 0x200C.

Recall

Recall What did each level test?

L1 :: reading an expression's meaning (element vs byte). L2 :: substituting real strides and addresses (watch the hex). L3 :: precedence, legality/UB, and pointer±pointer rules. L4 :: loops, the x[y]==*(x+y) identity, and cast-driven byte moves. L5 :: deriving strides yourself — subtraction proof, struct stride, mixed casts.
