Pointer arithmetic — adding integers to pointers: Worked examples

This page is the "hands dirty" companion to Pointer arithmetic — adding integers to pointers (index 5.1.9). We take the single rule from the parent —

— and drive it through every situation it can produce: positive steps, negative steps, the zero step, one-past-the-end, tiny char strides, fat double strides, casting to change the stride, a word problem, and an exam trap. Nothing here is new rule; everything is that one rule reused, exactly as the parent's 80/20 sentence promised.

Before we start, three plain-word reminders so no symbol is unearned:

The scenario matrix

Every pointer-arithmetic question is one (or a combo) of these cells. The worked examples below are each tagged with the cell they hit, and together they touch every row.

#	Case class	What is special	Example
A	Positive step, `int*`	ordinary forward move	Ex 1
B	Negative step	subtract lands you behind	Ex 2
C	Zero step	`p + 0` degenerate case	Ex 2
D	`char*` stride = 1	smallest possible stride	Ex 3
E	`double*` stride = 8	largest common stride	Ex 3
F	Cast changes stride	same address, new lens	Ex 4
G	One-past-the-end limit	legal to form, illegal to deref	Ex 5
H	Walking with `p++`	loop / accumulate	Ex 6
I	`i[arr]` commutativity twist	exam gotcha	Ex 7
J	Precedence `p+1` vs `(p+1)`	operator-binding trap	Ex 8
K	Word problem (real memory layout)	translate English → arithmetic	Ex 9

The address picture we will reuse

Every example below is a walk along the same idea: a row of equal-width boxes in memory. Keep this figure in your head.

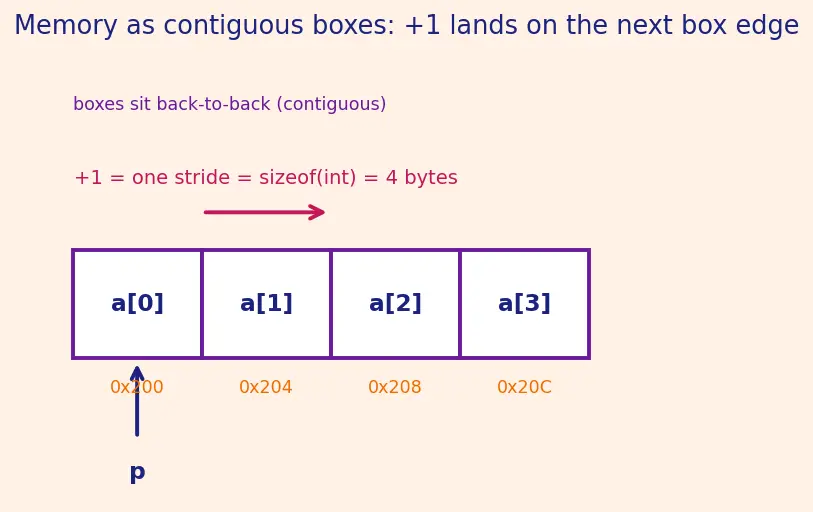

Figure — Pointer arithmetic — adding integers to pointers

Look at the picture: each box is sizeof(T) bytes wide, boxes sit back-to-back (arrays are contiguous — see Arrays decay to pointers), and the pointer's +1 always lands you cleanly on the next box's left edge, never halfway inside a box.

Ex 1 — Positive step, `int*` (Cell A)

Worked example Forward move

int a[4] = {10, 20, 30, 40};
int *p = a;              // p holds &a[0], say 0x200
// What address is (p + 3), and what value does *(p + 3) read?

Forecast: Guess the address and the value before reading on. (Hint: how many bytes is 3 steps?)

Step 1 — Identify the stride. Why this step? Every calculation begins with "how wide is one box?" Here *p is an int, so stride $= sizeof(int) = 4$ bytes.

Step 2 — Scale the step. Why this step? The rule multiplies the step count by the stride. $3 \times 4 = 12$ bytes.

Step 3 — Add to the base address. Why this step? p + n is base address plus the scaled offset. $0 x 200 + 12 = 0 x 20 C$ (because $0 x 200 = 512$ , $512 + 12 = 524 = 0 x 20 C$ ).

Step 4 — Dereference. Why this step? *(p+3) reads the box at that address, which is element index 3 = a[3] = 40.

Verify: Cross-check with the identity *(p+3) == a[3] from the parent. a[3] is literally 40. ✓ And $0 x 20 C - 0 x 200 = 12 = 3 \times 4$ . ✓

Ex 2 — Negative step and the zero step (Cells B & C)

Worked example Going backward, and going nowhere

int a[5] = {2,4,6,8,10};
int *p = &a[3];   // p points at the value 8, at address 0x200
// (1) *(p - 2) = ?     (2) *(p + 0) = ?     (3) address of (p - 3) if 0x200 is &a[3]?

Forecast: Which of the three moves you, and which leaves you put?

Step 1 — Negative works exactly like positive, just signed. Why this step? The scaling rule n × sizeof(T) does not care about the sign of n. With n = -2: offset $= - 2 \times 4 = - 8$ bytes. From a[3] back two boxes lands on a[1]. *(p-2) = a[1] = 4.

Step 2 — The zero step is the degenerate case. Why this step? We must cover n = 0: offset $= 0 \times 4 = 0$ . So p + 0 == p, pointing at the same box. *(p+0) = a[3] = 8. (Nothing moves — the identity element.)

Step 3 — Push past the front edge. Why this step? Cover the limiting move toward index 0. p - 3 from a[3] gives a[0] at address $0 x 200 - 3 \times 4 = 0 x 200 - 12 = 0 x 1 F 4$ . That is exactly &a[0] — still inside the array, so still fine.

Verify: Distances back-check via Pointer subtraction and ptrdiff_t: (p) - (p-2) = 2 and (p) - (p+0) = 0. Element values: a[1]=4, a[3]=8. ✓ Address: $0 x 1 F 4 = 500 = 512 - 12$ . ✓

[!mistake] p - 4 from a[3] would land before a[0]. That address is UB even to compute (see Undefined behavior and bounds). Only offsets that keep you within a[0] .. a[5] (one-past-end) are defined.

Ex 3 — Smallest stride vs largest stride (Cells D & E)

Worked example

char* (stride 1) beside double* (stride 8)

char   *c = (char*)  0x1000;   // c + 5 = ?
double *d = (double*)0x1000;   // d + 5 = ?

Same base address, same +5, but different lenses.

Forecast: How far apart are the two results?

Step 1 — Read each stride off the type. Why this step? The type is the only thing that sets the box width. sizeof(char)=1, sizeof(double)=8.

Step 2 — Scale each. Why this step? Apply n × sizeof(T) to each. c: $5 \times 1 = 5$ bytes → $0 x 1000 + 5 = 0 x 1005$ . d: $5 \times 8 = 40$ bytes → $0 x 1000 + 40 = 0 x 1028$ .

Step 3 — Compare. Why this step? To feel how much the type matters, subtract: the two +5 results differ by $0 x 1028 - 0 x 1005 = 0 x 23 = 35$ bytes, all from choosing a different type.

Verify: $0 x 1005 = 4096 + 5 = 4101$ . $0 x 1028 = 4096 + 40 = 4136$ . $4136 - 4101 = 35$ . ✓ And $35 = 5 \times 8 - 5 \times 1 = 5 \times 7$ . ✓

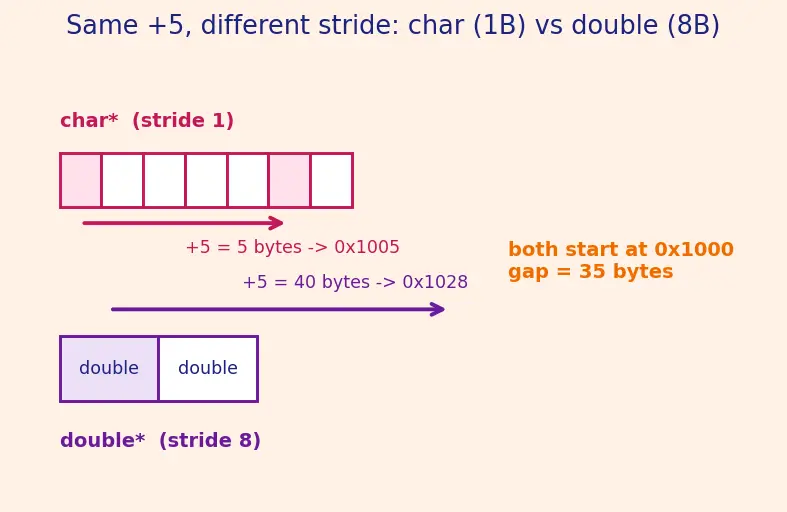

Look at the figure: the thin char boxes make +5 a short hop; the fat double boxes make the identical +5 a long stride. The pointer type is the box width.

Ex 4 — Casting changes the stride mid-flight (Cell F)

Worked example Same bytes, new ruler

int  a[2] = {0, 0};
int *p = a;               // &a[0] = 0x200
// Compare (p + 1) with ((char*)p + 1)

Forecast: One of these lands on a[1]; the other lands inside a[0]. Which is which?

Step 1 — p + 1 uses the int stride. Why this step? p is still an int*, so stride 4. $0 x 200 + 1 \times 4 = 0 x 204$ = &a[1]. Clean element boundary.

Step 2 — Cast first, then add. Why this step? (char*)p reinterprets the same address 0x200 but with stride 1. Now +1 moves just 1 byte: $0 x 200 + 1 = 0 x 201$ .

Step 3 — Interpret 0x201. Why this step? 0x201 is byte 1 of the four bytes of a[0] — you are standing inside an integer. Reading an int there is almost always a bug (see Dereference operator and precedence and Undefined behavior and bounds).

Verify: $0 x 204 - 0 x 200 = 4 = sizeof(int)$ ✓ (element hop). $0 x 201 - 0 x 200 = 1 = sizeof(char)$ ✓ (byte hop). Difference between the two results $= 4 - 1 = 3$ bytes. ✓

Ex 5 — The one-past-the-end limit (Cell G)

Worked example The furthest legal address

int a[3] = {7, 8, 9};   // &a[0] = 0x100
int *end = a + 3;       // one-past-the-end
// What address is `end`? Is *end allowed? Is a+4 allowed to even form?

Forecast: Guess the three answers: address of end, legality of *end, legality of a+4.

Step 1 — Compute a + 3. Why this step? Standard scaling: $0 x 100 + 3 \times 4 = 0 x 10 C$ . This names the byte just after a[2].

Step 2 — Is it legal to hold? Why this step? The C standard makes exactly ONE special promise: forming the pointer one element past the last is defined, so loops can test p != end. So end = 0x10C is a valid address to store and compare.

Step 3 — Is it legal to dereference? Why this step? *end reads a box that is not part of the array → undefined behavior. Never dereference the end pointer.

Step 4 — What about a + 4? Why this step? Cover the limit beyond the limit: a + 4 is two past the end. Forming it is already UB — not just dereferencing. The one-step-past promise does not extend to two.

Verify: end - a = 3 (a valid ptrdiff_t, see Pointer subtraction and ptrdiff_t). $0 x 10 C = 256 + 12 = 268$ . ✓ Legal range to form: indices 0..3; legal range to deref: 0..2.

Ex 6 — Walking an array with `p++` (Cell H)

Worked example Accumulate with a moving pointer

int a[5] = {2,4,6,8,10};
int *p = a;
int sum = 0;
for (int k = 0; k < 5; k++) { sum += *p; p++; }
// sum = ?  and where does p point after the loop?

Forecast: Guess the sum, and guess where p ends up.

Step 1 — p++ is p = p + 1. Why this step? Increment on a pointer is the same scaling rule with n = 1: advance one int = 4 bytes = one element forward.

Step 2 — Trace the five reads. Why this step? We must show the whole trajectory, not assume it. Reads: a[0]=2, a[1]=4, a[2]=6, a[3]=8, a[4]=10.

Step 3 — Add them. Why this step? $2 + 4 + 6 + 8 + 10 = 30$ . So sum == 30.

Step 4 — Where is p? Why this step? After 5 increments from &a[0], p == a + 5 = one-past-the-end (Cell G) — legal to hold, never dereference.

Verify: Sum of the arithmetic list = 30 (checked in VERIFY). Final p - a = 5. ✓

Ex 7 — The `i[arr]` commutativity twist (Cell I)

Worked example Legal-but-weird indexing

int a[4] = {100, 200, 300, 400};
int r = 2[a];   // yes, this compiles. What is r?

Forecast: Is this even legal C? If so, what value?

Step 1 — Unfold the bracket. Why this step? By the parent's identity, X[Y] is defined as *(X + Y). So 2[a] means *(2 + a).

Step 2 — Use commutativity of +. Why this step? Pointer + integer addition is commutative: 2 + a == a + 2. So *(2 + a) == *(a + 2).

Step 3 — Evaluate normally. Why this step? *(a + 2) reads element 2 = a[2] = 300. So r == 300.

Verify: a[2] == 300 and 2[a] == a[2] by definition. ✓ (This is the exam trick: 2[a] is not a typo, it's the identity in disguise.)

Ex 8 — Precedence: `p + 1` vs `(p + 1)` (Cell J)

Worked example One character changes everything

int a[3] = {50, 60, 70};
int *p = a;      // p -> a[0]
int x = *p + 1;
int y = *(p + 1);
// x = ?  y = ?

Forecast: Are x and y equal? Guess both.

Step 1 — Apply the binding rule. Why this step? * (dereference) binds tighter than +. So *p + 1 parses as (*p) + 1 — read first, then add.

Step 2 — Evaluate x. Why this step? *p is a[0] = 50; add 1 → x = 51. We never moved the pointer.

Step 3 — Evaluate y. Why this step? The parentheses force the addition first: p + 1 points at a[1], then * reads it → y = 60. Here we moved the pointer one element.

Verify: x = 50 + 1 = 51, y = a[1] = 60. They differ. ✓ Rule: parentheses beat precedence — see Dereference operator and precedence.

Ex 9 — Word problem: laying out a record buffer (Cell K)

Worked example Real memory layout

A device streams samples into a buffer as doubles. The buffer starts at address 0x4000. You are told sample #0 is at the start. At what byte address does sample #6 begin, and how many bytes into the buffer is that?

Forecast: Guess the address and the byte-offset before computing.

Step 1 — Model it as a double*. Why this step? Translating English to arithmetic: "buffer of doubles from 0x4000" ⇒ double *buf = (double*)0x4000;. Stride $= sizeof(double) = 8$ .

Step 2 — buf + 6 gives sample #6. Why this step? Sample number = element index. Offset $= 6 \times 8 = 48$ bytes.

Step 3 — Add to base. Why this step? $0 x 4000 + 48$ . $0 x 4000 = 16384$ , $16384 + 48 = 16432 = 0 x 4030$ .

Step 4 — Byte offset into buffer. Why this step? "How many bytes in" is just the scaled offset itself = 48 bytes.

Verify: $0 x 4030 - 0 x 4000 = 48 = 6 \times 8$ ✓. Sanity units: 6 samples × 8 bytes/sample = 48 bytes. ✓

Recall

Recall Which cell is each expression?

p + 0 (int*) ::: Cell C — zero step, p unchanged. ((char*)p) + 1 ::: Cell F — cast changes stride to 1 byte. a + N for int a[N] ::: Cell G — one-past-the-end, legal to form, not to deref. 3[a] ::: Cell I — commutativity; equals a[3]. *p + 1 ::: Cell J — precedence; (*p)+1, not *(p+1).
