Memory layout — text, data, BSS, heap, stack segments

WHAT are the segments?

WHY does each segment exist? (first-principles reasoning)

Intuition Reason it out instead of memorizing

Text is read-only & shared — instructions never change while running. If 100 copies of vim run, why store the code 100 times? One read-only copy, shared. Read-only also stops bugs/viruses from rewriting your code.
Data vs BSS split — A global int x = 42; must store the literal 42 inside the file on disk. A global int y; (or =0) carries no information — it's all zeros. Storing a million zeros on disk is wasteful, so BSS only records "reserve N bytes, fill with 0." This is why a int big[1000000]; global barely grows your .exe.
Heap grows up, stack grows down — they share the gap in the middle. Growing toward each other lets either one use as much of the free space as it needs, without fixing a hard boundary in advance. They collide only in extreme cases (then: heap-overflow / stack-overflow).
Stack is automatic, heap is manual — stack memory is freed automatically when a function returns (just move the stack pointer back). Heap must be freed by you (free) because the program can't know when you're done with it.

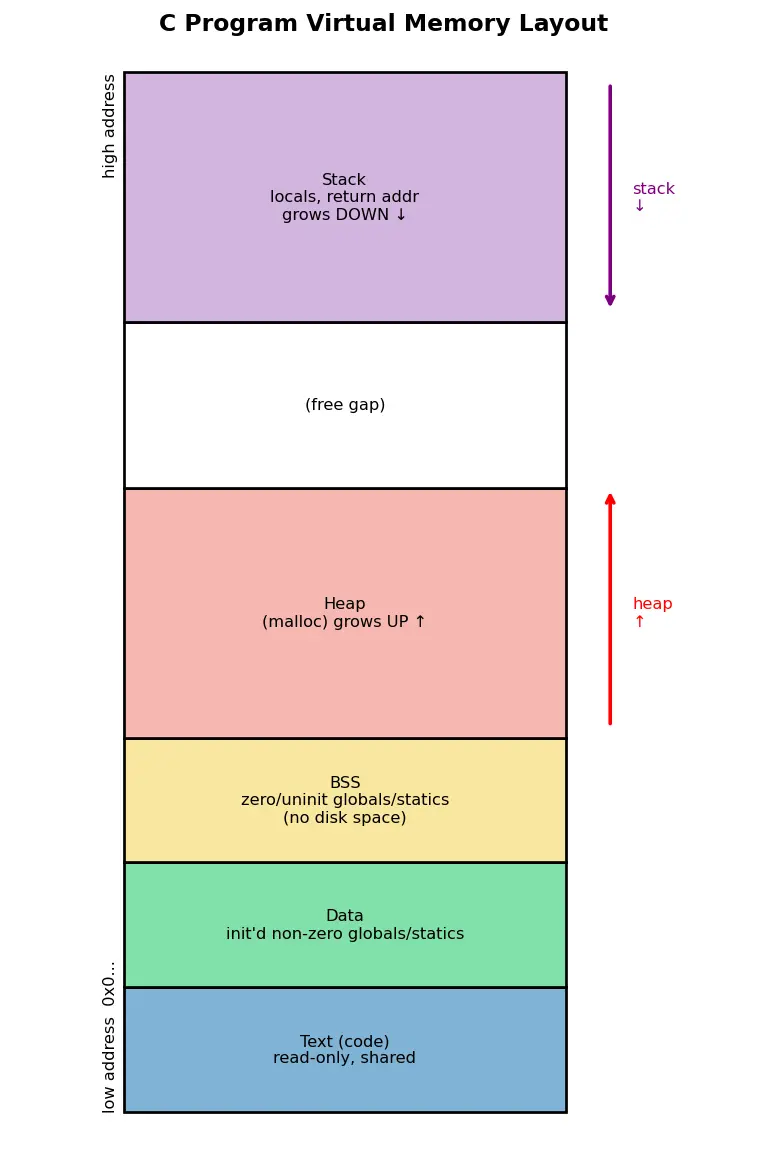

HOW is the address space arranged?

Formula Layout & growth directions

$\text{low addr}\;\underbrace{[\text{Text}]}_{\text{RO code}}\;[\text{Data}]\;[\text{BSS}]\;\underbrace{[\text{Heap}\rightarrow]}_{\text{grows up}}\;\cdots\;\underbrace{[\leftarrow\text{Stack}]}_{\text{grows down}}\;\text{high addr}$

Heap top is tracked by the program break (moved by brk/sbrk). Stack top is tracked by the stack pointer (register, e.g. rsp).

$\text{Heap grows: } \text{addr} \uparrow \quad$ (break increases)
$\text{Stack grows: } \text{addr} \downarrow \quad$ (SP decreases on push)

WORKED EXAMPLES — where does each variable live?

Worked example Example 1 — classify every variable

#include <stdlib.h>
int   g_init   = 5;      // (A)
int   g_zero   = 0;      // (B)
int   g_uninit;          // (C)
static int s_init = 7;   // (D)

int main(void) {
    int local = 3;       // (E)
    static int s = 0;    // (F)
    int *p = malloc(40); // (G) p itself? *p?
    return 0;
}

Var	Segment	Why this step?
A `g_init=5`	Data	global, non-zero init → value `5` stored on disk
B `g_zero=0`	BSS	global, zero init → no need to store zeros
C `g_uninit`	BSS	global uninitialized = treated as zero
D `s_init=7`	Data	`static` → static storage duration, non-zero
E `local=3`	Stack	auto variable inside `main`'s frame
F `s=0`	BSS	`static` inside function still static storage, zero
G `p`	Stack	the pointer variable `p` is a local
G `*p` (40 bytes)	Heap	`malloc` returns heap memory

Worked example Example 2 — why the executable shrinks (Data→BSS)

int arr[1000000] = {1};   // version A: one non-zero element
int arr[1000000];         // version B: all default zero

Version A: the array is initialized (even partly) → must be representable, so it sits in Data and bloats the file by ~4 MB.
Version B: all zeros → lives in BSS → file grows by only a few bytes (just "reserve 4 MB, zero it").
Why this matters: Forecast-then-Verify — compile both, run size a.out, watch the data vs bss columns swap. The total RAM at runtime is the same; only the on-disk file differs.

Worked example Example 3 — proving growth directions

void f(void) {
    int a, b;                 // both on stack
    printf("%p %p\n", &a, &b);
    int *p = malloc(4), *q = malloc(4);
    printf("%p %p\n", p, q);  // heap
}

Typically &a > &b (or vice versa depending on order) but stack addresses are HIGH; heap addresses are much LOWER than stack ones.
Successive mallocs usually give increasing addresses (heap grows up); successive local-frame variables sit in decreasing addresses (stack grows down). Why? Confirms the layout formula above.

Common mistakes (Steel-man + fix)

Active recall

Recall Try before peeking

Which segment is read-only? Text.
int x; global lives where? BSS.
int x = 9; global lives where? Data.
Does BSS occupy disk space? No (only a size record).
Which way does the heap grow? Up (higher addresses).
Which way does the stack grow? Down (lower addresses).
Where does malloc's block live? Heap.
Where does a function's local int live? Stack.

Recall Feynman: explain to a 12-year-old

Imagine your program gets a big bookshelf. The bottom shelf holds the instruction manual — you can read it but never scribble on it (Text). The next shelves hold toys you already filled with stuff (Data) and empty boxes labeled "fill with zeros" (BSS) — the empty boxes don't need to be packed in the moving truck, you just write "10 empty boxes" on a sticky note. In the big middle space, the toy pile grows up from the floor every time you ask for a new toy (Heap = malloc), and a stack of plates grows down from the ceiling every time you start a new chore and place a plate (Stack = function calls). When the chore is done, you take the plate back automatically. If the toy pile and plate stack ever crash into each other — you're out of room!

Connections

malloc, calloc, realloc and free — how the heap is managed.
Stack frames and the calling convention — what's inside a stack push.
Static and global variables — storage duration — Data vs BSS rules.
Pointers and dangling pointers — heap lifetime bugs.
Virtual memory and paging — how segments map to physical RAM.
Buffer overflow and stack smashing — security side of the stack.

Which segment stores compiled machine instructions and is read-only?

The text (code) segment.

Where do initialized non-zero global/static variables live?

The data segment.

Where do uninitialized or zero-initialized globals/statics live?

The BSS segment.

Why does BSS take no space in the executable file?

It stores only a size to reserve; the OS zero-fills it at load time, so the all-zero contents need not be saved on disk.

What is the default value of an uninitialized GLOBAL variable in C?

Zero (it goes to BSS, guaranteed zero-initialized).

What is the value of an uninitialized LOCAL (auto) variable?

Indeterminate/garbage — it's on the stack and not auto-zeroed.

Which direction does the heap grow?

Toward higher addresses (program break moves up via brk/sbrk).

Which direction does the stack grow?

Toward lower addresses (stack pointer decreases on push).

When you call malloc inside a function, where is the returned block, and where is the pointer?

The block is on the heap; the pointer variable is on the stack.

What tracks the top of the heap?

The program break, adjusted by brk/sbrk.

What tracks the top of the stack?

The stack pointer register (e.g. rsp).

What causes a stack overflow vs heap exhaustion?

Stack overflow = too-deep recursion/huge locals (SP past limit); heap exhaustion = malloc returns NULL.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Jab tum ek C program run karte ho, OS usko ek private virtual memory deta hai, aur woh memory alag-alag segments mein bant ti hai. Sabse neeche Text segment hota hai — yeh tumhara compiled code hai, read-only, taaki koi galti se ya virus tumhare instructions ko overwrite na kar de. Uske upar Data segment hota hai jisme woh global/static variables aate hain jinhe tumne non-zero value se initialize kiya (jaise int x = 5;). Phir BSS aata hai — yeh woh globals/statics hain jo zero hain ya uninitialized (int y;). BSS ka mast point yeh hai ki yeh disk file mein jagah nahi leta, kyunki saare zeros ko save karne ka koi matlab nahi; OS load time pe khud zero bhar deta hai.

Beech ke bade khaali area mein do cheezein ek dusre ki taraf badhti hain. Heap (jo malloc/calloc se milta hai) upar ki taraf (higher address) grow karta hai, aur Stack (function calls, local variables, return address) neeche ki taraf (lower address) grow karta hai. Donon ek hi gap share karte hain, isliye koi bhi zyada use kar sakta hai — par agar dono takra jayein to overflow ho jata hai.

Sabse common confusion: global uninitialized variable C mein zero hota hai (BSS guarantee deta hai), lekin local uninitialized variable garbage hota hai (stack auto-zero nahi karta). Aur dhyan rakho: jab tum function ke andar malloc karte ho, to pointer stack pe hota hai par actual block heap pe, jo function khatam hone ke baad bhi zinda rehta hai — isliye tumhe free karna padta hai.

Yeh samajhna kyun zaroori hai? Kyunki memory bugs (dangling pointer, stack overflow, memory leak) sab isi layout se aate hain. Jab tumhe pata hota hai konsa data kahan rehta hai aur kab tak zinda rehta hai, tab tum sahi se debug kar pate ho aur efficient code likh pate ho.
