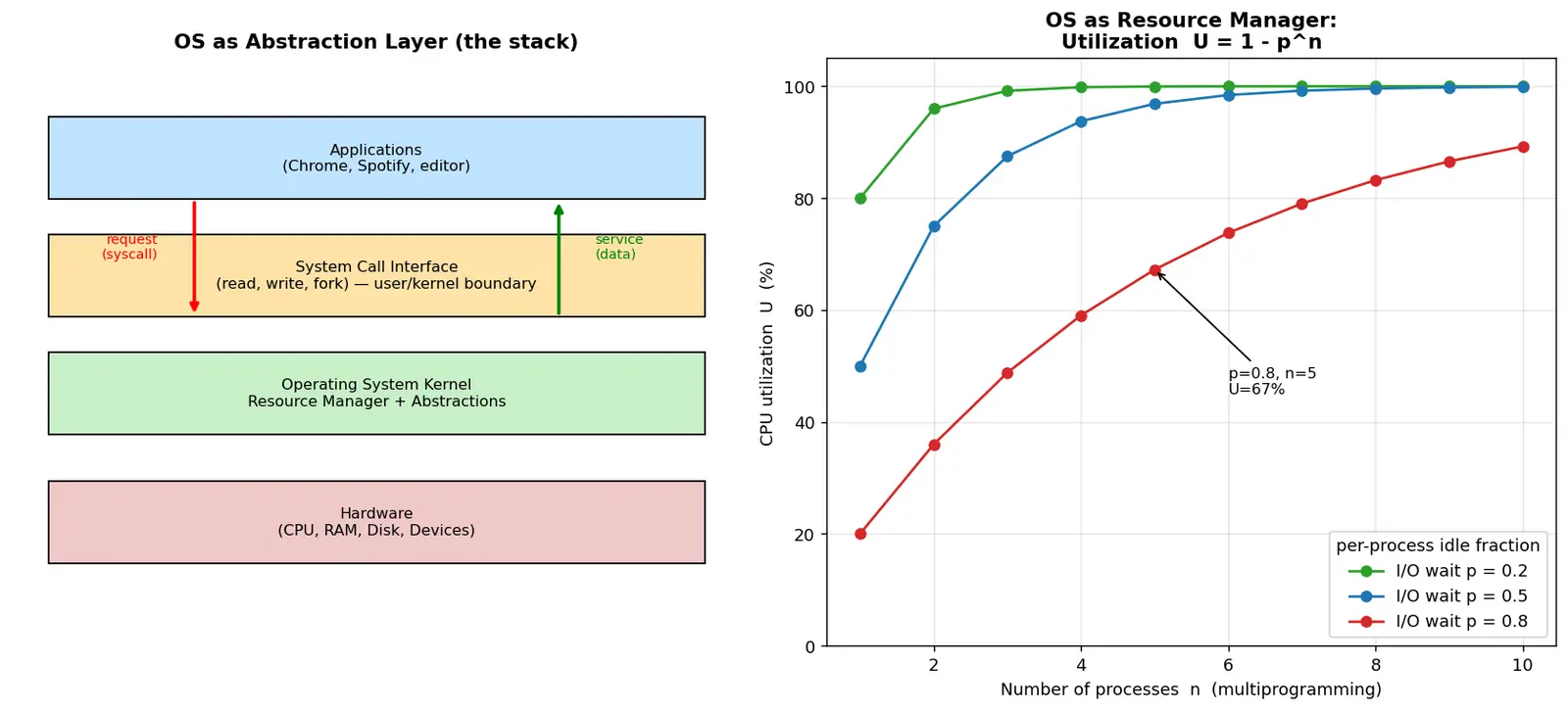

Operating system role — resource manager, abstraction layer
WHAT is an Operating System?
The two pillars:
| Role | What it solves | Example |
|---|---|---|
| Resource manager | Many programs, limited hardware | Scheduling CPU between Chrome & Spotify |
| Abstraction layer | Hardware is messy & varies | "Open a file" works on SSD, HDD, USB |
WHY do we even need an OS?
HOW: Role 1 — Resource Manager
The OS controls four classes of resource. The trick everywhere is multiplexing: sharing one physical thing among many users in space or time.
CPU — time multiplexing (scheduling)
The OS gives each process a small time slice (quantum), then a hardware timer interrupt forces control back to the OS, which picks the next process. This creates the illusion of programs running simultaneously on a single core.
Memory — space + time multiplexing
The OS hands each process its own virtual address space and tracks which physical RAM frames are free.
Disk, devices, time
The OS arbitrates disk access, owns device drivers, and meters access (permissions) so one user can't trample another.
HOW: Role 2 — Abstraction Layer
The OS replaces physical nastiness with clean conceptual objects:
| Raw hardware reality | OS abstraction | Program just says |
|---|---|---|
| Magnetic sectors / NAND blocks | File / filesystem | open("a.txt") |
| Physical RAM addresses, swapping | Virtual memory / address space | use any address |
| One CPU, registers, interrupts | Process / thread | "run my code" |
| Voltage signals on a port | Device file / driver API | write(socket, ...) |
Forecast-then-Verify
Recall Forecast before reading the answer
Q: You have a single CPU core. Programs are CPU-bound (almost no I/O, ). Does running more programs improve CPU utilization? Predict, then check.
Verify: . With , already with one program. Extra programs add no utilization gain (and add switching overhead). Multiprogramming only helps when is large (I/O-heavy). ✅
Common Mistakes (Steel-man + Fix)
Flashcards
What are the two core roles of an operating system?
Define multiplexing and its two kinds.
Why does the CPU appear to run many programs at once on one core?
What formula gives CPU utilization with n processes each idle fraction p in I/O?
What is a system call?
Why do we need user mode vs kernel mode?
Give the OS abstraction for raw disk sectors.
Give the OS abstraction for physical RAM and CPU respectively.
Worst-case wait for a process in round-robin (n procs, quantum q)?
When does multiprogramming NOT improve utilization?
Recall Feynman: explain to a 12-year-old
A computer's brain (CPU) can really only do one tiny thing at a time, but you want music, games, and homework all going. The Operating System is like a super-fast teacher in a classroom: it lets one kid talk for a split second, then the next, so fast it looks like everyone talks together. It also keeps kids from grabbing each other's stuff (your game can't peek at your bank app). And it gives easy buttons — you say "save my file" and the teacher does all the boring machine work behind the curtain. So the OS = fair sharer + helpful curtain.
Connections
- Processes and Threads — the CPU abstraction the OS schedules.
- Virtual Memory — the RAM abstraction & space multiplexing.
- System Calls and Kernel Mode — the user↔kernel boundary.
- CPU Scheduling — algorithms behind time multiplexing.
- File Systems — the disk abstraction.
- Interrupts and the Fetch-Execute Cycle — how the timer returns control to the OS.
- Device Drivers — hardware diversity hidden by the OS.
Concept Map
Hinglish (regional understanding)
Intuition Hinglish mein samjho
Dekho, Operating System ko ek hostel ke manager ki tarah samjho. Computer ke andar CPU, RAM, disk sab limited hain, par tum ek saath Chrome, Spotify, aur code editor chalana chahte ho. Agar koi manager na ho to do programs ek hi RAM ya CPU pe ladai kar denge aur system crash ho jayega. Isliye OS ke do main kaam hain: ek resource manager (kaun, kab, kitna hardware use karega — yeh decide karna) aur doosra abstraction layer (hardware ki gandi details chhupa ke simple interface dena, jaise "file open karo").
Resource manager wala part multiplexing se chalta hai. Single core pe OS har program ko ek chhota sa time slice (jaise 10 ms) deta hai, phir timer interrupt se control wapas le leta hai aur agle program ko chance deta hai. Itni fast switching hoti hai ki humein lagta hai sab ek saath chal rahe hain — actually woh sirf illusion hai. Aur ek mast formula hai: , jahan matlab program ka I/O wait ka fraction. Iska matlab — agar programs zyada I/O karte hain (disk/network wait), to zyada programs chalane se CPU busy rehta hai, idle nahi baithta. Isliye OS itne saare programs juggle karta hai.
Abstraction wala part bhi utna hi zaroori hai. Tum code mein bas read() ya open() likhte ho — peeche OS hi disk ke sectors dhundhta hai, permission check karta hai, driver ko command bhejta hai. Yeh sab system call ke through hota hai, jahan program user mode se kernel mode mein jata hai. Yeh design protection deta hai: tumhara game tumhare bank app ki memory nahi padh sakta, kyunki OS use map hi nahi karta. Yaad rakhne ka tarika: OS = tumhare computer ka "MA" — Manager aur Abstractor.
