Visual walkthrough — 12 principles of green chemistry

This is the visual companion to Green Chemistry & Sustainability and the parent note on the 12 principles. It zooms into Principle 2 — Atom Economy.

---

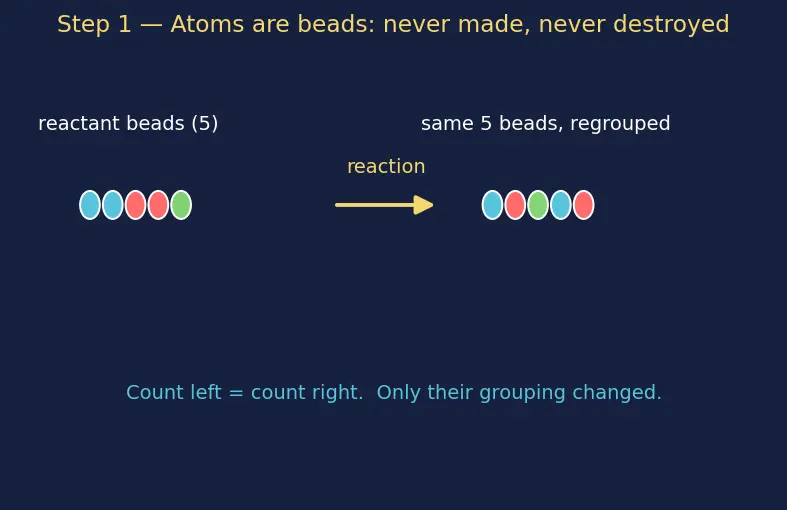

Step 1 — What a reaction really is: rearranging beads

WHAT: Picture the reactants as boxes of coloured beads on the left. A reaction shuffles those exact beads into new boxes on the right.

WHY: This single fact — beads are conserved — is the entire foundation. If atoms could vanish, "how many atoms landed in the product?" would be meaningless. Because they can't vanish, every bead we start with must show up somewhere on the right.

PICTURE: Count the beads on the left, count them on the right — same total. The only question that remains is which box each bead ends up in.

---

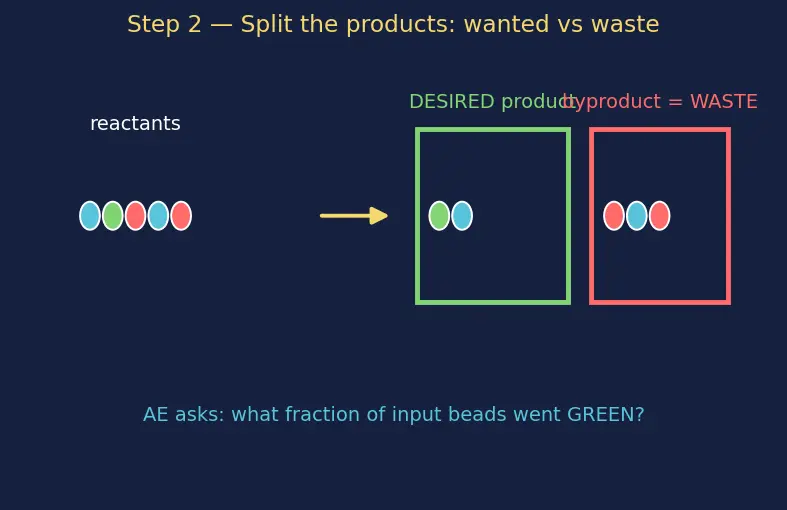

Step 2 — Splitting the right side: "product I want" vs "waste"

WHAT: We draw a line down the right-hand side, separating the box we care about from all the leftover boxes.

WHY: Yield (a different number) only asks "how full is my desired box compared to the most it could be?" Atom economy asks a deeper thing: of all the beads I paid for, what fraction landed in the box I wanted? To answer that we must first name the waste boxes so we can measure them.

PICTURE: Green box on the right = desired product. Red boxes = byproducts. The beads are the same beads from Step 1 — just sorted.

---

Step 3 — Why we weigh instead of count: molar mass enters

WHAT: We replace "count the beads" with "weigh the beads," using $M$ for each molecule.

WHY this tool and not another? Mass — not atom-count, not volume, not moles-of-molecules — is the honest currency. It is conserved (Step 1), it is what you buy and what you throw away, and it lets a light atom count for less than a heavy one, exactly as reality demands.

PICTURE: Each bead now carries a little weight tag. Big red bromine beads weigh far more than tiny blue hydrogen beads.

---

Step 4 — Conservation as a mass equation

Now we write Step 1 in the language of weights from Step 3.

$\underset{\text{everything we put in}}{\underbrace{{\text{mass}}_{\text{reactants}}}}=\underset{\text{the box we wanted}}{\underbrace{{\text{mass}}_{\text{desired}}}}+\underset{\text{the waste boxes}}{\underbrace{{\text{mass}}_{\text{byproducts}}}}$

Term by term:

• ${\text{mass}}_{\text{reactants}}$ — the total weight on the left balance pan.
• ${\text{mass}}_{\text{desired}}$ — the weight of the green box only.
• ${\text{mass}}_{\text{byproducts}}$ — the summed weight of every red box.

WHAT: A balance-scale statement: left pan mass equals right pan mass, and the right pan is split into "wanted + waste."

WHY: This rearranges into exactly the fraction we want. If wanted + waste = input, then fraction wanted $=\frac{\text{wanted}}{\text{input}}$, and everything above the desired box is provably waste. No third mystery term can hide.

PICTURE: A two-pan balance, perfectly level. Right pan visibly divided green-vs-red.

---

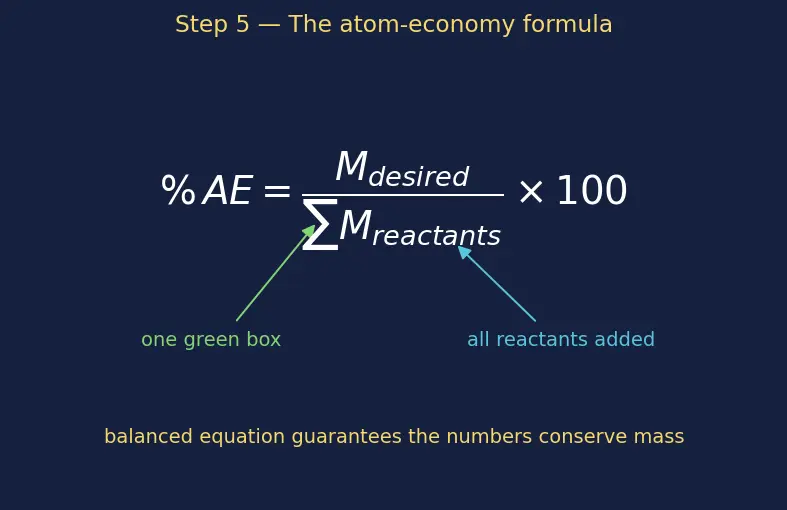

Step 5 — The formula assembled

We now take the fraction "wanted ÷ input" and turn it into a percentage.

$\boxed{\%\text{AE}=\frac{M_{\text{desired product}}}{\sum M_{\text{all reactants}}}\times 100}$

Term by term:

• $M_{\text{desired product}}$ — molar mass of the one green box (Step 2 + Step 3).
• $\sum M_{\text{all reactants}}$ — the $\sum$ symbol means "add up"; here it adds the molar masses of every reactant, each multiplied by how many of it the balanced equation needs.
• $\times 100$ — converts the fraction into a friendly percentage.

WHY the balanced equation? Because only a balanced equation has equal beads on both sides (Step 1). If it were unbalanced, $\sum M_{\text{reactants}}$ would not equal the total product mass and the fraction would lie. Balancing is what guarantees conservation holds for our numbers.

---

Step 6 — The 100% case: addition reactions

WHAT: In an addition reaction, two molecules join into one — there is no red box at all. $C_2{H}_4+B{r}_2\to C_2{H}_{4}B{r}_2$

WHY it must be 100%: Every bead on the left ends in the single product on the right. The desired box is the whole right pan, so $M_{\text{desired}}=\sum M_{\text{reactants}}$ and the fraction is exactly 1.

$\%\text{AE}=\frac{\underset{C_2{H}_{4}B{r}_2}{\underbrace{188}}}{\underset{C_2{H}_4}{\underbrace{28}}+\underset{B{r}_2}{\underbrace{160}}}\times 100=\frac{188}{188}\times 100=100\%$

PICTURE: No waste box exists — the whole right pan is green.

See Atom Economy and Yield for why yield and AE are different questions.

---

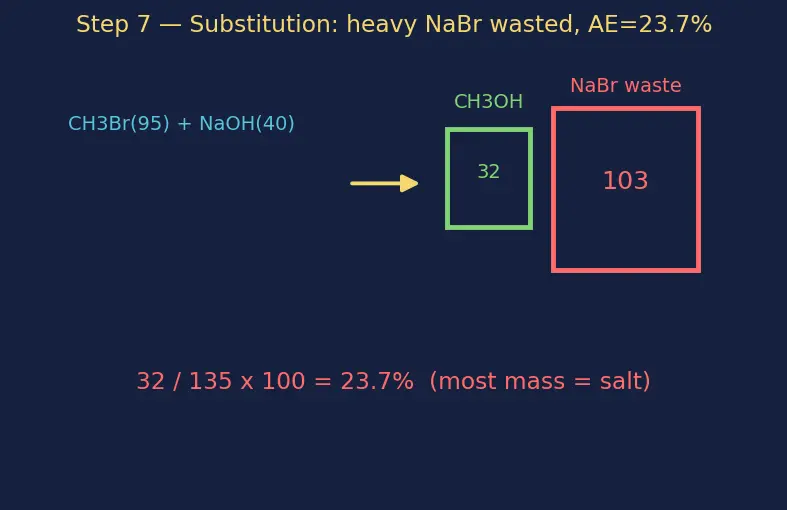

Step 7 — The wasteful case: substitution kicks a bead out

WHAT: In a substitution, one piece leaves as an unavoidable byproduct. $C{H}_{3}Br+NaOH\to C{H}_{3}OH+NaBr$

WHY it is low: We wanted $C{H}_{3}OH$ ($M=32$), but a heavy salt $NaBr$ ($M=103$) drops out — a big red box. Because $NaBr$ is so heavy, most input mass becomes waste even at 100% yield.

$\%\text{AE}=\frac{\stackrel{C{H}_{3}OH\text{ (green)}}{\overbrace{32}}}{\underset{C{H}_{3}Br}{\underbrace{95}}+\underset{NaOH}{\underbrace{40}}}\times 100=\frac{32}{135}\times 100\approx 23.7\%$

PICTURE: A large red $NaBr$ box dominates the right pan; the green box is tiny.

---

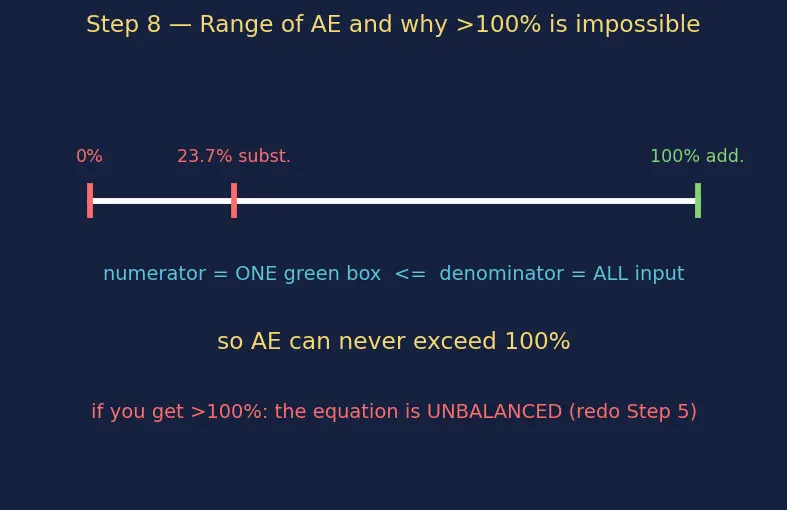

Step 8 — The degenerate cases (so nothing surprises you)

WHAT / WHY / PICTURE for each corner case:

• Zero byproducts → red pan empty → $\%\text{AE}=100\%$ (Step 6). The ceiling.
• Desired box is the lightest box → tiny numerator, huge denominator → $\%\text{AE}\to$ small (Step 7). The floor is set by how heavy the waste is.
• Two reactants but you only wanted a fragment of one → the entire second reactant plus the discarded fragment all count in the denominator but not the numerator → AE crashes.
• $\%\text{AE}$ can never exceed 100% — the numerator is one box, the denominator is all input which includes that box; the green box can at most equal, never beat, the total. If you ever compute $>100\%$, your equation is unbalanced (revisit Step 5).

---

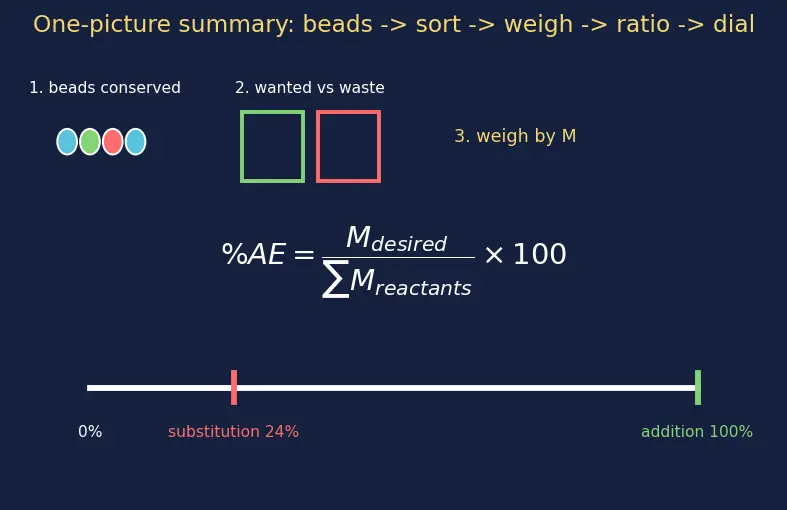

The one-picture summary

Everything on this page in a single frame: beads conserved (Step 1), sorted into green-wanted and red-waste (Step 2), weighed by molar mass (Step 3), balanced on a scale (Step 4), and the ratio green ÷ total drives the AE dial from the wasteful substitution up to the perfect addition.

Recall Feynman retelling (plain words)

Think of a factory that snaps LEGO bricks into a toy. The bricks are never destroyed — they just move around (Step 1). Some bricks land in the toy you wanted to sell (green), the rest fall into a scrap bin (red) — that's Step 2. Now, not all bricks weigh the same, so instead of counting bricks we weigh them (Step 3). Put all the bricks you fed in on one side of a scale; it balances with the toy plus the scrap (Step 4). Atom economy is simply: weight-of-toy ÷ weight-of-all-bricks-fed-in, as a percentage (Step 5). If the whole thing snaps together with no scrap — an addition reaction — you get a perfect 100% (Step 6). If a heavy chunk falls off into the bin — a substitution — you might only keep a quarter of what you paid for (Step 7). And you can never keep more weight than you fed in, so anything over 100% means you miscounted your bricks (Step 8).

---
