WHY do we even worry about solvents?

Traditional organic solvents (dichloromethane, benzene, hexane, DMF) are problematic because they are:

  • Volatile → escape as VOCs, harming air/health.
  • Flammable / toxic → safety + waste burden.
  • Hard to recycle → distillation costs energy.

WHAT we want instead: a solvent that is non-toxic, non-flammable, easily separated from product, and reusable. No single solvent wins on every axis — hence selection.

The three green solvents — WHAT each is and WHY it helps

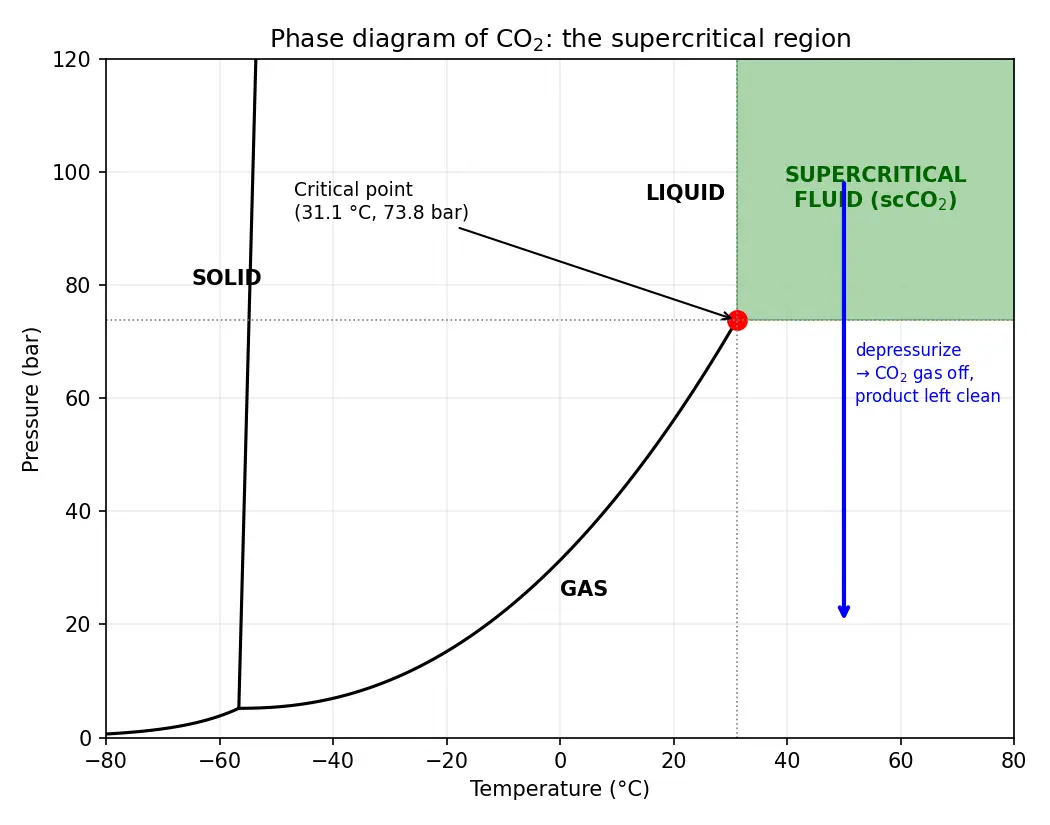

HOW supercritical CO₂ works — the phase reasoning

Figure — Solvent selection — water, supercritical CO₂, ionic liquids

Solvent power of scCO₂ scales with density

The dissolving ability of a supercritical fluid tracks its density ρ\rho. Near TcT_c, density is extremely sensitive to pressure, so a modest pressure change is a "solvent strength dial."

HOW water can dissolve "insoluble" organics — the hydrophobic effect

Comparing the three (the steel-man trade-offs)

Property Water scCO₂ Ionic Liquid
Toxicity very low very low variable (some toxic)
Volatility/VOC none none (recovered as gas) negligible
Recovery hard (high latent heat) easy (depressurize) hard, but reusable
Dissolves polar/ionic non-polar tunable, wide range
Cost cheap moderate (pressure kit) expensive
Main weakness many organics insoluble needs high pressure cost + unknown toxicity

Common mistakes (Steel-man → fix)

Recall Feynman: explain to a 12-year-old

Imagine you spill a sticker on the table. To clean it you need the right "cleaner." Water is the cheap, safe cleaner but it can't lift greasy stickers. Squished CO₂ (the fizz in soda, but squeezed super hard) becomes a magic cleaner that dissolves greasy stuff and then vanishes into thin air when you let go of the squeeze — no mess left. Ionic liquids are special salty liquids that never smell because they never turn into vapour, and you can use them again and again. You pick the cleaner that matches the mess and that you can get back when you're done.

Active-recall flashcards

What two conditions define a supercritical fluid?
Temperature above TcT_c and pressure above PcP_c (both simultaneously).
Critical T and P of CO₂?
Tc≈31 °CT_c \approx 31\,°C (304 K), Pc≈74P_c \approx 74 bar (7.38 MPa).
Why is scCO₂'s solvent power "tunable"?
Near TcT_c isothermal compressibility is huge, so small pressure changes cause large density changes → large change in dissolving power.
Single biggest green virtue of ionic liquids?
Negligible vapour pressure → essentially no VOC emissions; tunable and reusable.
Main weakness that makes ILs not automatically green?
Variable toxicity, poor biodegradability, and energy-intensive synthesis.
Why does scCO₂ leave zero residue?
Depressurizing turns it back into a gas that simply escapes, leaving pure product.
Why might water speed up a Diels–Alder reaction?
Hydrophobic effect concentrates reactants and water stabilizes the more polar transition state, lowering EaE_a.
Two reasons water isn't universally usable as a solvent?
It can hydrolyse sensitive reagents and dissolves few non-polar substrates; also costly to remove (high latent heat).
Why does scCO₂ not add to global warming in process use?
It's used in a closed, recycled loop (often recovered by-product), not newly emitted.
What is the "designer solvent" and why?
Ionic liquid — cation and anion can be swapped to tune polarity, melting point, and solubility.

Connections

  • Principles of Green Chemistry (Principle 5: safer solvents/auxiliaries)
  • Atom Economy & E-factor (solvent dominates the E-factor mass)
  • Phase Diagrams & Critical Point
  • Hydrophobic Effect
  • Catalysis & Catalyst Recovery
  • Life Cycle Assessment (LCA)
  • VOCs and Air Pollution

Concept Map

highest-leverage green choice

volatile, toxic, hard to recycle

drives selection of

drives selection of

drives selection of

fixes

requires

release pressure gives

CO2 is

enables decaffeination

has

eliminates

Solvent = biggest mass in synthesis

Traditional organic solvents

Non-toxic, non-flammable, recoverable

Water

Supercritical CO2

Ionic Liquids

Above critical point T and P

Zero solvent residue

Negligible vapour pressure

Mild Tc = 31 C, Pc = 74 bar

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, kisi bhi reaction me sabse zyada material aksar solvent hi hota hai — total mass ka 80% se bhi zyada. Isliye green chemistry me sabse bada "smart choice" yahi hai ki solvent kaunsa use karein. Teen popular green options hain: water, supercritical CO₂ (scCO₂), aur ionic liquids (ILs). Har ek alag problem solve karta hai — water toxicity hatata hai, scCO₂ recovery easy karta hai, aur ionic liquid VOC (vapour) emission ko zero kar deta hai.

Supercritical CO₂ ka idea simple hai: CO₂ ko uske critical point ke upar le jao (T > 31 °C aur P > 74 bar, dono ek saath). Tab woh na pura gas rehta hai na pura liquid — gas jaisa flow karta hai par liquid jaisa cheezein ghol leta hai. Sabse mast baat: kaam khatam hone par sirf pressure release karo, CO₂ udd jaata hai aur product bilkul saaf bachta hai. Isiliye coffee se caffeine nikaalne me isi ka use hota hai. Critical point ke paas density pressure se bahut sensitive hoti hai, isliye thoda sa pressure badalke "solvent strength" ko dial ki tarah adjust kar sakte ho.

Water sabse sasta aur safe hai, par sab kuch isme nahi ghulta, aur kuch reagents (jaise Grignard) ise pasand nahi karte. Ionic liquids ka cation/anion change karke "designer solvent" banate hain, vapour nahi nikalta, reuse ho jaate hain — lekin yeh mehenge hote hain aur kuch toxic bhi ho sakte hain, to "vapour nahi nikalta isliye green hai" maan lena galti hai. Sabse important seekh: koi ek solvent perfect nahi — reaction aur product ke hisaab se sahi tool choose karna hi asli skill hai.
