12 principles of green chemistry: Foundations — Chemistry deep dive

Before you can judge whether a reaction is "clean," you must be fluent in a small toolbox. The parent note quietly assumes all of it. We build each piece from nothing, in the order they stack.

1. An atom, and why we count them

Picture a small handful of coloured beads. A carbon bead, hydrogen beads, a bromine bead. A chemical reaction is just restringing these beads into new necklaces — no bead is ever thrown away or conjured from thin air.

Figure — 12 principles of green chemistry

In this figure: on the left, loose beads — two dark carbon beads with four small hydrogen beads, plus a pair of bromine beads; a yellow "restring" arrow; on the right the very same beads regrouped into one new necklace. Count the beads on both sides — they are identical. That equality is the picture of "atoms are conserved." (We give these necklaces their proper shorthand names in Section 2.)

2. A molecule and its chemical formula

Read a formula like a shopping list. The little subscript number tells you how many of the atom written just before it. So the two left-hand necklaces from Figure 1 are written $C_{2} H_{4}$ and $B r_{2}$ , and the product necklace is $C_{2} H_{4} B r_{2}$ .

3. Atomic mass $A$ and the unit $u$ — giving each bead a weight

We will write atomic masses with the symbol $A$ from here on:

Picture a kitchen scale reading in $u$ . Drop one carbon bead on it → reads $12 u$ . One bromine bead → reads $80 u$ . Heavy beads and light beads — the scale is how we later ask "how much of the mass ended up as trash?"

4. The mole and Avogadro's number — from one bead to a weighable pile

5. Molar mass $M$ — weighing a whole molecule (in g/mol)

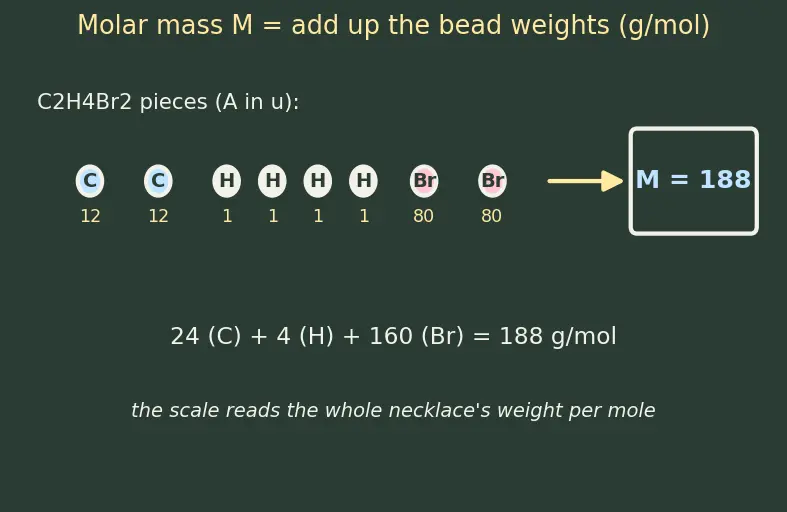

In this figure: each bead in $C_{2} H_{4} B r_{2}$ is tagged with its atomic mass $A$ (in $u$ ). The yellow arrow feeds them into a "scale" that adds them up and reads $M = 188$ . The lesson: molar mass is just addition of the per-bead weights, and the reading is in g/mol because we are weighing one whole mole.

6. The balanced chemical equation

Read the arrow $\to$ as "turns into." Read a coefficient like the "3" in $3 H_{2}$ as "three of these molecules" (i.e. $n = 3$ for that species).

7. From molar mass $M$ to an actual mass — coefficients enter here

Molar mass $M$ tells you the weight of one mole of a species. But a balanced equation rarely uses exactly one mole of each — it uses $n$ moles, where $n$ is the coefficient from Section 6. So the mass a species actually contributes is:

8. Reactant vs product vs byproduct — the two buckets

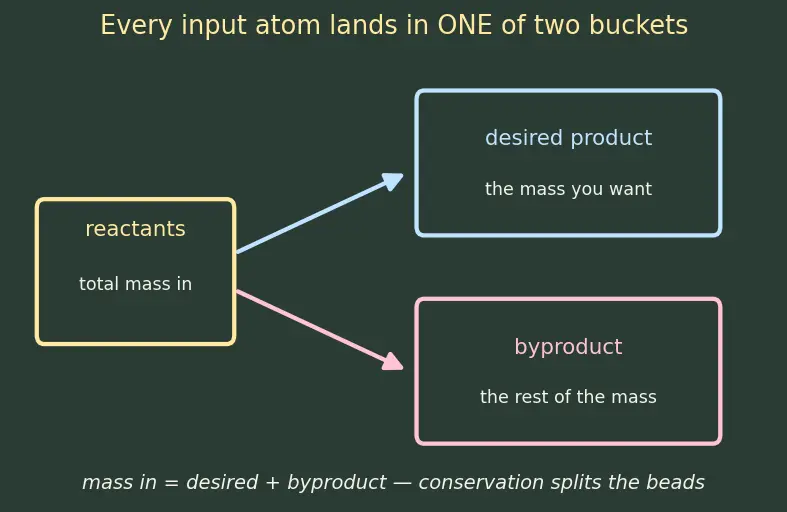

In this figure: a single "reactants" box (total mass in) splits along two arrows into a blue DESIRED PRODUCT bucket and a pink BYPRODUCTS (waste) bucket. The blue bucket is what atom economy counts; the pink bucket is what the E-factor counts. Seeing the split as one box → two buckets is the whole logic of the chapter's two metrics.

9. Percentage and the atom-economy formula itself

Now stack everything. Each mass in the two-bucket split (Section 8) is a " $n \times M$ " from Section 7. First meet the summation symbol that will collect the reactant masses:

10. Catalyst — the tool that isn't in the equation

Picture a matchmaker at a party: they introduce two people, then step back untouched to introduce the next pair. Because a catalyst is not consumed, it contributes zero atoms to the totals — so it has no $n \times M$ term and is left out of the $\sum$ over reactants. Details in Catalysis, and its energy role in Activation Energy and Reaction Rates.

How these feed the topic

The tools stack in one straight line, and it helps to say it as a sentence before seeing the diagram. Atoms are conserved beads (§1); a formula counts them (§2); each bead has an atomic mass $A$ (§3); the mole turns $A$ into grams (§4); adding the $A$ 's gives molar mass $M$ (§5); a balanced equation supplies the coefficients $n$ (§6); together $n \times M$ gives an actual mass (§7); those masses split into two buckets (§8); the useful bucket over the reactant sum, times 100, is atom economy (§9). The mini-map below shows only that spine — read it top to bottom, each arrow meaning "needed before."

Equipment checklist

Cover the right side and test yourself. If any answer is fuzzy, reread that section.

What is conserved in every chemical reaction?

The atoms themselves — they are only rearranged, never created or destroyed.

C H_{3} O H

, how many hydrogen atoms are there?

4 (three in

C H_{3}

plus one in

O H

How many of each atom are in

A l_{2} (S O_{4})_{3}

2 Al, 3 S, 12 O (the outside 3 multiplies the whole

(S O_{4})

group).

What are the atomic masses

A

of C, H, O, Na, Br used here (in u)?

12, 1, 16, 23, 80.

What is a mole, and what is Avogadro's number?

A mole is a fixed count of

6.022 \times 1 0^{23}

particles; that count is Avogadro's number

N_{A}

Why does

1 u

become

1

g/mol?

Because

N_{A}

is chosen so one mole of atoms weighs, in grams, the same number that one atom weighs in u.

How do you get the molar mass

M

of a molecule, and its unit?

Add the atomic masses

A

of every atom in its formula; the unit is g/mol.

Molar mass of

B r_{2}

2 \times 80 = 160

g/mol.

Molar mass of

C a (O H)_{2}

40 + 2 \times (16 + 1) = 74

g/mol.

What is a coefficient

n

in a balanced equation?

The number in front of a species — how many moles of it take part; a blank means

n = 1

How do you turn a molar mass

M

into an actual contributed mass?

Multiply by the coefficient: mass

= n \times M

When is a chemical equation "balanced"?

When each element has equal total atom-count on both sides.

What are the "two buckets" every input atom lands in?

The desired product, or the byproducts (waste).

What does the symbol

\sum

mean, and over which species does it run in the AE formula?

"Add up over the list"; in atom economy it runs over every reactant (each as

n \times M

), not products.

Write the atom-economy formula (general form with coefficients).

% AE = (n_{des} M_{desired} / \sum_{i} n_{i} M_{i}) \times 100

, summed over reactants.

Convert the fraction

32/135

to a percentage.

\approx 23.7%

Why is a catalyst left out of the atom-economy sum?

It is regenerated unchanged, so it has no coefficient in the balanced overall equation.

Which single mass equation is the skeleton of the whole topic?

mass_{reactants} = mass_{desired} + mass_{byproducts}
