Aromaticity — Hückel's rule (4n + 2 π electrons); examples (benzene, naphthalene, pyridine, furan, cyclopentadienyl anio: Visual walkthrough

Before we begin, three tiny words we will lean on constantly:

Step 1 — Line the atoms up in a ring

WHAT. Take $N$ identical atoms (all carbons, say), each carrying one p-orbital, and arrange them in a flat closed loop. Nothing else — no numbers yet.

WHY. Aromaticity is about a closed loop of shareable electrons. A loop is special because an electron that starts walking around it must come back to exactly where it began — it can't just fall off the end. That "must return to start" condition is the seed of the whole rule.

PICTURE. Look at the ring of $N = 6$ atoms below. Each purple dot is an atom; each pair of small balloons is its one p-orbital (top balloon violet, bottom balloon faded). The green arrow shows an electron "walking" around the loop.

Figure — Aromaticity — Hückel's rule (4n + 2 π electrons); examples (benzene, naphthalene, pyridine, furan, cyclopentadienyl anio

Step 2 — One p-orbital alone has an energy $α$

WHAT. Before the atoms feel each other, ask: how much energy does one lonely p-orbital hold? Call that number $α$ (Greek "alpha").

$E_{one orbital} = α$

$E$ ::: the energy (a height on our picture).
$α$ ::: the "resting height" of a single, isolated p-orbital — our zero-line, the sea level everything is measured against.

WHY. You always need a baseline before you can say something is lower (more stable) or higher (less stable). $α$ is that baseline.

PICTURE. A single p-orbital floating at height $α$ , drawn as a dashed sea-level line. Everything later is "above" or "below" this line.

Step 3 — Neighbours touch: introduce $β$ , and the wave that must "fit"

WHAT. Now let each p-orbital touch its two neighbours. Touching neighbours share and lowers energy; call the strength of one neighbour-touch $β$ (Greek "beta"). Because sharing is stabilising, $β$ is a negative number (it pulls the height down).

WHY $β$ is negative. "More stable" means "lower height." Since neighbour-sharing stabilises, its contribution must lower the energy, so its sign is negative. This is the same delocalisation idea as Resonance and delocalisation — spreading electrons out lowers energy.

WHAT (the wave condition). The electron's wave must repeat after one full trip. Label each fitting wave by a whole number $k$ = how many complete wavelengths we wrap around the loop. Because there are only $N$ atoms, there are only $N$ genuinely different waves, and we may list them as

$k = 0, 1, 2, \dots, N - 1$

(going past $N - 1$ just repeats a wave you already have, since $cos$ repeats every full turn). Each such wave picks up a twist angle of

$θ_{k} = \frac{2 π k}{N}$

$θ_{k}$ ::: the twist between one atom's wave and the next atom's wave.
$2 π$ ::: one full turn around the loop.
$k$ ::: how many whole wavelengths we packed around the ring — the only choice we get, and it must be a whole number so the wave meets itself.
$N$ ::: number of atoms, so $2 π / N$ is the angle-step from one atom to the next.

WHY only whole $k$ . If $k$ were, say, $1.3$ , the wave would come back shifted and clash with itself — not allowed. Whole numbers are exactly the waves that "fit" the loop, like whole numbers of humps on a plucked circular string.

WHY the list collapses into pairs. Listing $k = 0, 1, \dots, N - 1$ is the same as listing $k = 0, \pm 1, \pm 2, \dots$ , because $k$ and $k - N$ (i.e. a " $- k$ " wave) give the identical twist through $cos$ . A wave twisting one way ( $+ k$ ) and its mirror twisting the other way ( $- k$ ) have the same $cos θ_{k}$ , hence the same energy — they form a degenerate pair. Only $k = 0$ (and, when $N$ is even, the top wave $k = N /2$ ) has no distinct mirror, so those stand alone. This is exactly why in Step 6 the middle levels come in twos.

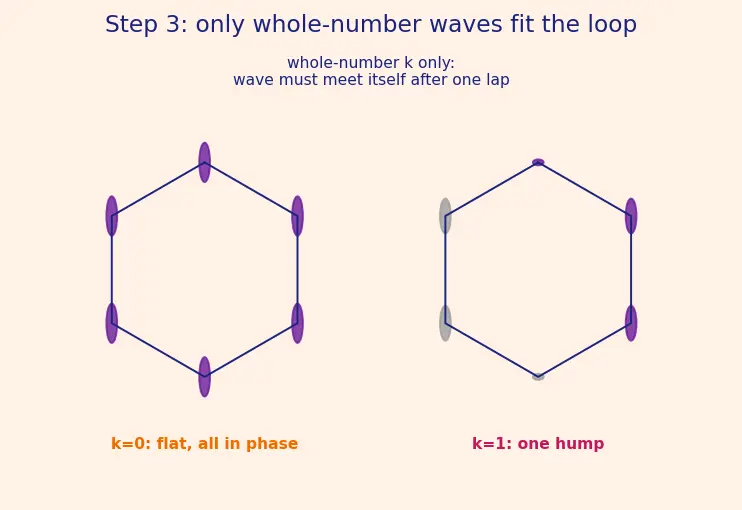

PICTURE. Two waves wrapped on the ring: $k = 0$ (flat, all p-orbitals in phase) and $k = 1$ (one hump around the loop). The mismatch that whole-number $k$ forbids is shown in grey.

Step 4 — The energy formula, term by term

WHAT. Putting the baseline $α$ , the neighbour-strength $β$ , and the fitting-twist $θ_{k}$ together, the Hückel method (see Molecular Orbital Theory — Hückel method) gives each allowed wave $k$ an energy:

$E_{k} = α + 2 β cos (\frac{2 π k}{N})$

Read it slowly, one piece at a time:

$E_{k}$ ::: the height of the level made by wave number $k$ .
$α$ ::: our sea level from Step 2 — where we'd sit with no neighbours.
$2 β$ ::: each atom has two neighbours (left and right), so the touch $β$ counts twice.
$cos (\cdot)$ ::: measures how well the wave lines up with its neighbour. $cos$ runs smoothly from $+ 1$ (perfectly in phase, twist $= 0$ ) down to $- 1$ (perfectly out of phase, twist $= 18 0^{\circ}$ ). That is exactly the "how aligned are two things" question $cos$ was built to answer.
$\frac{2 π k}{N} = θ_{k}$ ::: the twist from Step 3 plugged straight in.

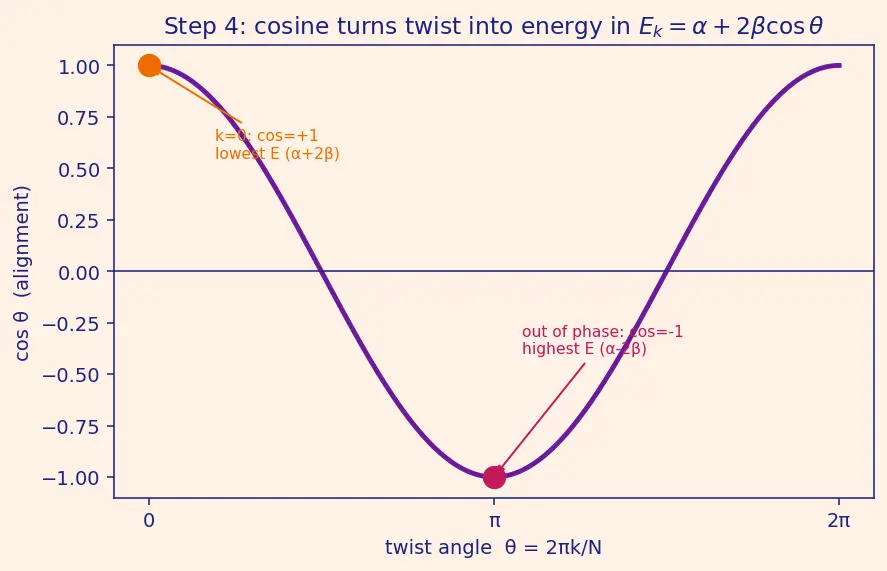

PICTURE. The cosine curve from $+ 1$ to $- 1$ , with the lowest ( $k = 0$ ) point marked in orange and the highest in magenta.

Step 5 — The Frost circle: turn the formula into heights

WHAT. Here is the beautiful shortcut. Draw a circle of radius $2∣ β ∣$ centred on the sea-level $α$ . Inscribe the $N$ -sided polygon point-down (one vertex touching the bottom). Each vertex is one energy level; its height is that level's energy.

WHY the radius is $2∣ β ∣$ and where $θ$ starts. Measure the angle $θ$ from straight down (the bottom of the circle), so the bottom vertex is at $θ = 0$ . A point on a circle of radius $2∣ β ∣$ , sitting at angle $θ$ measured up from the bottom, has a vertical height above the centre equal to (radius) $\times cos θ = 2∣ β ∣ cos θ$ . Since $β < 0$ , that height is $2 β cos θ$ measured the right way, so the vertex height above the sea-level $α$ is

$height = α + 2 β cos θ_{k},$

which is exactly $E_{k}$ from Step 4. In short: the " $2 β$ " is the circle's radius, and the " $cos θ$ " is the vertical projection of that radius. That is why we chose radius $2∣ β ∣$ and why the zero-angle points straight down.

WHY point-down. Point-down puts a vertex at $θ = 0$ , so the single lowest level ( $k = 0$ ) sits alone at the very bottom. That lonely bottom vertex is the hero of the whole story.

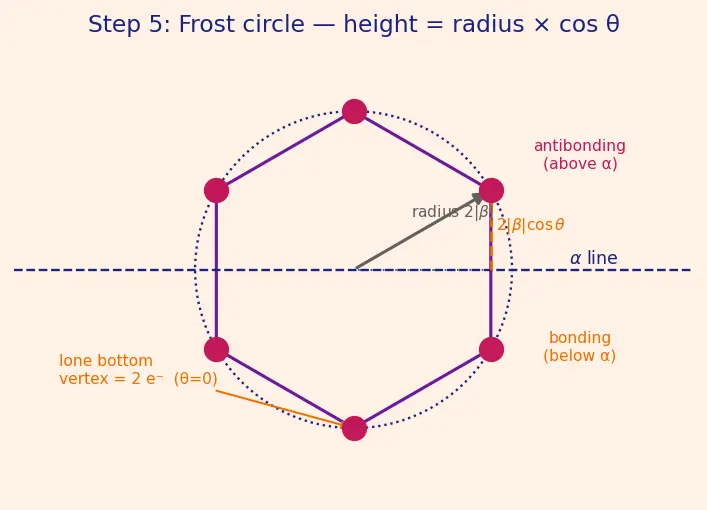

PICTURE. The Frost circle for benzene ( $N = 6$ ): hexagon point-down inside the circle, each vertex labelled with its energy, the dashed line at $α$ splitting bonding (below, stabilised) from antibonding (above). The grey radius and its vertical drop show the $2∣ β ∣ cos θ$ projection.

Step 6 — Read off the seating: 1 lone seat + pairs

WHAT. Look at the vertices from the bottom up:

The bottom vertex stands alone → one level → holds 2 electrons (an orbital holds at most 2, spin-up + spin-down).
Every level above it comes as a left/right mirror pair at the same height → each pair holds 4 electrons.

WHY pairs appear. For every wave twisting one way ( $+ k$ ) there is a mirror wave twisting the other way ( $- k$ ) with the identical $cos$ , hence identical height (established in Step 3). Mirror waves ⇒ same energy ⇒ a degenerate pair ("degenerate" = same height).

PICTURE. The benzene levels drawn as a ladder: the lone bottom seat (2 e⁻), then a degenerate pair (4 e⁻), then the antibonding levels above the line — with the 6 benzene electrons dropped in.

Step 7 — Add up a full bottom set → out pops $4 n + 2$

WHAT. To be maximally stable we want every occupied level completely full (a closed shell, no half-filled seats). Count the electrons that fully fills the bottom:

$lone bottom seat 2 + n full pairs 4 n = 4 n + 2$

$2$ ::: the unique lowest level (Step 6).
$4 n$ ::: filling $n$ degenerate pairs, each pair holding $4$ ; here $n = 0, 1, 2, \dots$ counts how many pairs you fill.
$4 n + 2$ ::: therefore the electron count that leaves no half-filled level — a happy closed shell. This is Hückel's rule.

WHY this is the magic number. With $4 n + 2$ electrons the last pair is exactly filled. With $4 n$ electrons you'd have $2$ left over for a pair of empty seats at the same height — by the rule that electrons spread out before pairing, they go in one each, both unpaired → an open, reactive, unstable shell. That is antiaromatic.

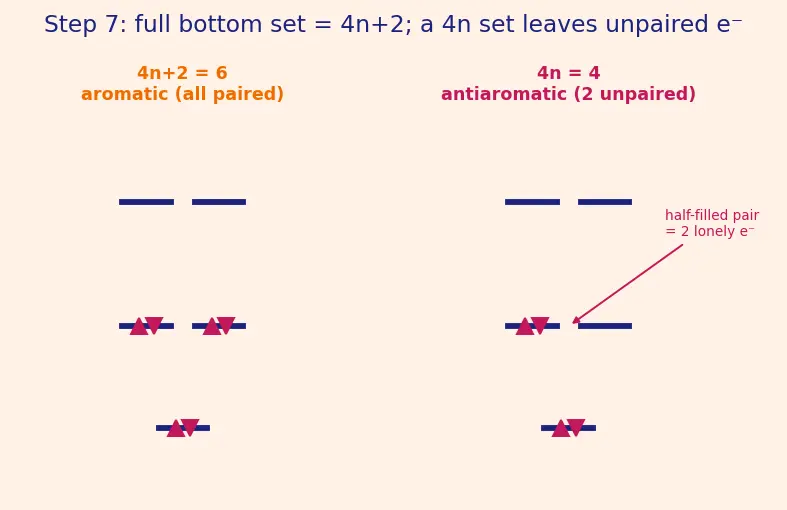

PICTURE. Side-by-side ladders: left = $4 n + 2$ (top occupied level neatly full, all paired = aromatic); right = $4 n$ (top level is a degenerate pair with one lonely electron in each = antiaromatic).

Step 8 — The degenerate/edge case: why $4 n$ breaks

WHAT. Take $N = 4$ (square, e.g. cyclobutadiene) or $N = 8$ (octagon, cyclooctatetraene). Draw the Frost circle: two vertices land exactly on the $α$ line — a non-bonding degenerate pair.

WHY it's fatal. With $4 n$ π electrons, those two mid-line seats get one electron each, unpaired. Nothing was gained (they're at sea level, non-bonding) and you now have two reactive unpaired electrons → destabilised = antiaromatic. Molecules dodge this by refusing to stay flat: cyclooctatetraene puckers into a tub, breaking planarity (condition 2), so it becomes merely non-aromatic — an ordinary polyene.

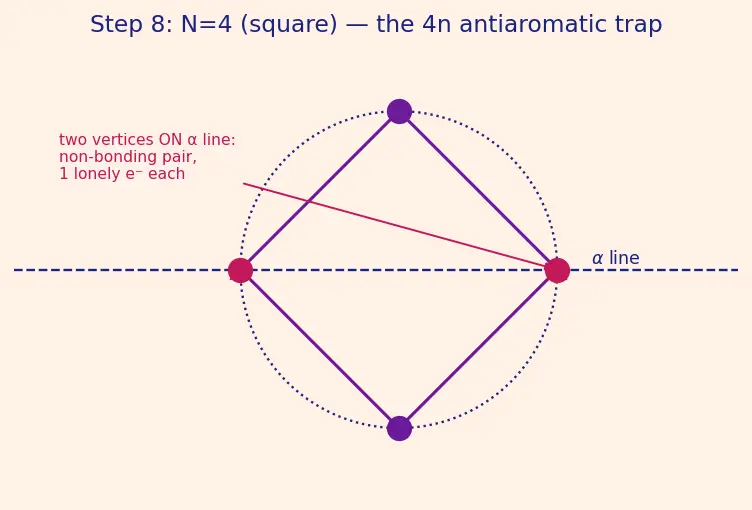

PICTURE. The square Frost circle with two vertices sitting on the dashed line, each holding a single lonely electron (magenta, unpaired) — the visual signature of antiaromaticity.

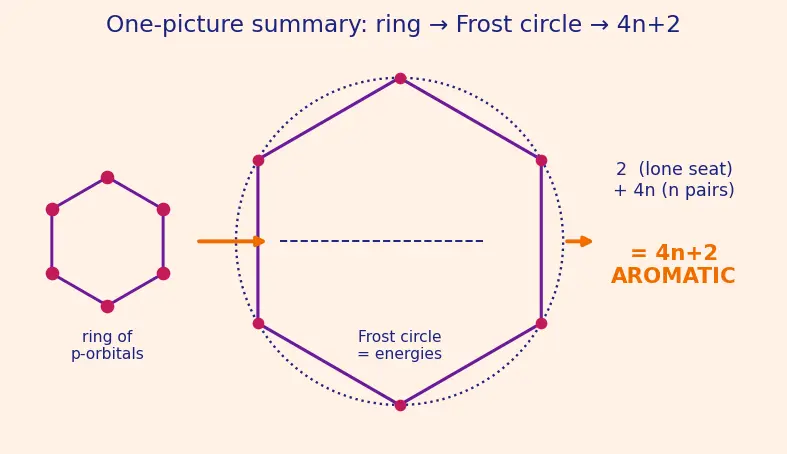

The one-picture summary

Everything above, compressed: ring of p-orbitals → Frost circle → lone bottom seat gives the " $2$ ", each mirror-pair gives a " $4$ ", full bottom set $= 4 n + 2 =$ aromatic; a half-filled $4 n$ set $=$ antiaromatic.

Recall Feynman: tell the whole walkthrough to a friend

We stood $N$ atoms in a flat circle, each holding one up-and-down electron cloud. Because the ring is a loop, an electron's wave has to meet itself after one lap — so only whole-number waves "fit," and each fitting wave gets a height given by $α + 2 β cos θ$ : sea-level $α$ , pushed down by neighbour-sharing $β$ , by an amount that depends (through cosine) on how well neighbour-waves line up. We drew that as a circle with the polygon pushed point-down, so heights = vertex heights, and the height of any vertex is just the radius $2∣ β ∣$ shadow-projected downward by $cos θ$ . The very bottom vertex sits alone — that's the " $+ 2$ ." Every level above it comes as a twin pair (a wave and its mirror) holding $4$ — that's the " $4 n$ ." Fill the bottom completely and you've used $4 n + 2$ electrons with nobody unpaired: rock-solid aromatic. Use $4 n$ instead and the top pair gets one lonely electron each: cranky, reactive, antiaromatic — and if the ring can bend, it just goes non-flat and opts out entirely.

Recall

Why is the bottom Frost-circle vertex alone (giving "+2")? ::: The polygon is drawn point-down, so exactly one vertex touches the lowest point; it is a single non-degenerate level holding 2 electrons. Why do levels above the bottom come in pairs (giving "4n")? ::: For each wave twisting one way ( $+ k$ ) there is a mirror wave ( $- k$ ) with the same $cos$ , hence the same energy — a degenerate pair holding 4. Why is the Frost circle's radius chosen as $2∣ β ∣$ ? ::: Because a vertex's height is (radius) $\times cos θ$ ; setting radius $= 2∣ β ∣$ makes that height equal the $2 β cos θ$ term in $E_{k}$ . In $E_{k} = α + 2 β cos (2 π k / N)$ , why the factor 2 on $β$ ? ::: Each atom touches two neighbours (left and right), so the interaction $β$ counts twice. Why does a $4 n$ count give antiaromaticity? ::: The last pair of same-height seats gets one unpaired electron each — an open shell — instead of being neatly filled.

See it in action across Benzene — structure and resonance, Polycyclic aromatic hydrocarbons, and reactions in Electrophilic Aromatic Substitution; the lone-pair counting connects to Acidity and basicity.
