WHAT is aromaticity?

The allowed counts 4n+24n+2 are: n=02n=0 \to 2, n=16n=1 \to 6, n=210n=2 \to 10, n=314n=3 \to 14, …


WHY 4n+24n+2? (derivation from scratch)

We won't just quote the rule — we'll see where the "+2" comes from.

Step 1 — Energies of a cyclic π system (Hückel result). For a planar ring of NN equivalent p-orbitals, solving the Hückel determinant gives molecular-orbital energies: Ek=α+2βcos ⁣(2πkN),k=0,±1,±2,E_k = \alpha + 2\beta\cos\!\left(\frac{2\pi k}{N}\right), \qquad k = 0, \pm1, \pm2, \dots where α\alpha = energy of an isolated p-orbital, β\beta < 0 = stabilising interaction between neighbours.

Why this form? The cosine appears because the wave must repeat after going once around the loop (periodic boundary condition), exactly like fitting kk wavelengths around a circle.

Step 2 — The Frost circle (a picture that gives the pattern). Inscribe the polygon (point-down) inside a circle of radius 2β2|\beta| centred at α\alpha. Each vertex = one MO; its height = its energy.

  • The lowest MO sits alone at the bottom → it holds 2 electrons.
  • Above it, MOs come in degenerate pairs (left/right symmetric vertices) → each level holds 4 electrons.

Step 3 — Counting for a stable, closed shell. To fill all bonding levels completely (a closed shell, like noble-gas stability): 2lone bottom MO+4nn filled degenerate pairs=4n+2.\underbrace{2}_{\text{lone bottom MO}} + \underbrace{4n}_{n \text{ filled degenerate pairs}} = 4n+2.

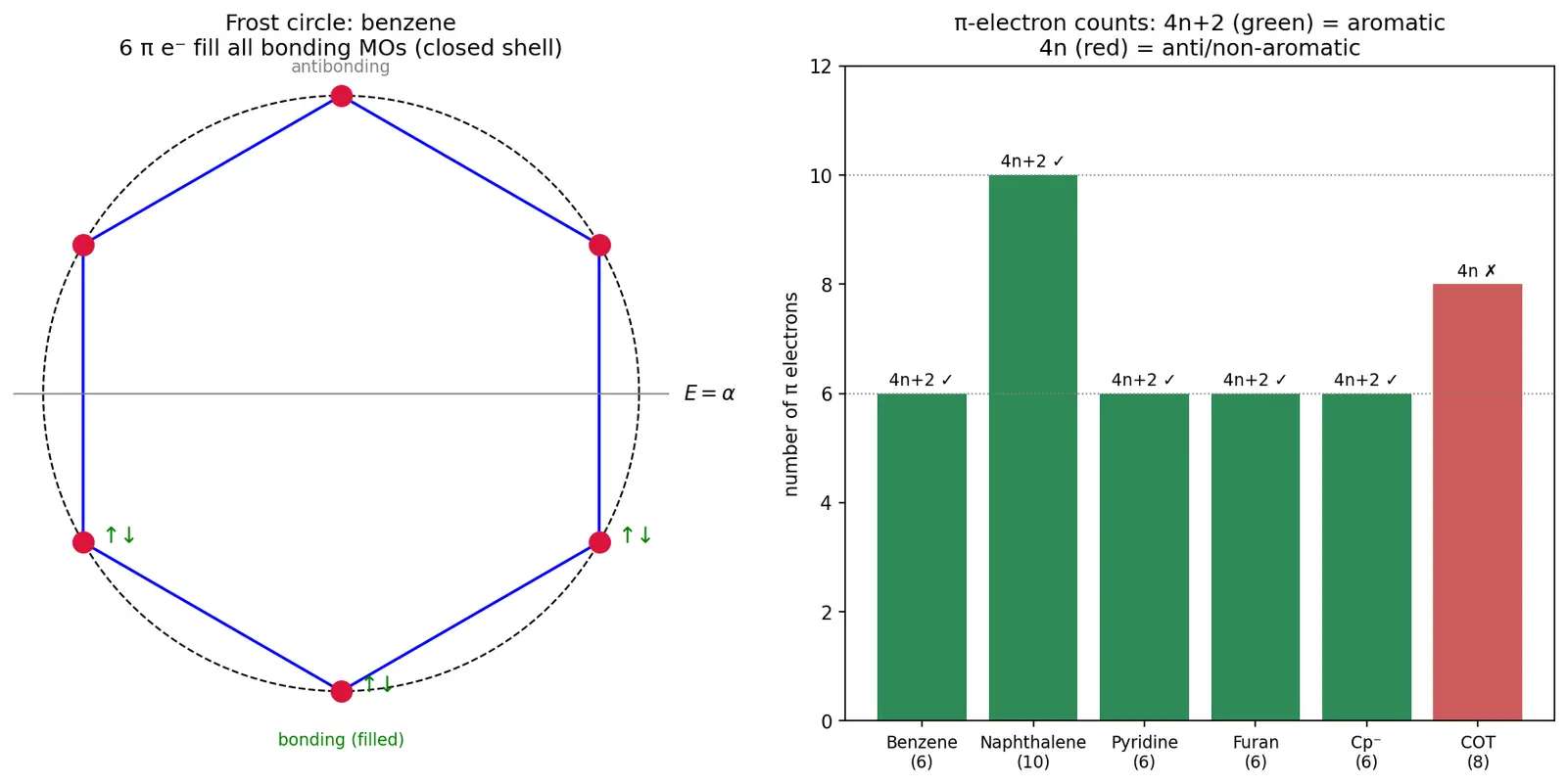

Figure — Aromaticity — Hückel's rule (4n + 2 π electrons); examples (benzene, naphthalene, pyridine, furan, cyclopentadienyl anio

HOW to apply it — worked examples


Steel-man your mistakes


Flashcards

Hückel's rule states a ring is aromatic when it has how many π electrons?
4n+24n+2 (n = 0,1,2,…), i.e. 2, 6, 10, 14…
What four conditions make a molecule aromatic?
Cyclic, planar, fully conjugated (p-orbital on every ring atom), and 4n+24n+2 π electrons.
Where does the "+2" in 4n+24n+2 come from physically?
The single non-degenerate lowest MO holds 2 e⁻; the 4n4n fills nn degenerate pairs (4 e⁻ each).
A planar cyclic conjugated ring with 4n4n π electrons is called?
Antiaromatic (destabilised).
How many π electrons does benzene have, and what is n?
6 π electrons, n = 1.
Why is the cyclopentadienyl anion aromatic?
The carbanion lone pair enters a p-orbital, giving 4 (double bonds) + 2 = 6 π electrons.
In pyridine, is the N lone pair part of the aromatic sextet?
No — it is in an in-plane sp² orbital, so pyridine remains basic. The 6 π e⁻ come from the 3 ring double bonds.
How does furan reach 6 π electrons?
2 double bonds (4 e⁻) + one O lone pair in a p-orbital (2 e⁻).
How many π electrons does naphthalene have?
10 π electrons (5 double bonds), n = 2.
Why is cyclooctatetraene NOT aromatic?
8 = 4n electrons; it avoids antiaromaticity by puckering into a non-planar tub → non-aromatic.
What tool draws MO energies of a cyclic π system?
The Frost circle: inscribe the polygon point-down; vertices give MO energies.
Recall Feynman: explain to a 12-year-old

Imagine kids holding hands in a circle, sharing toys (electrons) by passing them around the loop. The circle is calm and happy ONLY when the number of toys is just right — 2, or 6, or 10. With those "magic numbers" everyone is paired up and content (that's aromatic, super stable). With a "wrong" number like 4 or 8, two kids are left arguing over a single toy and the circle gets cranky and breaks up (that's antiaromatic). The rule for the magic numbers is 4n+24n+2. And if the kids can't even stand in a flat circle, the game doesn't count at all (non-aromatic).

Connections

Concept Map

requires

requires

requires

requires

is

derived via

lone bottom MO

degenerate pairs

the 2

n filled pairs give 4n

closed shell means

open shell

examples

Aromaticity

Cyclic

Planar

Fully conjugated

4n+2 pi electrons

Huckel's rule

Huckel MO energies

Frost circle

holds 2 electrons

each holds 4 electrons

Extra stability

4n pi electrons

Antiaromatic

Benzene, pyridine, furan, cyclopentadienyl anion

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, aromaticity ka matlab hai ek ring molecule ka "extra stable" hona. Normal alkene to bromine water ko turant decolourise kar deta hai, lekin benzene aisa nahi karta — kyunki uske π electrons poore ring me ghoomte rehte hain (delocalised), aur yeh ghoomna sirf tabhi sabse zyada stable hota hai jab electron count ek magic number ho: 4n+24n+2 yaani 2, 6, 10, 14… Yahi hai Hückel's rule.

Yeh "+2" kahaan se aaya? Jab tum NN p-orbitals ko ring me jodte ho, to sabse neeche ek akela MO hota hai (2 electrons), aur uske upar saare MOs jodon (degenerate pairs) me aate hain (har pair me 4 electrons). Toh sab bonding levels bharne ke liye chahiye 2+4n=4n+22 + 4n = 4n+2. Frost circle (polygon ko ulta — point neeche — circle me fit karke) se yeh pattern seedha dikh jaata hai.

Apply karte waqt 4 cheez check karo: ring cyclic ho, planar ho, fully conjugated ho (har atom pe ek p-orbital), aur π electrons 4n+24n+2 hon. π electrons ginte waqt sirf double bonds mat gino — agar koi atom apna lone pair ya charge p-orbital me daal raha hai (jaise furan ka O, ya cyclopentadienyl anion ka C⁻), to woh bhi count hote hain. Pyridine me N ka lone pair plane me hota hai, ring ke andar nahi — isliye pyridine basic rehta hai par aromatic bhi hai. Aur agar count 4n4n ho (jaise cyclooctatetraene ka 8), to molecule planar rehne se mana kar deta hai aur tub-shape me mud jaata hai — non-aromatic. Bas yahi pura khel hai!
