4.2.8 · D1Hydrocarbons

Foundations — Aromaticity — Hückel's rule (4n + 2 π electrons); examples (benzene, naphthalene, pyridine, furan, cyclopentadienyl anio

2,593 words12 min readBack to topic

Before you can read the parent topic, you must own every symbol it throws at you. We build each one from nothing, in the order they depend on each other.


1. The atom's "electron clouds": orbitals

Two shapes matter for us:

  • An s-orbital is a round ball around the atom.
  • A p-orbital is a dumbbell — two lobes, like a balloon pinched in the middle, pointing along one axis. An atom has three of them (one along each of the directions).
Figure — Aromaticity — Hückel's rule (4n + 2 π electrons); examples (benzene, naphthalene, pyridine, furan, cyclopentadienyl anio

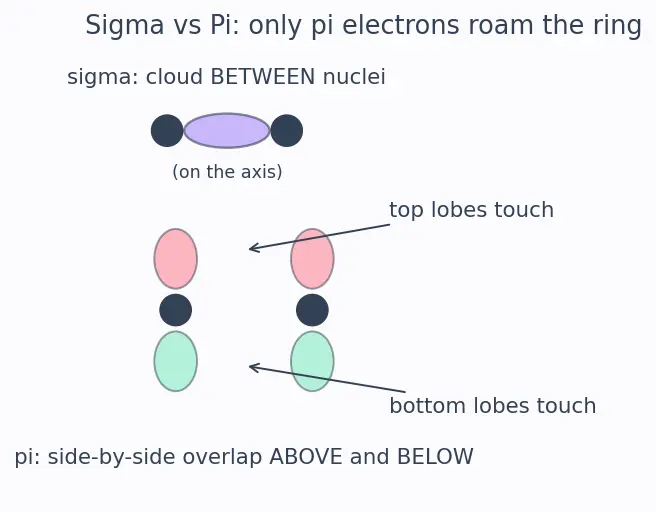

2. Bonds: sigma () vs pi ()

The parent page keeps saying "π electrons." We must earn that symbol.

Figure — Aromaticity — Hückel's rule (4n + 2 π electrons); examples (benzene, naphthalene, pyridine, furan, cyclopentadienyl anio

3. Planar and flat rings — what "flat" must mean


4. sp³, sp² and hybridisation — why ring atoms can be flat

Figure — Aromaticity — Hückel's rule (4n + 2 π electrons); examples (benzene, naphthalene, pyridine, furan, cyclopentadienyl anio

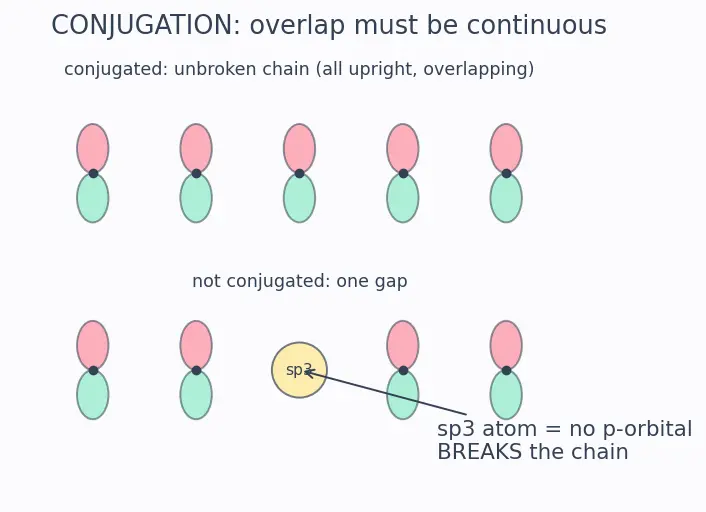

5. Cyclic, conjugation and delocalisation

Figure — Aromaticity — Hückel's rule (4n + 2 π electrons); examples (benzene, naphthalene, pyridine, furan, cyclopentadienyl anio
Figure — Aromaticity — Hückel's rule (4n + 2 π electrons); examples (benzene, naphthalene, pyridine, furan, cyclopentadienyl anio

6. Lone pairs — the hidden π contributors

The crucial question the parent page hammers: which direction does the lone pair point?

  • If the lone pair sits in an upright p-orbital (perpendicular to the ring), it joins the π loopcounts as 2 π electrons (furan's O, pyrrole's N, cyclopentadienyl's C⁻).
  • If it sits in an in-plane orbital (lying flat, pointing outward), it does not join the loop → not counted (pyridine's N, furan's second lone pair).

7. Molecular orbitals, degeneracy, and the symbols and


8. The energy-formula symbols: , , , ,

The parent page's energy formula carries five symbols — meet them all so that line isn't a wall.


Prerequisite map

Orbitals s and p

sp2 hybridisation

pi bond side overlap

molecular orbitals

flat ring skeleton

planar condition

upright p-orbital

conjugation chain

cyclic closed ring

delocalisation and stability

lone pair direction

count pi electrons

degenerate pairs

counter n and 4n+2

Huckel rule aromatic test

energies Ek alpha beta k N


Equipment checklist

Test yourself — cover the right side of each line.

What is aromaticity in one sentence?
The extra stability a ring gains when its π electrons are delocalised all around a closed loop AND total a magic number ().
What is an orbital, and how many electrons fits in one?
A fuzzy region where an electron is likely found; max 2 electrons.
What shape is a p-orbital and why does it matter here?
A dumbbell (two lobes above/below); side-by-side p-orbitals build the π loop.
Difference between a σ bond and a π bond?
σ sits directly between two nuclei (single bond); π is side-by-side p-overlap above/below the plane (the part of a double bond).
What does "π electrons" mean?
The electrons in the sideways p-overlap clouds — the loop-electrons free to roam the ring.
What does "planar" mean and why is it required?
All ring atoms lie in one flat plane; only then are the p-orbitals parallel enough to overlap into a continuous loop.
What is the difference between and hybridisation?
uses all three p-orbitals (tetrahedral, none left over); uses two p-orbitals (flat triangle) leaving one upright p-orbital.
What does hybridisation leave over, and where does it point?
One untouched p-orbital standing perpendicular to the flat triangle.
What does "cyclic" mean as an aromaticity condition?
The atoms form a closed ring you can trace back to the start without lifting your finger.
What does "conjugated" require?
Overlapping p-orbitals on adjacent atoms with no break (no atom interrupting).
What does delocalisation mean and why is it stabilising?
Electrons smeared over the whole system, not one bond; spreading a wave lowers its energy.
When does a lone pair count as 2 π electrons?
Only when it sits in an upright p-orbital aligned with the ring; in-plane lone pairs don't count.
What is a molecular orbital (vs an atomic orbital)?
A combined electron cloud belonging to the whole molecule (atomic p-orbitals merged); an atomic orbital belongs to one atom.
What does "degenerate" mean?
Molecular orbitals at exactly the same energy (same ladder rung); symmetric rings give degenerate pairs.
Is the number of π electrons?
No — is a whole-number counter () of filled degenerate pairs; the electron count is .
Define aromatic vs antiaromatic.
Aromatic = cyclic/planar/conjugated with π e⁻ (extra stable); antiaromatic = same but π e⁻ (destabilised).
List the first four magic numbers.
2, 6, 10, 14.
What do , , , and represent?
= energy of the -th molecular orbital; = isolated p-orbital energy; = (negative) stabilising overlap energy; = number of ring atoms; = MO label ().
