- Aerospace polymers - — Kevlar (body armour, parachutes), Nomex (fire-resistant), PBO, epoxy resins (composite matrix)

1. The unifying principle: rigidity + inter-chain bonding

WHY aromatic? A benzene ring cannot rotate or bend along the backbone the way a –CH₂–CH₂– chain can. So aramid chains are stiff "rods." WHAT does that buy us? Rods pack like logs and resist stretching. HOW is the glue applied? The N–H of one chain H-bonds to the C=O of the neighbour, forming sheets.

2. Kevlar — para-aramid (poly-p-phenylene terephthalamide, PPTA)

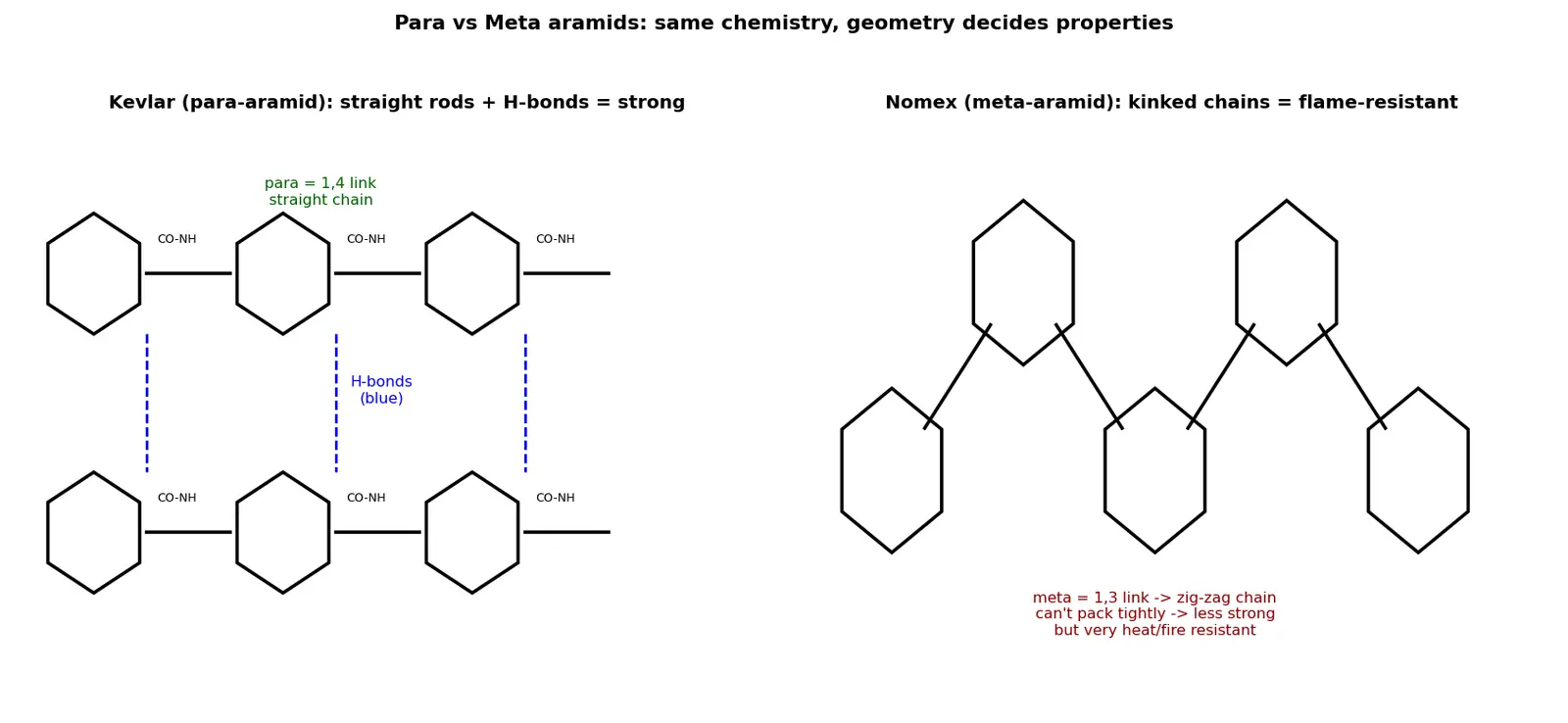

Figure — - Aerospace polymers - — Kevlar (body armour, parachutes), Nomex (fire-resistant), PBO, epoxy resins (composite matrix)

Uses: body armour, bulletproof vests, parachute cords, tyre reinforcement, ropes.

3. Nomex — meta-aramid (poly-m-phenylene isophthalamide)

Uses: firefighters' suits, race-driver overalls, electrical insulation, aircraft cabin honeycomb.

4. PBO (Zylon) — poly(p-phenylene benzobisoxazole)

Uses: advanced body armour, tethers, high-performance ropes, heat-shield fabrics.

5. Polyimides — high-temperature champions

6. Epoxy resins — the composite matrix

7. CFRP & GFRP — fibre-reinforced composites overview

Recall Feynman: explain to a 12-year-old

Imagine raw spaghetti. One straight strand is hard to pull apart but easy to bend or push sideways. Kevlar's chains are like millions of straight, stiff spaghetti strands, glued side-to-side by tiny hooks (hydrogen bonds) — so they make an amazingly tough sheet that stops bullets, yet weighs almost nothing. Nomex uses the same spaghetti but bent into zig-zags, so it can't pack tight enough to be super strong, but it loves heat — it won't melt or burn, so firefighters wear it. For aeroplanes we lay carbon spaghetti and pour a hardening glue (epoxy) over it; the glue sets into rock and holds every strand in place. Light + strong = cheaper flying.

Flashcards

What is an aramid?

An aromatic polyamide where ≥85% of amide links join two aromatic rings; stiff aromatic backbone + H-bonding gives high strength.

Kevlar's two monomers?

p-phenylenediamine (1,4-diaminobenzene) + terephthaloyl chloride (benzene-1,4-dicarbonyl dichloride).

Why is Kevlar stronger than Nomex?

Kevlar is para-linked → straight rod-like chains pack parallel and H-bond into sheets; Nomex is meta-linked → kinked chains pack loosely.

Why does Nomex resist fire?

High aromatic content gives thermal stability; it does not melt or support combustion. Used in firefighter suits.

What makes PBO stronger than Kevlar?

Rigid fused benzoxazole heterocyclic rings make the whole backbone a ladder-like rod with almost no rotatable bonds.

What is a polyimide and why heat-stable?

Polymer with cyclic imide groups (from dianhydride + diamine, cyclised on heating); aromatic+imide rings resist scission up to 300–400 °C.

What reaction cures an epoxy resin?

Amine hardener opens the strained epoxide (oxirane) ring → cross-linked 3-D thermoset network.

What does FRP stand for and its two parts?

Fibre-Reinforced Polymer: stiff fibres carry tension, polymer matrix binds them and resists compression/shear.

CFRP vs GFRP?

CFRP uses carbon fibres (stiffer, lighter, costlier); GFRP uses glass fibres (cheaper, less stiff).

Figure of merit for aerospace materials?

Specific strength = tensile strength / density (σ/ρ) — strength per unit mass.

Type of polymerisation making Kevlar?

Condensation (step-growth) polymerisation, releasing HCl.

Why is epoxide ring-opening so favourable?

The 3-membered ring is strained (~60° angle); opening releases ring strain.

Connections

Condensation polymerisation — Kevlar, Nomex, polyimides all step-growth
Nylon-66 — also a polyamide but aliphatic (flexible, weaker, lower-melting)
Hydrogen bonding — the inter-chain glue in aramids
Thermosetting vs thermoplastic polymers — epoxy is a thermoset
Composite materials — fibre + matrix concept
Strength-to-weight ratio — why aerospace cares about specific strength
Aromaticity — source of chain rigidity

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, aerospace aur body armour me hume material chahiye jo halka ho lekin strong, stiff aur heat-resistant ho. Metal strong hota hai par bhaari. Toh chemist ne aise polymer banaye jinke chains seedhe rod jaise (rigid) ho aur ek doosre ke saath hydrogen bond se chipke ho — rod + glue = bahut zyada strength per unit weight. Yahi ek idea poore chapter ko explain karta hai.

Kevlar banta hai para (1,4) position pe jude aromatic rings se, isliye chain bilkul seedha rod ban jaata hai. Seedhe rods parallel pack hote hain aur har amide H-bond banata hai — isiliye Kevlar steel se ~5 guna strong (weight ke hisaab se). Bulletproof vest, parachute me use hota hai. Nomex wahi chemistry hai par meta (1,3) link, isliye chain tedha (zig-zag) ho jaata hai, tightly pack nahi hota — kam strong, lekin garmi/aag me melt nahi hota, isliye firefighter aur race-driver ke suit me. Yaad rakho: para = parallel = powerful; meta = melts-not.

PBO me amide ki jagah fused benzoxazole rings hain, poora backbone ladder jaisa rigid — Kevlar se bhi zyada strong. Polyimides me imide ring hoti hai jo 300–400°C tak survive karti hai (Kapton film, wire insulation). Epoxy resin ek glue (matrix) hai: amine hardener strained epoxide ring ko open karke cross-link banata hai aur thermoset set ho jaata hai.

Aakhir me composites: stiff fibre + epoxy matrix. CFRP (carbon fibre) bahut stiff aur halka — Boeing 787, F1 cars; GFRP (glass fibre) sasta par kam stiff — boat, wind-turbine blades. Aerospace me hum specific strength = strength/density dekhte hain, kyunki weight kam = fuel kam = paisa bachta hai. Bas yahi core funda hai.
