Optical activity — specific rotation, racemic mixtures, resolution

1. What is optical activity?

WHAT is observed: an instrument called a polarimeter measures the observed angle $\alpha$ (in degrees).

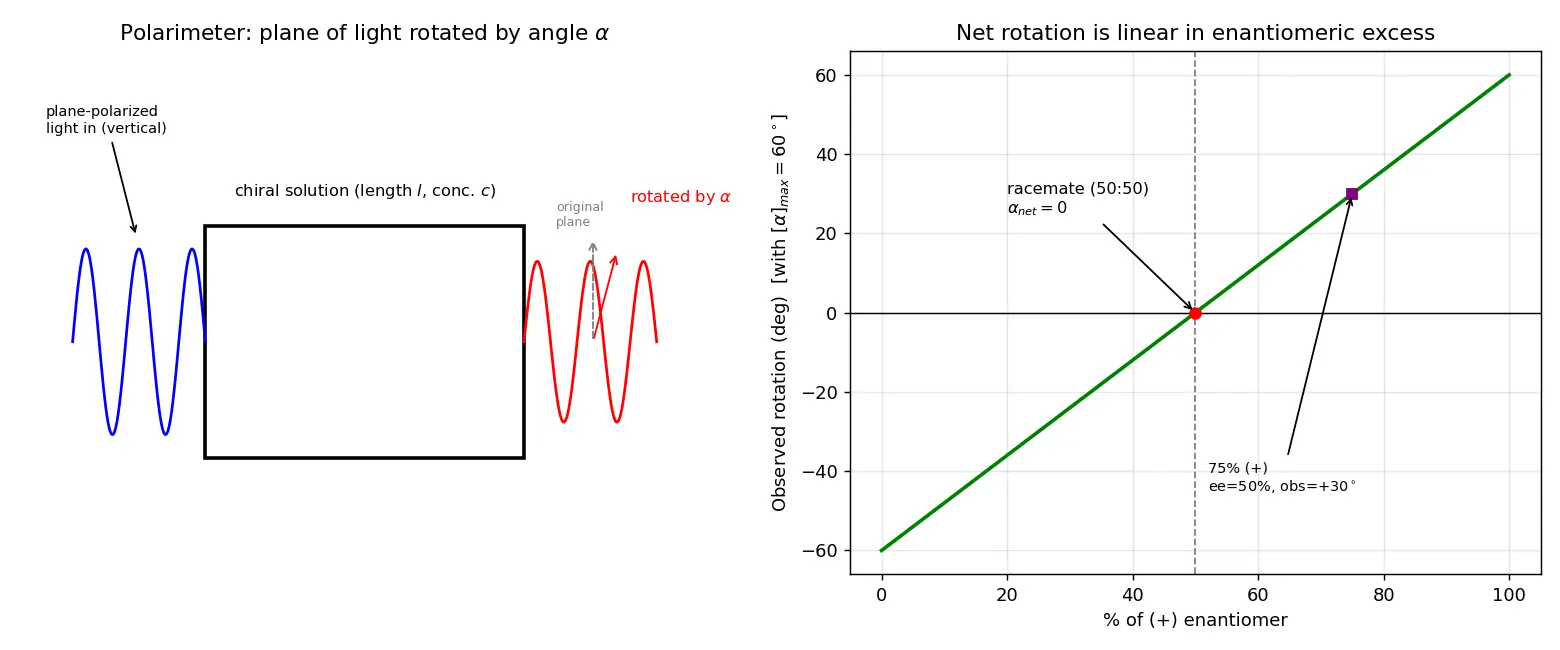

Figure — Optical activity — specific rotation, racemic mixtures, resolution

2. Specific rotation — deriving why we need it

HOW we derive it (first principles):

Each thin slice of solution adds a tiny twist. If a slice of thickness $dl$ holds concentration $c$ , its contribution is proportional to both: $d\alpha = k\,c\,dl$ Integrate over the whole tube of length $l$ (constant $c$ ): $\alpha = \int_0^l k\,c\,dl = k\,c\,l$ So $\alpha \propto c\cdot l$ . The proportionality constant $k$ is the intrinsic twisting power — but to standardise units we rename it as specific rotation $[\alpha]$ , fixing $l$ in decimetres (dm) and $c$ in g/mL:

3. Worked examples

Worked example Example 1 — find

$[\alpha]$ A 2.0 g/mL... (too dense — use a realistic one). Take $0.5$ g of sucrose dissolved to $10$ mL, in a $20$ cm tube, giving $\alpha = +6.65^\circ$ . Find $[\alpha]_D$ .

Step 1 — concentration: $c = \dfrac{0.5\text{ g}}{10\text{ mL}} = 0.05$ g/mL. Why? $[\alpha]$ needs g/mL, so we form g over mL directly.

Step 2 — path length: $l = 20\text{ cm} = 2.0$ dm. Why? Formula demands dm; divide cm by 10.

Step 3 — apply formula: $[\alpha]_D = \frac{+6.65}{0.05 \times 2.0} = +66.5^\circ$ Why this step? We strip out concentration and length to recover the intrinsic value. (+66.5° is indeed near sucrose's literature value.)

Worked example Example 3 — optical purity (enantiomeric excess)

A sample reads $[\alpha]_{obs} = +30^\circ$ , while the pure (+) enantiomer has $[\alpha]_{max} = +60^\circ$ . What % of each enantiomer?

Step 1 — optical purity: $\text{op} = \frac{[\alpha]_{obs}}{[\alpha]_{max}} = \frac{30}{60} = 0.50 = 50\%$ Why? Observed rotation is the net result; the fraction of max tells you the enantiomeric excess (ee). Step 2 — convert ee to composition: Let $x$ = fraction of (+). The excess of (+) over (−) is $ee$ : $x - (1-x) = 0.50 \Rightarrow 2x - 1 = 0.5 \Rightarrow x = 0.75$ So 75% (+) and 25% (−). Why this step? The 25% (−) cancels 25% of the (+); the remaining 50% pure (+) creates all the rotation — exactly the 50% ee.

4. Racemic mixtures

5. Resolution — separating a racemate

HOW — the diastereomer method (most common):

React the racemate (say a racemic acid) with a single pure enantiomer of a chiral base (e.g. (−)-brucine, a natural alkaloid).
This forms two salts: $(+)\text{-acid} + (-)\text{-base} \to (+,-)\text{-salt}$ $(-)\text{-acid} + (-)\text{-base} \to (-,-)\text{-salt}$
These two salts are diastereomers — they have different physical properties (different solubility, mp), so they CAN be separated by fractional crystallisation.
Separate, then regenerate each acid by adding mineral acid (removes the base).

6. Connections

Chirality and stereocentres — the structural cause of optical activity
Enantiomers vs Diastereomers — why diastereomers can be separated
Meso compounds and internal compensation — inactivity without mixing
R-S nomenclature (CIP rules) — naming the configurations
Polarimeter — the measuring instrument
Plane-polarized light and EM waves — the physics of polarization

Recall Feynman: explain to a 12-year-old

Imagine light is like a person walking while waving a flag straight up and down — that's "polarized" light. Now you send it through a juice made of tiny molecules that are all left-handed (like a box of only left gloves). As the light walks through, the left gloves nudge its flag a little to the side — by the time it comes out, the flag is tilted! That tilt is "optical activity." If you mix equal left and right gloves, one tilts the flag left and the other tilts it right by the same amount, so the flag ends up straight — that's a "racemic mixture" with zero tilt. To separate the left and right gloves, you can't just shake the box (they weigh the same); you grab a special right-hand-only helper that grips left and right gloves differently, then you can pick them apart. That's "resolution."

Flashcards

What property must a molecule have to be optically active?

Chirality — non-superimposable on its mirror image (no internal plane/centre/

S_n

axis of symmetry).

Define specific rotation with its formula.

[\alpha]_D^T = \dfrac{\alpha}{c\,l}

; intrinsic rotation per unit concentration (g/mL) and path length (dm).

What unit must path length

l

be in for

[\alpha]

Decimetres (dm); 1 dm = 10 cm.

What unit must concentration

c

be in for

[\alpha]

Grams per millilitre (g/mL).

Dextrorotatory means which sign and direction?

(+), clockwise rotation of plane-polarized light.

What is a racemic mixture?

A 1:1 mixture of two enantiomers; symbol (±)/(dl).

Why is a racemic mixture optically inactive?

External compensation — equal and opposite rotations of the two enantiomers cancel.

How does racemate inactivity differ from meso inactivity?

Racemate = external compensation (mixing of chiral molecules); meso = internal compensation (intramolecular mirror plane, truly achiral).

What is resolution?

Separation of a racemate into its two pure enantiomers.

Core trick of diastereomer resolution?

React racemate with one pure enantiomer of a chiral reagent → diastereomeric salts with different physical properties → separate, then regenerate.

Why can't enantiomers be separated by distillation?

They have identical physical properties in an achiral environment (same bp, solubility, etc.).

Formula for enantiomeric excess / optical purity?

\text{ee} = \dfrac{[\alpha]_{obs}}{[\alpha]_{max}}

A sample is 75% (+) and 25% (−). What is its ee?

50% (the excess of + over −).

Name two resolution methods besides diastereomer salts.

Enzymatic (chiral enzyme), chiral-column chromatography (also mechanical picking — Pasteur).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, optical activity ka idea simple hai. Normal light har direction me wiggle karti hai; polarizer use ek hi plane me wiggle karne wali "plane-polarized light" bana deta hai. Ab agar solution me molecules chiral hain (yaani apne mirror image pe superimpose nahi hote — jaise left hand aur right hand), to wo light ke plane ko ghuma dete hain. Clockwise ghoome to dextro (+), anticlockwise ghoome to laevo (−). Ye ghumav hi optical activity hai, aur isse hum chirality detect karte hain.

Observed angle $\alpha$ to tube ki length $l$ aur concentration $c$ pe depend karta hai — zyada molecules, zyada twist. Isliye substance ki apni property nikalne ke liye hum in dono ko hata dete hain: $[\alpha] = \alpha/(c\,l)$ . Yaad rakhna — $l$ decimetre me aur $c$ gram-per-mL me, warna answer 10x ya 1000x galat aayega. Yeh GOC ka favourite trap hai.

Racemic mixture matlab (+) aur (−) ka 1:1 mixture. Dono equal-opposite ghumate hain to net rotation zero — isko external compensation kehte hain. Dhyaan: racemate ke molecules phir bhi chiral hote hain, bas cancel ho jaate hain (meso compound se different — wo internally achiral hota hai).

Resolution matlab racemate ko do pure enantiomers me todna. Problem: enantiomers ke saare physical properties same hote hain, to normal distillation/crystallisation kaam nahi karta. Trick: ek pure chiral reagent (jaise (−)-brucine) milao — ab do diastereomeric salts banenge jinke properties alag hote hain, unhe crystallise karke alag karo, phir wapas todo. "Make them Different to Divide them" — yahi resolution ka dil hai.
