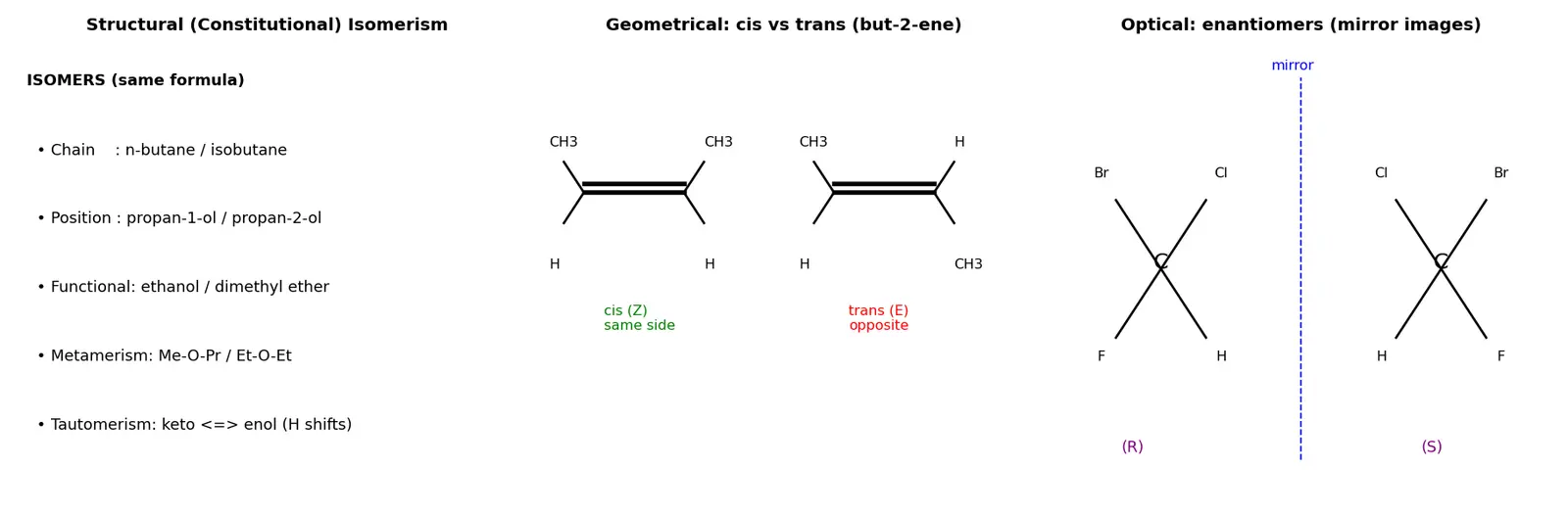

Isomerism — structural (chain, position, functional, metamerism, tautomerism) and stereo (geometrical - cis-trans - E-Z,
WHY do isomers exist?
Carbon makes 4 strong covalent bonds and chains/branches happily. So one formula like can be assembled in more than one valid way — and each distinct way is a real, separable compound (different b.p., reactivity, smell...).
The big split:
- Structural (constitutional) isomers → differ in connectivity (which atom is bonded to which).
- Stereoisomers → same connectivity, differ only in 3D arrangement.
1. Structural Isomerism
(a) Chain isomerism
Differ in the carbon skeleton (straight vs branched).
- : n-butane vs isobutane (2-methylpropane).
Why this step? We keep H count fixed and only rearrange the C-backbone.
(b) Position isomerism
Same skeleton + same functional group, but the group sits at a different position.
- : propan-1-ol vs propan-2-ol.
- : but-1-ene vs but-2-ene.
(c) Functional isomerism
Same formula, different functional group.
- : ethanol () vs dimethyl ether ().
- : propanal (aldehyde) vs propanone (ketone).
(d) Metamerism
Same functional group, but different alkyl groups on either side of a divalent atom (O, S, N).
- ethers: vs .
Why this step? The total carbons split differently across the central O.
(e) Tautomerism — a dynamic structural isomerism
Two isomers in rapid equilibrium, interconverting by movement of a proton (H) and a π bond.
2. Stereoisomerism
Same connectivity → arrangement in space differs.
(a) Geometrical (cis–trans / E–Z)
Conditions: restricted rotation (C=C or ring) AND each doubly-bonded carbon must carry two different groups.
- cis: same/similar groups on same side. trans: opposite sides.
- E/Z is the rigorous version using CIP priority (higher atomic number = higher priority):
- Z (zusammen = together): two high-priority groups on the same side.
- E (entgegen = opposite): high-priority groups on opposite sides.
(b) Optical isomerism (R/S, chirality)
Enantiomers rotate plane-polarized light equally but opposite ((+)/(−)). A racemic mixture (50:50) is optically inactive (rotations cancel).
Assigning R/S (CIP):
- Rank the 4 groups by priority (atomic number; go outward at first difference).
- Point the lowest priority group away from you.
- Trace 1→2→3: clockwise = R (rectus), anticlockwise = S (sinister).
Counting stereoisomers: for chiral centres (no symmetry), max . A meso compound has chiral centres but an internal mirror plane → achiral overall (e.g. meso-tartaric acid).
(c) Conformational isomerism
- Ethane: staggered (low energy, dihedral 60°) vs eclipsed (high energy, 0°). Energy gap ≈ 12.5 kJ/mol (torsional strain).
- Butane: anti (most stable) > gauche > eclipsed > fully eclipsed (syn).
Recall Feynman: explain to a 12-year-old
Imagine you have the same set of Lego pieces. You can build a long straight wall or a wall with a bump — same pieces, different shapes: that's structural isomerism. Now build the SAME shape twice but flip your left-hand build into a mirror — your two hands look identical but you can't put a left glove on a right hand: that's optical isomerism (enantiomers). And a tautomer is like a fidget toy where one little H atom keeps hopping back and forth, so the molecule flickers between two forms.
Active Recall
Isomers definition
Two main classes of isomerism
Chain isomerism
Position isomerism
Functional isomerism
Metamerism
Tautomerism
Condition for keto–enol tautomerism
Resonance vs tautomerism
Condition for geometrical isomerism
Z vs E
CIP priority rule
Chiral centre
Enantiomers
Racemic mixture
Meso compound
Max stereoisomers for n stereocentres
How to assign R/S
Conformational isomers
Most stable conformer of ethane
Most stable conformer of butane
Connections
- Hybridization and Bonding — why C=C π bond blocks rotation.
- CIP Priority Rules — backbone for E/Z and R/S.
- Resonance and Mesomeric Effect — contrast with tautomerism.
- Acidity of Alpha-Hydrogens — drives keto–enol equilibrium.
- Optical Activity and Polarimetry — measuring enantiomers.
- Newman Projections — visualizing conformers.
Concept Map
Hinglish (regional understanding)
Intuition Hinglish mein samjho
Dekho, isomerism ka core idea simple hai: molecular formula same, lekin molecule alag. Jaise ek hi Lego pieces se tum alag-alag shapes bana sakte ho. Do badi categories hain — structural (atoms ka connection hi badal jaata hai) aur stereo (connection same, sirf 3D arrangement alag).
Structural mein paanch type yaad rakho: chain (skeleton straight ya branched), position (group ki jagah badli), functional (group hi change, jaise alcohol vs ether), metamerism (ether/amine mein dono side alag alkyl groups), aur tautomerism — ye special hai, isme ek H atom aur ek π bond ghoom ke keto aur enol form ke beech equilibrium banate hain. Yaad rakhna: tautomerism ke liye alpha-hydrogen zaroori hai, aur ye resonance se alag hai kyunki yahan atom (H) sach mein move karta hai.
Stereo mein geometrical (cis-trans / E-Z) tab aata hai jab C=C rotate nahi kar sakta aur dono carbon par do-do different groups hon. E/Z ke liye CIP priority lagao — bada atomic number bada priority; same side = Z, opposite = E. Optical isomerism tab jab carbon ke 4 alag groups hon (chiral centre); uska mirror image superimpose nahi hota — inhe enantiomers kehte hain. R/S nikalne ke liye lowest priority ko peeche rakho, 1→2→3 clockwise = R, anticlockwise = S. Meso compound chiral centres hote hue bhi internal mirror plane ke kaaran optically inactive hota hai.
Exam tip: cis/trans ko E/Z samajhne ki galti mat karna — kabhi kabhi priority ki wajah se ulta ho jaata hai. Aur har 4-bond carbon chiral nahi hota — chaaron groups alag hone chahiye. Ye chhoti baatein hi marks bachati hain!
