Visual walkthrough — Isomerism — structural (chain, position, functional, metamerism, tautomerism) and stereo (geometrical - cis-trans - E-Z,
We will use only ideas from Hybridization and Bonding and CIP Priority Rules. Everything else we build here, step by step.
Step 1 — Why a single bond spins but a double bond does not
WHAT: We compare a single bond (one σ) with a double bond (one σ + one π).
WHY: Isomerism from geometry only appears when something stops moving. If the atoms could spin freely, "same side" and "opposite side" would blur into each other and be the same molecule. We need to find the lock.

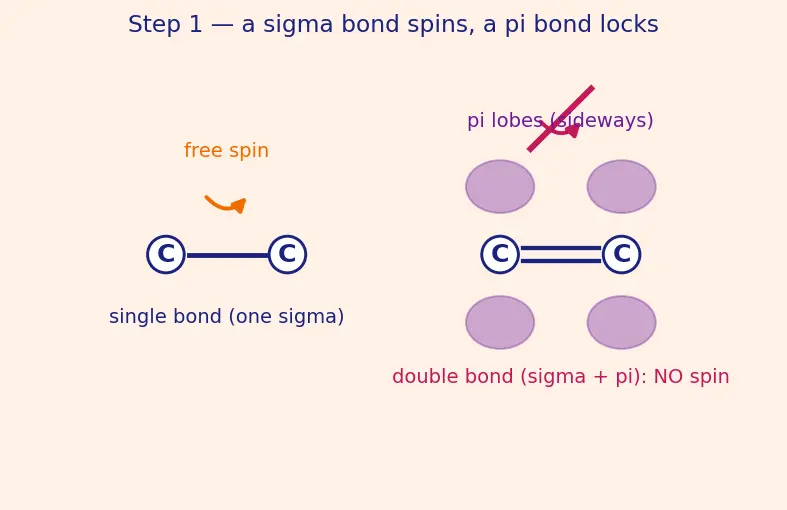

PICTURE: In the figure, the left C–C is a σ bond — the little curved arrow shows free spin. The right C=C adds the π "sandwich" (violet lobes above and below); the crossed-out arrow shows spinning is now forbidden.
The consequence: whatever groups you attach to the two carbons of a C=C are frozen in place. That freezing is the entire reason geometrical isomerism exists.
Step 2 — Freezing creates two genuinely different molecules
WHAT: We take the simplest locked alkene where each carbon carries two unlike groups and draw both frozen arrangements.
WHY: The parent note's condition was "each doubly-bonded carbon must carry two different groups." Here we see why: if a carbon held two identical groups, flipping them would give back the same picture — no new molecule. Difference on each carbon is what makes the two frozen forms distinct.

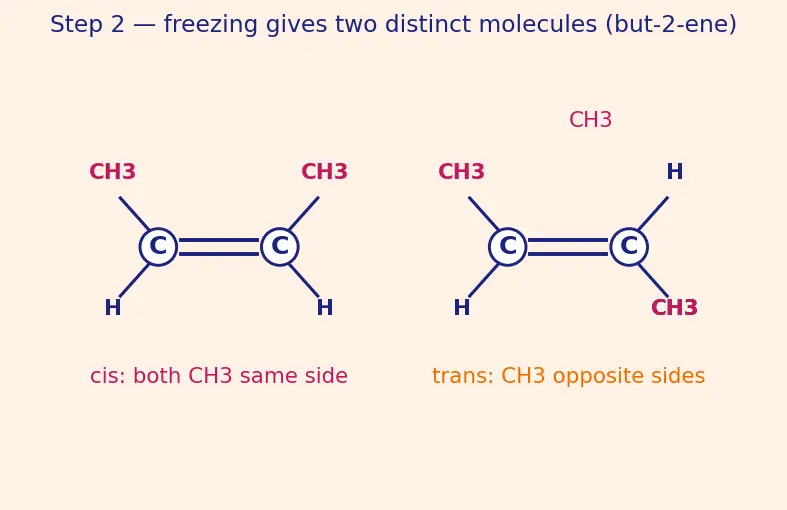

PICTURE: Two copies of but-2-ene, . On the left both groups point up (same side). On the right one points up, one down (opposite sides). No amount of twisting turns one into the other, because Step 1 removed twisting.
This eyeball method (cis/trans) works only while the groups are obviously "matching". Step 4 shows where it collapses.
Step 3 — Where "same side / opposite side" is even measured from
WHAT: We put a dashed axis through the double bond and label the four attachment slots (top-left, bottom-left, top-right, bottom-right).
WHY: Before we can say "same side", we must agree on the line that defines a side. Beginners often compare the wrong pair of groups because they never drew this axis.

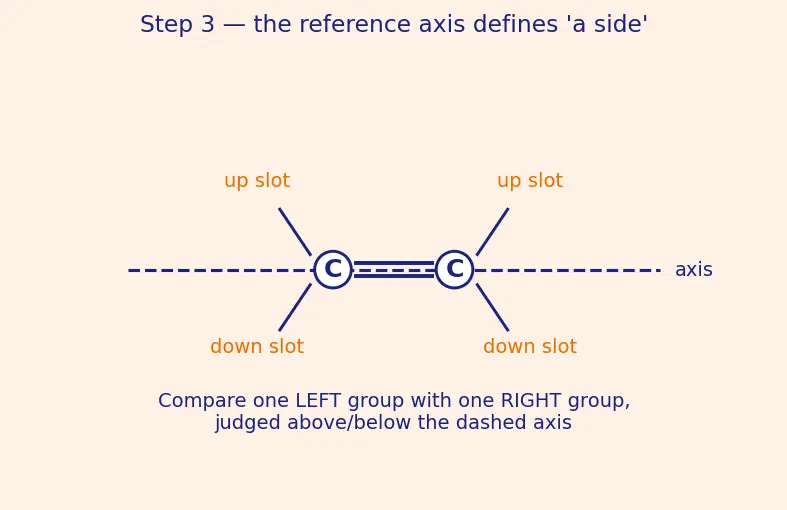

PICTURE: The dashed navy line runs through both alkene carbons. Each carbon has an "up slot" and a "down slot". You compare one group from the left carbon with one group from the right carbon.
Key move: on the left carbon you must pick ONE group to be your reference, and on the right carbon ONE group. Which ones? That is exactly the question CIP answers — next step.
Step 4 — Why cis/trans breaks, and CIP rides to the rescue
WHAT: We take -style cases and show the eyeball method has no valid answer, then introduce a rule that always works.
WHY this tool — CIP over eyeballing: We need a method that picks a definite reference group on each carbon no matter how weird the groups are. CIP Priority Rules give exactly that: rank groups by atomic number (bigger nucleus = higher priority). This turns a fuzzy "looks similar" judgement into a hard comparison.

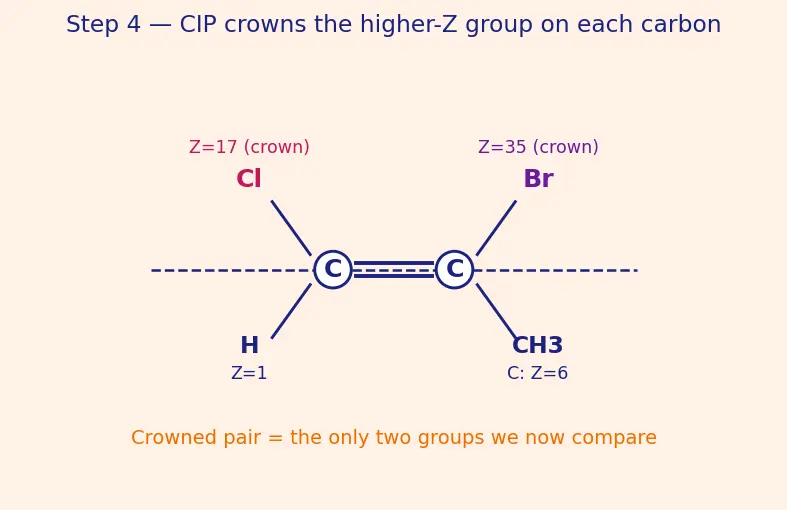

PICTURE: Left carbon holds (Z=17) vs (Z=1) → wins, crown drawn on . Right carbon holds (Z=35) vs (carbon, Z=6) → wins, crown on . Now we only ever compare the two crowned groups.
Step 5 — The E/Z verdict
WHAT: We apply the verdict to the crowned molecule from Step 4.
WHY: This is the rigorous replacement for cis/trans. It never fails, because CIP always names a unique winner on each carbon (no ties survive the outward walk).

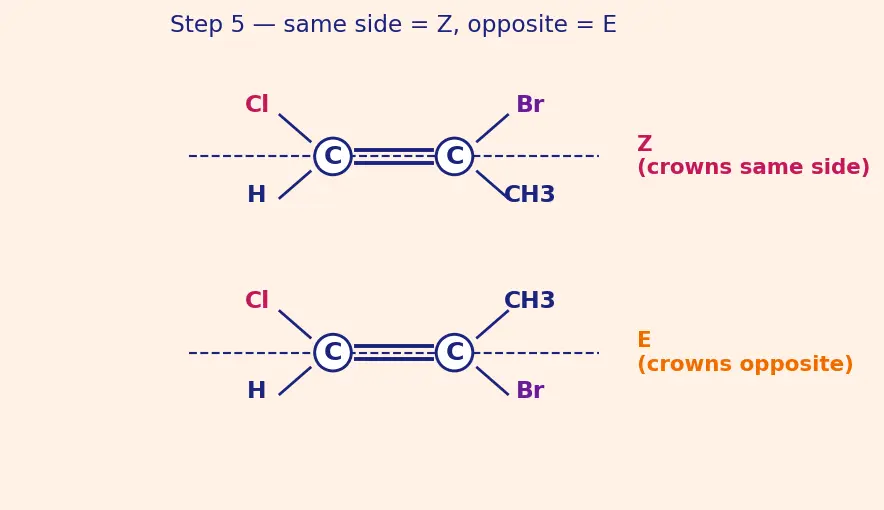

PICTURE: Top drawing — both crowns up → same side → labelled Z. Bottom drawing — one crown up, one down → opposite → labelled E. The dashed reference axis makes the "same vs opposite" call obvious.
Step 6 — Why cis ≠ Z in general (the flip)
WHAT: We build a molecule where the visually "cis" pair and the CIP "Z" pair disagree.
WHY: To prove the two systems are genuinely different, not just different words for the same thing.

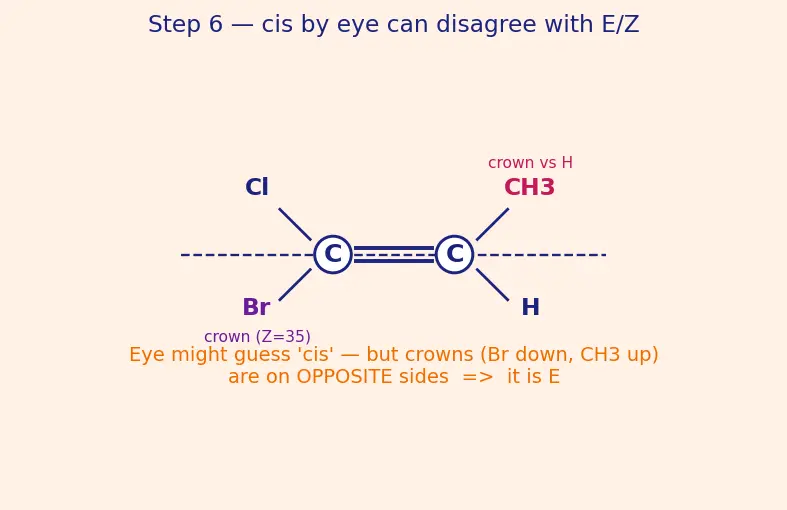

PICTURE: Take 1-bromo-1-chloropropene-type: left carbon carries up and down; right carbon carries up and down. By eye you might pair the two carbons and call something "cis". But CIP: left winner is (Z=35, it's the down group), right winner is (down-competes as C vs H — up). Winners land on opposite sides → E, even though a naive "cis" glance disagrees. The figure marks the visual guess and the CIP truth side by side.
Lesson: always run CIP; never trust the eyeball once groups stop looking alike.
Step 7 — The degenerate cases (when there is NO E/Z at all)
WHAT: We show the two ways geometrical isomerism vanishes.
WHY: The parent note stated the condition (two different groups on each carbon) but never showed the failure. A reader must recognise a "no isomers" alkene on sight.

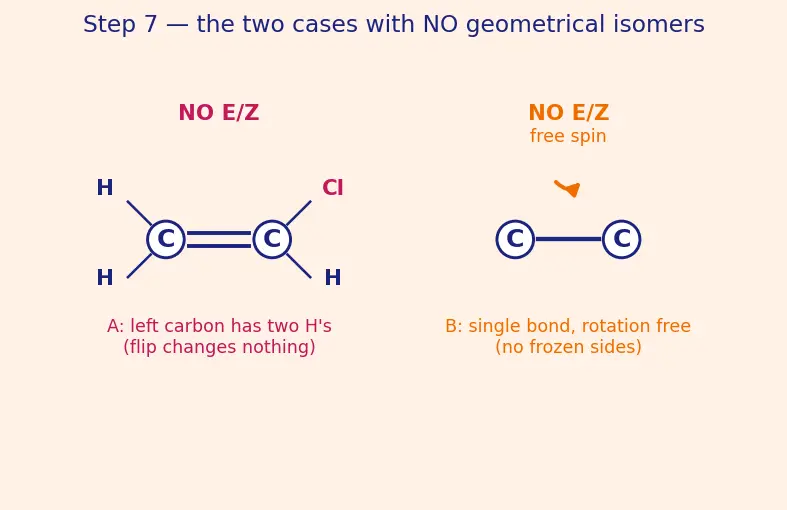

PICTURE — case A (identical groups on one carbon): . The left carbon carries and . Flipping the two H's changes nothing — there is only one molecule. Marked with a "no label possible" stamp.
PICTURE — case B (free rotation restored): a single bond . The σ bond spins (Step 1), so "up" and "down" freely swap. No frozen sides → no E/Z. Marked with the spin arrow.
Recall Checklist for "does this alkene have E/Z?"
Need C=C (or ring) to freeze rotation :::: AND each doubly-bonded carbon must carry two different groups. Fail either test → no geometrical isomers.
The one-picture summary

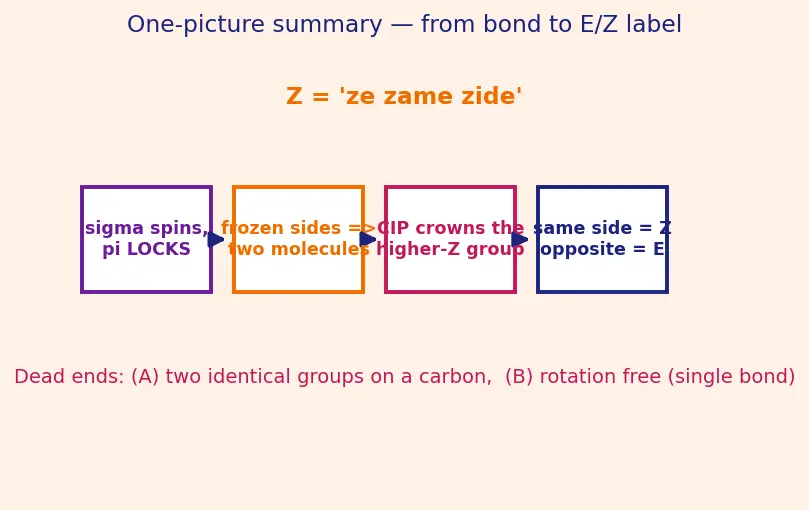

This single figure is the whole walkthrough: σ spins → π locks → freezing makes two forms → CIP crowns one group per carbon → same side = Z, opposite = E → and the two dead-end cases that kill the whole scheme.
Recall Feynman retelling (say it to a friend)
A single bond is like a bead on a straight wire — you can spin the bead freely, so nothing is ever "stuck". A double bond adds a second, sideways glue-strip (the π bond) above and below; now if you tried to spin, you'd rip the glue, so the two ends are frozen. Once they're frozen, the groups hanging off each end are stuck on a definite side of the line through the bond. To name it fairly, we don't argue about what "looks similar" — we let the heavier atom win on each end (that's CIP). If the two heavyweight winners are on the same side, we shout "Z — ze zame zide!"; if opposite, "E." And it all falls apart in two boring ways: if one end holds two identical groups (nothing to distinguish sides), or if the bond is actually single and spins free again.
