Before you can read the parent note Optical Activity, you need every word and symbol it leans on. We build them one at a time, from nothing, each earning the next.
Ordinary light is a wave that wiggles up-down, left-right, and every angle in between — all at once. Think of shaking a rope: you could shake it in any direction.
A polarizer is a filter with slots that only let through the wiggles pointing in ONE direction. What comes out wiggles in a single flat plane — this is plane-polarized light.

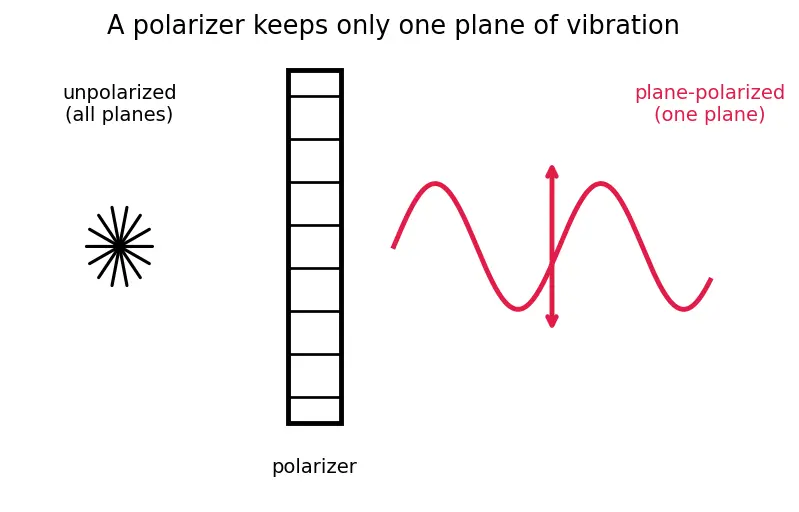

Figure 1 — On the left, ordinary light vibrates in every plane (the fan of black arrows). The vertical-slot polarizer (the fence) blocks all but one direction; on the right, only the single red vibration plane survives. Look at the red arrow: that lone plane is our "plane-polarized light".
WHY the topic needs it: optical activity is defined as the twisting of this plane. No plane, nothing to twist. Deep dive: Plane-polarized light and EM waves.
Hold a word up to a mirror and it reads backwards — the reflection is a different object. Two things are superimposable if you can slide and rotate one so it sits exactly on top of the other with every part matching.
Two identical coffee mugs → superimposable (they're the same shape).
Your left and right hands → NOT superimposable. Line up the palms and the thumbs point opposite ways.

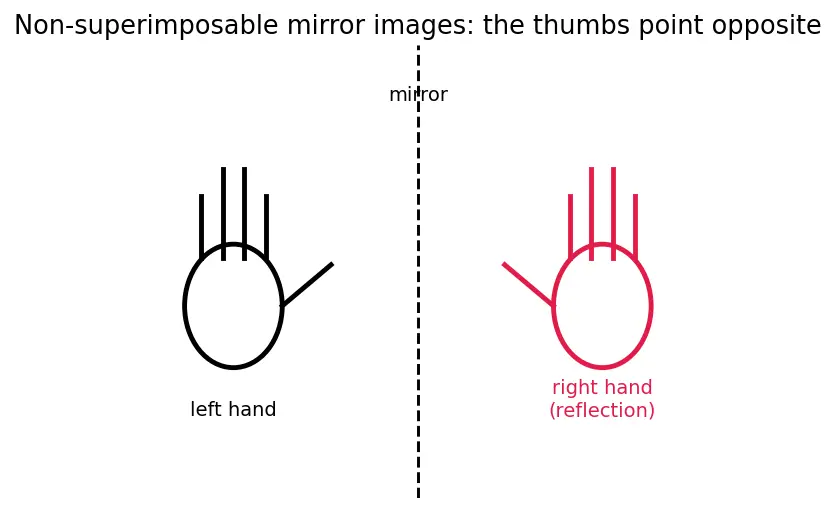

Figure 2 — A black left hand and its reflection (the red right hand) across the dashed mirror line. Try to imagine sliding the red hand onto the black one: the thumbs stubbornly point opposite ways, so they can never overlap. That is what "non-superimposable" looks like.
The word chiral comes from the Greek for "hand". A molecule is chiral if it is non-superimposable on its mirror image. If a molecule can be superimposed on its reflection, it is achiral (like a plain ball or a fork).
WHY the topic needs it: chirality is the essential requirement for optical activity. Only chiral molecules twist the light. Full detail: Chirality and stereocentres.
Compare with diastereomers, which are stereoisomers that are NOT mirror images — those do have different physical properties. This distinction is the whole engine behind resolution (Section 5 of the parent). See Enantiomers vs Diastereomers.
Face the incoming light beam head-on. The polarized plane can be twisted two ways:
Clockwise (to your right) → dextrorotatory, written (+) or (d).
Anticlockwise (to your left) → laevorotatory, written (−) or (l).
Figure 3 — Both panels start from the same vertical black plane. Left: the red plane has been turned clockwise — that is the (+) / dextrorotatory case. Right: the red plane has been turned anticlockwise — the (−) / laevorotatory case. The little red arc shows the direction of the twist as you face the oncoming beam.
The letter α (Greek "alpha") is just a name for the observed rotation — the angle, in degrees, by which the plane came out twisted. It is read off a polarimeter: a light source, a polarizer, the sample tube, and a rotatable analyzer that you turn until the light passes cleanly again. The angle you turned = α. Details: Polarimeter.
The raw angle α gets bigger if the light meets more molecules. Two things set "how many":
Path lengthl — how long the sample tube is (measured in decimetres, dm, where 1 dm = 10 cm). Longer tube → more molecules in the path → bigger twist.
Concentrationc — how crowded the solution is (measured in grams per millilitre, g/mL). Denser → more molecules per unit length → bigger twist.

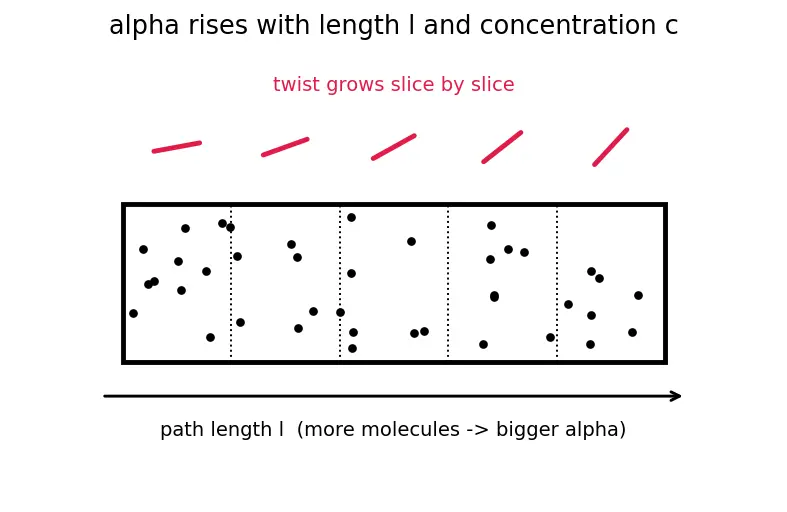

Figure 4 — The sample tube is chopped into thin slices (dotted lines), each packed with molecules (black dots). Every slice adds its own little twist, so the red arrows at the top lean further and further as the light travels right. Read left to right: more length l (and more crowding c) means a bigger final α.
Figure 4 showed that the twist grows in step with both c and l. In symbols, doubling the crowding or doubling the length doubles the angle, so α is directly proportional to the product c⋅l. We write that as:
α=kcl
Since k is the part that belongs to the substance itself, we simply give it a name and standard units. Rearranging α=kcl to solve for that intrinsic number gives k=clα, and we rename it specific rotation[α]:
Do not confuse this with a meso compound, which is a single molecule made inactive by its own internal mirror plane (internal compensation) — see Meso compounds and internal compensation.
Read the map below as a set of arrows meaning "is needed for". Trace it in three streams:
Left stream (the light):plane-polarized light is what the whole phenomenon acts on, so it feeds straight into optical activity.
Middle stream (the molecule):mirror images not superimposable is the raw idea; it defines chirality; chirality gives us enantiomers; and enantiomers are the molecules that actually cause optical activity.
Bottom stream (the measurement): optical activity is read as the observed angleα; combine that with the path lengthl and concentrationc knobs and you land on specific rotation. Separately, mixing enantiomers 1:1 gives a racemic mixture, and pulling it apart again is resolution.
Every box above is one of the sections you just read; if any box feels shaky, jump back to its section before moving on.
