Visual walkthrough — Optical activity — specific rotation, racemic mixtures, resolution

---

Step 1 — What "plane-polarized light" even means

WHAT: we replace a messy bundle of arrows with one clean arrow that points, say, straight up-and-down.

WHY: to measure a twist, you first need something whose orientation is well-defined. A random tangle has no orientation to twist. One flat plane does. This is the raw material the whole chapter twists.

PICTURE: on the left, arrows in all directions (unpolarized). After the polarizer (the slotted screen), only the vertical arrow survives. That surviving direction is our reference line — call its angle $0^{\circ }$.

• The many faint arrows $=$ the electric field pointing every which way before filtering.
• The single amber arrow $=$ the one plane that gets through: our starting orientation, $0^{\circ }$.

---

Step 2 — A handed molecule twists that arrow a little

WHAT: one molecule nudges the up-arrow clockwise (or anticlockwise) by a tiny angle.

WHY: this is the atom of the whole effect. Every bit of rotation the polarimeter reads is a sum of these tiny nudges. If we understand one nudge, integrating gives the whole.

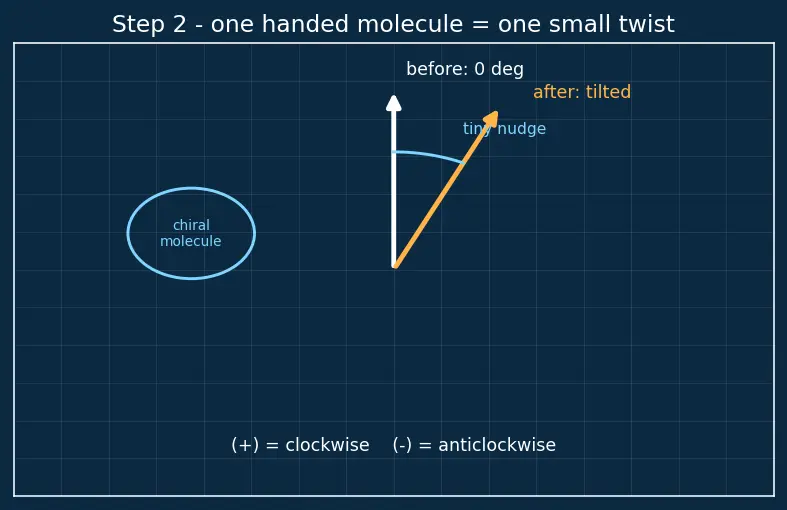

PICTURE: the vertical reference line, and next to it the same line tilted by a small angle after meeting a single handed molecule (drawn as a little left-hand glyph). Clockwise tilt $=$ dextrorotatory (+); anticlockwise $=$ laevorotatory (−).

• Reference line (white) $=$ orientation before the molecule.
• Tilted line (amber) $=$ orientation after: rotated by a tiny angle we'll call a "nudge."

---

Step 3 — Stack many slices: the twist grows with path length

WHAT: we say the twist added by one thin slice is proportional to how many molecules that slice contains.

WHY these two factors: a slice holds more molecules if (a) the solution is denser — concentration $c$ — or (b) the slice is thicker — $dl$. So the tiny twist $d\alpha$ must scale with both.

$\underset{\text{tiny twist from one slice}}{\underbrace{d\alpha }}=\underset{\begin{array}{c}\text{twisting power}\\ \text{of this compound}\end{array}}{\underbrace{k}}\cdot \underset{\begin{array}{c}\text{concentration}\\ \text{(g/mL)}\end{array}}{\underbrace{c}}\cdot \underset{\begin{array}{c}\text{slice}\\ \text{thickness}\end{array}}{\underbrace{dl}}$

• $d\alpha$ — the small angle contributed by one disc. The "$d$" means "a tiny amount of."
• $k$ — a constant baked into the molecule: how strongly this substance twists light. Different compounds, different $k$.
• $c$ — grams of solute per mL: sets how many molecules are packed into the slice.
• $dl$ — the thickness of the slice: a thicker slice holds proportionally more molecules.

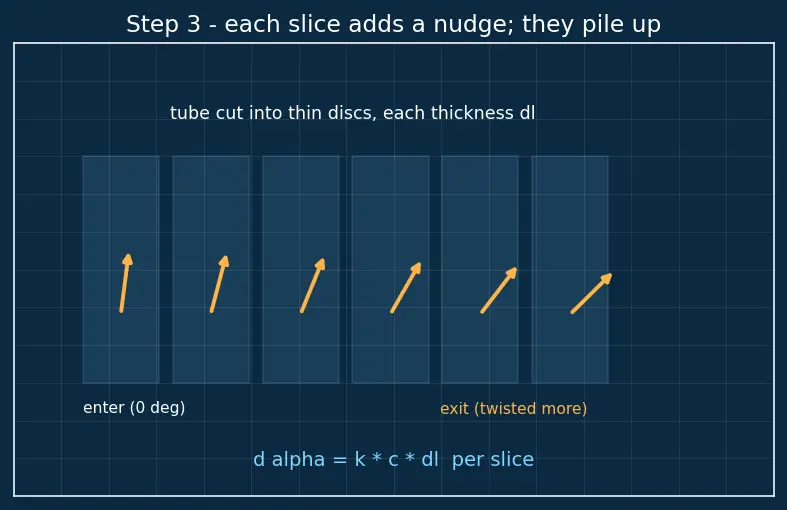

PICTURE: the tube cut into stacked discs; the arrow enters vertical, and after each disc it has rotated a bit more, spiralling toward the final angle at the exit.

• Each disc $=$ one slice of thickness $dl$.
• The arrow's growing tilt from left to right $=$ nudges accumulating.

---

Step 4 — Add every slice: integration gives $\alpha =kcl$

WHAT: integrate $d\alpha =kcdl$ along the tube.

$\alpha ={\int }_0^{l}kcdl=kc{\int }_0^{l}dl=kcl$

• ${\int }_0^l$ — "add up from the entrance to length $l$."
• $k,c$ come out front because they are the same in every slice (uniform solution) — constants slide outside the sum.
• ${\int }_0^{l}dl=l$ — adding up all the slice thicknesses just rebuilds the total length.
• Result $\alpha =kcl$ — the observed twist grows in step with concentration and with length.

WHY this is the punchline: it says $\alpha$ is not a fixed property. Double the concentration, double $\alpha$. Double the tube length, double $\alpha$. To speak about the substance rather than the setup, we must cancel $c$ and $l$.

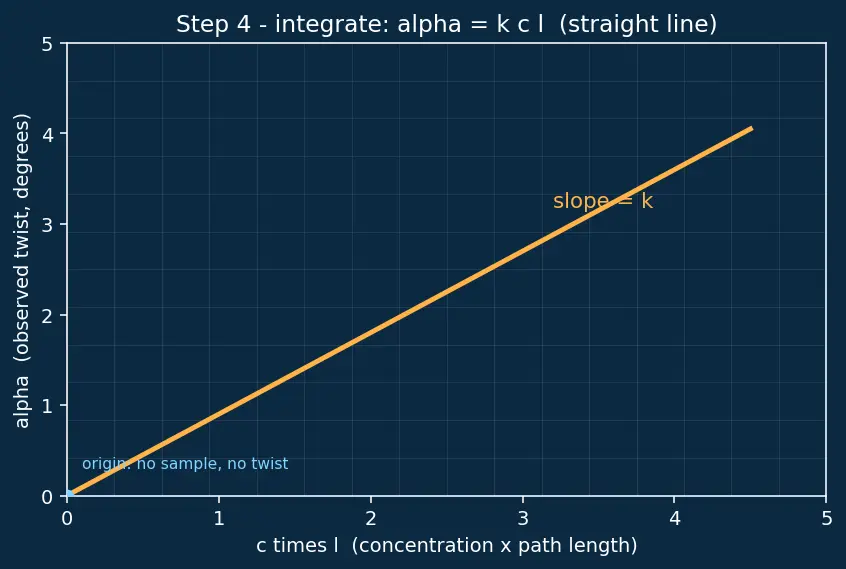

PICTURE: a graph — $\alpha$ on the vertical axis rising as a straight line through the origin against $c\cdot l$ on the horizontal axis. The slope of that line is $k$.

• Straight line through origin $=$ $\alpha \propto cl$.
• The slope $=$ $k$: the intrinsic twisting power we're chasing.

---

Step 5 — Rename the slope: specific rotation

WHAT: solve $\alpha =kcl$ for $k$ to get $k=\frac{\alpha }{cl}$, then fix the units so everyone reports the same number: $l$ in decimetres, $c$ in g/mL, light of the sodium D-line ($\lambda =589$ nm), temperature $T$.

WHY fix units: the slope $k$ is only a clean, comparable property if the whole world measures it the same way. The subscript $D$ and superscript $T$ are labels reminding you which light and temperature were used — the twist depends slightly on both.

• $\alpha$ — what the Polarimeter actually reads, in degrees.
• $c\cdot l$ — the "how many molecules" factor we are dividing out.
• $[\alpha ]$ — the pure, tabulated property of the compound. Units: $\text{deg}\cdot \text{mL}\cdot {\text{g}}^{-1}\cdot {\text{dm}}^{-1}$.

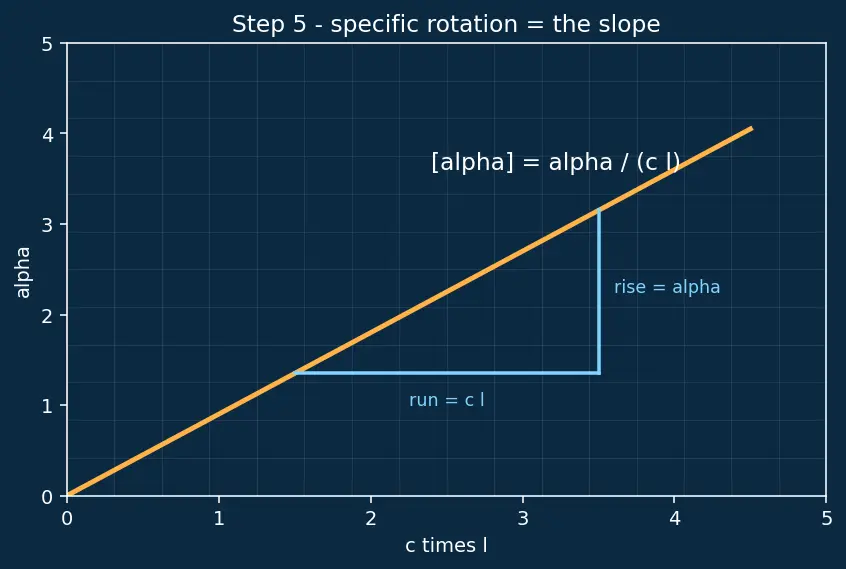

PICTURE: the same line from Step 4, with a right-triangle drawn on it showing "rise $=\alpha$" over "run $=cl$" — the slope $[\alpha ]$ read straight off the geometry.

• Rise ($\alpha$) over run ($cl$) $=$ slope $=[\alpha ]$: division made visible.

---

Step 6 — Degenerate case: empty tube or zero concentration

WHAT: set $c=0$ (pure solvent) or $l=0$ (no tube) in $\alpha =[\alpha ]cl$.

$c=0\Rightarrow \alpha =[\alpha ]\cdot 0\cdot l=0,l=0\Rightarrow \alpha =[\alpha ]\cdot c\cdot 0=0$

WHY it matters: no molecules in the path (or no path at all) means no nudges to add — the arrow leaves exactly as it entered. The formula returns $\alpha =0$, matching physical reality. Good.

PICTURE: an empty tube; the arrow enters vertical and exits still vertical — zero net twist.

• No discs of solute $=$ no nudges $=$ arrow unchanged $=$ $\alpha =0$.

---

Step 7 — Degenerate case: a racemate (both hands, equal amounts)

WHAT: split the concentration into two equal halves and add their contributions.

${\alpha }_{\text{net}}=\underset{\text{(+) half twists right}}{\underbrace{(+k)\frac{c}{2}l}}+\underset{\text{(−) half twists left}}{\underbrace{(-k)\frac{c}{2}l}}=0$

• $\frac{c}{2}$ — each enantiomer supplies half the total concentration.
• $+k$ and $-k$ — mirror-image molecules twist with equal strength, opposite direction.
• Sum $=0$ — every clockwise nudge is undone by a matching anticlockwise one. This is external compensation.

WHY it's not the same as achiral: the molecules are still chiral — the cancellation is a mixing accident, not internal symmetry (contrast Meso compounds and internal compensation). That's why a racemate can be resolved back into active halves, while a meso compound cannot.

PICTURE: the arrow being pulled clockwise by a right-hand glyph and anticlockwise by a left-hand glyph — the two pulls balanced, arrow ending exactly vertical.

• Equal-and-opposite pulls $=$ net twist zero, even though every molecule is handed.

---

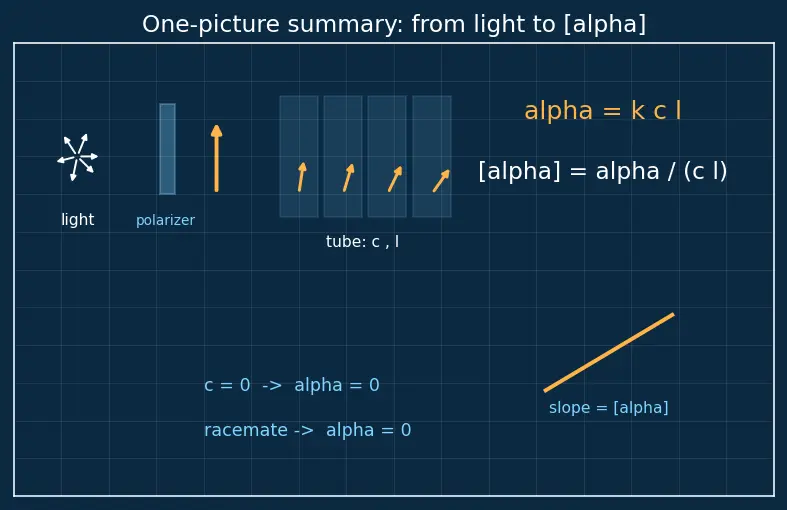

The one-picture summary

This single figure compresses the whole walkthrough: unpolarized light → one polarized arrow → each slice of a $c$-dense, $l$-long tube adds a nudge → the nudges integrate to $\alpha =kcl$ → dividing out $cl$ leaves the pure property $[\alpha ]=\alpha /(cl)$ → and the two degenerate limits ($c=0$ and a racemate) both give $\alpha =0$.

Recall Feynman retelling — say it back in plain words

Light normally shakes in every direction; a polarizer forces it to shake in just one flat line — that's our starting arrow. Push it through a tube full of "handed" molecules and each molecule gives the arrow a tiny twist, always the same direction for the same hand. Cut the tube into thin discs: each disc twists the arrow a little, and the twists pile up. More concentrated solution or a longer tube means more molecules in the way, so a bigger twist — that's why $\alpha =kcl$: the total twist is proportional to concentration times length, with $k$ being how strongly this particular molecule twists. But $\alpha$ isn't the molecule's own number — it changes if you change the tube or the strength of the solution. So we divide the twist by $cl$ to strip those out, and what's left, $[\alpha ]=\alpha /(cl)$, is the compound's fingerprint. Check the edges: no sample means no twist, and mixing equal left- and right-handed molecules means every twist gets cancelled — zero again — even though the molecules themselves are still perfectly chiral.

One-word compensation type for a racemate ::: External What we divide $\alpha$ by to get $[\alpha ]$ ::: $c\cdot l$ (concentration $\times$ path length) Why an empty tube reads zero ::: no molecules $\Rightarrow$ no nudges to add up

Recall Quick self-test

If you double both $c$ and $l$, what happens to $\alpha$? ::: It quadruples (it scales with the product $cl$) Does $[\alpha ]$ change when you double $c$? ::: No — that's the whole point; $[\alpha ]$ is intrinsic A racemate reads $\alpha =0$ — is it achiral? ::: No; its molecules are chiral but cancel (external compensation)
