Visual walkthrough — Silicon and silicates; silicones; zeolites
Everything below is built from one object: a shape called a tetrahedron. Let us build it first.
Step 1 — Build the single tetrahedron
WHAT. Put one silicon atom at the centre and four oxygen atoms at the four corners of a pyramid-with-a-triangular-base. That pyramid shape is the tetrahedron — "tetra" means four (four corners, four faces).
WHY silicon in the middle and oxygen on the corners? Silicon has four bonds to give (Group 14 — four outer electrons, see Group 14 trends). Four bonds pushing away from each other spread out into the roomiest possible arrangement: the four corners of a tetrahedron. Oxygen, sitting on each corner, is the atom silicon most wants to bond to (Si–O is the strongest bond it can make).
PICTURE. Look at the figure: the black atom in the middle is Si, the four corners are O. Notice each bond points as far from the others as it can — that is why it is a 3-D pyramid, not a flat cross.
The is the seed of the whole story. Every corner O carries part of that leftover charge. What happens if two tetrahedra decide to share a corner?
Step 2 — The one move that changes everything: share a corner
WHAT. Bring a second tetrahedron up so that one oxygen corner belongs to both silicons at once. That shared O is now a bridge: .
WHY does sharing matter for charge? Before sharing, that corner O was "owned" by one Si and carried its full pull on that tetrahedron. After sharing, it is split between two silicons — each Si only gets to count half of it.
PICTURE. The red oxygen in the figure is the shared bridge. Follow the two bonds leaving it: one goes left to Si①, one goes right to Si②. It is one atom doing two jobs.
Now we just turn one dial: how many of the four corners are shared? Steps 3–7 are that dial from 0 to 4.
Step 3 — Share 1 corner: the pair
WHAT. Exactly two tetrahedra, joined at one bridge. This is the smallest possible sharing.
WHY count it out? Practice for the rule. Per Si we have 3 terminal O (whole) + 1 bridging O (half).
PICTURE. Two tetrahedra kissing at one red bridge O; the six outer black O are all terminal.

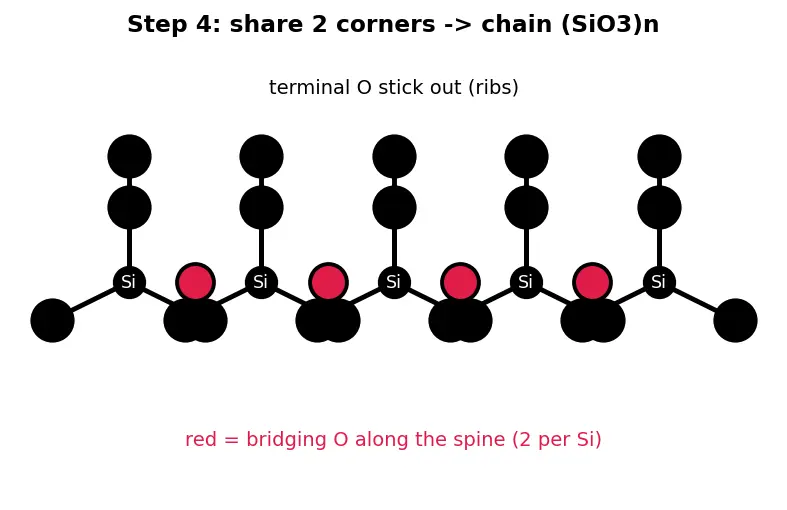

Step 4 — Share 2 corners: the endless chain
WHAT. Each tetrahedron now shares two of its corners — one with the neighbour on its left, one with the neighbour on its right. This makes an infinite chain (pyroxenes).
WHY two corners → a line? Two connection points, one forward and one backward, is exactly what you need to build a rope that never ends but never branches.
PICTURE. The red bridges run along the spine of the chain; the black terminal O stick out above and below like ribs.

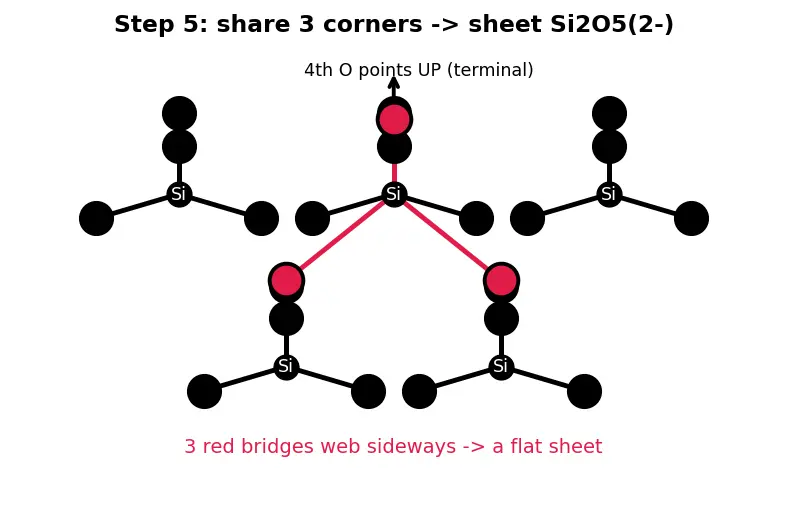

Step 5 — Share 3 corners: the sheet
WHAT. Three of the four corners are now bridges; only the fourth (pointing straight up) stays terminal. Bridging in three directions tiles a flat plane — a sheet (mica, clay, talc).
WHY three corners → a sheet? Three connections lying in a triangle spread the linking out sideways in a plane. The one unshared corner sticks up out of the sheet like a nap on velvet.
PICTURE. Look down onto the sheet: the three red bridges of each tetrahedron web outward to neighbours; the fourth O (marked with the up-arrow) points out of the page toward you.

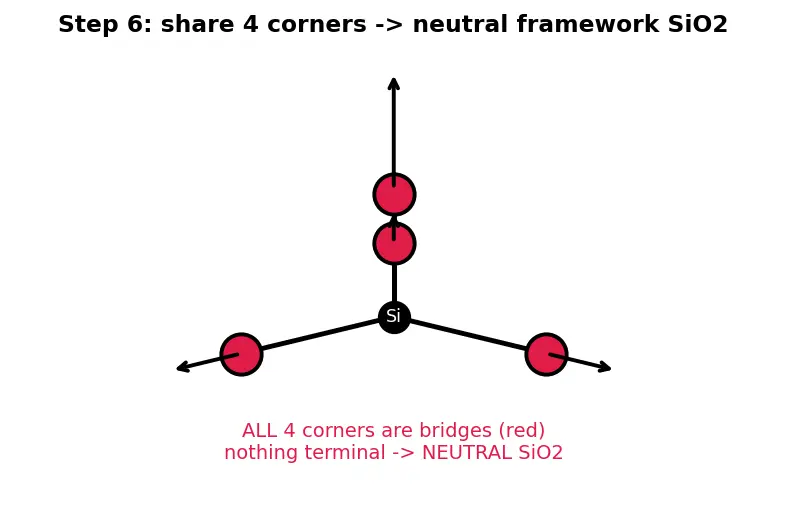

Step 6 — Share all 4 corners: neutral framework
WHAT. Every corner is now a bridge. No corner is left over. This is the 3-D framework — quartz, sand, glass.
WHY does the charge vanish? With all four O shared and none terminal, every O is halved and every O is electrically satisfied by its two silicons. Nothing is left asking for outside metal ions → the solid is neutral.
PICTURE. All four corners are red bridges reaching off in every direction; there are no black terminal O left anywhere.

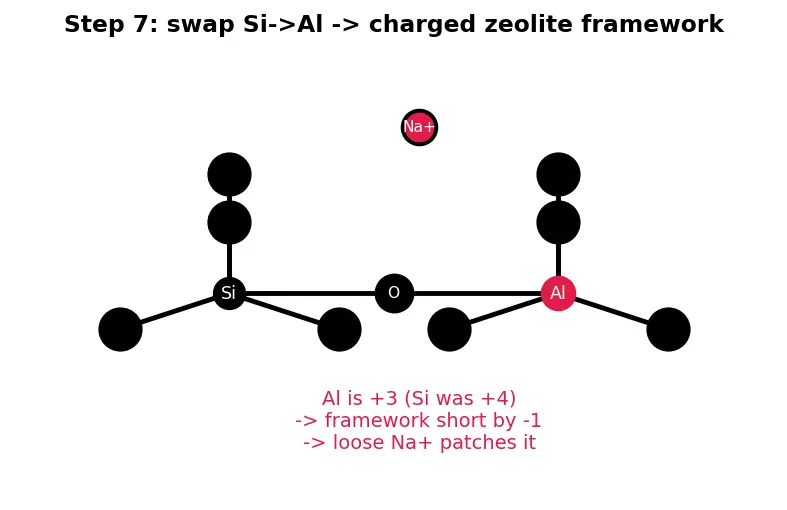

Step 7 — The edge case: swap one Si for Al (the zeolite twist)
WHAT. Start from the neutral framework of Step 6, then replace one silicon by an aluminium (see Lewis acids and empty d-orbitals for why Al fits). The shape is unchanged — Al also sits in a tetrahedron — but the arithmetic shifts.
WHY does one swap create charge? Al brings only where Si brought . The oxygens around it still pull the same . So the neutral framework becomes short of neutral for every Al put in.
PICTURE. The red atom is the substituted Al; a loose floats in the cage nearby to patch the missing .
The one-picture summary
WHAT. One dial, seven readings. Turn "corners shared" from to and read off the dimensionality, the O-per-Si, and the charge — then the Al-swap branch that makes zeolites.
PICTURE. The staircase: each step is one more shared corner (red), and the number beside it is the leftover charge per Si. Watch it climb from (isolated) up to (framework), then the red branch dropping back to when Al enters.
Recall Feynman: the whole walkthrough in plain words
Imagine a tiny four-legged stool: one silicon in the middle, four oxygen feet. On its own the stool carries a charge of — it is grumpy and needs company. Now let two stools share a foot: that shared foot is now only half each stool's problem, and it stops being grumpy at all. So every time two stools share a foot, the leftover charge climbs by exactly . Share zero feet and you get lonely ; share two feet and stools line up into a rope (); share three feet and they carpet a floor (); share all four feet and every foot is neutral, so the whole 3-D castle — sand, quartz, glass — carries no charge at all. Finally, sneak one aluminium stool (which is poorer than silicon) into the castle: it leaves the castle short, so a loose sodium bead drops into a room to fix it. That bead can be swapped out — and that is a zeolite softening your water.
Recall
Master formula for charge per Si with shared corners? ::: . Why does sharing a corner raise the charge by ? ::: The bridging O is split between two Si, so each Si counts only half of its , and the O becomes neutral. What does replacing one Si⁴⁺ by Al³⁺ do to a neutral framework? ::: Leaves it per Al, patched by a loose exchangeable cation.
