3.2.4p-Block

Silicon and silicates; silicones; zeolites

2,060 words9 min readdifficulty · medium

80/20 core: Si is like C but bigger and more electropositive — so it loves Si–O bonds, builds giant 3D networks (silicates, quartz, glass), can be tailored into oily/rubbery silicones (Si–O backbone + organic groups), and into cage-like zeolites (Al-substituted aluminosilicates that trap and exchange ions).


1. Why silicon behaves the way it does


2. Silicates — derive the structures from one building block

Corners shared Structure Example Formula of unit
0 isolated (ortho) olivine SiO44SiO_4^{4-}
1 pairs (pyro) thortveitite Si2O76Si_2O_7^{6-}
2 rings/chains pyroxenes, beryl (SiO32)n(SiO_3^{2-})_n
2.5 double chains amphiboles (asbestos) (Si4O116)n(Si_4O_{11}^{6-})_n
3 sheets mica, talc, clay (Si2O52)n(Si_2O_5^{2-})_n
4 3D framework quartz, feldspar SiO2SiO_2 (neutral)

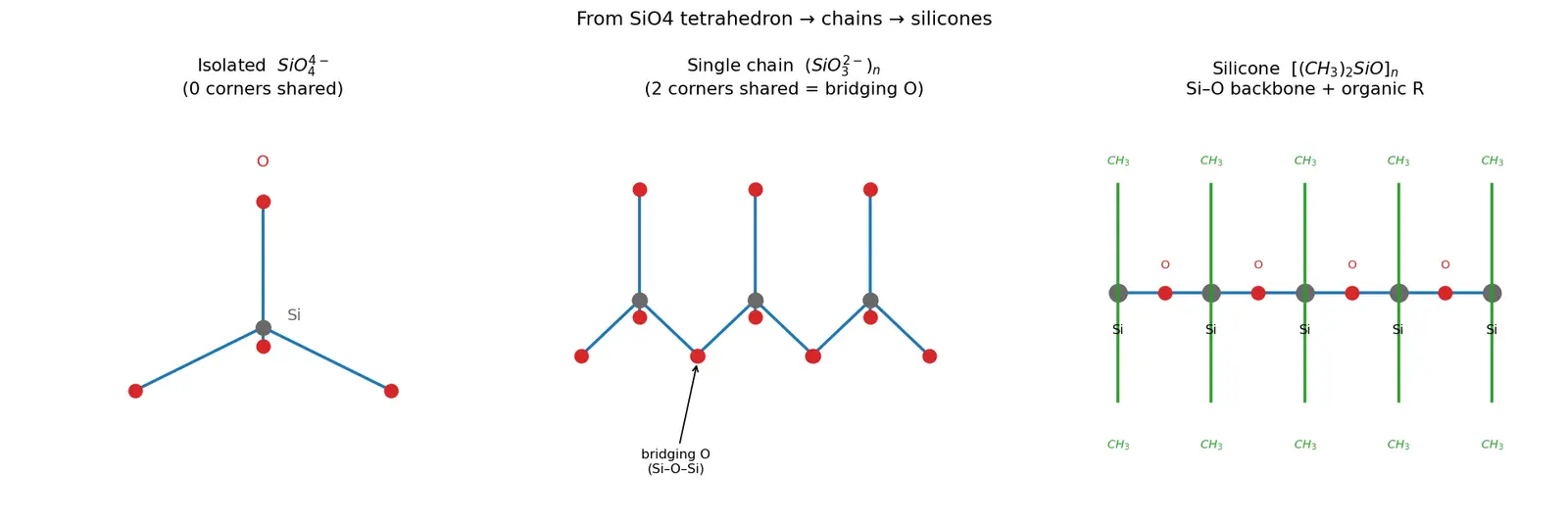

Figure — Silicon and silicates; silicones; zeolites

3. Silicones — man-made Si–O polymers


4. Zeolites — aluminosilicate cages


Recall Feynman: explain to a 12-year-old

Silicon is carbon's bigger cousin. Carbon can hold hands tightly with itself (double bonds) and float around as little gas molecules. Silicon's hands are too short and clumsy, so instead it grabs oxygen and builds enormous LEGO castles — that's sand, glass and rock. If we glue oily bits onto a Si–O chain we get silicones: bendy, water-proof, heat-proof rubber. And if we punch tiny tunnels into the castle and hide some loose beads inside, we get zeolites — sponges that catch only the small molecules and swap their beads, so we use them to soften water and crack oil into petrol.


Flashcards

Why does Si form Si–O networks instead of Si=Si or discrete molecules like CO₂?
Large Si → poor pπ–pπ sideways overlap, so it avoids double bonds; strong Si–O single bonds (pπ–dπ aided) make giant 3D solids.
Basic building block of all silicates?
SiO44SiO_4^{4-} tetrahedron.
Charge on isolated silicate unit & how derived?
4-4; Si(+4) + 4O(−2) = −4 → SiO44SiO_4^{4-}.
Formula of a single-chain (pyroxene) silicate per Si?
SiO32SiO_3^{2-} (2 corners shared).
Formula of a sheet silicate?
Si2O52Si_2O_5^{2-} (3 corners shared).
Why is framework silica (SiO2SiO_2) neutral?
All 4 corners shared → each O counted ½ → 2 O per Si → +4 −4 = 0.
Monomer used to make linear silicones & why?
(CH3)2SiCl2(CH_3)_2SiCl_2; two Si–Cl bonds allow linking on both sides → chains.
Three steps of silicone synthesis?
Rochow (make R2SiCl2R_2SiCl_2) → hydrolysis to silanol R2Si(OH)2R_2Si(OH)_2 → condensation (lose water) to [R2SiO]n[R_2SiO]_n.
What does increasing RSiCl3RSiCl_3 proportion do?
Adds cross-links → harder, rubbery/resin product.
Define zeolite.
3D aluminosilicate where some Si⁴⁺ replaced by Al³⁺, with cages holding exchangeable cations + water.
Why do zeolites carry exchangeable cations?
Each Al³⁺ (vs Si⁴⁺) gives framework −1 charge → balanced by loose Na⁺/Ca²⁺ that can be swapped.
Two uses of zeolites?
Water softening (ion exchange) & shape-selective catalysis (e.g. ZSM-5 methanol→petrol).
Silicon vs silica vs silicate vs silicone?
Si element / SiO2SiO_2 / SiO44SiO_4^{4-} salts / synthetic [R2SiO]n[R_2SiO]_n polymer.

Connections

  • Carbon and its allotropes — contrast: C catenates & forms π-bonds, Si does not
  • Group 14 trends — inert pair, +2 vs +4, metallic character down group
  • Condensation polymerisation — same mechanism as silicone formation, nylon, polyester
  • Ion exchange and water softening — zeolite + resin chemistry
  • Allotropy and giant covalent solids — quartz vs diamond structural analogy
  • Lewis acids and empty d-orbitals — pπ–dπ bonding in Si–O

Concept Map

bigger less EN, empty 3d

no Si=Si double bonds

high Si-O bond energy + pπ-dπ

limited catenation

built from

share corners

0-2 shared

3 shared

4 shared

Si-O backbone + organic groups

Al substitution

cage structure

Silicon below C in Group 14

Poor pπ-pπ overlap

Strong Si-O-Si single chains

Si-O bond dominates

Giant 3D solids

Weak Si-Si, attacked by water

SiO4 4- tetrahedron

Silicates

Chains and rings SiO3 2-

Sheets Si2O5 2-

3D framework SiO2 quartz

Silicones oily/rubbery polymers

Zeolites aluminosilicates

Trap and exchange ions

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, silicon carbon ka bada cousin hai — same group 14, lekin size bada aur electronegativity kam. Carbon double bond (pπ–pπ) bana leta hai isliye CO₂ gas ban jata hai. Silicon ke atoms bade hone ki wajah se sideways overlap weak hota hai, isliye Si=Si ya O=Si=O nahi banta. Iski jagah silicon Si–O single bonds ka giant 3D network banata hai — yahi reason hai ki sand, quartz, glass sab solid aur high melting hote hain. Isliye Earth pe silicon hamesha oxide/silicate form me milta hai.

Silicates ka pura khel ek hi building block se samajh aata hai: SiO44SiO_4^{4-} tetrahedron. Kitne corner O share kar rahe ho, usi se structure decide hota hai — 0 share = isolated, 2 share = chain (SiO32SiO_3^{2-}), 3 share = sheet (Si2O52Si_2O_5^{2-}), 4 share = neutral framework SiO2SiO_2. Charge ratta mat maro, har baar tetrahedron se derive karo: bridging O ko half count karo.

Silicones synthetic polymers hain — Si–O backbone (inorganic, heat/water resistant) plus upar organic R group (CH₃). Banane ka recipe: Rochow process se (CH3)2SiCl2(CH_3)_2SiCl_2 banao, phir hydrolysis se silanol, phir condensation (paani nikaal ke) se chain. R2SiCl2R_2SiCl_2 chain banata hai (2 reactive bonds), RSiCl3RSiCl_3 cross-link deta hai (rubber), R3SiClR_3SiCl chain rok deta hai. Uses: water-proofing, greases, implants.

Zeolites aluminosilicate cages hain — kuch Si⁴⁺ ki jagah Al³⁺ aa jata hai, jisse framework pe −1 charge aata hai, aur cage me loosely-held Na⁺/Ca²⁺ baith jate hain jinhe exchange kiya ja sakta hai (water softening). Pores fixed size ke hote hain isliye sirf chhote molecules andar jate hain — yahi molecular sieve / shape-selective catalyst property hai (ZSM-5 methanol ko petrol banata hai). Yaad rakho: silicon, silica, silicate, silicone — chaar alag cheezein hain!
