Visual walkthrough — Corrosion — electrochemical mechanism; cathodic protection, galvanization

Before we start, some plain-word ideas we will lean on:

---

Step 1 — Draw the piece of iron and the water on it

WHAT. We put a bare chunk of iron under a thin film of water — a raindrop that hasn't dried. Nothing dramatic yet; we are just labelling the stage.

WHY. Rust is not iron "reacting with dry air." It needs a liquid layer so that charged particles can drift around inside it. That liquid layer has a name.

PICTURE. The grey slab is iron. The blue sheet on top is the water film. The wiggly imperfections on the surface (a scratch, a grain edge) are drawn red — remember them, they matter in Step 2.

---

Step 2 — Split the surface into an anode spot and a cathode spot

WHAT. Real iron is never perfectly uniform. A scratched or stressed spot behaves differently from a smooth, oxygen-rich spot. We label the stressed spot the anode and the smooth oxygen-rich spot the cathode.

WHY. For any battery to exist you need two different places: one that pushes electrons out, one that pulls them in. Stressed atoms are held more loosely, so they give up electrons more easily — that becomes the anode. Where oxygen is plentiful, electrons get soaked up — that becomes the cathode.

PICTURE. Same slab. The red patch (a scratch) is the anode; the green patch (smooth, near lots of ${\text{O}}_2$) is the cathode. A dashed line shows they are connected through the solid metal itself — that is the wire.

---

Step 3 — At the anode, iron lets go of two electrons

WHAT. An iron atom at the anode releases electrons and floats off into the water as a charged particle.

$\underset{\text{solid iron atom}}{\underbrace{\text{Fe}(s)}}⟶\underset{\text{iron ion, dissolved}}{\underbrace{{\text{Fe}}^{2+}(aq)}}+\underset{\text{two electrons freed}}{\underbrace{2e^{-}}}$

Reading it term by term:

• $\text{Fe}(s)$ — one iron atom sitting in the solid, the $(s)$ meaning "solid."
• The arrow $⟶$ — "turns into."
• ${\text{Fe}}^{2+}(aq)$ — the same iron, now missing 2 electrons, so it carries $+2$ charge; $(aq)$ means it is dissolved in water ("aqueous").
• $2e^{-}$ — the two electrons that just left. The little $-$ marks them as negative.

WHY. Iron wants to do this. Its potential is $E_{{\text{Fe}}^{2+}/\text{Fe}}^{\circ }=-0.44\text{ V}$. The minus sign is the key clue: a negative reduction potential means iron would rather run this reaction backwards — i.e. it would rather lose electrons than gain them. That is exactly oxidation.

PICTURE. Zoom into the red anode. An iron atom pops off as a blue ${\text{Fe}}^{2+}$ ball, and two yellow electrons stay behind on the metal, ready to travel.

---

Step 4 — The electrons walk to the cathode and oxygen drinks them

WHAT. The freed electrons slide through the metal to the green cathode. There, dissolved oxygen grabs them. But how oxygen grabs them depends on how acidic the water is — so first we must meet the symbol ${\text{H}}^{+}$.

Oxygen reduction comes in two flavours, because ${\text{H}}^{+}$ can (or cannot) join in:

For everyday rusting the water is close to neutral, so we use the basic version, $E^{\circ }=+0.40\text{ V}$, throughout this walkthrough. (We keep $+1.23\text{ V}$ only as the extreme acidic value, to explain corrosion in acid rain.)

WHY. Oxygen is a champion electron-grabber — both numbers are positive, meaning it truly wants electrons. This craving is the pull that drags electrons off the iron. No dissolved oxygen ⇒ no pull ⇒ no rust. That is why sealed, oxygen-free water rusts iron far more slowly.

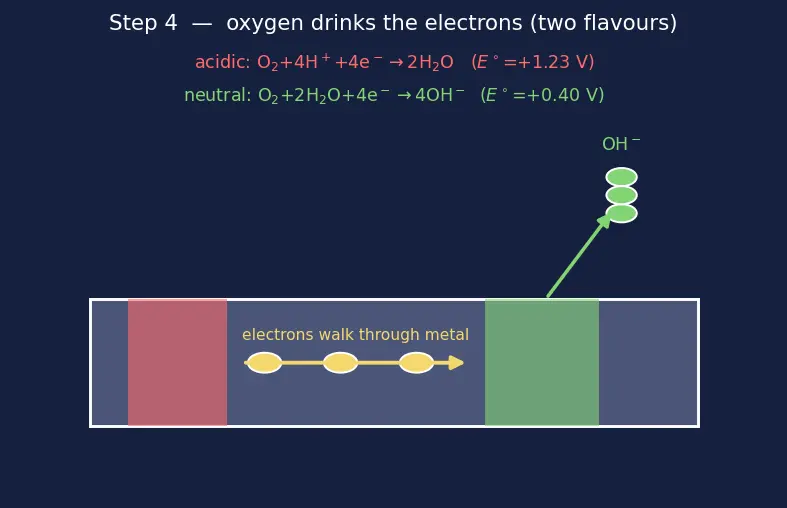

PICTURE. Yellow electrons stream left-to-right through the metal, reach the green cathode, and meet ${\text{O}}_2+{\text{H}}_2\text{O}$; green ${\text{OH}}^{-}$ ions float into the water.

---

Step 5 — Add the two halves and read the voltage

WHAT. We combine the anode half (Step 3) and the neutral/basic cathode half (Step 4). Step 3 makes only 2 electrons; Step 4 eats 4. So we run the iron half twice to balance the electron count.

$2\text{Fe}(s)+{\text{O}}_2(g)+2{\text{H}}_2\text{O}(l)⟶2{\text{Fe}}^{2+}(aq)+4{\text{OH}}^{-}(aq)$

The whole point of a battery is its cell potential $E_{\text{cell}}^{\circ }$ — the net electron-pulling strength:

$E_{\text{cell}}^{\circ }=\underset{\text{the puller}}{\underbrace{E_{\text{cathode}}^{\circ }}}-\underset{\text{the giver}}{\underbrace{E_{\text{anode}}^{\circ }}}$

Plugging the matching numbers — the same neutral/basic oxygen value we used in Step 4 ($E_{{\text{O}}_2/{\text{OH}}^{-}}^{\circ }=+0.40$) and the iron value ($E_{{\text{Fe}}^{2+}/\text{Fe}}^{\circ }=-0.44$):

$E_{\text{cell}}^{\circ }=0.40-(-0.44)=0.40+0.44=+0.84\text{ V}$

WHY it matters. A positive $E_{\text{cell}}^{\circ }$ means the reaction happens on its own. Formally, from Gibs Free Energy:

$\Delta G^{\circ }=-nF{E}_{\text{cell}}^{\circ }$

• $\Delta G^{\circ }$ = standard free-energy change: a number (in joules) whose sign tells us direction. Negative $\Delta G^{\circ }$ = "spontaneous, goes by itself"; positive = "won't go without a push."
• $n$ = number of electrons moved (here 4).
• $F$ = Faraday's constant — the total electric charge carried by one mole of electrons, $F\approx 96,500\text{ C/mol}$ (coulombs per mole), from Faraday's Laws.
• $E_{\text{cell}}^{\circ }$ = our $+0.84\text{ V}$.

Since $n$, $F$ are positive and $E_{\text{cell}}^{\circ }$ is positive, the minus sign makes $\Delta G^{\circ }$ negative — the thermodynamic green light for "yes, this goes." Iron is doomed.

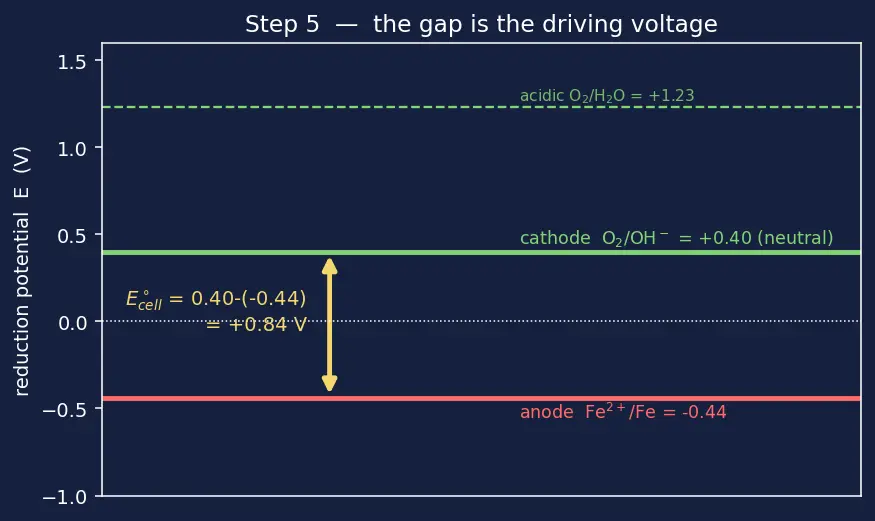

PICTURE. A voltage bar: the cathode sits high at $+0.40\text{ V}$, the anode low at $-0.44\text{ V}$; the gap between them, drawn as a yellow span, is the $0.84\text{ V}$ that drives everyday corrosion. (A faint dashed line marks where the acidic $+1.23\text{ V}$ cathode would sit.)

---

Step 6 — The ${\text{Fe}}^{2+}$ turns brown: rust appears

WHAT. The dissolved ${\text{Fe}}^{2+}$ from Step 3 meets the ${\text{OH}}^{-}$ from Step 4, then oxygen finishes the job:

${\text{Fe}}^{2+}+2{\text{OH}}^{-}\to {\text{Fe(OH)}}_2\stackrel{{\text{O}}_2}{\to }{\text{Fe(OH)}}_3\stackrel{-{\text{H}}_2\text{O}}{\to }\underset{\text{RUST}}{\underbrace{{\text{Fe}}_2{\text{O}}_3\cdot x{\text{H}}_2\text{O}}}$

WHY it never stops. Rust is flaky and porous — it does not seal the surface. Fresh iron underneath stays exposed, so Steps 3–5 restart deeper in. Contrast this with Passivation, where a metal (like aluminium) grows a tight oxide skin that shields the metal below. Iron's failure to passivate is the whole tragedy.

PICTURE. The dissolved blue ${\text{Fe}}^{2+}$ balls combine with green ${\text{OH}}^{-}$ and, with oxygen, pile up into a crumbly red-brown flake sitting loosely on the metal, gaps showing through.

---

Step 7 — Bolt on a magnesium block and flip the flow

WHAT. Now we stop the rust. We wire a lump of magnesium to the iron. Magnesium's potential is far lower: $E_{{\text{Mg}}^{2+}/\text{Mg}}^{\circ }=-2.37\text{ V}$ — much more negative than iron's $-0.44$.

$\text{Mg}(s)\to {\text{Mg}}^{2+}(aq)+2e^{-}$

Now magnesium becomes the anode, and the iron becomes the cathode. Using the neutral/basic oxygen number for the iron's cathode surface:

$E_{\text{cell}}^{\circ }=E_{\text{cathode}}^{\circ }-E_{\text{anode}}^{\circ }=0.40-(-2.37)=+2.77\text{ V}$

WHY it works. Between two metals, the one with the more negative potential is the more desperate electron-giver, so it corrodes and spares the other. Because $-2.37<-0.44$, magnesium sacrifices itself. Electrons are now pushed onto the iron — iron is force-fed electrons and physically cannot lose its own. This is cathodic protection by a sacrificial anode.

PICTURE. The iron slab with a magnesium block clamped on. Electrons flow from Mg into the iron (arrows reversed from Step 4). The Mg dissolves as ${\text{Mg}}^{2+}$; the iron stays intact, now green (safe/cathode).

---

Step 8 — Real seawater: correcting $E^{\circ }$ into $E$ with Nernst

WHAT. Seawater is not standard conditions — its pH is about 8 (few ${\text{H}}^{+}$) and its dissolved ions are dilute. So the true voltage $E$ differs from $E^{\circ }$. The Nernst Equation does the correction:

$E_{\text{cell}}=E_{\text{cell}}^{\circ }-\frac{0.059}{n}\log Q$

• $E_{\text{cell}}^{\circ }$ = the standard value we found, $+0.84\text{ V}$.
• $\frac{0.059}{n}$ = a fixed slope; $n=4$ electrons here.
• $Q$ = the reaction quotient: products' concentrations over reactants', measuring how far from standard we are.

WHY. This is the only honest way to predict corrosion in a real ocean, not a lab beaker. Take $[{\text{Fe}}^{2+}]=10^{-6}\text{ M}$, $[{\text{H}}^{+}]=10^{-8}\text{ M}$ (pH 8), $P_{{\text{O}}_2}=0.21\text{ atm}$, using the acidic-form quotient for illustration:

$Q=\frac{[{\text{Fe}}^{2+}{]}^2}{[{\text{H}}^{+}{]}^4\cdot P_{{\text{O}}_2}}=\frac{(10^{-6}{)}^2}{(10^{-8}{)}^4\cdot 0.21}=\frac{10^{-12}}{10^{-32}\cdot 0.21}\approx 4.8\times 10^{19}$

$E_{\text{cell}}=0.84-\frac{0.059}{4}\log (4.8\times 10^{19})=0.84-0.29=+0.55\text{ V}$

Still positive — so even in dilute, near-neutral seawater, corrosion proceeds. This is the Concentration Cells idea in action: differences in concentration alone shift the voltage.

PICTURE. A number line of $E$: standard $+0.84\text{ V}$ marked, an arrow labelled "Nernst correction $-0.29$" pulling it down to the real $+0.55\text{ V}$, still on the positive (rusting) side of zero.

---

The one-picture summary

Everything above, compressed: iron gives electrons (anode, red), oxygen takes them (cathode, green), the $+0.84\text{ V}$ gap drives it, rust piles up — and a magnesium block reverses every arrow to save the day.

Recall Feynman retelling — say it in plain words

A wet piece of iron is secretly a tiny battery. One rough spot (the anode) gives away electrons because iron doesn't really want them — its number is below zero, $-0.44$. Those electrons slide through the metal to a smooth spot (the cathode), where dissolved oxygen grabs them greedily. Oxygen has two grabbing numbers: a huge $+1.23$ in acid (lots of ${\text{H}}^{+}$) and a gentler $+0.40$ in ordinary near-neutral water — because ${\text{H}}^{+}$ turbocharges the reaction. In everyday rusting we use $+0.40$, so the gap between "gives" and "grabs" is $+0.84\text{ V}$, and any positive gap means "this happens on its own." The escaped iron then meets hydroxide and oxygen and clumps into flaky brown rust that doesn't seal, so the whole thing keeps eating inward. In real seawater the Nernst equation nudges the voltage down to about $+0.55\text{ V}$, still positive — still rusting. To stop it, we bolt on magnesium, whose number is way down at $-2.37$ — so magnesium becomes the sacrificial giver, the iron is force-fed electrons and can no longer corrode. Remove the water, remove the oxygen, or pick a metal with a higher number than iron, and the machine either stalls or runs the wrong way.

Recall Quick self-test

What does the little ${}^{\circ }$ in $E^{\circ }$ mean? ::: "Standard conditions": 1 mol/L for solutes, 1 atm for gases, 25 °C. Why does oxygen have two potentials, $+1.23$ and $+0.40$? ::: They belong to two different half-reactions — acidic (with ${\text{H}}^{+}$) vs neutral/basic (with water) — and abundant ${\text{H}}^{+}$ makes oxygen's pull stronger. Why do we subtract the anode potential in $E_{\text{cell}}^{\circ }$? ::: Both potentials are written as reduction values; the anode actually runs in reverse, which flips its sign — flip-then-add equals subtract. What is the minimum condition for a metal M to protect iron sacrificially? ::: $E_M^{\circ }<-0.44\text{ V}$ (more negative than iron). Why does copper make iron rust faster? ::: Copper's $E^{\circ }=+0.34>-0.44$, so iron becomes the anode and gives up electrons even more readily. In $\Delta G^{\circ }=-nF{E}_{\text{cell}}^{\circ }$, what is $F$? ::: Faraday's constant, the charge of one mole of electrons, about $96,500\text{ C/mol}$.
