Foundations — Corrosion — electrochemical mechanism; cathodic protection, galvanization

Before you can read the parent note Corrosion, every symbol in it must feel obvious. This page builds each one from nothing — plain words, a picture, and why the topic needs it. Read top to bottom; each piece leans on the one above.

1. Atoms, electrons, and "charge"

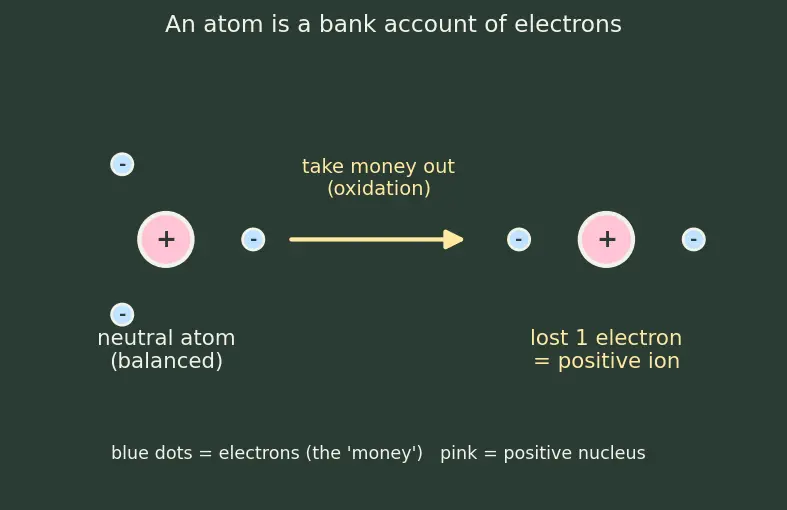

The picture: think of an atom as a bank account. Electrons are the money. Take money out (lose electrons) and the account goes into surplus positive; put money in and it goes negative.

Why the topic needs it: corrosion is nothing but electrons leaving iron atoms. If you don't picture the electron as a movable lump of charge, none of the arrows in the parent note mean anything.

2. Oxidation and reduction — the two verbs

The picture: a hand passing a coin. The giver is being oxidised, the receiver is being reduced. One event, two roles.

Why the topic needs it: in the parent note, iron is oxidised ($\text{Fe}\to {\text{Fe}}^{2+}+2e^{-}$) and oxygen is reduced (${\text{O}}_2+\cdots +e^{-}\to \dots$). These two verbs are the entire mechanism.

3. Anode and cathode — the two places

Once electrons are being handed over, the metal surface splits into two locations.

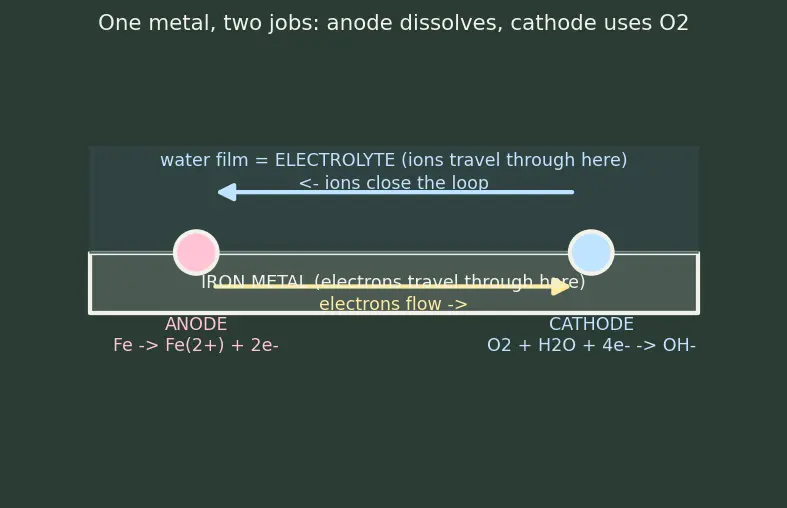

The picture: below, iron gives electrons at the anode; they slide through the metal to the cathode where oxygen waits. Between them, a film of water carries ions to close the loop.

Why the topic needs it: corrosion needs all three — anode, cathode, electrolyte. Remove any one and the circuit breaks, rusting stops. This is the whole basis of protection later.

4. What a "volt" is — energy per unit charge

Before we hang numbers on the greed ladder, we need to know what those numbers measure.

The picture: picture a waterfall. The height is the voltage; the water is the charge. A tall waterfall (big volts) gives each drop lots of energy on the way down; a flat stream (small volts) barely nudges it.

Why the topic needs it: every $E°$ number in this chapter is a voltage — an electrical "height." Without knowing volts mean energy per charge, "$+1.23\text{V}$" is just a squiggle. With it, a bigger voltage instantly reads as "electrons fall harder, corrosion is stronger."

5. Electrode potential $E°$ — "how badly does it want electrons?"

This is the single most important symbol in the topic, so we build it slowly.

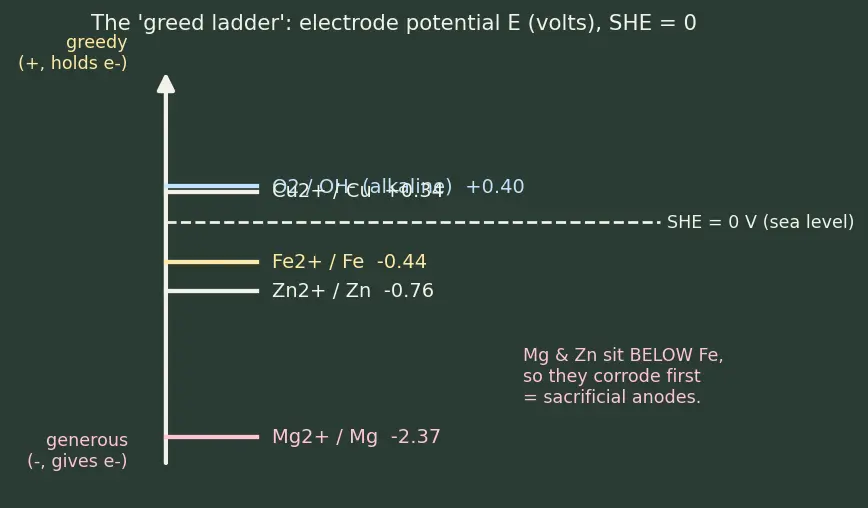

The picture: imagine a vertical "greed ladder" whose $0\text{V}$ line is the SHE. High rungs (positive $E°$, gold, oxygen) hoard electrons. Low rungs (negative $E°$, magnesium, iron) shed them. Electrons naturally roll downhill from a low rung to a high rung.

Why this tool and not another? We could argue about rusting with vague words like "reactive," but $E°$ turns reactivity into a number you can subtract. That single trick lets us predict which metal corrodes and which is protected — the whole point of the chapter. See Standard Electrode Potentials.

6. The oxygen cathode has TWO faces — acidic vs alkaline

Oxygen is the electron-grabber that drives rusting, but how it grabs them depends on how many spare ${\text{H}}^{+}$ ions (acid) are around. This changes both the half-reaction and its $E°$ — a point you must keep straight or your numbers will clash.

Why ${\text{H}}^{+}$ changes the voltage: more ${\text{H}}^{+}$ available means oxygen has an easier, more eager path to grab electrons, so its "greed" (and thus $E°$) is higher in acid. Fewer ${\text{H}}^{+}$ (alkaline) makes it a milder grabber, so $E°$ drops to $+0.40\text{V}$. The exact size of this pH shift is handled quantitatively by the Nernst Equation.

7. Cell potential $E{°}_{\text{cell}}$ — combining the two rungs

Why the subtraction? $E°$ values are always quoted for reduction. But the anode is doing the reverse (oxidation), so we flip its sign — and flipping a sign inside a formula is exactly what the minus does. It is the "height difference" between two rungs on the greed ladder.

Worked check (iron in acidic water — use the $+1.23\text{V}$ oxygen couple): $E{°}_{\text{cell}}=\underset{{\text{O}}_2/{\text{H}}_2\text{O, acidic}}{\underbrace{1.23}}-\underset{\text{Fe anode}}{\underbrace{(-0.44)}}=+1.67\text{V}$

Worked check (iron in neutral/alkaline seawater — use the $+0.40\text{V}$ oxygen couple): $E{°}_{\text{cell}}=\underset{{\text{O}}_2/{\text{OH}}^{-},\text{alkaline}}{\underbrace{0.40}}-\underset{\text{Fe anode}}{\underbrace{(-0.44)}}=+0.84\text{V}$

Both are positive → the electrons fall downhill on their own → corrosion is spontaneous in either environment. Notice we matched the oxygen $E°$ to the pH before subtracting — never crossing the two worlds.

8. Spontaneity: $\Delta G°=-nFE°$

9. When conditions aren't standard: $E$, $Q$, $\log$

Real seawater isn't 1 mol/L of everything, so $E°$ needs a correction.

Why $\log$ and not plain multiplication? Nature's driving force depends on ratios stacked as powers of ten (from $10^{-8}$ to $10^{19}$ in the parent's Example 2). $\log$ turns those runaway powers into a tidy number, which the small factor $0.059/n$ can nudge the voltage by. This is also the exact machinery behind how pH shifts the oxygen $E°$ in Section 6. Full treatment: Nernst Equation and Concentration Cells.

10. Naming the protection ideas

Prerequisite map

Equipment checklist

Cover each answer and test yourself. If any line surprises you, reread its section above.
