Corrosion — electrochemical mechanism; cathodic protection, galvanization

What Is Corrosion?

WHY it happens:

Metals in nature exist asores (oxides, sulfides). The pure metal state is higher energy.
Corosion is nature's way of returning metals to their stable oxidized state.
Requires three components: anode (metal oxidation site), cathode (reduction site), and electrolyte (conducts ions).

Electrochemical Mechanism of Iron Corrosion

Setting Up the Micro-Cells

When iron is exposed to moist air:

Water film forms on the surface (electrolyte)
Dissolved oxygen and dissolved CO₂ create slightly acidic conditions
Surface imperfections, grain boundaries, or stress points become anodic regions
Nearby areas with better oxygen access become cathodic regions

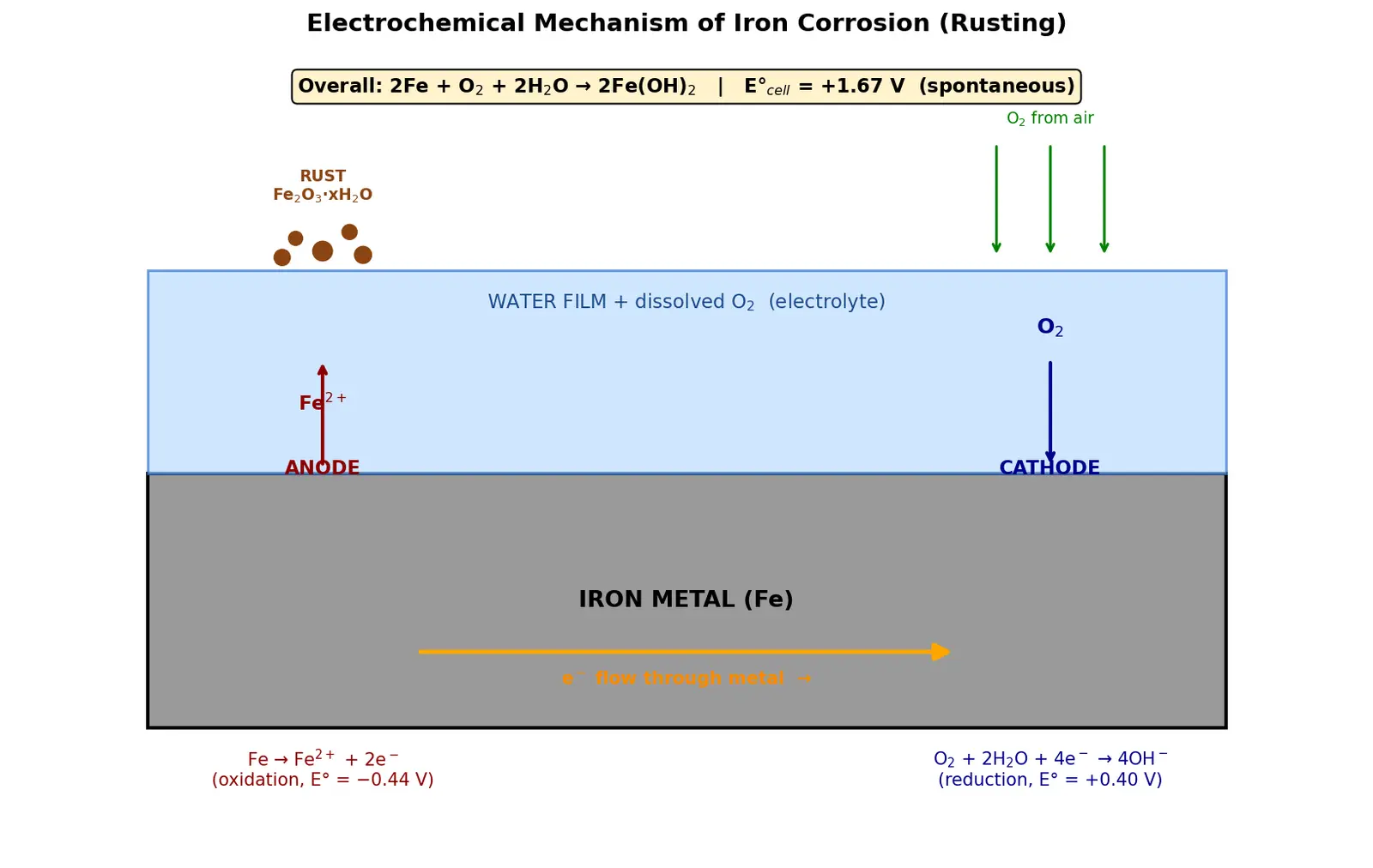

Figure — Corrosion — electrochemical mechanism; cathodic protection, galvanization

The Half-Reactions — Deriving From First Principles

The electrons released travel through the metal to the cathode.

Overall Cell Reaction and Rust Formation

Combining the half-reactions (multiply Fe oxidation by 2 to balance electrons):

$2\text{Fe}(s) + \text{O}_2(g) + 4\text{H}^+(aq) \to 2\text{Fe}^{2+}(aq) + 2\text{H}_2\text{O}(l)$

Cell potential: $E°_{\text{cell}} = E°_{\text{cathode}} - E°_{\text{anode}} = 1.23 - (-0.44) = +1.67\text{ V}$

This large positive $E°_{\text{cell}}$ means corosion is highly spontaneous ( $\Delta G° = -nFE° < 0$ ).

The $\text{Fe}^{2+}$ ions then react further:

$\text{Fe}^{2+}(aq) + 2\text{OH}^-(aq) \to \text{Fe(OH)}_2(s)$

In the presence of oxygen, $\text{Fe(OH)}_2$ oxidizes to $\text{Fe(OH)}_3$ :

$4\text{Fe(OH)}_2(s) + \text{O}_2(g) + 2\text{H}_2\text{O}(l) \to 4\text{Fe(OH)}_3(s)$

$\text{Fe(OH)}_3$ dehydrates to form rust:

$2\text{Fe(OH)}_3(s) \to \text{Fe}_2\text{O}_3 \cdot x\text{H}_2\text{O}(s) + (3-x)\text{H}_2\text{O}(l)$

WHY this matters: Rust is porous and flaky—it doesn't protect the underlying metal. This allows corrosion to continue deeper, unlike aluminum oxide (Al₂O₃) which forms a protective layer.

Worked example Example 2: Calculating Corrosion Cell EMF

An iron pipe in contact with seawater (pH = 8, dissolved O₂).

Given:

$E°_{\text{Fe}^{2+}/\text{Fe}} = -0.44\text{ V}$
$E°_{\text{O}_2/\text{OH}^-} = +0.40\text{ V}$ (neutral/basic) Find: Standard cell potential.

Solution: $E°_{\text{cell}} = E°_{\text{cathode}} - E°_{\text{anode}} = 0.40 - (-0.44) = +0.84\text{ V}$

WHY this step? We subtract the anode potential because oxidation is the reverse of reduction. A positive $E°_{\text{cell}}$ confirms spontaneous corrosion.

For non-standard conditions, use Nernst equation: $E_{\text{cell}} = E°_{\text{cell}} - \frac{0.059}{n}\log Q$ At pH 8, $[\text{H}^+] = 10^{-8}$ M. If $[\text{Fe}^{2+}] = 10^{-6}$ M, $P_{\text{O}_2} = 0.21$ atm: $Q = \frac{[\text{Fe}^{2+}]^2}{[\text{H}^+]^4 \cdot P_{\text{O}_2}} = \frac{(10^{-6})^2}{(10^{-8})^4 \cdot 0.21} \approx 2.3 \times 10^{19}$

$E_{\text{cell}} = 0.84 - \frac{0.059}{4}\log(2.3 \times 10^{19}) = 0.84 - 0.29 = +0.55\text{ V}$

Still positive—corosion proceeds.

Factors Accelerating Corrosion

Moisture and electrolytes: Salt water (NaCl) increases conductivity—ions move faster between anode and cathode.
Oxygen availability: More O₂ at cathode = faster reduction = faster corrosion.
Acidity: Lower pH means more H⁺ for cathodic reduction; also dissolves protective oxide films.
Temperature: Higher T increases reaction rates (corosion roughly doubles every 10°C rise).
Impurities/Contact with dissimilar metals: Creates galvanic cells with larger potential differences.

Corosion Protection Methods

1. Cathodic Protection

A. Sacrificial Anode Method

Principle: Attach a more active metal (more negative $E°$ ) to the structure. The active metal becomes the anode and corrodes instead of the protected metal.

WHY it works:

Active metal (e.g., Mg, Zn) has lower reduction potential than Fe.
Electrons flow from Mg to Fe through metalic connection.
Fe becomes cathode (receives electrons) and cannot oxidize.
Mgizes: $\text{Mg}(s) \to \text{Mg}^{2+}(aq) + 2e^-$

Formula Deriving the Galvanic Cell

For Mg protecting Fe in seawater: Anode (Mg block): $\text{Mg}(s) \to \text{Mg}^{2+}(aq) + 2e^- \quad [E° = -2.37\text{ V}]$

Cathode (Fe ship hull): $\text{O}_2(g) + 2\text{H}_2\text{O}(l) + 4e^- \to 4\text{OH}^-(aq) \quad [E° = +0.40\text{ V}]$

Overall cell: $2\text{Mg}(s) + \text{O}_2(g) + 2\text{H}_2\text{O}(l) \to 2\text{Mg}^{2+}(aq) + 4\text{OH}^-(aq)$

$E°_{\text{cell}} = 0.40 - (-2.37) = +2.77\text{ V}$ WHY this step? The huge positive potential means Mg oxidation is much more favorable than Fe oxidation. The Fe literally cannot lose electrons—they're being pushed onto it by Mg.

Applications: Ship hulls, pipelines, underground tanks. Mg or Zn blocks are periodically replaced.

Worked example Example 3: Choosing a Sacrificial Anode

An iron pipeline needs protection. Available metals:

Copper: $E°_{\text{Cu}^{2+}/\text{Cu}} = +0.34\text{ V}$
Zinc: $E°_{\text{Zn}^{2+}/\text{Zn}} = -0.76\text{ V}$
Magnesium: $E°_{\text{Mg}^{2+}/\text{Mg}} = -2.37\text{ V}$

Which metal(s) will work? Solution: A sacrificial anode must have $E° < E°_{\text{Fe}} = -0.44\text{ V}$ .

Cu: $+0.34 > -0.44$ ✗ (Cu is more noble; Fe would protect Cu!)
Zn: $-0.76 < -0.44$ ✓ (Zn oxidizes preferentially)
Mg: $-2.37 < -0.44$ ✓ (Mg oxidizes even more readily)

WHY this step? For A to protect B, electrons must flow from A to B. This requires A to have a more negative (less positive) reduction potential—A must be more easily oxidized.

Practical choice: Zn is usually preferred over Mg because:

Zn corrodes slower (Mg is "too active" and depletes quickly)
Zn²⁺ salts are less problematic than Mg²⁺

B. Impressed Current Method

Principle: Use an external DC power supply to force electrons onto the structure, making it the cathode.

Setup:

Negative terminal → Protected structure (cathode)
Positive terminal → Inert anode (graphite, titanium, platinized titanium)
Electrolyte: surrounding soil, water

WHY it works:

External voltage overwhelms natural corrosion potential.
Structure is floded with electrons—oxidation is impossible.
The inert anode oxidizes water/chlorides instead of corroding itself.

Advantages: No need to replace anodes; can protect large structures (long pipelines, oil rigs).

Disadvantage: Requires continuous power supply.

2. Galvanization

WHY zinc specifically?

$E°_{\text{Zn}^{2+}/\text{Zn}} = -0.76\text{ V} < E°_{\text{Fe}^{2+}/\text{Fe}} = -0.44\text{ V}$
Zn oxidizes preferentially: $\text{Zn}(s) \to \text{Zn}^{2+}(aq) + 2e^-$
These electrons flow to the exposed Fe, keeping it cathodic.

Process (hot-dip galvanizing):

Clean steel (degrease, pickle in acid)
Flux treatment (removes oxide films)
Dip in molten Zn (~450°C)
Fe-Zn intermetallic layers form at interface (excellent adhesion)
Cool; outer layer is pure Zn

Environmental advantage: Zn corosion products (ZnO, Zn(OH)₂) are less porous than rust and slow further corrosion.

Worked example Example 4: Galvanized vs. Tin-Plated Iron

Both tin (Sn) and zinc can coat iron. Compare their protection mechanisms.

Given:

$E°_{\text{Sn}^{2+}/\text{Sn}} = -0.14\text{ V}$
$E°_{\text{Zn}^{2+}/\text{Zn}} = -0.76\text{ V}$
$E°_{\text{Fe}^{2+}/\text{Fe}} = -0.44\text{ V}$ Analysis: Zinc coating (galvanized iron):
If scratched: Zn oxidizes ( $-0.76 < -0.44$ ), Fe is protected.
Even with damage, corosion is prevented.

Tin coating (tin-plated iron, "tin cans"):

If scratched: Fe oxidizes ( $-0.44 < -0.14$ ), Sn is protected!
Sn is more noble than Fe; exposed Fe corrodes faster (galvanic corrosion).
Tin provides only barrier protection, no sacrificial protection.

WHY this step? When two metals contact in an electrolyte, the less noble (more negative $E°$ ) becomes anode. Zn sacrifices itself for Fe; sacrifices itself for Sn.

Conclusion: Galvanized iron is superior for outdoor use. Tin-plated iron is used for food cans because:

Sn is non-toxic
Cans are sealed (no electrolyte penetration)
Short lifespan (used once)

3. Other Protection Methods (Brief Overview)

Painting/Coatings: Barrier protection; must be maintained (scratches expose metal).
Aloying: Stainless steel (Fe + Cr + Ni) forms a passive Cr₂O₃ layer that self-heals.
Corosion inhibitors: Chemicals that adsorb on metal surface (e.g., phosphates, chromates) or consume dissolved O₂.
Design modifications: Avoid crevices, ensure drainage, use insulating gaskets between dissimilar metals.

Common mistake Common Mistake: "Galvanization Only Works While the Coating Is Intact"

Wrong idea: Once the Zn layer is scratched, the iron underneath starts rusting immediately. Why it feels right: We're used to paint or plastic coatings—once damaged, they offer no protection.

The truth: Galvanization provides electrochemical protection even after scratching: $\text{Zn}(s) \to \text{Zn}^{2+}(aq) + 2e^- \quad [\text{at scratch edge}]$ These electrons flow to the exposed Fe, forcing it to act as cathode: $\text{O}_2(g) + 2\text{H}_2\text{O}(l) + 4e^- \to 4\text{OH}^-(aq) \quad [\text{at exposed Fe}]$

The iron cannot oxidize because it's receiving electrons. Only when the surrounding Zn is completely depleted will the iron start to rust.

The fix: Recognize that galvanization is a sacrificial protection system, not just a barrier. The Zn actively prevents Fe oxidation through redox coupling.

Common mistake Common Mistake: "Cathodic Protection Works Because It Stops Oxygen from Reaching the Metal"

Wrong idea: Sacrificial anodes work by physically blocking oxygen or moisture.

Why it feels right: We know that corosion needs oxygen, so blocking access seems logical.

The truth: Cathodic protection works electrochemically, not physically:

Oxygen still reaches the protected metal.
The protected metal becomes the cathode where O₂ is reduced: $\text{O}_2 + 2\text{H}_2\text{O} + 4e^- \to 4\text{OH}^-$
Oxidation (corosion) happens at the sacrificial anode instead: $\text{Mg} \to \text{Mg}^{2+} + 2e^-$

The key is the flow of electrons: The protected metal is continuously supplied with electrons from the sacrificial anode, making oxidation thermodynamically impossible.

The fix: Understand that cathodic protection is an active electrochemical intervention, not passive barrier protection. The metal is protected because it's forced to be a cathode, regardless of oxygen access.

Recall Explain to a 12-Year-Old

Imagine your iron bike has a superpower: it can grab electrons from the air and turn into rust (yucky orange powder). But rust is weak and flaky, so your bike slowly falls apart.

Now, here's the trick: What if we gave your bike a buddy—a piece of magnesium metal—that's even better at grabbing electrons? The magnesium says, "Hey iron, I'll give YOU my electrons! You don't need to rust anymore!" So the magnesium slowly dissolves away (it's the hero), and your iron bike stays strong.

That's cathodic protection! The iron becomes the "receiver" (cathode) and the magnesium becomes the "giver" (anode). It's like having a bodyguard that takes the hit for you.

Galvanization is when we paint the bike with zinc metal. Zinc is also a good "electron giver." If you scratch the paint and expose the iron, the zinc next to the scratch says, "I'll protect you!" and gives electrons to the iron, so the iron doesn't rust. The zinc slowly wears away, but the iron underneath stays safe.

Connections to Other Topics

Electrochemical Cells — corosion is a spontaneous galvanic cell
Standard Electrode Potentials — predicting which metal corrodes preferentially
Nernst Equation — how pH, concentration, and oxygen partial pressure affect corrosion rate
Faraday's Laws — calculating mass of metal lost via corrosion current
Gibs Free Energy — $\Delta G = -nFE_{\text{cell}}$ determines spontaneity of corrosion
Passivation — Al, Cr, Ti form protective oxide layers (self-limiting corosion)
Concentration Cells — differential aeration cells in corosion (low O₂ area = anode)
Green Chemistry — corosion wastes resources; prevention reduces environmental impact

#flashcards/chemistry

What is corrosion in electrochemical terms? :: Spontaneous oxidation of a metal through electrochemical reactions with its environment (O₂, H₂O, acids), where metal acts as anode and loses electrons.

What are the three essential components for corrosion?

Anode (oxidation site), cathode (reduction site), and electrolyte (ionic conductor).

Write the anodic reaction in iron corrosion :: $\text{Fe}(s) \to \text{Fe}^{2+}(aq) + 2e^-$ (oxidation at anode)

Write the cathodic reaction in iron corrosion (neutral/basic)

\text{O}_2(g) + 2\text{H}_2\text{O}(l) + 4e^- \to 4\text{OH}^-(aq)

(reduction at cathode)

Calculate the standard cell potential for iron corrosion given $E°_{\text{Fe}^{2+}/\text{Fe}} = -0.44$ V and $E°_{\text{O}_2/\text{OH}^-} = +0.40$ V :: $E°_{\text{cell}} = 0.40 - (-0.44) = +0.84$ V (spontaneous)

Why is rust (Fe₂O₃·xH₂O) not protective like Al₂O₃?

Rust is porous and flaky, allowing continued oxygen/water penetration. Al₂O₃ is dense and adherent, forming a self-healing barrier.

What is cathodic protection?

Making the protected metal the cathode of an electrochemical cell so it only receives electrons and cannot oxidize.

How does sacrificial anode protection work?

Attach a more active metal (more negative E°) which oxidizes preferentially, supplying electrons to the protected metal (cathode).

Why is magnesium a good sacrificial anode for iron?

E°_{\text{Mg}^{2+}/\text{Mg}} = -2.37

< E°_{\text{Fe}^{2+}/\text{Fe}} = -0.44

V, so Mg oxidizes much more readily than Fe.

What is galvanization?

Coating iron with zinc to provide barrier protection and sacrificial protection if the coating is damaged.

Why does galvanization protect iron even when scratched?

Zn has

E° = -0.76

<

E° = -0.44

V, so Zn oxidizes preferentially at the scratch, keeping Fe cathodic.

Compare galvanized iron vs tin-plated iron when coating is damaged

Galvanized: Zn corrodes (Zn protects Fe). Tin-plated: Fe corrodes faster (Fe protects Sn) because Sn is more noble.

What is the impressed current method of cathodic protection?

Using external DC power to force electrons onto the structure (cathode), with an inert anode completing the circuit.

Why does saltwater accelerate corrosion?

Salt ions (Na⁺, Cl⁻) increase electrolyte conductivity, speding ion movement between anode and cathode.

Name four factors that accelerate corrosion :: Moisture/electrolytes, oxygen availability, acidity (low pH), temperature increase, contact with dissimilar metals.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho yaar, corrosion ka core idea ye hai ki jab metal (jaise iron) moist air ya paani ke contact mein aata hai, to uski surface pe millions of tiny batteries ban jaati hain. Kuch regions anode ban jaate hain jahan iron atoms electrons chhod dete hain (oxidation), aur kuch regions cathode ban jaate hain jahan oxygen wo electrons accept karta hai (reduction). Beech mein paani ka thin film electrolyte ka kaam karta hai jo ions ko flow karne deta hai. Iss pure process ko drive karti hai thermodynamics—kyunki iron ka $E°_{\text{Fe}^{2+}/\text{Fe}} = -0.44\text{ V}$ hai, matlab iron naturally electrons dena chahta hai, jabki gold ka reduction potential bahut positive hota hai isliye wo corrode nahi karta.

Ab why-it-matters wali baat: jab tum overall cell reaction banate ho to $E°_{\text{cell}} = 1.23 - (-0.44) = +1.67\text{ V}$ aata hai, jo bada positive hai. Iska seedha matlab hai ki $\Delta G° = -nFE°$ negative hoga, yaani rusting highly spontaneous process hai—nature khud chahti hai ki iron apni stable oxidized form (rust, yaani $\text{Fe}_2\text{O}_3 \cdot x\text{H}_2\text{O}$ ) mein wapas chala jaaye. Yahi reason hai ki metals nature mein pure form mein nahi, balki ores (oxides, sulfides) ke roop mein milte hain—pure metal high-energy state hai jo hamesha low-energy oxide banna chahta hai.

Practical zindagi mein ye samajhna isliye zaroori hai kyunki rust porous aur flaky hota hai, isliye wo fresh iron ko protect nahi karta aur corrosion andar tak fail jaata hai—bridges, cars, pipelines sab kharab ho jaate hain. Isi ko rokne ke liye hum galvanization (iron pe zinc ki coating, jo zyada reactive hone ki wajah se khud sacrifice ho jaata hai) aur cathodic protection (iron ko cathode banakar bachana) jaisi techniques use karte hain. Exam mein bhi ye topic favourite hai kyunki isme half-reactions, cell potential calculation aur real-world application—teeno ek saath test hote hain, to concept clear rakhna faydemand rahega.
