Foundations — Nernst equation E = E° − (RT - nF) ln Q

Before you can read $E=E°-\frac{RT}{nF}\ln Q$, every one of those letters must mean something you can picture. This page builds them one at a time, from absolute zero, so that when you meet the equation on the parent note Nernst equation nothing is a mystery.

0. The picture we are heading toward

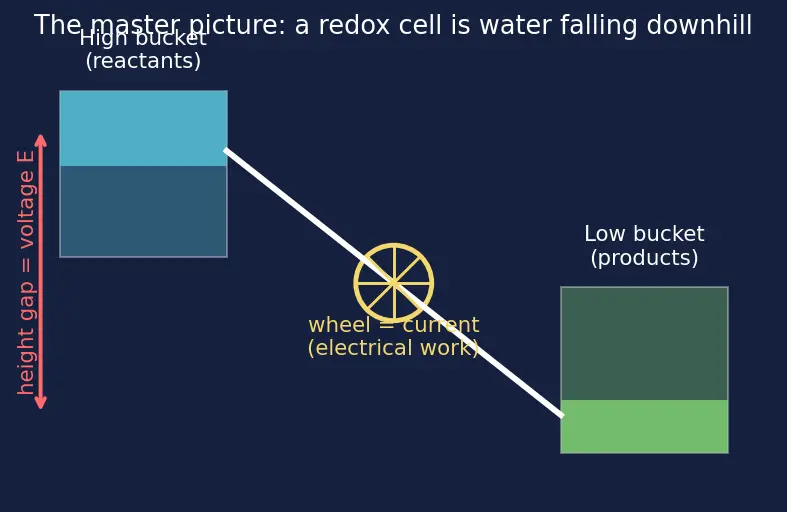

Look at the figure. Two containers of water sit at different heights, a pipe joins them, and a little wheel in the pipe spins as water flows down. Keep this image in your head the whole page:

• The height gap between the water surfaces = the push that drives the flow.
• The wheel spinning = electrical work being done (a current).
• As water flows, the top drops and the bottom rises, so the gap shrinks — the wheel slows.

Every symbol below is a label on some part of this picture.

1. Oxidation, reduction, and the electron

The picture: electrons are the water. One chemical is the high bucket pouring electrons out (it gets oxidised); another is the low bucket catching them (it gets reduced).

Why the topic needs it: the whole reason a cell makes voltage is that electrons are being forced to move. No electron transfer → no current → nothing for Nernst to describe. See Electrochemical Cells (Galvanic vs Electrolytic) for where these two half-reactions physically sit.

2. $n$ — the number of electrons transferred

The picture: $n$ is how many buckets of water fall per "unit" of reaction. Move 2 electrons per zinc atom → $n=2$.

Why the topic needs it: more electrons carried per reaction event = more electrical work per event. $n$ scales the whole correction term, so getting it wrong scales your answer wrong.

3. Charge and Faraday's constant $F$

We now need to turn "a count of electrons" into "an amount of electric charge," because voltage is about charge.

The picture: $F$ is the conversion rate "one full bucket of electrons = this many coulombs." It is a fixed exchange rate, like "1 dozen = 12."

Why the topic needs it: the chemist counts in moles of electrons ($n$); the physicist measures coulombs. $F$ is the bridge. The product $nF$ = total charge shoved through the wire per reaction unit.

4. Voltage / cell potential $E$

The picture: $E$ is literally the height gap between the two water surfaces in the figure. Big gap → strong push → high voltage.

• $E°$ (read "E-standard") is the height gap when everything is at the standard reference state: every dissolved substance at 1 mol/L, every gas at 1 atm, temperature 25 °C. It's the gap with both buckets freshly filled to the marked line.
• $E$ (no circle) is the actual gap right now, after some water has already flowed.

Why the topic needs it: $E$ is the quantity we want to predict. $E°$ is the fixed starting reference you look up in Standard Reduction Potentials. Nernst turns one into the other.

5. Concentration and the reaction quotient $Q$

Now we describe how full each bucket is right now.

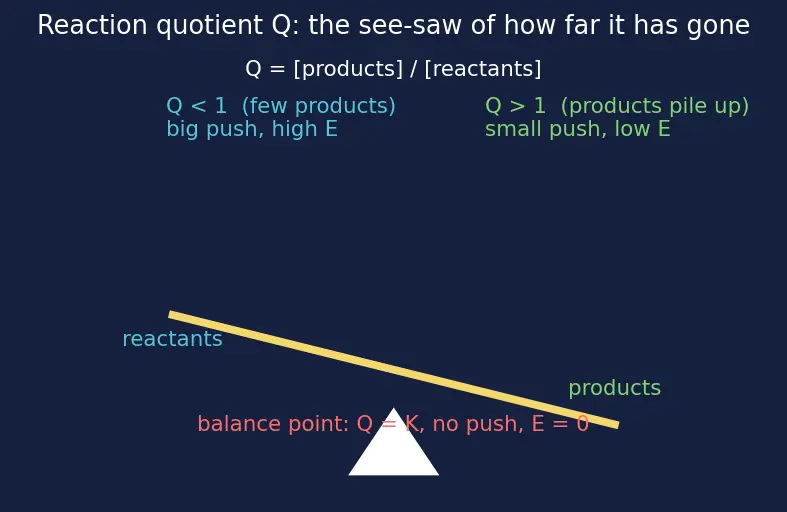

The picture (see figure): imagine a see-saw. Reactants on the left, products on the right.

• Reaction just started (lots of reactants, few products): the ratio is small → $Q<1$ → see-saw tips toward reactants → lots of downhill left → high voltage.
• Reaction well advanced (products piled up): $Q>1$ → see-saw tips toward products → little downhill left → low voltage.
• Perfectly balanced, no net push: $Q=K$, the equilibrium constant (compare Reaction Quotient Q vs Equilibrium Constant K).

Why the topic needs it: $Q$ is the only thing in the Nernst equation that changes as the cell runs. It is the "how full are the buckets" dial that makes $E$ drift away from $E°$.

6. The logarithm $\ln Q$ — and why a log at all

Here a new mathematical tool enters, so we must justify it.

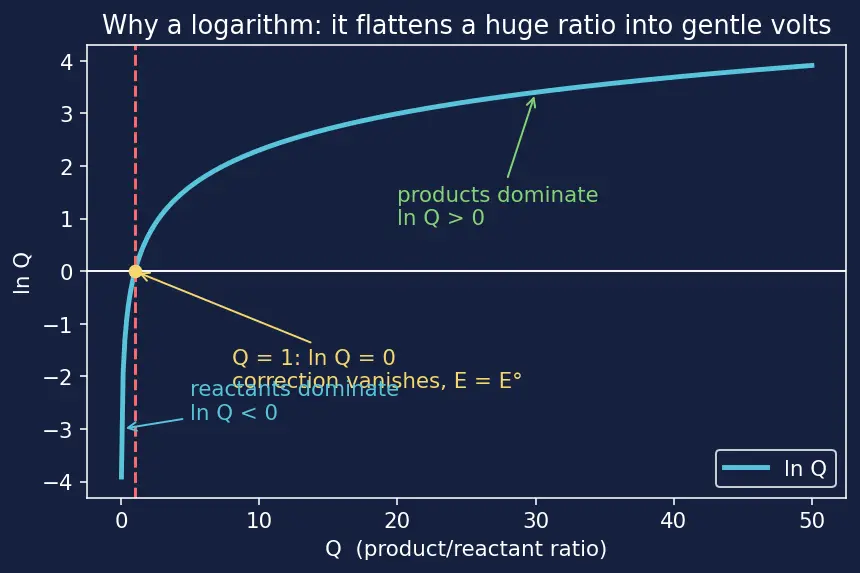

Why a logarithm and not just $Q$ itself? Look at the figure: the curve of $\ln Q$ is flat and smooth, crossing zero exactly at $Q=1$. Concentrations in chemistry span enormous ranges — from $0.001$ to $1000$ — a factor of a million. A logarithm compresses that runaway range into gentle, roughly-linear volts. The deeper reason is thermodynamic: the energy cost of squeezing molecules into a smaller volume grows like $\ln (\text{ratio})$, not like the ratio itself. So the log is not a trick — it is the natural shape of the physics.

Why $\ln 1=0$ matters for us: when $Q=1$ (everything exactly at standard concentrations), the correction vanishes and $E=E°$. The equation must reduce to the standard case, and the log makes it do so automatically.

7. Temperature $T$ and the gas constant $R$

The picture: temperature is the background jiggle of the molecules. Hotter → more thermal shoving → concentration differences matter more, so the correction term $RT$ grows.

Why the topic needs it: $RT$ has units of energy per mole. Multiplying it by the dimensionless $\ln Q$ gives an energy — the concentration correction to the driving force. Without $RT$, $\ln Q$ would just be a bare number with no physical size.

8. Free energy $\Delta G$ — the hidden engine

The picture: $\Delta G$ is the total energy stored in the height gap, while $E$ is that same energy expressed per unit charge. They are two views of one push, tied together by $\Delta G=-nFE.$

Why the topic needs it: this is the secret bridge. Thermodynamics already knows how $\Delta G$ depends on $Q$ (via $\Delta G=\Delta G°+RT\ln Q$). Dividing that whole relationship by $-nF$ converts every "$G$" into an "$E$" — and out drops the Nernst equation. Every symbol on this page was needed to make that division make sense.

Prerequisite map

Read it top to bottom: electron counting feeds $nF$; concentration feeds $Q$ then $\ln Q$; temperature feeds $RT$; free energy supplies the $\Delta G=-nFE$ link. All streams merge into the Nernst equation.

Equipment checklist

Cover the right side and test yourself — you are ready for the parent note only if each reveal feels obvious.
