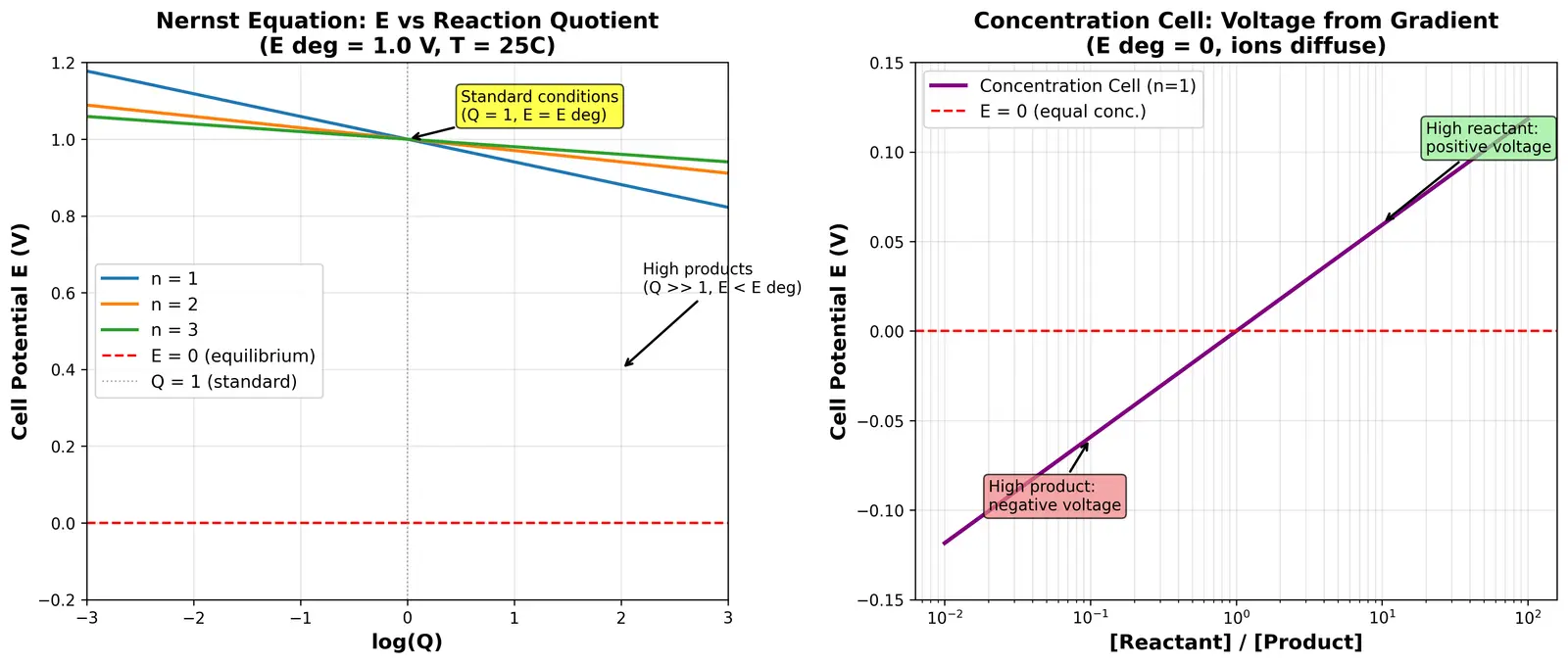

Nernst equation E = E° − (RT - nF) ln Q

Overview

The Nernst equation connects the electrochemical cell potential under non-standard conditions to the standard cell potential and the reaction quotient. It's the bridge between thermodynamics and electrochemistry, showing how concentration drives voltage.

Why it matters: Batteries don't operate at standard conditions (1 M, 25°C, 1 atm). The Nernst equation tells us the actual voltage you'll measure in a real electrochemical cell.

---

[!intuition] The Core Idea

Think of a battery like water flowing downhill. The "height" (voltage) depends on two things:

1. The intrinsic height difference (E°) — how much the reaction wants to happen
2. How much "downhill" is left — if products pile up (high Q), there's less driving force

As a reaction proceeds, reactants → products, Q increases, and the voltage drops. At equilibrium (Q = K), the voltage hits zero (no more driving force). The Nernst equation quantifies this decay.

Physical meaning:

• High reactant concentration → large driving force → higher voltage
• High product concentration → reaction "satisfied" → lower voltage

---

[!definition] Key Terms

• Standard cell potential (E°): The voltage when all species are at 1 M concentration, 1 atm pressure, and 25°C (298 K). It's the thermodynamic "starting height."
• Cell potential (E): The actual voltage under any conditions.
• Reaction quotient (Q): $Q = \frac{[\text{products}]}{[\text{reactants}]}$, the concentration ratio at any moment. At equilibrium, Q = K.
• n: Number of moles of electrons transferred in the balanced half-reactions.
• F: Faraday's constant = 96,485 C/mol, the charge of one mole of electrons.

---

[!formula] Derivation from First Principles

Step 1: Gibbs Free Energy and Cell Potential

Start with thermodynamics. The driving force for any reaction is the Gibbs free energy change:

$\Delta G = \Delta G° + RT \ln Q$

Why this form?

• $\Delta G°$ is the standard free energy (1 M, 1 atm).
• $RT \ln Q$ is the correction for non-standard concentrations. If Q > 1 (more products), $\ln Q > 0$, making $\Delta G$ less negative (less spontaneous). If Q < 1 (more reactants), $\ln Q < 0$, making $\Delta G$ more negative (more spontaneous).

Step 2: Link ΔG to Voltage

For an electrochemical cell, the electrical work done is:

$\Delta G = -nFE$

Why negative? A spontaneous reaction ($\Delta G < 0$) produces a positive voltage (E > 0). The negative sign aligns the conventions.

Similarly, at standard conditions:

$\Delta G° = -nFE°$

Step 3: Substitute and Solve for E

Plug the ΔG relations into the thermodynamic equation:

$-nFE = -nFE° + RT \ln Q$

Divide both sides by $-nF$:

$E = E° - \frac{RT}{nF} \ln Q$

This is the Nernst equation.

Step 4: Simplification at 25°C

At T = 298 K, plug in R = 8.314 J/(mol·K), F = 96,485 C/mol, and convert ln to log₁₀ (ln = 2.303 log₁₀):

$\frac{RT}{F} = \frac{8.314 \times 298}{96,485} = 0.0257 \text{ V}$

$E = E° - \frac{0.0257}{n} \ln Q = E° - \frac{0.0592}{n} \log_{10} Q \quad \text{(at 25°C)}$

Why use log₁₀? Easier mental math with concentration powers of 10.

---

[!example] Worked Example 1: Zinc-Copper Cell

Reaction: $\text{Zn}(s) + \text{Cu}^{2+}(aq) \to \text{Zn}^{2+}(aq) + \text{Cu}(s)$

Given: E° = 1.10 V, [Cu²⁺] = 0.01 M, [Zn²⁺] = 1.0 M, T = 25°C

Find: Actual cell potential E.

Step 1: Write Q.

$Q = \frac{[\text{Zn}^{2+}]}{[\text{Cu}^{2+}]} = \frac{1.0}{0.01} = 100$

Why this Q? Solids (Zn, Cu) don't appear in Q. Only aqueous ions.

Step 2: Identify n.

Zn → Zn²⁺ + 2e⁻ (oxidation)
Cu²⁺ + 2e⁻ → Cu (reduction)

So ==n = 2==.

Step 3: Apply Nernst equation.

$E = 1.10 - \frac{0.0592}{2} \log(100)$

$\log(100) = 2$

$E = 1.10 - \frac{0.0592}{2} \times 2 = 1.10 - 0.0592 = 1.04 \text{ V}$

Why lower than E°? High [Zn²⁺] (product) reduces driving force.

---

[!example] Worked Example 2: Concentration Cell

Setup: Two half-cells with the same electrode (Ag/Ag⁺), but different [Ag⁺].

Left: [Ag⁺] = 0.001 M
Right: [Ag⁺] = 1.0 M

Find: Cell voltage.

Step 1: Recognize E° = 0.

Both half-cells are identical, so the standard potential difference is zero. Voltage arises purely from the concentration gradient.

Step 2: Write the spontaneous direction.

Electrons flow from low [Ag⁺] to high [Ag⁺]. The reaction:

$\text{Ag}^+(1.0\,M) + e^- \to \text{Ag}(s) \quad \text{(cathode)}$ $\text{Ag}(s) \to \text{Ag}^+(0.001\,M) + e^- \quad \text{(anode)}$

Net: $\text{Ag}^+(1.0) \to \text{Ag}^+(0.001)$ — just dilution!

Step 3: Write Q.

$Q = \frac{[\text{Ag}^+]_{\text{anode}}}{[\text{Ag}^+]_{\text{cathode}}} = \frac{0.001}{1.0} = 0.001$

Step 4: Apply Nernst (n = 1).

$E = 0 - \frac{0.0592}{1} \log(0.001) = -0.0592 \times (-3) = 0.178 \text{ V}$

Why positive? The reaction is spontaneous in the dilution direction (high → low concentration). Q < 1 makes the ln Q term negative, so E > E° = 0.

---

[!example] Worked Example 3: At Equilibrium

Question: What is E when the cell reaches equilibrium?

Step 1: At equilibrium, Q = K, and ΔG = 0.

Step 2: From ΔG = -nFE, if ΔG = 0, then E = 0.

Step 3: Plug E = 0 into Nernst:

$0 = E° - \frac{RT}{nF} \ln K$

Rearrange:

$E° = \frac{RT}{nF} \ln K \quad \Rightarrow \quad K = e^{nFE°/RT}$

At 25°C:

$\log K = \frac{nE°}{0.0592}$

Meaning: A large positive E° means a huge equilibrium constant (reaction goes nearly to completion). E° and K are two sides of the same coin.

---

[!mistake] Common Errors

Mistake 1: Forgetting Solids/Pure Liquids in Q

Wrong thinking: Including solid Zn in Q as [Zn].

Why it feels right: "Zn is in the reaction, so it should be in Q."

The fix: Activity of a pure solid or liquid = 1 by definition. Only gases (partial pressures) and aqueous ions (concentrations) appear in Q.

Correct: For $\text{Zn}(s) + \text{Cu}^{2+} \to \text{Zn}^{2+} + \text{Cu}(s)$, $Q = \frac{[\text{Zn}^{2+}]}{[\text{Cu}^{2+}]}$.

---

Mistake 2: Using Log Instead of Ln (or Vice Versa)

Wrong: Mixing the two Nernst forms.

Why it happens: Two versions exist (ln and log₁₀). Using 0.0592/n requires log₁₀. Using 0.0257/n requires ln.

The fix:

• General form: $E = E° - \frac{0.0257}{n} \ln Q$ (natural log)
• 25°C, base-10: $E = E° - \frac{0.0592}{n} \log Q$

Pick one and stick with it. If given ln Q, use 0.0257. If given log Q, use 0.0592.

---

Mistake 3: Wrong Sign on n

Wrong: Thinking n can be negative if electrons are on the other side.

Why it feels right: "If electrons are on the right, maybe n is negative?"

The fix: n is always positive. It's the count of electrons transferred. The direction (oxidation vs. reduction) is already baked into the sign of E° when you write the overall cell reaction.

---

Mistake 4: Confusing E and E°

Wrong: Using E° from a table when the problem gives non-standard concentrations.

Why it happens: E° is easy to look up, and students forget to apply Nernst.

The fix: E° is only correct at standard conditions. If concentrations ≠ 1 M, temperature ≠ 25°C, or pressure ≠ 1 atm, you must use Nernst to find E.

---

[!mnemonic] Memory Aid

"NERD" for Nernst:

• Not standard? Use Nernst.
• E° is the starting voltage.
• RT/nF is the correction factor.
• Don't forget ln Q (or log Q at 25°C).

Concentration intuition: "More reactants → higher voltage. More products → lower voltage."

---

[!recall]- Feynman Explanation (Age 12)

Imagine you have a battery made from two buckets of water at different heights. The higher bucket (reactants) wants to flow down to the lower bucket (products), and that flow powers a waterwheel (generates voltage).

Now, E° is like the original height difference when both buckets are full. But as water flows, the top bucket empties a bit, and the bottom bucket fills up. The height difference shrinks, so the waterwheel spins slower (voltage drops).

The Nernst equation tells you: "How much voltage is left?" It depends on:

1. The starting height (E°).
2. How full each bucket is right now (Q, the concentration ratio).

If the top bucket (reactants) is almost empty and the bottom (products) is almost full, Q is huge, and the voltage is way lower than E°. If they're exactly balanced (equilibrium), the voltage is zero—no more flow!

The RT/nF part is just a "unit converter" that turns the concentration ratio into volts.

---

Connections

• Standard Reduction Potentials — E° values come from these tables
• Gibbs Free Energy and Spontaneity — ΔG = -nFE links thermodynamics to electrochemistry
• Reaction Quotient Q vs Equilibrium Constant K — Q is the dynamic version, K is Q at equilibrium
• Electrochemical Cells (Galvanic vs Electrolytic) — Nernst applies to galvanic cells
• Le Chatelier's Principle — changing concentrations shifts E just like shifting equilibrium
• pH and Half-Cell Potentials — H⁺ concentration affects E via Nernst
• Battery Discharge Curves — why voltage drops as a battery runs (Q increases)

---

Flashcards

What is the Nernst equation at 25°C using log₁₀? :: $E = E° - \frac{0.0592}{n} \log Q$

What does Q represent in the Nernst equation? :: The reaction quotient, the ratio of product concentrations to reactant concentrations (excluding solids/liquids).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Nernst equation chemistry ka ek bahut important formula hai jo batata hai ki battery ya electrochemical cell ka actual voltage kya hoga jab concentrations standard nahi hain. Samjho ki E° (standard potential) ek fixed number hai jo table mein milta hai, jaise Zn-Cu cell ka 1.10 V. Lekin real life mein concentrations 1 M nahi hote, temperature bhi change hota hai. Tab E (actual voltage) calculate karne ke liye Nernst equation use karte hain: E = E° − (RT/nF) ln Q. Yahaan Q reaction quotient hai (products/reactants ka ratio), n electrons ka count hai, aur RT/nF ek conversion factor hai jo concentration ko voltage mein badalta hai.

Intuition ye hai ki jab reactants zyada hain (Q chota hai), toh reaction ka driving force zyada hota hai aur voltage bhi zyada milta hai. Jab products ban jaate hain (Q bada hota hai), toh voltage gir jata hai kyunki reaction "satisfied" ho raha hai. Equilibrium pe Q = K ho jata hai aur voltage exactly zero ho jata hai—ab koi net flow nahi hai. Yeh formula batteries, fuel cells, aur concentration cells mein kaam aata hai. Ek common mistake ye hai ki students solids ko Q mein include kar dete hain, lekin yaad rakho: pure solids aur liquids ka activity 1 hota hai, sirf aqueous ions aur gases Q mein aate hain. 25°C pe simplified form hai: E = E° − (0.0592/n) log Q, jo mental calculation ke liye easy hai.
