Cell EMF E°_cell = E°_cathode − E°_anode

Core Question

How do we predict which direction electrons flow in an electrochemical cell, and what voltage will it produce?

[!intuition] Why This Formula Exists

When you connect two half-cells, electrons want to flow from where they're less wanted (lower reduction potential) to where they're more wanted (higher reduction potential). The cell EMF (electromotive force) measures this driving force in volts.

The key insight: The half-cell with the higher reduction potential becomes the cathode (reduction happens here), and the other becomes the anode (oxidation happens there). The voltage you measure is the difference between these potentials.

Think of it like water flowing downhill: the height difference determines how fast water flows. Here, the potential difference determines how strongly electrons want to flow.

[!definition] Standard Cell Potential

The standard cell potential $E°_{\text{cell}}$ is the voltage produced by an electrochemical cell when:

• All species are at standard conditions (1 M concentration, 1 atm pressure, 25°C)
• No current is flowing (equilibrium measurement)

Formula: $E°_{\text{cell}} = E°_{\text{cathode}} - E°_{\text{anode}}$

Where:

• $E°_{\text{cathode}}$ = standard reduction potential at the cathode (reduction site)
• $E°_{\text{anode}}$ = standard reduction potential at the anode (oxidation site)

Units: Volts (V)

[!formula] Derivation from First Principles

Step 1: What happens at each electrode?

At the cathode (reduction): $\text{Oxidized species} + n e^- \rightarrow \text{Reduced species} \quad E°_{\text{red,cathode}}$

At the anode (oxidation): $\text{Reduced species} \rightarrow \text{Oxidized species} + n e^- \quad E°_{\text{red,anode}}$

Why this matters: Reduction potentials are always tabulated for the reduction direction. When a half-cell acts as anode, we need to reverse the reaction, but we subtract the potential (we don't change the sign of $E°$ itself in the standard formula).

Step 2: Gibs Free Energy Connection

The cell EMF relates to spontaneity through: $\Delta G° = -nFE°_{\text{cell}}$

Where:

• $n$ = moles of electrons transferred
• $F$ = Faraday's constant (96,485 C/mol)
• $\Delta G°$ = standard free energy change

Why subtract? For the overall cell reaction: $\Delta G°_{\text{cell}} = \Delta G°_{\text{cathode}} + \Delta G°_{\text{anode}}$

Since $\Delta G° = -nFE°$: $-nFE°_{\text{cell}} = -nFE°_{\text{cathode}} + nFE°_{\text{anode}}$

Why the sign flip for anode? At the anode, we reverse the reduction reaction (making it oxidation), which reverses the sign of $\Delta G°$: $-nFE°_{\text{cell}} = -nFE°_{\text{cathode}} - (-nFE°_{\text{anode}})$

Divide by $-nF$: $E°_{\text{cell}} = E°_{\text{cathode}} - E°_{\text{anode}}$

Step 3: Physical Interpretation

The voltage measures the electron pressure difference:

• Electrons leave the anode (low $E°$, pushed out)
• Electrons enter the cathode (high $E°$, pulled in)
• The difference is what drives current through the external circuit

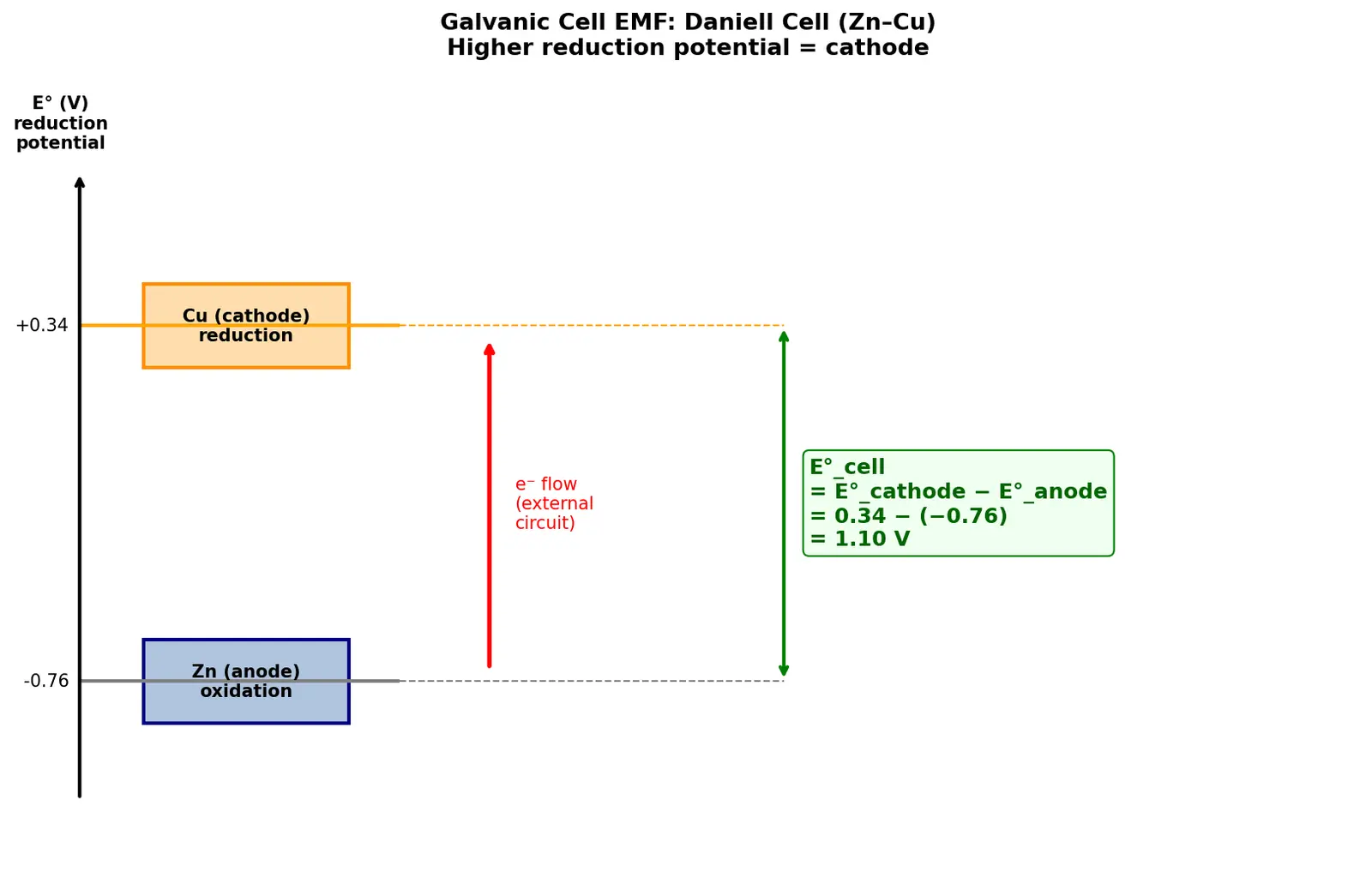

[!example] Example 1: Daniel Cell (Cu-Zn)

Setup:

• Half-cell 1: $\text{Zn}^{2+}(aq) + 2e^- \rightarrow \text{Zn}(s)$ with $E° = -0.76 \text{ V}$
• Half-cell 2: $\text{Cu}^{2+}(aq) + 2e^- \rightarrow \text{Cu}(s)$ with $E° = +0.34 \text{ V}$

Step 1: Identify cathode and anode

• Higher $E°$ (+0.34 V) → Cu is the cathode (reduction)
• Lower $E°$ (-0.76 V) → Zn is the anode (oxidation)

Why this step? Reduction happens where the potential is more positive (electrons are more stable there).

Step 2: Apply the formula $E°_{\text{cell}} = E°_{\text{cathode}} - E°_{\text{anode}} = 0.34 - (-0.76) = 1.10 \text{ V}$

Why this step? We're finding the driving force for electrons to go from Zn to Cu.

Step 3: Write the overall cell reaction

• Cathode: $\text{Cu}^{2+} + 2e^- \rightarrow \text{Cu}$ (as written)
• Anode: $\text{Zn} \rightarrow \text{Zn}^{2+} + 2e^-$ (reversed)
• Overall: $\text{Zn}(s) + \text{Cu}^{2+}(aq) \rightarrow \text{Zn}^{2+}(aq) + \text{Cu}(s)$

Why this step? The positive $E°_{\text{cell}}$ confirms this reaction is spontaneous (electrons naturally flow this way).

[!example] Example 2: Non-Spontaneous Case (Cu-Ag)

Setup:

• Half-cell 1: $\text{Cu}^{2+}(aq) + 2e^- \rightarrow \text{Cu}(s)$ with $E° = +0.34 \text{ V}$
• Half-cell 2: $\text{Ag}^+(aq) + e^- \rightarrow \text{Ag}(s)$ with $E° = +0.80 \text{ V}$

Question: What if we force Cu to be the cathode?

Step 1: Assume Cu is cathode, Ag is anode $E°_{\text{cell}} = 0.34 - 0.80 = -0.46 \text{ V}$

Why this step? Negative voltage means this configuration is non-spontaneous. Electrons won't flow this way naturally.

Step 2: Correct assignment

• Cathode: Ag (higher $E° = +0.80$ V)
• Anode: Cu (lower $E° = +0.34$ V)

$E°_{\text{cell}} = 0.80 - 0.34 = 0.46 \text{ V}$

Why this step? Positive voltage confirms spontaneity. The cell naturally makes Cu oxidize and Ag reduce.

[!example] Example 3: Same Metal, Different Concentrations

Setup (Concentration Cell):

• Both electrodes are Cu, but $[\text{Cu}^{2+}]$ differs
• Standard potentials are identical ($E° = +0.34$ V for both)

At standard conditions: $E°_{\text{cell}} = 0.34 - 0.34 = 0 \text{ V}$

Why this step? When concentrations are equal, there's no driving force.

Under non-standard conditions: Use the Nernst equation: $E_{\text{cell}} = E°_{\text{cell}} - \frac{0.0592}{n} \log Q$

If $[\text{Cu}^{2+}]_{\text{cathode}} > [\text{Cu}^{2+}]_{\text{anode}}$, then $Q < 1$, $\log Q < 0$, so $E_{\text{cell}} > 0$.

Why this matters? Even with identical metals, concentration differences create voltage (used in biological ion sensing).

[!mistake] Common Mistakes & Steel-manning

Mistake 1: "I should reverse the sign of E° for the anode"

Why it feels right: At the anode, oxidation is the reverse of the tabulated reduction. Students think, "If I reverse the reaction, I reverse the voltage."

Why it's wrong: The formula already accounts for direction via subtraction. Standard reduction potentials are always looked up as reduction values, even when the half-cell undergoes oxidation.

The fix:

• Look up both as reduction potentials
• Subtract: $E°_{\text{cell}} = E°_{\text{cathode}} - E°_{\text{anode}}$
• Don't flip signs manually

Correct thinking: "The formula does the accounting. I just identify which is which and subtract."

Mistake 2: "Higher potential always means cathode"

Why it feels right: The more positive $E°$ attracts electrons, so it should be where reduction happens.

Why it's incomplete: This is true for spontaneous cells (galvanic). In electrolytic cells (non-spontaneous, externally powered), we force the lower-potential electrode to be the cathode.

The fix:

• Galvanic (spontaneous): Higher $E°$ is cathode → $E°_{\text{cell}} > 0$
• Electrolytic (forced): External power overides natural flow → $E°_{\text{cell}} < 0$ for the forced direction

Mistake 3: "I can just add the two E° values"

Why it feels right: Both half-reactions contribute to the overall voltage, so adding seems natural.

Why it's wrong: Voltage is a potential difference, not a sum. You're measuring how much higher the cathode is than the anode.

The fix: Always use $E°_{\text{cell}} = E°_{\text{cathode}} - E°_{\text{anode}}$.

Analogy: If one hiltop is 100 m above sea level and another is 50 m, the height difference is 50 m, not 150 m.

[!mnemonic] Memory Aid: "Cats are Positive"

"Cats are Positive"

• Cathode → More positive $E°$
• Anode → Less positive (or more negative) $E°$

Formula reminder: "Cathode Minus Anode" → CMA → $E°_{\text{cell}} = E°_{\text{C}} - E°_{\text{A}}$

[!recall]- Feynman Technique: Explain to a 12-Year-Old

Imagine two hills, one tall and one short. You put a ball on the tall hill. Where does it roll? Downhill to the short hill, right?

Electrons are like that ball. They "roll" from the metal with a lower voltage (anode) to the metal with a higher voltage (cathode). The difference in height (voltage) tells you how fast the ball wants to roll.

If the tall hill is 0.80 V and the short hill is 0.34 V, the ball "feels" a 0.46 V push. That's the cell voltage!

The formula $E°_{\text{cell}} = E°_{\text{cathode}} - E°_{\text{anode}}$ is just "tall hill minus short hill."

Connections

• Standard Reduction Potentials (Table) — where $E°$ values come from
• Gibbs Free Energy and Spontaneity — connects $\Delta G° = -nFE°_{\text{cell}}$
• Nernst Equation — adjusts $E°_{\text{cell}}$ for non-standard conditions
• Galvanic vs Electrolytic Cells — distinguishes spontaneous from forced electron flow
• Daniel Cell (Detailed Mechanism) — classic example in depth
• Faraday's Laws of Electrolysis — relates charge to moles of electrons

Flashcards

What is the formula for standard cell potential? :: $E°_{\text{cell}} = E°_{\text{cathode}} - E°_{\text{anode}}$
