Cell EMF E°_cell = E°_cathode − E°_anode: Visual walkthrough

Before any symbol appears, let us agree on one plain-English idea and one picture.

Step 1 — Two metals, two different "hungers" for electrons

WHAT. Picture two separate beakers. Each holds a strip of metal dipped in a solution of its own ions. Nothing is connected yet. Each metal has a personality: a tendency to grab electrons and become solid metal, or to let go of electrons and dissolve as ions.

WHY. Everything downstream is about comparing these two personalities. If we cannot picture the personality of a single metal alone, the comparison later is meaningless. So we start with one number per beaker — a measure of "how badly this metal wants electrons."

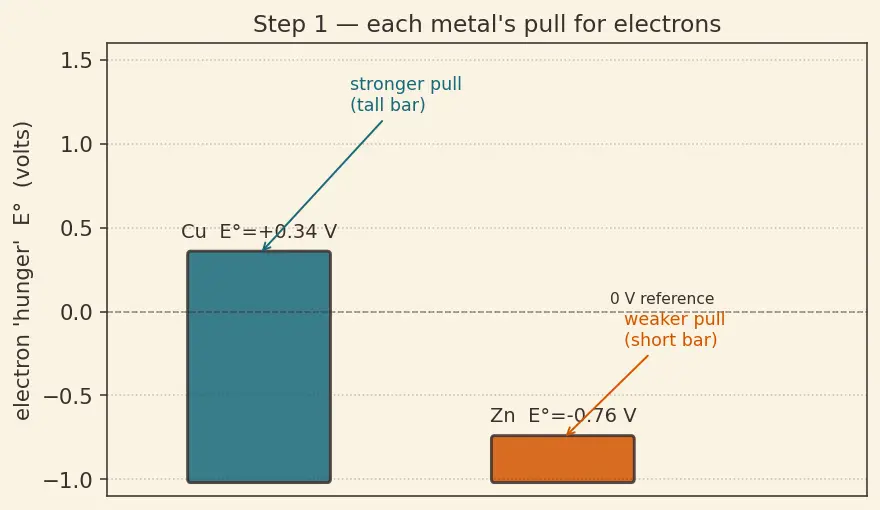

PICTURE. In the figure, each beaker has a coloured bar. A taller bar means the metal pulls electrons harder (wants to be reduced). Copper's bar is tall; zinc's bar is short.

Figure — Cell EMF E°_cell = E°_cathode − E°_anode

Reading the symbol out loud: $E °$ — the letter $E$ is for "electric potential," and the little circle $°$ is a badge meaning standard conditions. Nothing more mysterious than that.

Step 2 — Connect them: electrons roll from the short bar to the tall bar

WHAT. Now join the two metals with a wire (and a salt bridge so charge can balance — see Daniel Cell (Detailed Mechanism)). Electrons immediately start moving.

WHY. A difference in "hunger" is a difference in pressure. Just as water flows from high to low, electrons flow from the metal that holds them loosely (low $E °$ ) toward the metal that pulls them hard (high $E °$ ). We draw this to fix the direction once and for all.

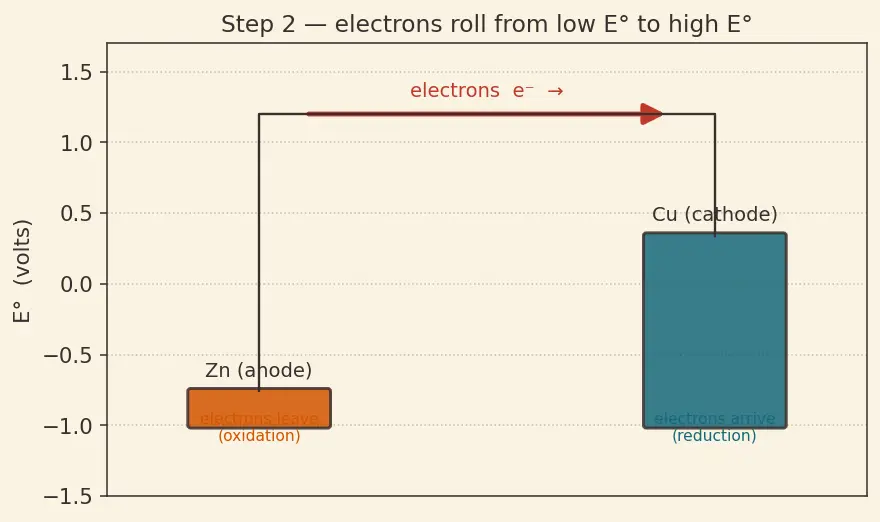

PICTURE. The red arrow shows electrons leaving the short-bar metal (zinc) and travelling through the wire into the tall-bar metal (copper). The zinc bar is the source; the copper bar is the sink.

Cathode

electrode with the higher

E °

; electrons arrive; reduction occurs

Anode

electrode with the lower

E °

; electrons leave; oxidation occurs

Step 3 — Measure the push: it is the gap between the two bars

WHAT. Put a voltmeter across the two metals. It reads a positive number of volts. Look at what that number equals in the picture.

WHY. A voltmeter never reports an absolute height — it reports a difference in height, like a ruler laid between two hilltops. We need to see with our eyes that the reading is the vertical gap between the tall bar and the short bar, not their sum.

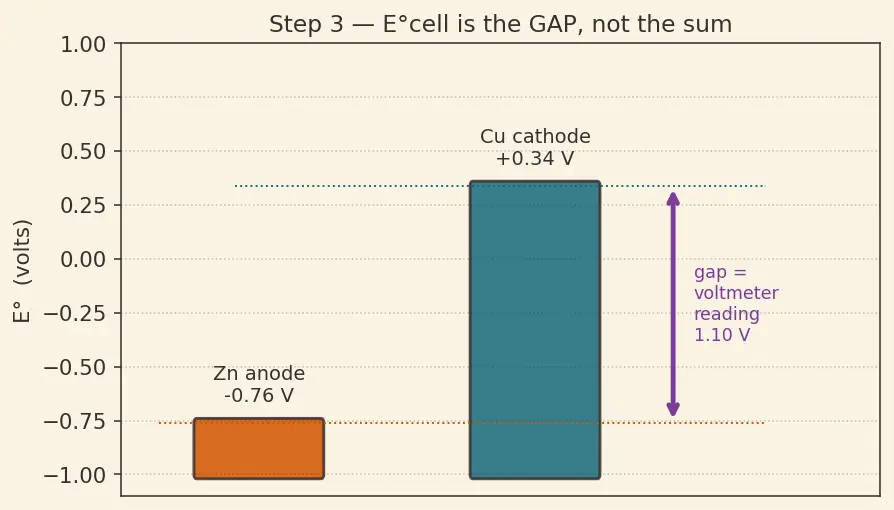

PICTURE. The plum bracket spans from the top of the short (zinc) bar up to the top of the tall (copper) bar. That bracket length is the voltmeter reading.

the gap the voltmeter reads E °_{cell} = top of tall bar E °_{cathode} - top of short bar E °_{anode}

$E °_{cell}$ — the whole push driving electrons through the wire.
$E °_{cathode}$ — the tall bar's height ( $+ 0.34$ V for Cu).
$E °_{anode}$ — the short bar's height ( $- 0.76$ V for Zn).
The minus sign — it is a gap, not a pile. This is the single most-missed idea (see the mistake box at the end).

Plugging in: $E °_{cell} = 0.34 - (- 0.76) = 1.10 V$ .

Step 4 — WHY subtraction? Prove it with energy, not just pictures

WHAT. We now show the subtraction is forced by physics, using the energy bookkeeping from Gibbs Free Energy and Spontaneity.

WHY. A picture suggests subtraction; energy conservation proves it. This is the step that stops "why not just add them?" forever.

PICTURE. Two energy ledgers stack into one. The cathode's ledger stays as written; the anode's ledger gets flipped because that half-reaction runs backwards (oxidation). The flip is where the minus is born.

First, the bridge between voltage and energy:

Δ G ° = - n F E °

$Δ G °$ — the standard free energy: how much useful energy the reaction can deliver. Negative $Δ G °$ = spontaneous (rolls downhill).
$n$ — number of electrons moved per reaction (2 for Cu/Zn).
$F$ — Faraday's constant, $96, 485$ C per mole of electrons (see Faraday's Laws of Electrolysis). It converts "moles of electrons" into "coulombs of charge."
The minus in $- n F E °$ — convention so that a positive voltage gives negative (spontaneous) energy.

Energies simply add for the whole cell:

Δ G °_{cell} = Δ G °_{cathode} + Δ G °_{anode(oxidation)}

The anode runs backwards from its tabulated (reduction) direction, so its energy flips sign: $Δ G °_{anode(oxidation)} = - Δ G °_{anode(reduction)} = - (- n F E °_{anode}) = + n F E °_{anode}$ .

Substitute $Δ G ° = - n F E °$ everywhere:

- n F E °_{cell} = (- n F E °_{cathode}) + (+ n F E °_{anode})

Divide both sides by $- n F$ (the $n$ and $F$ cancel cleanly — same electrons flow through both halves):

E °_{cell} = E °_{cathode} - E °_{anode}

The minus is not a choice — it fell out of flipping the anode's energy ledger.

Step 5 — Case check: what if we pick the wrong metal as cathode?

WHAT. Take Cu ( $+ 0.34$ V) and Ag ( $+ 0.80$ V). Suppose someone stubbornly labels Cu the cathode.

WHY. We must show the formula polices itself. A wrong guess doesn't break the maths — it produces a negative answer that literally tells you "you guessed backwards."

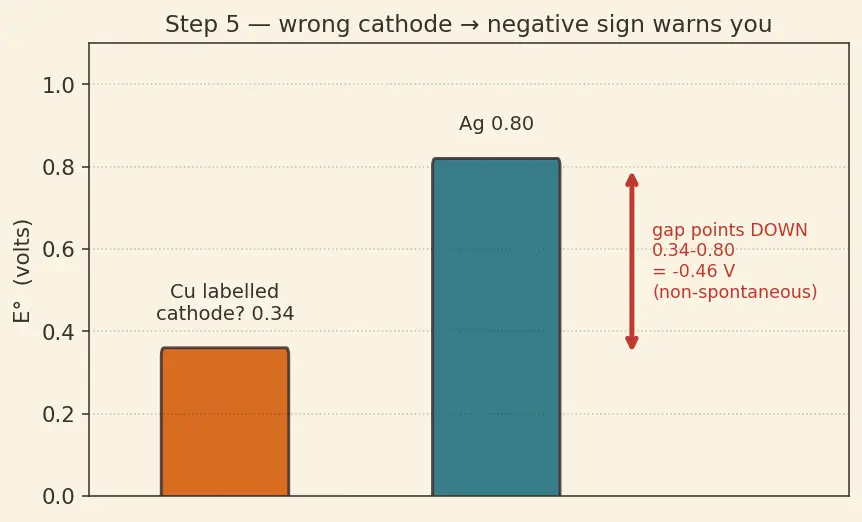

PICTURE. The bracket now points downward (tall bar is the anode, short bar is the cathode), and the voltmeter needle swings into the red negative zone.

Wrong guess (Cu as cathode):

E °_{cell} = E °_{Cu} - E °_{Ag} = 0.34 - 0.80 = - 0.46 V

Negative → non-spontaneous in that direction. Nature refuses.

Correct assignment (higher $E °$ = cathode = Ag):

E °_{cell} = E °_{Ag} - E °_{Cu} = 0.80 - 0.34 = + 0.46 V

Positive → spontaneous. The formula fixed our mistake by handing back a warning sign.

Step 6 — Degenerate case: two identical bars (zero gap)

WHAT. Both electrodes are copper. The bars have the same height.

WHY. Every derivation must survive its degenerate case. Here the gap is zero — so the formula must, and does, give zero volts. This is the concentration-cell starting point.

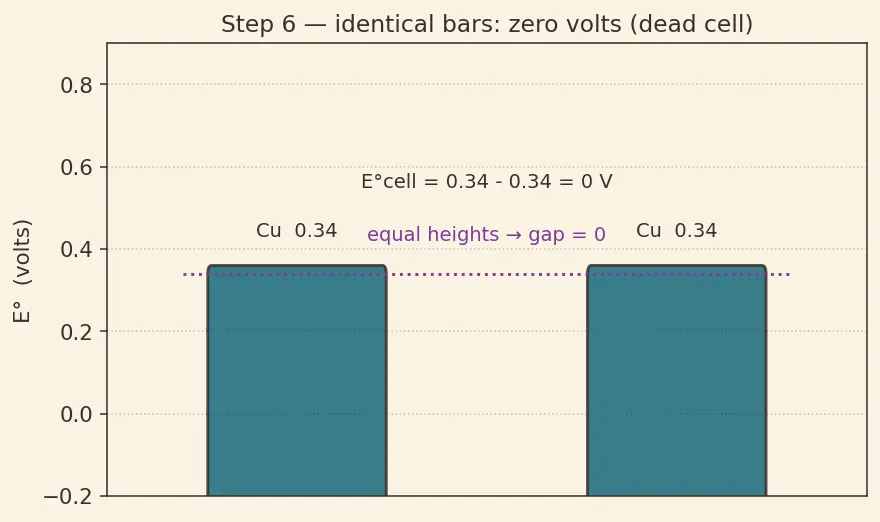

PICTURE. Two bars of equal height side by side; the bracket collapses to nothing; the voltmeter reads $0$ .

E °_{cell} = E °_{Cu} - E °_{Cu} = 0.34 - 0.34 = 0 V

No height difference → no push → no current at standard conditions. Change the concentrations and a real push appears — that is the job of the Nernst Equation, where a $lo g Q$ term nudges the gap open even for identical metals.

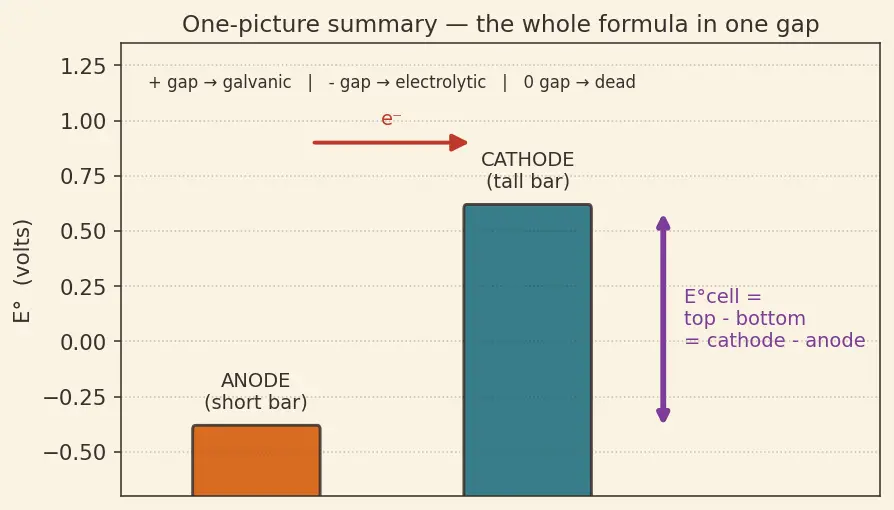

The one-picture summary

Everything above compresses into one image: two bars, the cathode always the tall one, the anode always the short one, and the gap between their tops — read top-minus-bottom — is the cell voltage. Positive gap = galvanic (spontaneous); negative = electrolytic (forced); zero gap = dead cell.

Recall Feynman retelling — the whole walkthrough in plain words

Imagine two hills. A ball (an electron) always rolls from the shorter hill to the taller one — wait, electrons are backwards ball-people, so let me say it straight: the metal that grabs electrons harder is the taller hill and becomes the cathode; the weaker one is the anode. The voltmeter is a tape measure stretched between the two hilltops — it reports only the gap, tall minus short, never the sum. That is exactly $E °_{cell} = E °_{cathode} - E °_{anode}$ . If you accidentally call the short hill "cathode," the tape measure reads a negative length — a polite way of saying "flip it around." And if both hills are the same height, the gap is zero, so the cell is dead until you change something (like concentration, which the Nernst equation handles). The minus sign isn't a rule to memorise; it is what "difference in height" means.
