Foundations — Le Chatelier's principle — pressure, temperature, concentration, catalyst effects

This page assumes you know almost nothing. Before you can read the parent note, you must be able to look at a symbol like $[N{H}_3]$, $Q$, $K$, $\Delta H$ or $\Delta G$ and instantly see a picture. We build each one from zero, in an order where every symbol is earned before the next needs it.

1. A reaction that goes both ways: the $\rightleftharpoons$ arrow

Most reactions you first meet use a one-way arrow $\to$: reactants become products, done. But many reactions are reversible — products can turn back into reactants. We draw this with a double harpoon $\rightleftharpoons$.

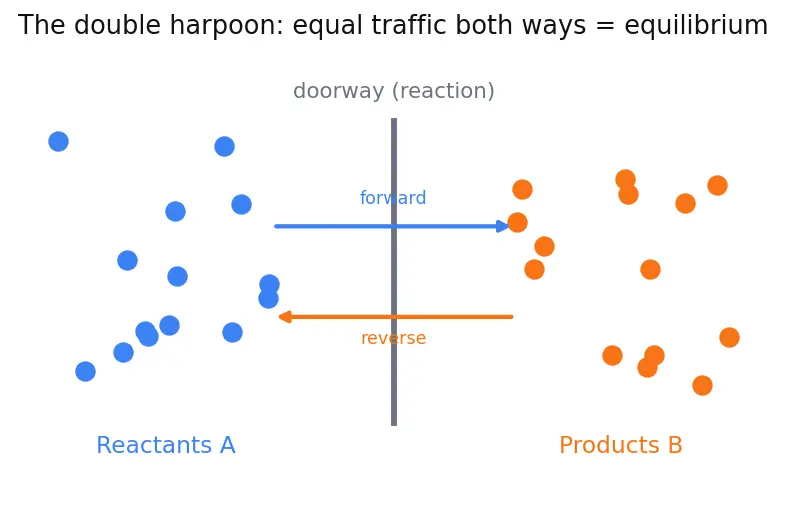

The picture: a doorway with people walking rightward and leftward simultaneously.

Why the topic needs it: Le Chatelier's principle is only about reversible systems. A one-way reaction has no "balance" to disturb — it just finishes. The whole idea of "shifting" requires two directions to shift between.

2. Square brackets $[]$ — "how crowded is this species?"

Chemistry crams a huge number of molecules into a small space. To talk about "how much" of something is present, we use concentration: amount of a substance packed into a volume.

The picture: a box. Few dots inside = low $[X]$ (small number). Many dots crammed in = high $[X]$ (big number). If you shrink the box (less volume) without removing dots, $[X]$ goes up — the dots are more crowded.

Why the topic needs it: Every equilibrium formula ($Q$, $K$) is built entirely out of these $[X]$ values. And "adding reactant" — the first stress in the parent note — literally means turning one of these dials up.

3. Superscripts and coefficients: $[C{]}^c$ and what $aA+bB$ means

A balanced equation like

$aA+bB\rightleftharpoons cC+dD$

has small numbers $a,b,c,d$ in front of each species. These are stoichiometric coefficients: the recipe amounts.

Why does the same number appear in two roles? Because if a reaction needs $3$ molecules of $H_2$ at once, then doubling $[H_2]$ makes that triple-collision eight times more likely ($2^3=8$). The exponent captures how sensitive the reaction is to that species. That is why coefficients climb up into exponents in the formulas below.

4. The equilibrium constant $K$ — the fixed "balance number"

Now we combine everything. When a reversible reaction reaches its balance point, a special ratio of concentrations always lands on the same value (at a fixed temperature). We call it $K$.

The picture: a fraction bar as a see-saw. Products pile on top, reactants pile on the bottom. At equilibrium the pile-ratio always equals the same number $K$.

Reading $K$ like a sentence:

• $K$ large ($\gg 1$): top-heavy → mostly products at balance.
• $K$ small ($\ll 1$): bottom-heavy → mostly reactants at balance.
• $K\approx 1$: roughly even mix.

Why the topic needs it: $K$ is the target the system always returns to. "Shifting" always means moving concentrations until this ratio equals $K$ again. See Equilibrium Constant for the full story.

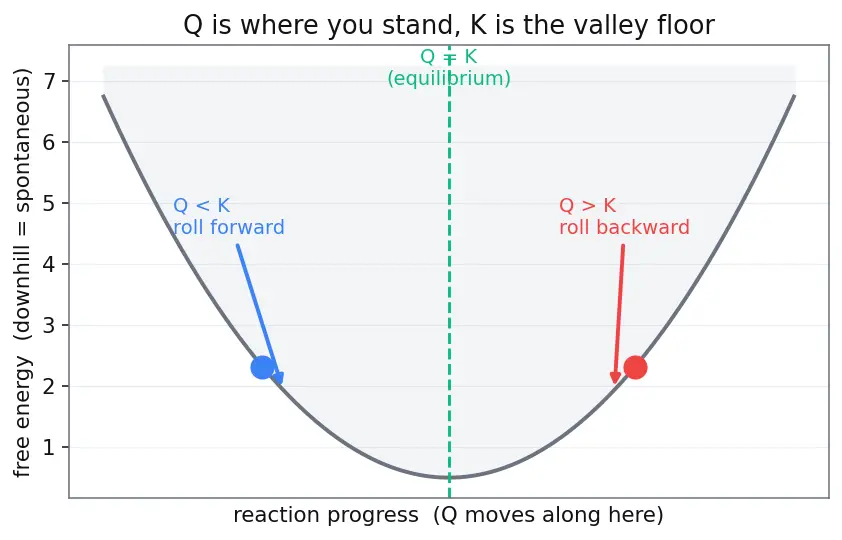

5. The reaction quotient $Q$ — the "balance number, right now"

$Q$ has the exact same formula as $K$, with one difference: you plug in whatever concentrations you have at this moment, equilibrium or not.

• $Q<K$ → not enough product yet → roll forward (make products).
• $Q>K$ → too much product → roll backward (make reactants).
• $Q=K$ → already home → no net motion.

Why the topic needs it: This single comparison, $Q$ vs $K$, is the engine behind every prediction in the parent note. Every "shift" is just "which way does $Q$ have to move to reach $K$?" More in Reaction Quotient Q.

6. The Greek delta $\Delta$ and enthalpy $\Delta H$ — the heat ledger

The symbol $\Delta$ (Greek capital "delta") is universal shorthand for "change in" — always final minus initial.

The picture: a thermometer beside the beaker. Exothermic: mercury rises (heat leaves the molecules). Endothermic: mercury drops (heat is pulled in).

Why the topic needs it: Temperature is the only stress that changes $K$ itself, and the sign of $\Delta H$ decides which way. Treating "heat as a product/reactant" turns a hard idea into a familiar concentration-style shift.

7. Spontaneity $\Delta G$ and the link $\Delta G=\Delta G^{\circ }+RT\ln Q$

The parent note justifies why the system moves with one deeper symbol: $\Delta G$, the Gibbs free energy change.

The connecting formula is

$\Delta G=\Delta G^{\circ }+RT\ln Q$

Let us earn each new symbol here:

• $\Delta G^{\circ }$ (with the little circle °): the "standard" reference value — the $\Delta G$ measured under a fixed set of agreed-upon standard conditions, so that everyone reports the same number for a reaction. Those conditions are: each gas at a partial pressure of $1\text{bar}$, each dissolved species at a concentration of $1M$, pure solids and liquids in their normal state, and (by convention) a temperature of $25{}^{\circ }\text{C}=298\text{K}$. It is a fixed number for a given reaction at a given temperature.
• $R$: the gas constant, $8.314{\text{J mol}}^{-1}{\text{K}}^{-1}$ — a fixed conversion number linking energy to temperature.
• $T$: absolute temperature in kelvin ($K={}^{\circ }C+273$). Always positive.
• $\ln$: the natural logarithm — it answers "$e$ to what power gives this?" We need a log here because it turns the ratio $Q$ into an additive energy term.
• $e$: the number $e\approx 2.718$, the base of the natural logarithm. It is a fixed mathematical constant (like $\pi$) that shows up whenever something grows or shrinks continuously; "$\ln$" and "$e$" are a matched pair — $\ln$ undoes "$e$ to the power of", and vice versa.

At equilibrium $\Delta G=0$ and $Q=K$, which forces $\Delta G^{\circ }=-RT\ln K$. Substituting back gives the clean truth: whenever $Q\ne K$, $\Delta G\ne 0$, so the reaction spontaneously moves $Q$ toward $K$. That single line is the mathematical soul of Le Chatelier. See Gibbs Free Energy.

8. Rate constants $k_f$, $k_r$ and the catalyst symbol $E_a$

For the catalyst section we need three more pictures. First, two subscripts we will lean on constantly:

Deriving $K=k_f/k_r$ (the missing step). Equilibrium is defined as the moment when the two speeds become equal — the doorway crowd in figure s01 has equal traffic each way, so nothing net changes:

${\text{rate}}_f={\text{rate}}_r⟹k_f[A{]}^a[B{]}^b=k_r[C{]}^c[D{]}^d.$

Now simply divide both sides by $k_r$ and by $[A{]}^a[B{]}^b$ to gather the rate constants on one side and the concentrations on the other:

$\frac{k_f}{k_r}=\frac{[C{]}^c[D{]}^d}{[A{]}^a[B{]}^b}=K.$

The right-hand side is exactly the $K_c$ we defined in §4. So the ratio of rate constants is the equilibrium constant — that is why $K=k_f/k_r$ is not an extra rule but a consequence of "equal speeds."

Because the catalyst lowers both $E_{a,f}$ and $E_{a,r}$ by the same amount, the ratio $k_f/k_r=K$ is unchanged — the balance point does not move, the system just reaches it faster. See Activation Energy.

The rate constants use one more piece of notation, the exponential $e^{-E_a/RT}$. Here $e\approx 2.718$ is the same base of the natural logarithm we just met; "$e^{\text{something}}$" simply means "$e$ raised to that power." Read the whole term $e^{-E_a/RT}$ as "the fraction of molecules with enough energy to clear the hill." A taller hill (bigger $E_a$) or colder gas (smaller $T$) makes the exponent more negative and shrinks this fraction toward zero.

How the foundations feed the topic

Read it top to bottom: crowding ($[X]$), coefficients, and the reversible arrow build $K$; $K$ plus current concentrations build $Q$; the $Q$-vs-$K$ comparison (justified by $\Delta G$) is the shifting rule; $\Delta H$ decides the temperature case; and $k_f,k_r,E_a$ explain why catalysts leave $K$ untouched.

Equipment checklist

Test yourself — cover the right side, answer, then reveal.
