Visual walkthrough — Atomic radius — covalent, metallic, van der Waals; trends across period and group

This page unpacks the parent topic one picture at a time.

---

Step 1 — An atom has no edge, so we cannot measure one atom

WHAT. Picture a single atom: a tiny dot (the nucleus, the positive centre where the protons live) surrounded by a cloud of electrons. The cloud is not a ball with a skin — it is a fog that is thick near the middle and thins out smoothly, never quite reaching zero.

WHY this matters. If the fog never ends, there is no place to put the tip of a ruler. Ask "where does the atom stop?" and there is no honest answer. So measuring one atom's radius is impossible in principle — not just hard.

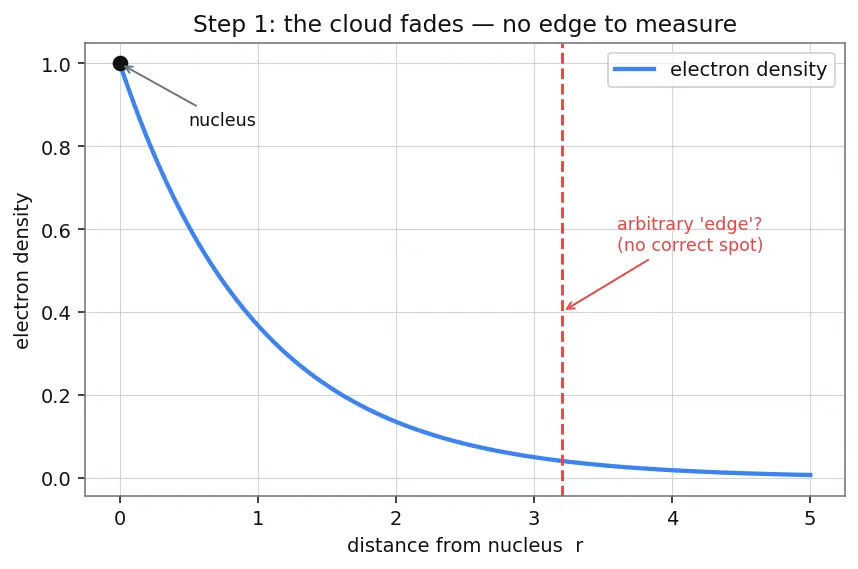

PICTURE. In the figure the blue curve is the electron density — how much electron-fog sits at each distance $r$ from the nucleus. Notice the red dashed line (a pretend "edge") is arbitrary: slide it left or right and nothing physical tells you which spot is correct.

---

Step 2 — The trick: measure TWO nuclei, then split the distance

WHAT. Since one atom has no edge, we bring two identical atoms together and measure the distance between their two nuclei. Call that distance $d$ — the internuclear distance. Then we simply give each atom half:

$r=\frac{d}{2}$

• $d$ — the distance from the centre (nucleus) of one atom to the centre of the other. This is a real, measurable length (from X-ray crystallography).
• $\frac{1}{2}$ — because the two atoms are identical, they split the gap fairly, one half each.
• $r$ — the atomic radius we assign to each atom.

WHY this works when Step 1 failed. We never needed to find an edge. We only needed the distance between two centres, and centres (nuclei) are sharp, tiny, well-defined points. The fuzziness cancels because both atoms are equally fuzzy.

PICTURE. Two fog-balls sit side by side. The green arrow marks $d$ (centre to centre); the orange arrow marks $r=d/2$ for one atom.

---

Step 3 — WHY one atom gets three different radii

WHAT. The distance $d$ depends on how the two atoms are touching. There are three ways two atoms of the same element can sit next to each other:

1. Sharing a covalent bond (electrons pooled between them) → smallest $d$.
2. Packed in a metal lattice (each atom shares electrons with many neighbours) → medium $d$.
3. Just touching, no bond (two atoms in neighbouring molecules) → largest $d$.

WHY the distances differ. A bond is a pull that drags the two nuclei toward each other. The stronger the pull, the closer the nuclei, the smaller the half-distance. So:

$\boxed{r_{cov}<r_{met}<r_{vdW}}$

• $r_{cov}$ (covalent) — strong shared-electron pull → nuclei squished close → smallest.
• $r_{met}$ (metallic) — each atom's electrons are shared among many neighbours, so any single bond is looser → medium.
• $r_{vdW}$ (van der Waals) — no bond at all, only feeble van der Waals attraction against the repulsion of two full clouds → nuclei stay far → largest.

PICTURE. Three pairs of atoms drawn to scale. Left pair (covalent) overlap clouds and sit close; middle pair (metallic) a bit further; right pair (vdW) barely touch. Watch the shrinking $r$ arrows.

---

Step 4 — The engine of every trend: effective nuclear charge

WHAT. Atom size is set by how tightly the outermost electrons are gripped. That grip is the effective nuclear charge:

$Z_{eff}=Z-S$

• $Z$ — the number of protons (the full positive charge in the nucleus). More protons = stronger raw pull.
• $S$ — the shielding: the inner electrons sit between the nucleus and the outer electron, cancelling part of the pull (like people blocking your view of a light). See Shielding and Penetration.
• $Z_{eff}$ — what the outer electron actually feels after the inner electrons block some of $Z$.

WHY subtraction. The outer electron is pulled outward by nothing and inward by the nucleus, but the inner electrons partly neutralise the nucleus from the outer electron's point of view. Each shielding electron subtracts roughly one unit of pull — hence $Z-S$.

PICTURE. The nucleus (charge $+Z$) at the centre; a ring of inner electrons (the shield $S$); one lonely outer electron feeling only the leftover arrows $Z_{eff}$.

---

Step 5 — WHY size shrinks across a period

WHAT. Walk left → right along one row (a period). At each step you add one proton ($Z$ goes up by 1) and one electron — but the new electron enters the same shell (same $n$, the same "layer" number).

WHY $Z_{eff}$ climbs. Electrons in the same shell are all at roughly the same distance, so they do a poor job shielding each other — $S$ barely rises. Meanwhile $Z$ rises by a full unit. So $Z_{eff}=Z-S$ grows across the row. Stronger grip → the whole cloud is reeled in → radius shrinks.

$r\propto \frac{n^2}{Z_{eff}}$

• $n$ — the shell number (how many layers out). Fixed across a period.
• $n^2$ — size grows with the square of the shell number (a fact from the hydrogen-like model).
• $Z_{eff}$ — grip; rising across a period.
• Fixed top, rising bottom → the fraction falls → smaller atom.

PICTURE. Period 2 drawn left to right: the nucleus charge arrows grow, the cloud contracts. Radii labelled Li 128 → C 76 → F 57 pm.

---

Step 6 — WHY size grows down a group

WHAT. Walk top → bottom in one column (a group). Each step down adds a whole new shell: $n$ increases by 1.

WHY the new shell wins. Yes, $Z$ also rises going down — but the many filled inner shells shield the new outer electron very well, so $Z_{eff}$ rises only modestly. Meanwhile $n$ jumps by a full unit, and $r\propto n^2$, so the numerator leaps. The $n^2$ growth beats the small $Z_{eff}$ growth → the atom gets bigger.

$r\propto \frac{n^2}{Z_{eff}}n:2\to 3\to 4\to 5\to 6$

• $n^2$ — jumps $4\to 9\to 16\to 25\to 36$: dramatic growth.
• $Z_{eff}$ — creeps up slowly (well shielded).
• Big numerator growth, small denominator growth → fraction rises → bigger atom.

PICTURE. Group 1 stacked as nested shells: each step adds an outer ring, radius growing Li 152 → Na 186 → K 227 → Cs 265 pm.

---

Step 7 — Edge case: noble gases and the "wrong ruler"

WHAT. A naive reader expects the last atom in a period to be the smallest, since radius shrinks rightward. But noble gases (Ne, Ar, …) look surprisingly big. Why?

WHY. Noble gases form no bonds. So their radius can only be a van der Waals radius — measured to a non-bonded neighbour, which is intrinsically large (Step 3). Comparing Ne's vdW radius to F's covalent radius is comparing two different rulers. It is not that Ne's cloud is huge; it is that we measured it a different way.

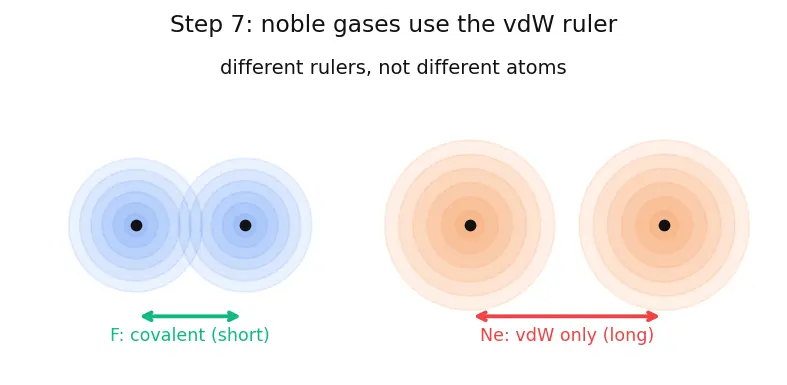

PICTURE. Fluorine drawn twice: once with its short covalent ruler, once (imagined) with a vdW ruler — and Ne with only the vdW ruler available. The rulers, not the atoms, differ.

---

Step 8 — Putting it together: order Na, Mg, Al, K

WHAT. Rank by increasing size using only the two rules.

WHY / HOW.

1. Na, Mg, Al are Period 3, left→right ⇒ $Z_{eff}$ rises ⇒ radius falls: $\text{Al}<\text{Mg}<\text{Na}$.
2. K is Period 4, Group 1 ⇒ it has a new $n=4$ shell ⇒ larger than any Period-3 atom here: bigger than Na.
3. Combine: $\text{Al}<\text{Mg}<\text{Na}<\text{K}$.

PICTURE. Four atoms drawn to scale in the answer order, with a "period arrow" (shrink) and a "group arrow" (grow) showing which rule set each one's size.

---

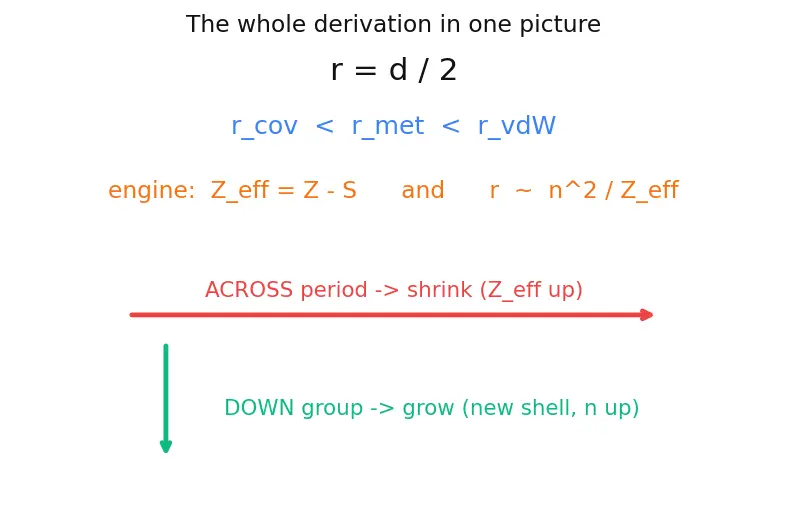

The one-picture summary

Everything compressed: the master formula $r=d/2$, the three rulers ($r_{cov}<r_{met}<r_{vdW}$), the engine $Z_{eff}=Z-S$ feeding $r\propto n^2/Z_{eff}$, and the two arrows — shrink across, grow down.

Recall Feynman: the whole walkthrough in plain words

An atom is a fuzzy cotton ball with no edge, so you can't measure just one — you push two together and measure centre-to-centre, then split it in half. How close they get depends on the glue: a covalent bond glues them tight (small), a metal packs them medium, and no glue at all leaves them far apart (biggest). What decides the squish is how hard the nucleus grips its outer electrons — that's $Z_{eff}=Z-S$: protons pull ($Z$), inner electrons block part of the pull ($S$). Walk across a row and you add protons without adding a new layer, so the grip tightens and the ball shrinks. Walk down a column and you add a brand-new outer layer, and that fresh layer sits so far out that the atom grows, even though there are more protons. And noble gases only look big because we measured them with the loose "just touching" ruler — different ruler, not a different-sized atom.
