Effective nuclear charge Z_eff — Slater's rules

WHAT is $Z_{eff}$ ?

WHY does it exist? Every electron feels two things at once:

Attraction to the $+Z$ nucleus.
Repulsion from every other electron.

The other electrons, especially those closer to the nucleus, effectively "block" some nuclear charge. So the electron behaves as if the nucleus had charge $Z_{eff} < Z$ .

Real atoms are many-electron systems — we can't solve them exactly. Slater's rules are a simple recipe to estimate $S$ (and hence $Z_{eff}$ ) using only the electron configuration. They are empirical (fit to real data), not derived from Schrödinger's equation, but they capture the physics: inner electrons screen more than same-shell electrons, and $s,p$ vs $d,f$ screen differently.

HOW to apply Slater's rules (the recipe)

Step 1 — Write the configuration in Slater groups (note the special grouping): $(1s)\;(2s,2p)\;(3s,3p)\;(3d)\;(4s,4p)\;(4d)\;(4f)\;(5s,5p)\;\dots$ Key points: $s$ and $p$ of the same $n$ go together; $d$ and $f$ are separate groups.

Step 2 — Pick the electron of interest. Add contributions to $S$ :

WHY the numbers?

$0.35$ : same-shell electrons are at roughly the same distance, so they screen poorly (they're not truly "between" you and the nucleus).
$0.85$ : the $n-1$ shell is inside you but not perfectly, so it screens strongly but not fully.
$1.00$ : shells $\le n-2$ are so deep they screen almost a full unit of charge each.
$d,f$ electrons feel full screening ( $1.00$ ) from everything to their left because those orbitals are more penetrating / the $d,f$ electron sits further out.

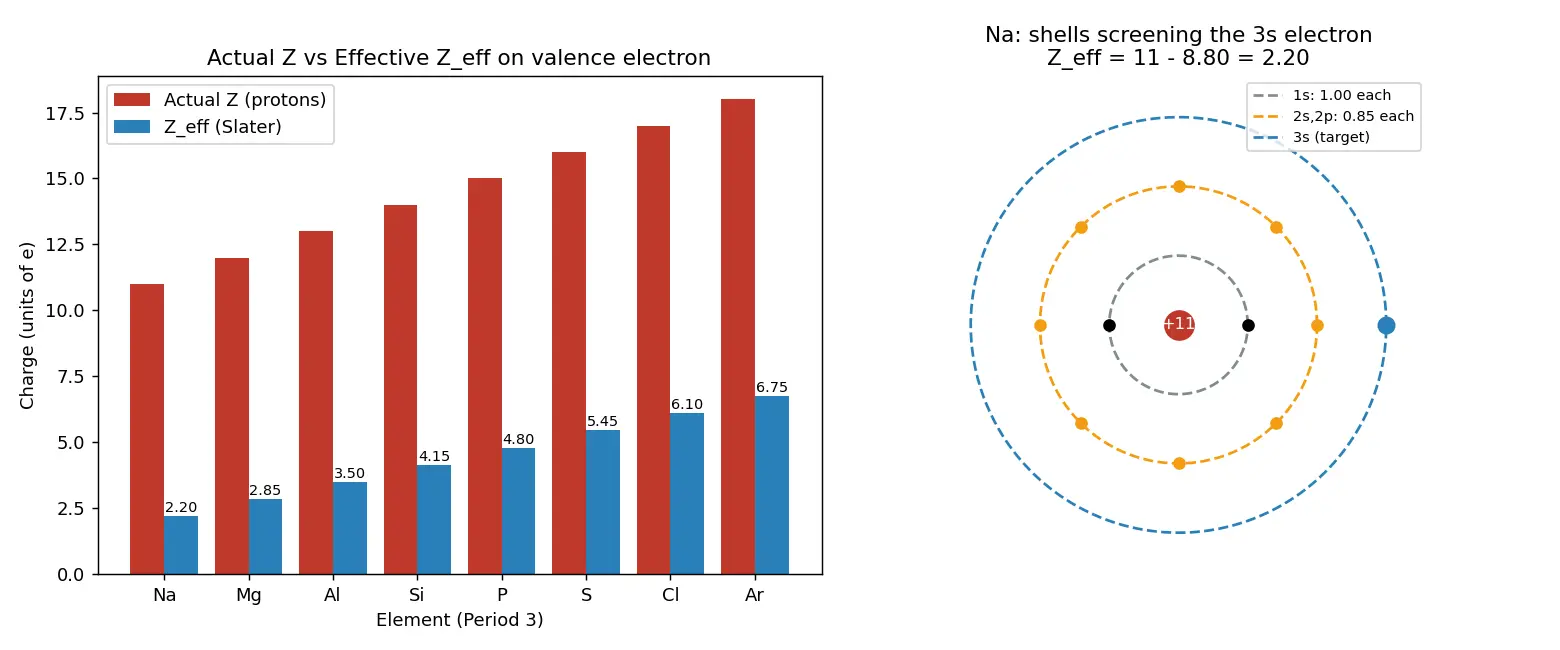

Figure — Effective nuclear charge Z_eff — Slater's rules

Worked examples

Worked example Example 1 — Valence electron of Sodium (Na,

$Z=11$ ) Configuration: $(1s)^2 (2s,2p)^8 (3s)^1$ . Target = the $3s$ electron.

Same group ( $3s,3p$ ): only one electron here (itself) → $0$ others → $0 \times 0.35 = 0$ . Why this step? You never shield yourself; count only other electrons in the group.

$n-1$ shell ( $2s,2p$ ): $8$ electrons $\times 0.85 = 6.80$ . Why? The whole 2nd shell is just inside the 3rd shell → strong (0.85) screening each.

$\le n-2$ ( $1s$ ): $2 \times 1.00 = 2.00$ . Why? The $1s$ is very deep → each screens a full charge.

$S = 0 + 6.80 + 2.00 = 8.80$ , so $Z_{eff} = 11 - 8.80 = \mathbf{2.20}$ . Interpretation: the lone valence electron feels only $\sim 2.2$ of the 11 protons → easily lost → Na is very reactive.

Worked example Example 2 — A

$3d$ electron of Zinc (Zn, $Z=30$ ) Configuration: $(1s)^2(2s2p)^8(3s3p)^8(3d)^{10}(4s)^2$ . Target = a $3d$ electron.

Same $3d$ group: $10 - 1 = 9$ other electrons $\times 0.35 = 3.15$ . Why? For a $d$ electron, same-group still gives $0.35$ .

Everything to the left ( $1s,2s2p,3s3p = 2+8+8 = 18$ electrons): $18 \times 1.00 = 18.00$ . Why? For $d/f$ electrons, all lower groups screen fully ( $1.00$ ), not $0.85$ .

Note: the $4s$ electrons are to the right of $3d$ in the Slater order → they do not shield the $3d$ . Why? Only groups to the left (deeper) count.

$S = 3.15 + 18.00 = 21.15$ , so $Z_{eff} = 30 - 21.15 = \mathbf{8.85}$ .

Worked example Example 3 — A

$4s$ electron of the same Zinc Target = a $4s$ electron, group $(4s,4p)$ .

Same group: $2 - 1 = 1$ other $\times 0.35 = 0.35$ . $n-1$ shell = everything with $n=3$ : $(3s3p)^8 + (3d)^{10} = 18$ electrons $\times 0.85 = 15.30$ . Why? For an $s$ electron, the $3d$ counts as $n-1$ (0.85), unlike Example 2's rule. $\le n-2$ : $(1s)^2+(2s2p)^8 = 10 \times 1.00 = 10.00$ .

$S = 0.35 + 15.30 + 10.00 = 25.65$ , so $Z_{eff} = 30 - 25.65 = \mathbf{4.35}$ . Compare: the $3d$ electron ( $Z_{eff}=8.85$ ) is held far more tightly than a $4s$ ( $Z_{eff}=4.35$ ) → this is why the $4s$ electrons are lost first when forming $\text{Zn}^{2+}$ !

Common mistake Steel-manning the classic errors

Mistake A: "Every inner electron screens a full 1.0." Why it feels right: Inner electrons are "between" you and the nucleus, so shouldn't they cancel a whole proton each? The fix: only shells $\le n-2$ do (1.00). The $n-1$ shell partially overlaps your own region → only $0.85$ ; same-shell electrons are beside you → only $0.35$ .

Mistake B: "Count the electron itself in its own group." Why it feels right: it is in that group. The fix: $S$ measures shielding from other electrons; an electron never shields itself. Always use (group population $-1$ ) for the same group.

Mistake C: "For a $3d$ electron, the $3s,3p$ screen at $0.85$ (same $n$ )." Why it feels right: they share $n=3$ . The fix: for a $d$ / $f$ electron, everything to its left (including same- $n$ $s,p$ ) screens at 1.00, not 0.85. The special $0.85$ / $0.35$ split is only for the $s,p$ target rules.

Recall Feynman: explain to a 12-year-old

Imagine the nucleus is a warm campfire ( $+$ charge) and electrons want to sit near it. The kids sitting right around the fire (inner electrons) block the heat for a kid standing far back. That far kid feels a weaker fire than it really is. $Z_{eff}$ is "how warm the fire feels from where you sit." Kids beside you (same shell) barely block anything; kids ring the fire (inner shells) block a lot. Slater's rules are just a scorecard for how much heat each blocker steals.

Trend consequences (the 80/20 payoff)

Flashcards

Define effective nuclear charge

Z_{eff}

The net positive charge felt by an electron,

Z_{eff}=Z-S

, after subtracting shielding

S

from other electrons.

In Slater's rules, what does an electron in the SAME group contribute to

S

0.35

each (but

0.30

if the group is

1s

); the electron never shields itself.

What does an electron in the

(n-1)

shell contribute for an

ns/np

target?

0.85

each.

What do electrons in shells

\le n-2

contribute?

1.00

each.

For an

nd

nf

target, how much do all groups to the LEFT contribute?

1.00

each (full screening), regardless of same

n

How are

s,p,d,f

grouped in Slater's rules?

(1s)(2s,2p)(3s,3p)(3d)(4s,4p)(4d)(4f)\dots

—

s\&p

same

n

together;

d

and

f

each separate.

Z_{eff}

for Na's

3s

valence electron?

11-8.80=2.20

(S = 8×0.85 + 2×1.00).

Why is

4s

removed before

3d

in transition-metal ions?

Once filled,

3d

has higher

Z_{eff}

(feels nucleus more) than

4s

, so

4s

is held more loosely and leaves first.

Why does

Z_{eff}

increase left-to-right across a period?

Z

rises by 1 but same-shell shielding rises only ~0.35, so net

Z_{eff}

climbs ~0.65 per step.

Connections

Atomic Radius — higher $Z_{eff}$ pulls electrons in → smaller radius.
Ionization Energy — more $Z_{eff}$ → harder to remove an electron.
Electronegativity — greater $Z_{eff}$ → stronger pull on bonding electrons.
Shielding and Penetration — physical basis of the $0.35/0.85/1.00$ numbers.
Aufbau and 4s vs 3d filling — Slater $Z_{eff}$ explains removal order.
Periodic Trends — parent chapter.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, kisi atom mein electron ko nucleus ke saare protons ka pura attraction nahi milta. Beech mein jo andar wale (inner) electrons baithe hain, wo thoda charge "block" kar dete hain — isko hum shielding ya screening kehte hain. Jo actual net khinchav (pull) electron ko feel hota hai, use bolte hain effective nuclear charge, $Z_{eff} = Z - S$ , jahan $S$ shielding constant hai.

Slater's rules ek simple recipe hai $S$ nikaalne ka, sirf electron configuration se. Pehle configuration ko groups mein todo: $(1s)(2s,2p)(3s,3p)(3d)\dots$ — yaad rakho $s$ aur $p$ same $n$ ka saath, par $d$ aur $f$ alag. Phir number lagao: same group ke doosre electron $0.35$ (khud ko kabhi nahi ginte!), $n-1$ shell wale $0.85$ , aur $n-2$ ya deeper wale poora $1.00$ . $d/f$ electron ke liye uske left ke saare groups $1.00$ dete hain.

Kyun important hai? Kyunki yehi ek number poore periodic table ke trends samjha deta hai. Left se right jaate waqt proton +1 badhta hai par same-shell shielding sirf ~0.35 badhti hai, to $Z_{eff}$ har step ~0.65 badhta hai — isiliye atom chhota hota jaata hai, ionization energy aur electronegativity badhti hai. Aur transition metals mein $Z_{eff}$ hi batata hai ki $4s$ pehle kyun nikalta hai, na ki $3d$ — kyunki filled $3d$ ka $Z_{eff}$ zyada hota hai. Bas 35-85-100 wala mnemonic yaad rakho aur exam mein maze aa jaayenge.
