Foundations — Effective nuclear charge Z_eff — Slater's rules

This is the "start from nothing" page for the parent topic on Slater's rules. If you have never seen a subscript, a shell, or the letter $Z$ used for an atom, read this first. We define every symbol before it is ever used elsewhere.

0. The picture the whole topic lives inside

Before any symbol, look at what an atom is for our purposes.

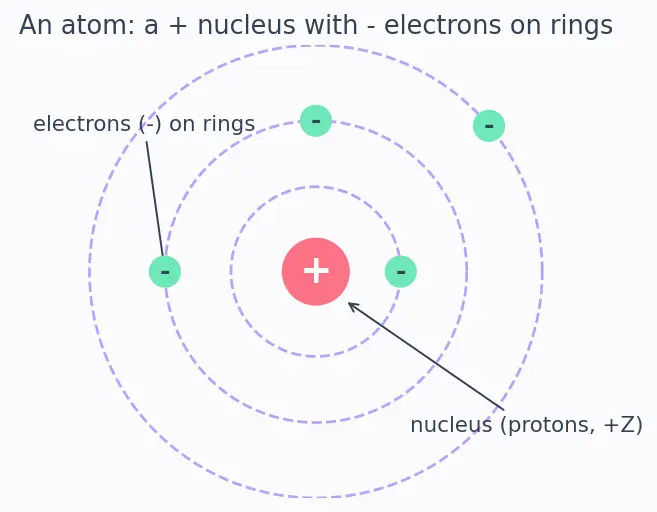

An atom is a tiny, heavy, positively charged centre (the nucleus) with light negatively charged electrons arranged in rings around it at different distances. That is the entire stage. Every symbol below is just a label for one part of this picture.

1. Charge — the $+$ and $-$ that make everything pull or push

The picture: two arrows. A $+$ and a $-$ have arrows pointing toward each other (attraction). Two $-$ signs have arrows pointing away from each other (repulsion).

Why the topic needs it: the whole idea of "an electron feels a pull" is an attraction ($+$ nucleus to $-$ electron), and "shielding" is a repulsion ($-$ electron pushing another $-$ electron). Without the sign rule, neither word means anything.

2. Proton, electron, and the nucleus

The picture: the centre dot in the s01 figure is the nucleus; the small dots on the rings are electrons.

Why the topic needs it: "shielding from other electrons" and "pull of the protons" — the two forces of the whole chapter — are exactly a tug-of-war between these actors.

3. $Z$ — the number of protons (the true nuclear charge)

The picture: if you could count the protons in the central lump, that count is $Z$.

Why the topic needs it: $Z$ is the full strength of the nucleus — the pull an electron would feel if no other electrons were in the way. The whole point of $Z_{eff}$ is that the real felt pull is less than this $Z$.

4. Subscripts — how we say "which one"

So $Z$ and $Z_{eff}$ are two different numbers:

• $Z$ = the real proton count,
• $Z_{eff}$ = the effective (felt) charge, always $\le Z$.

Why the topic needs it: the entire subject is the gap between $Z$ (real) and $Z_{eff}$ (felt). The subscript is what keeps those two numbers from being confused.

5. Shells — the rings at different distances, and the number $n$

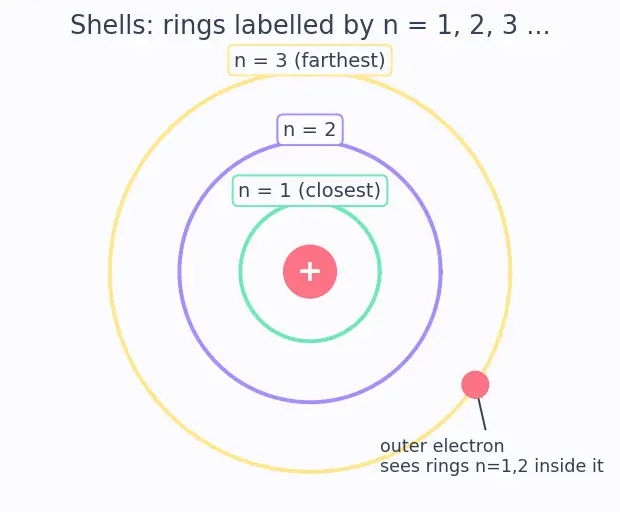

The picture: the concentric rings in the s02 figure. The innermost ring is $n=1$, the next $n=2$, and so on. An electron on the outer ring has many rings between it and the centre.

Why the topic needs it: "inner electrons shield outer electrons" is a statement about which ring is inside which. The words "same shell," "one shell in ($n-1$)," and "two or more shells in ($\le n-2$)" — the exact categories Slater's rules score — are all comparisons of these $n$ numbers.

6. Sub-shells — $s,p,d,f$ (why a shell has sub-labels)

We combine the shell number and the lane into one label, e.g. $3s$ = "the $s$ lane of shell 3," $3d$ = "the $d$ lane of shell 3." (See Shielding and Penetration for why the shapes differ — that shape is exactly why $s$ and $d$ get treated differently in the rules.)

Why the topic needs it: Slater's rules treat an $s$ or $p$ target electron by one set of numbers and a $d$ or $f$ target by another. You cannot apply the recipe without reading these letters.

7. Electron configuration — the notation $(1s{)}^2(2s,2p{)}^8\dots$

The superscript sits high; the subscript sits low. Different jobs: superscript = how many, subscript = which kind.

Why the topic needs it: Slater's rules take the configuration as their only input. Every contribution to the shielding is "count the electrons in this group, multiply by a number." So reading counts correctly is the whole skill.

8. Attraction vs. repulsion inside a real atom — the tug picture

The picture: one outer electron (red). A green arrow pulls it inward — that is the nucleus's $+Z$ attraction. Blue arrows from the inner electrons push it outward — that is their repulsion. The net inward pull left over is smaller than the green arrow alone.

Why the topic needs it: this is the physical meaning of subtraction. Which brings us to the last two symbols.

9. $S$ — the shielding constant, and the subtraction $Z_{eff}=Z-S$

Why the topic needs it: this single line is the destination. Slater's rules are only a recipe for computing $S$; once you have $S$, this subtraction hands you $Z_{eff}$. Everything downstream — Atomic Radius, Ionization Energy, Electronegativity — is read off from how big $Z_{eff}$ comes out.

10. How these pieces feed the topic

Each foundation flows into $S$ or into $Z$, and those two meet in the master equation, which then powers all of Periodic Trends and the 4s vs 3d filling order.

Equipment checklist

Test yourself — reveal only after answering.
