2.2.2Periodic Trends

Atomic radius — covalent, metallic, van der Waals; trends across period and group

2,021 words9 min readdifficulty · medium6 backlinks
🇮🇳 Yeh note Hinglish mein padho →

WHY does "atomic radius" even need three definitions?

WHAT is the problem? An atom is a nucleus surrounded by a fuzzy electron cloud whose density never reaches exactly zero. There is no sharp boundary to put a ruler on.

HOW we fix it: measure the internuclear distance dd between two atoms and assign each atom a share of it. The share you assign depends on the nature of contact:

WHY are they different sizes? The stronger the pull between nuclei, the closer they come, the smaller the radius you get:

rcov<rmet<rvdW\boxed{r_{cov} < r_{met} < r_{vdW}}

  • Covalent bond = shared electrons → strong attraction → nuclei pulled close → small radius.
  • Metallic bond = each atom shares electrons with many neighbours (delocalised "sea"), so the bond per neighbour is a bit looser → slightly larger.
  • vdW = no bond at all, only weak induced-dipole attraction opposing the repulsion of full electron clouds → atoms stay far apart → largest radius.

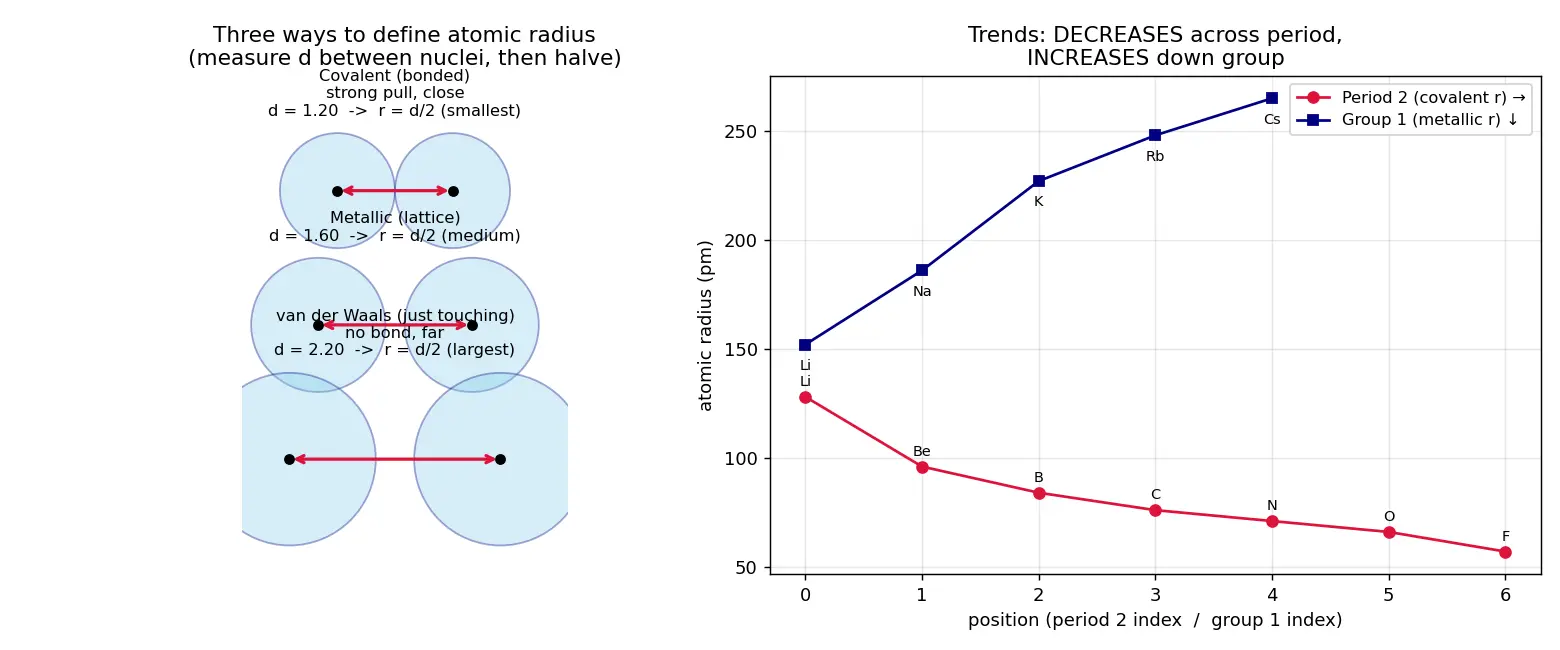

Figure — Atomic radius — covalent, metallic, van der Waals; trends across period and group

The trend across a PERIOD (left → right): radius DECREASES

Derivation from first principles. The size of an atom is set by how tightly the outermost electrons are held. That is governed by the effective nuclear charge:

Zeff=Z−SZ_{eff} = Z - S

where ZZ = number of protons and SS = shielding (screening) by inner electrons.

Across a period:

  • WHAT changes: each step adds one proton (Z↑Z \uparrow by 1) and one electron to the same shell (same principal quantum number nn).
  • WHY radius shrinks: electrons in the same shell shield each other poorly (they're at the same distance from the nucleus). So SS rises only slightly while ZZ rises by a full unit.
  • HOW it plays out: Zeff=Z−SZ_{eff} = Z - S increases → the outer electrons feel a stronger net pull → the whole cloud contracts → radius decreases.

The trend down a GROUP (top → bottom): radius INCREASES

  • WHAT changes: each step down adds a whole new electron shell → nn increases by 1.
  • WHY radius grows: the added shell is farther out, and the filled inner shells shield the outer electron well, keeping ZeffZ_{eff} roughly modest. The jump in nn dominates.
  • HOW it plays out: in r∝n2/Zeffr \propto n^2/Z_{eff}, nn increases by a full unit each period → n2n^2 jumps → radius increases despite ZZ also rising.

Steel-manned Mistakes

Worked comparison: predicting size

Flashcards

What is the covalent radius?
Half the internuclear distance between two atoms joined by a single covalent bond, rcov=dA−A/2r_{cov}=d_{A-A}/2.
Why can't we measure atomic radius directly?
The electron cloud has no sharp boundary; density fades to zero gradually, so we measure internuclear distance and split it.
Order of the three radii for a given element?
rcov<rmet<rvdWr_{cov} < r_{met} < r_{vdW}.
Why is the vdW radius the largest?
It's measured between non-bonded atoms held only by weak forces, so nuclei stay far apart (no bond pulling them in).
Define effective nuclear charge.
Zeff=Z−SZ_{eff}=Z-S, the net positive charge felt by an outer electron after inner-electron shielding SS.
Why does radius decrease across a period?
ZZ rises by 1 each step but the added electron enters the same shell and shields poorly, so ZeffZ_{eff} rises → outer electrons pulled tighter → smaller.
Why does radius increase down a group?
A new shell (n↑) is added; n2n^2 growth outweighs the extra, well-shielded nuclear charge → larger.
Which radius do noble gases use, and why?
van der Waals radius, because they don't form bonds; measured to non-bonded neighbours.
How does rr scale in the hydrogen-like model?
r∝n2/Zeffr \propto n^2/Z_{eff}.
Rank Al, Mg, Na, K by size.
Al<Mg<Na<KAl<Mg<Na<K.
Recall Feynman: explain it to a 12-year-old

Imagine each atom is a fuzzy cotton ball with no clear edge, so you can't measure just one. Instead you push two together and measure the distance between their centres, then say each one is half of that. If they're glued tight (a bond), they squish close → small radius. If they're just gently touching (no glue), they stay far apart → big radius. Going across a row of the table, the centre (nucleus) gets more "grip" and pulls the fuzz in tight → atoms shrink. Going down a column, each atom gets a brand-new outer layer of fuzz → atoms get bigger.

Connections

  • Effective Nuclear Charge — the engine behind every radius trend.
  • Shielding and Penetration — why inner electrons screen ZZ.
  • Ionic Radius — cations shrink, anions swell relative to the atom.
  • Ionisation Energy — smaller radius ⇒ generally higher IE.
  • Electronegativity — tracks ZeffZ_{eff} and radius across the table.
  • Metallic Bonding — sets the metallic-radius geometry.
  • Van der Waals Forces — the weak forces defining the vdW radius.

Concept Map

solved by

contact via bond

contact in metal lattice

non-bonded touching

strongest pull, smallest

looser per neighbour

weak attraction only

Cl2 example

Cl example

governs

Z up, poor shielding

No sharp atomic boundary

Measure internuclear distance d and halve it

Covalent radius = d/2

Metallic radius = d/2

van der Waals radius = d/2

r_cov < r_met < r_vdW

Cl: 99 pm vs 180 pm

Z_eff = Z - S

Radius across period

Radius decreases left to right

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, atom ka koi solid boundary hota hi nahi — electron cloud dheere-dheere fade hoti hai, toh ek akele atom ki radius directly naapna impossible hai. Isliye hum do atoms ke nuclei ke beech ki doori (d) naapte hain aur usko aadha kar dete hain. Ab problem ye hai ki do atoms kaise "chipke" hain us par size depend karta hai: agar covalent bond hai (electrons share ho rahe hain) toh nuclei paas aa jaate hain → chhoti radius; metallic lattice mein thoda dheela → medium; aur agar sirf touch kar rahe hain bina bond ke (van der Waals) toh door rehte hain → sabse badi radius. Yaad rakho: covalent < metallic < van der Waals.

Trends ka asli boss hai Zeff=Z−SZ_{eff} = Z - S (effective nuclear charge). Period mein left se right jaao toh har step pe ek proton badhta hai par electron usi shell mein aata hai — same shell wale electrons ek dusre ko theek se shield nahi karte, isliye ZeffZ_{eff} badhta hai, nucleus ki grip strong hoti hai, aur atom chhota hota jaata hai. Formula feel karo: r∝n2/Zeffr \propto n^2/Z_{eff} — period mein nn fixed, ZeffZ_{eff} up, toh rr down.

Group mein neeche jaao toh har baar ek nayi shell add hoti hai, yaani nn badhta hai. n2n^2 ka effect itna strong hota hai ki extra protons ka pull (jo waise bhi ander wale electrons se shield ho jaata hai) haar jaata hai — isliye atom bada hota hai. Common galti: "zyada protons matlab chhota" — ye sirf period mein sach hai; group mein nayi shell game palat deti hai. Noble gases ki radius badi dikhti hai kyunki wo van der Waals radius hoti hai (bond nahi bante), toh usko covalent radius se compare mat karna — alag ruler hai.
