Metallic bonding — electron sea, band theory (intro)
WHY does metallic bonding exist at all?
WHAT is the problem? Simple metal atoms (Na, Mg, Al...) have low ionization energies and few valence electrons in a large, mostly empty valence shell. So:
- They are not eager to gain electrons (no strong electronegativity) → covalent electron-pairing is weak.
- They easily lose their loose valence electrons.
WHY not just make ions? If Na gave an electron to Na, you'd need another Na to accept it — but Na doesn't want electrons. So neither pure ionic nor pure covalent bonding works.

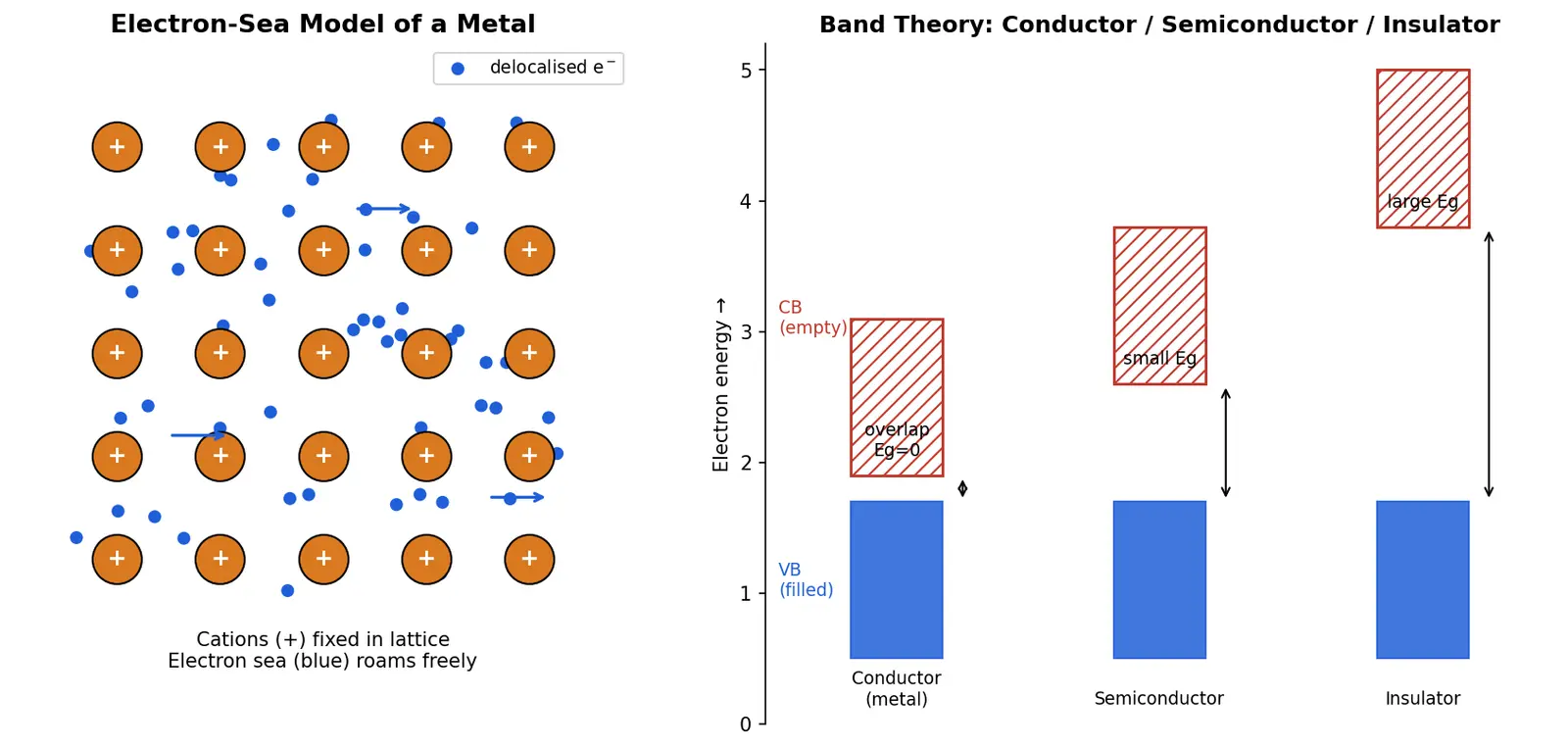

HOW nature solves it: every atom donates its valence electrons to a common pool. The released electrons become delocalised, and the leftover cations are held together by electrostatic attraction to this negative "sea."
Explaining metal properties (Feynman-style, from the model)
| Property | WHY (from the model) |
|---|---|
| Electrical conductivity | Delocalised electrons drift under an applied field → current. |
| Thermal conductivity | Mobile electrons carry kinetic energy quickly across the metal. |
| Malleable / ductile | Push a layer of cations — they slide, but the non-directional electron sea "re-glues" them; no bond points break like in ionic solids. |
| Metallic lustre | Free electrons absorb & re-emit photons over a wide range → reflective shine. |
| High m.p./b.p. (usually) | Strong lattice–sea attraction; more valence e⁻ + smaller cation = stronger. |
What controls metallic bond STRENGTH?
Strength grows with:
- Number of delocalised electrons per atom (Na gives 1, Mg gives 2, Al gives 3 → strength Na < Mg < Al).
- Smaller cation radius (charge packed tighter → stronger attraction).
Where the electron sea FAILS → Band Theory (intro)
WHY do we need a better model? The simple electron sea says "electrons are free," but it can't cleanly explain why some solids are insulators, some semiconductors, some conductors, or the precise size of energy gaps and why some materials gain carriers when heated. (Note: a Drude-style sea augmented with temperature-dependent electron–phonon scattering does already explain why a metal's resistance falls as it cools — hotter ions vibrate more and scatter electrons. What it can't do is give the discrete allowed/forbidden energy bands.) For that we need quantum mechanics.
HOW bands form (derivation of the idea):
- 2 AOs → 2 MOs (split by some energy ).
- 3 AOs → 3 MOs.
- N AOs → N MOs, spread over a fixed energy window, spacing .
- The result is an essentially continuous band.
Classifying solids by the gap
| Type | Picture | |
|---|---|---|
| Conductor (metal) | VB & CB overlap OR VB half-filled → empty states right above filled ones | |
| Semiconductor | Small gap; some electrons jump when heated | – eV (Si ≈ 1.1 eV) |
| Insulator | Large gap; almost none jump | eV (diamond ≈ 5.5 eV) |
Steel-manned mistakes
Worked examples
Flashcards
What holds a metallic lattice together?
Why are metals malleable but ionic solids brittle?
Two factors that increase metallic bond strength
Why can't the simple s/p electron-sea argument be applied directly to Fe?
How does a "band" form from atomic orbitals?
Define band gap (Eg)
In band terms, why is a metal a conductor?
Why does metal conductivity DROP as temperature rises?
Why does semiconductor conductivity RISE with temperature?
Where does the factor Eg/2 in n ∝ exp(−Eg/2kBT) come from?
What is the Fermi level?
Recall Feynman: explain to a 12-year-old
Imagine marbles (the metal atoms) sitting in a tray, but each marble has thrown its outermost tiny beads (electrons) into a shared puddle of water that covers the whole tray. The marbles are now sticky-glued by that puddle. Push the tray sideways — the marbles slide but the puddle keeps holding them, so metal bends instead of breaking. And because the puddle water can flow, if you tilt the tray (apply a battery) the beads rush along — that's electricity! In some materials the puddle is split by a "wall" (band gap): if the wall is short, a warm nudge lets beads hop over (semiconductor); if it's tall, nothing crosses (insulator); metals have no wall.
Connections
- Ionic bonding — localised transferred electrons vs delocalised shared sea.
- Covalent bonding & MO theory — bands are just MO theory scaled to atoms.
- Semiconductors & doping — engineering the band gap (n-type / p-type).
- Ionization energy & atomic radius — set how easily electrons join the sea and cation size.
- Transition metals & d-orbitals — why Fe/Cu bond more strongly than Na.
- Electrical conductivity — application of drift of delocalised electrons.
- Giant structures / lattices — metallic lattice as one of the giant solid types.
Concept Map
Hinglish (regional understanding)
Intuition Hinglish mein samjho
Dekho, metallic bonding samajhna bahut simple hai agar tum ek picture yaad rakho: metal ke atoms apne bahar wale (valence) electrons chhod dete hain, aur ban jaata hai ek lattice of positive ions (cations) jo ek "electron sea" mein doobe rehte hain. Ye electrons kisi ek atom ke nahi hote — poore crystal mein ghoomte hain, isko delocalised bolte hain. Metallic bond ka matlab hai in cations aur is electron sea ke beech ka electrostatic attraction. Isi wajah se metals conduct karte hain (electrons free hain to current chala), shiny hote hain, aur bend hote hain bina toote (electron glue non-directional hai, layer slide kare to bhi glue wapas jud jaata hai — jabki ionic solid crack ho jaata hai). Dhyaan rahe: Na, Mg, Al ke liye "thode se s/p electrons" wala simple argument chalta hai, par Fe jaise transition metals mein partially-filled 3d orbitals bhi bonding karte hain (~8 valence electrons), isiliye Fe bahut hard aur high-melting hota hai.
Bond kitna strong hoga? Do cheezein — kitne electrons donate hue (Na 1, Mg 2, Al 3) aur cation kitna chhota hai. Zyada electrons + chhota ion = stronger bond = higher melting point. Isiliye Na < Mg < Al melting point mein.
Ab electron sea model ki limitation: wo discrete allowed/forbidden energy bands nahi de paata, is liye insulator vs semiconductor vs conductor ka clean explanation nahi milta. (Waise ek baat clear kar do — metal ki resistance thanda hone par kam hoti hai, ye toh Drude-style sea bhi electron–phonon scattering ke saath samjha deta hai; band theory ki asli zaroorat gap ke size aur nature ke liye hai.) Band theory mein atoms ke orbitals combine hokar continuous band bante hain: filled = valence band, empty = conduction band, beech ka forbidden zone = band gap . Metal mein , semiconductor mein chhota, insulator mein bada. Formula mein jo aata hai wo isliye kyunki Fermi level gap ke beech (mid-gap) baithta hai — koi ad-hoc "energy splitting" nahi. Aur yaad rakho: metal garam karne par conductivity girti hai, semiconductor mein badhti hai. Yehi twist exam mein aata hai!
