Metallic bonding — electron sea, band theory (intro): Visual walkthrough

Prerequisites we lean on: Covalent bonding & MO theory (how two orbitals combine), Ionization energy & atomic radius (why outer electrons are loosely held), and the parent metallic bonding note. The payoff connects to Semiconductors & doping, Electrical conductivity, and Giant structures / lattices.

Step 1 — One atom: energy comes in discrete levels

WHAT. Picture a single sodium atom. Its outermost electron is not free to have any energy — quantum mechanics only allows it certain fixed values. We draw energy on a vertical axis (higher = more energy) and mark each allowed value as a horizontal line, a level.

WHY start here. Before we can talk about a band (a thick smear of allowed energies) we must first see what a band is made of: individual levels. A band is just many levels stacked so close they blur.

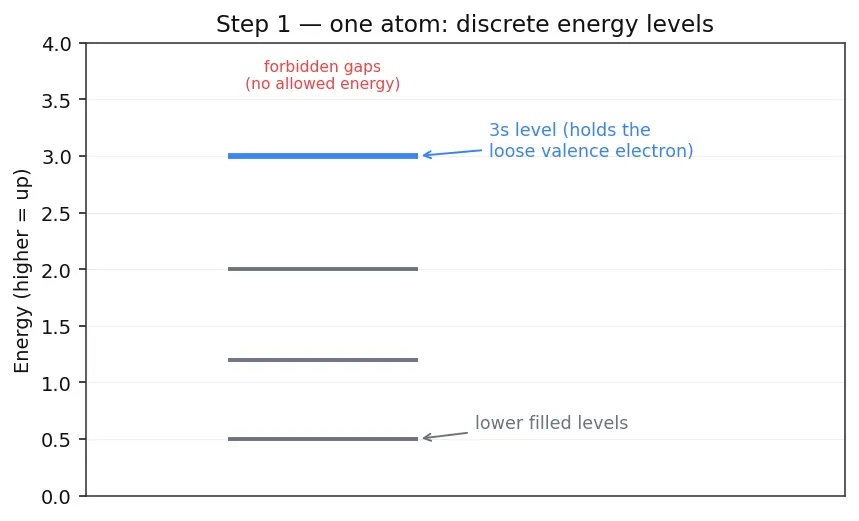

PICTURE. The blue line is the highest occupied level — the 3s level holding sodium's one loose valence electron. The gaps between lines are forbidden energies: the electron simply cannot sit there.

Figure — Metallic bonding — electron sea, band theory (intro)

Step 2 — Two atoms: each level SPLITS into two

WHAT. Slide a second sodium atom close. From Covalent bonding & MO theory we know: when two atomic orbitals (AOs) overlap, they combine into two molecular orbitals (MOs) — one lower in energy (bonding), one higher (antibonding). So the single 3s level splits into two levels.

WHY this tool. Why molecular-orbital combination and not "the electrons just share"? Because overlapping wavefunctions must obey the rule that N combining orbitals give exactly N new orbitals — no orbitals are created or destroyed. That counting rule is the engine of everything below.

PICTURE. One blue level (Step 1) becomes two: a lower green level and an upper orange level. Call the total split $2 β$ .

Step 3 — Three, four... atoms: more atoms, more levels, SAME window

WHAT. Add a third atom → three levels. A fourth → four. Crucially, they all crowd into roughly the same fixed energy window of width $2 β$ (set by nearest-neighbour overlap, which doesn't change). More atoms means the same window sliced into more, thinner pieces.

WHY. This is the pivotal observation. The window width $2 β$ depends on how strongly neighbouring atoms interact — it stays fixed. Only the number of levels grows. So the spacing between levels must shrink.

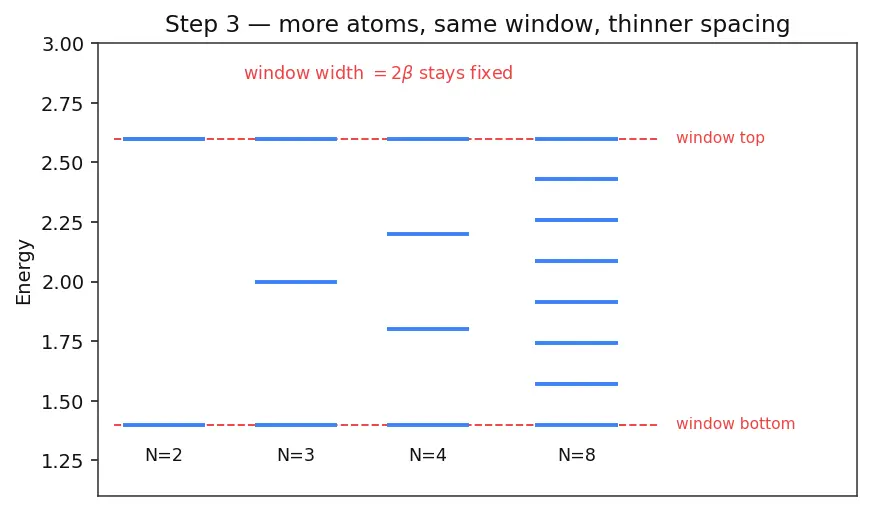

PICTURE. Watch the ladder go from 2 rungs → 3 → 4 → many, all squeezed between the same top and bottom dashed lines.

Step 4 — N ≈ 10²³ atoms: the levels merge into a BAND

WHAT. A real crystal has around $N \approx 1 0^{23}$ atoms. Plug that into $δ E \approx 2 β / N$ : the spacing is so absurdly small that neighbouring levels are indistinguishable. The ladder becomes a solid strip — a band.

WHY. This is the whole point of the derivation: a band is not a new physical object, it is simply $1 0^{23}$ energy levels packed so densely that we treat them as a continuous range of allowed energies.

PICTURE. The many-rung ladder of Step 3 fades into a filled coloured block: the band. Its height is still $2 β$ — the derivation never lost the window.

Step 5 — Filling the band: is it FULL or HALF-full?

WHAT. Now pour electrons in from the bottom up (lowest energy first — nature is lazy). Each level holds 2 electrons (spin-up + spin-down). Sodium donates 1 valence electron per atom, so $N$ atoms give $N$ electrons into a band of $N$ levels = $2 N$ slots. The band is exactly half-filled.

WHY this matters. Conduction needs an electron to accelerate — i.e. gain a tiny bit of energy — which requires an empty level just above it. Half-filled means every electron at the top has empty levels a hair above → it moves instantly.

PICTURE. The band is shaded up to the middle (filled, blue) with empty levels (gray) directly above the top filled level — the Fermi level $E_{F}$ .

Step 6 — Two bands: overlap vs a GAP

WHAT. Each atomic shell gives its own band (a 3s band, a 3p band, ...). Two things can happen:

The bands overlap — the top of the lower band is higher than the bottom of the upper band. Then even a full band has empty states right next door (in the other band). → conducts.
The bands are separated by a forbidden window — the band gap $E_{g}$ . No allowed energies live inside it.

WHY cover both. This is the edge-case split that the electron-sea model couldn't explain. Sodium's half-filled band (Step 5) and magnesium's overlapping full band are two different roads to the same result — conduction. We must show both so the reader never meets a metal the picture can't cover.

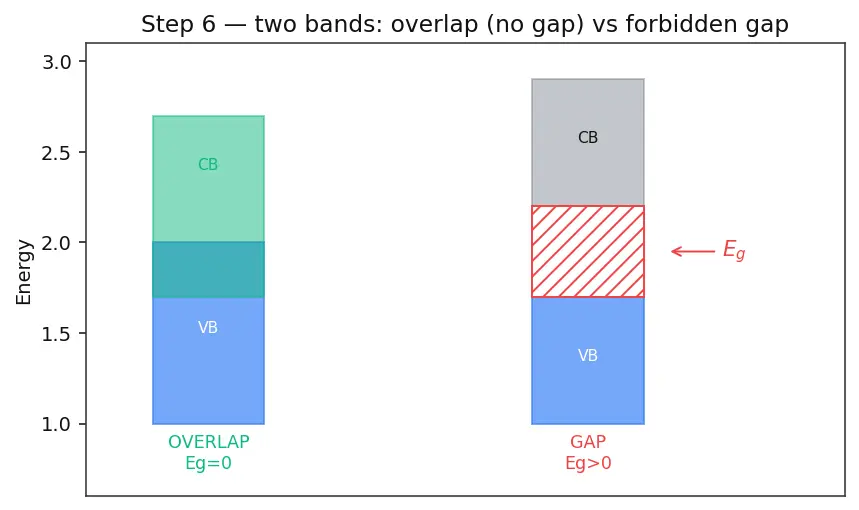

PICTURE. Left: two bands overlapping (green shaded, no gap). Right: two bands with a clean forbidden $E_{g}$ between them (red hatched gap).

Step 7 — The gap decides everything: conductor / semiconductor / insulator

WHAT. Now classify by $E_{g}$ . If there's no gap (overlap or half-filled band), electrons flow → conductor. If there is a gap, electrons must be thermally kicked across it. How many make it follows the Boltzmann law.

WHY the exponential. Why $e^{- E_{g} /2 k_{B} T}$ and not a straight line? Because the fraction of electrons with enough thermal energy to climb an energy hill of height $Δ E$ is governed by Boltzmann statistics — an exponential. The relevant hill is from the mid-gap Fermi level up to the conduction band, height $\approx E_{g} /2$ , giving the factor $2$ .

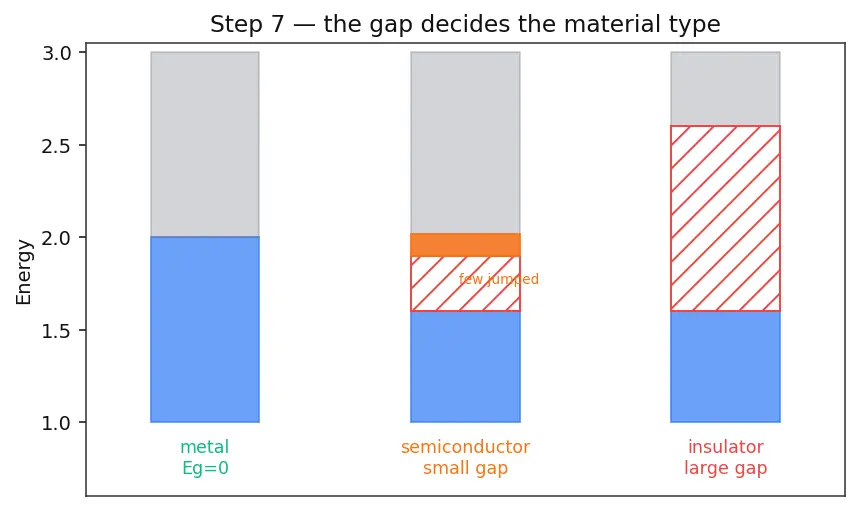

PICTURE. Three stacked diagrams: metal ( $E_{g} = 0$ , filled to top with empties above), semiconductor (small gap, a few orange electrons jumped), insulator (large gap, none jumped).

Step 8 — Degenerate & edge cases (never skip these)

WHAT & WHY. A picture is only trustworthy if it handles the weird corners. Four to check:

$E_{g} = 0$ exactly (overlap): the exponent $- 0/ (2 k_{B} T) = 0$ , so $e^{0} = 1$ — carriers are not suppressed at all. This is the metal. The formula smoothly reduces to "full conduction."
$T \to 0$ K: exponent $- E_{g} / (2 k_{B} T) \to - \infty$ , so $n \to 0$ . A semiconductor becomes a perfect insulator when frozen — no electron has the thermal energy to jump. ✓
$T \to$ very large: exponent $\to 0$ , $n$ grows — semiconductors conduct better hot. (A metal does the opposite: its carriers were already there; heat just makes the ions vibrate and scatter them, so resistance rises. That's a scattering effect, not a carrier-count effect — a different mechanism entirely.)
Transition metals (e.g. Fe): the 3d and 4s bands overlap and are partly filled — many bands, many carriers, plus strong bonding. Same "no gap" verdict, richer picture (see Transition metals & d-orbitals).

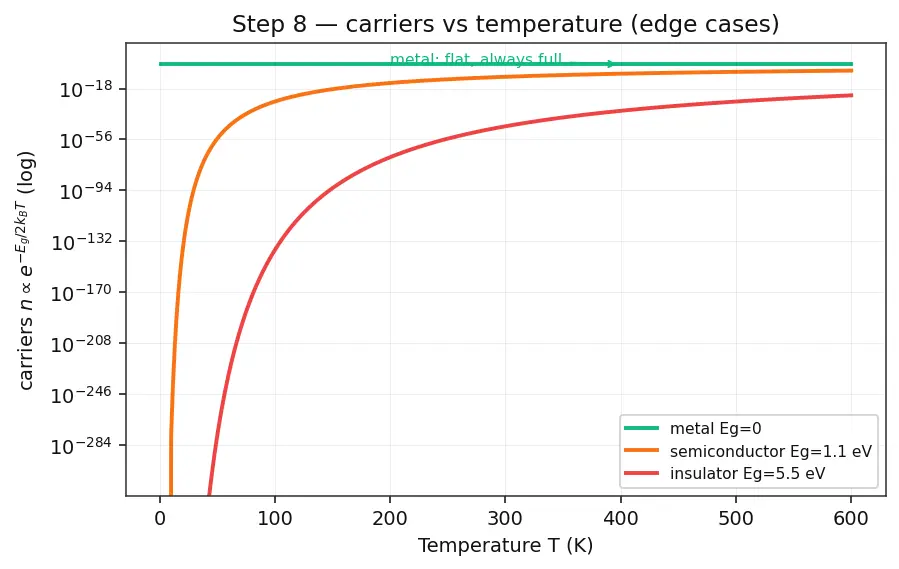

PICTURE. A single plot of $n$ vs $T$ for three gaps ( $E_{g} = 0$ , small, large), showing the metal flat at the top, the semiconductor rising, the insulator hugging zero.

The one-picture summary

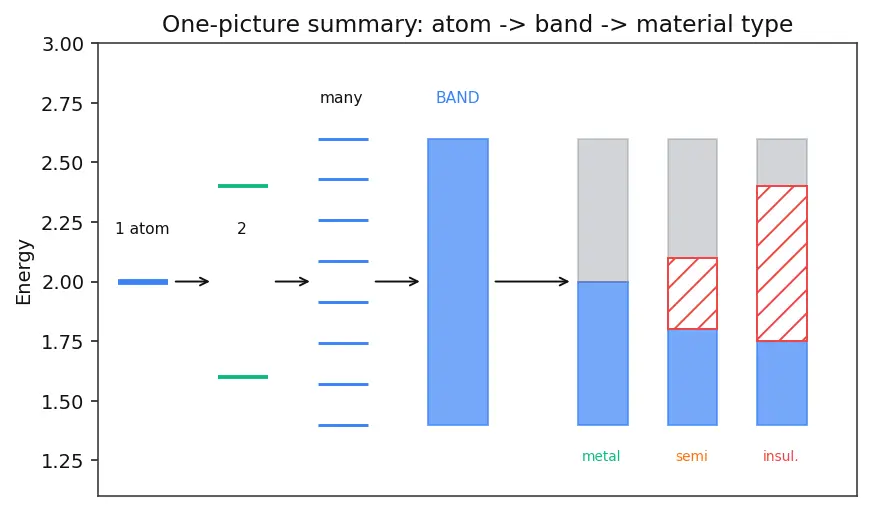

Everything on this page in a single frame: one atomic level → splits into two → into a ladder → into a band; fill it; add a second band; and read off the three material types from the gap.

Recall Feynman retelling — say it in plain words

Start with one atom: its electron can only sit on certain shelves. Bring a second atom and each shelf splits into two — one a little lower, one a little higher. Keep bringing atoms; each new atom splits the shelves again, but they all have to fit into the same fixed height set by how strongly neighbours pull on each other. With $1 0^{23}$ atoms the shelves are packed so tightly they look like one solid block — a band. Now fill it from the bottom with the atoms' loose electrons. If the band is only half full, or if it overlaps an empty band next door, there's always an empty shelf just above a filled one, so an electron can nudge upward and flow — that's a metal. If instead there's a genuine forbidden gap above the filled band, an electron must jump the gap; only a Boltzmann-small fraction $e^{- E_{g} /2 k_{B} T}$ makes it — a semiconductor if the gap is small, an insulator if it's huge. Cool it down and the jumpers freeze out; heat it up and more jump — except in a metal, where the electrons were free all along and heat only makes the ions rattle and get in their way.

Recall Quick self-checks

Why does adding atoms not widen the band? ::: The window $2 β$ is set by nearest-neighbour overlap, which is fixed; only the number of levels inside it grows. Sodium's 3s band is half-filled — why does that make it conduct? ::: Empty levels sit directly above the top filled level, so electrons accelerate into them with almost no energy cost. Why the factor of 2 in $e^{- E_{g} /2 k_{B} T}$ ? ::: The Fermi level sits at mid-gap, so the climb from $E_{F}$ to the conduction band is only $E_{g} /2$ . What happens to a semiconductor's carriers as $T \to 0$ ? ::: $n \to 0$ — it becomes a perfect insulator.
