Discovery of electron (Thomson, cathode rays), proton (Goldstein), neutron (Chadwick)

80/20 core: Three particles, three experiments. Electron (Thomson, cathode rays, negative), proton (Goldstein, anode/canal rays, positive), neutron (Chadwick, neutral). Thomson measured $e/m$ ; Millikan measured $e$ ; together they give mass. That single chain is 80% of this topic.

1. The Electron — Cathode Rays (J.J. Thomson, 1897)

HOW we know their properties (the observations):

Observation	What it proves
Travel in straight lines (cast sharp shadow of an object)	They move like particles / rays
A light paddle-wheel in the path spins	They carry momentum → mass
Deflected towards + plate in electric field	They are negatively charged
Deflected by magnetic field	Confirms moving charge
Same for any cathode metal or any gas	Electron is a universal constituent of all matter

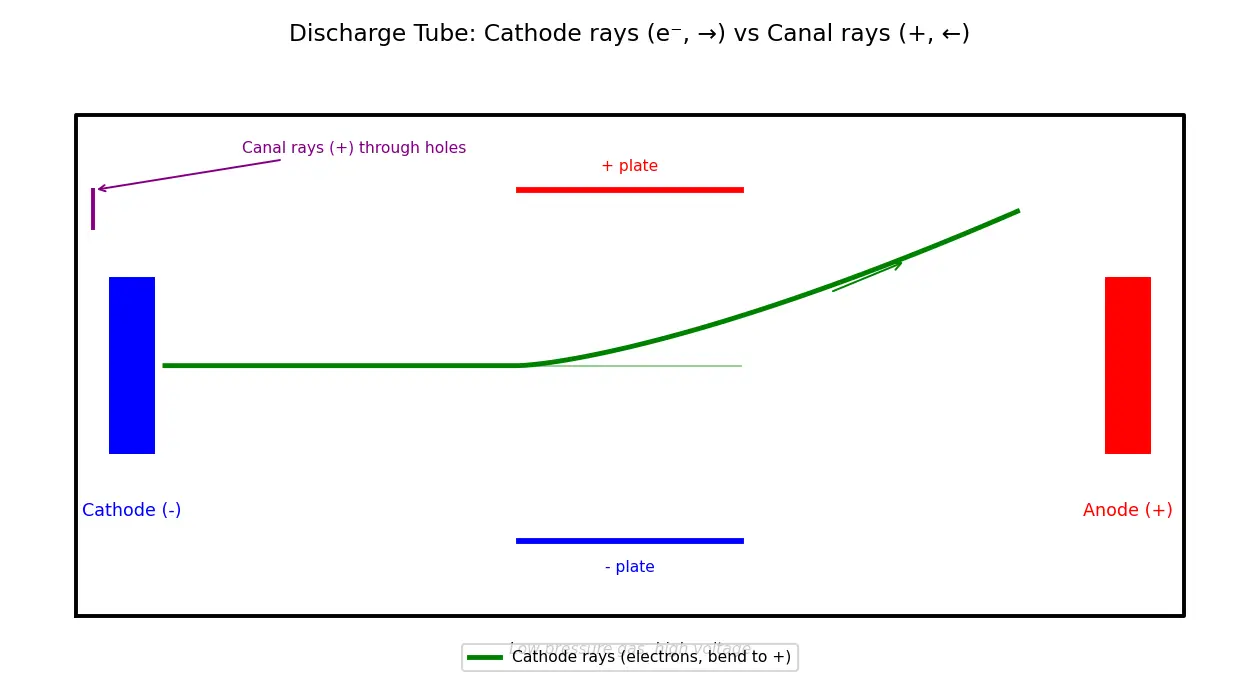

Figure — Discovery of electron (Thomson, cathode rays), proton (Goldstein), neutron (Chadwick)

Deriving $e/m$ from first principles

Set up the fields perpendicular to the beam.

Electric force on charge $e$ in field $E$ : $F_E = eE$

Magnetic force on charge moving with speed $v$ (fields crossed): $F_B = evB$

Step 1 — Find the speed $v$ . Adjust $E$ and $B$ so the beam is undeflected. Forces balance: $eE = evB \implies \boxed{v = \frac{E}{B}}$ Why this step? With no net deflection the charge/mass cancels out — we isolate $v$ purely from measurable field strengths.

Step 2 — Deflect with $E$ only (switch off $B$ ). The particle spends time $t = L/v$ crossing plates of length $L$ . Vertical acceleration $a = eE/m$ . Vertical deflection: $y = \tfrac12 a t^2 = \tfrac12 \frac{eE}{m}\frac{L^2}{v^2}$ Why this step? This is projectile motion — constant horizontal $v$ , constant vertical push. Everything on the right is measurable except $e/m$ .

Step 3 — Solve. Substitute $v = E/B$ : $\frac{e}{m} = \frac{2yE}{B^2 L^2}\cdot\frac{... }{...}\quad\Rightarrow\quad \frac{e}{m}=\frac{2 y v^2}{E L^2}$

2. The Proton — Anode / Canal Rays (Goldstein, 1886)

Key clue that these depend on the GAS:

$e/m$ of these positive rays is largest when the gas is hydrogen.
Largest $e/m$ ⟺ smallest mass ⟺ the lightest positive particle.
This lightest unit = the proton.

3. The Neutron (Chadwick, 1932)

HOW Chadwick found it: He bombarded beryllium with $\alpha$ -particles. A highly penetrating, uncharged radiation came out (undeflected by electric/magnetic fields). It knocked protons out of paraffin. Momentum/energy conservation showed the invisible radiation had mass $\approx$ a proton's. ${}^{9}_{4}\text{Be} + {}^{4}_{2}\text{He} \rightarrow {}^{12}_{6}\text{C} + {}^{1}_{0}n$

Summary Table

Particle	Discoverer	Experiment	Charge (C)	Mass (kg)	Rel. mass (amu)
Electron	Thomson	Cathode rays	$-1.602\times10^{-19}$	$9.11\times10^{-31}$	$\approx 1/1836$
Proton	Goldstein	Anode/canal rays	$+1.602\times10^{-19}$	$1.672\times10^{-27}$	$\approx 1$
Neutron	Chadwick	Be + $\alpha$	$0$	$1.675\times10^{-27}$	$\approx 1$

Forecast-then-Verify

Feynman

Recall Explain to a 12-year-old

Imagine a dark glass tube. Turn on a huge battery and a green glow shoots from the minus end to the plus end. Thomson said: "It bends toward the plus plate, so these are tiny negative balls" — electrons. Then someone poked a hole in the minus plate and found rays going the other way — those are positive bits (protons), made when the electrons smash gas atoms. Finally, weighing atoms, scientists found extra weight that had no charge — like an invisible sandbag — the neutron. Three players: minus, plus, and zero.

Connections

Millikan Oil Drop Experiment — supplies $e$ so mass can be found from $e/m$ .
Rutherford Nuclear Model — where these protons/neutrons live (nucleus).
Thomson Plum Pudding Model — first model using the electron.
Isotopes and Mass Number — neutrons explain why isotopes exist.
Charge to Mass Ratio — the general technique.

Flashcards

What are cathode rays made of?

Negatively charged particles (electrons) from the cathode.

What did Thomson actually measure — charge, mass, or ratio?

The ratio

e/m = 1.758\times10^{11}

C/kg.

Value of electron

e/m

1.758\times10^{11}

C kg⁻¹.

Why are cathode-ray properties independent of the gas/electrode?

The electron is a universal constituent of all matter.

How did Thomson find the beam speed

v

Balance electric and magnetic forces:

eE = evB \Rightarrow v = E/B

Who measured the electron's charge and how?

Millikan, oil-drop experiment;

e = 1.602\times10^{-19}

What are canal (anode) rays and who discovered them?

Positive ions from ionised gas; Goldstein, using a perforated cathode.

Why do canal rays give largest

e/m

with hydrogen?

Hydrogen ion (proton) is the lightest, so smallest mass → largest

e/m

Why does canal-ray

e/m

depend on the gas but cathode-ray

e/m

does not?

Positive rays are ionised gas atoms (mass varies); electrons are identical everywhere.

Why was the neutron needed?

Atomic mass exceeded the mass of protons alone, though charge already balanced — extra neutral mass required.

Chadwick's reaction to make neutrons?

^9_4\text{Be} + ^4_2\text{He} \rightarrow ^{12}_6\text{C} + ^1_0 n

Charge and relative mass of the neutron?

Charge 0; mass ≈ 1 amu (slightly more than a proton).

Ratio of proton mass to electron mass?

About 1836.

Order of discovery (particle & scientist)?

Electron–Thomson (1897), Proton–Goldstein (canal rays 1886), Neutron–Chadwick (1932).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, teen particles hain aur teen alag experiments. Pehle electron: ek glass tube me se hawa nikaal do (low pressure) aur high voltage lagao. Cathode (– wala) se ek beam nikalti hai jo + plate ki taraf mudti hai — matlab yeh particle negative hai. Thomson ne cleverly $e/m$ nikaala: pehle electric aur magnetic force ko balance karke speed $v = E/B$ pata kiya, phir sirf electric field se deflection dekh ke ratio nikaala. Yaad rakho — Thomson ne sirf ratio measure kiya, charge nahi. Charge to Millikan ne oil-drop experiment se nikaala.

Ab proton: Goldstein ne cathode me chhed (holes/canals) kiye. Rays ulti taraf gayi — matlab positive. Yeh rays gas ke atoms se banti hain jab tez electrons unke electron nikaal dete hain. Important baat: inka $e/m$ hydrogen ke saath sabse zyada aata hai kyunki hydrogen ion (proton) sabse halka hai. Isliye positive rays ka $e/m$ gas badalne se badalta hai, jabki electron ka $e/m$ hamesha same rehta hai.

Aur neutron: problem yeh thi ki atom ka weight sirf protons se match nahi hota — extra mass missing tha, par charge to already balance tha. Toh koi neutral particle honi chahiye. Chadwick ne beryllium pe alpha particles maare, ek penetrating neutral radiation nikli jo protons ko dhakka de rahi thi — wahi neutron. Simple trick yaad rakhne ka: "Elephants Push Nuts" — Electron, Proton, Neutron. Yeh chain samajh gaye to poora topic aapka hai.
