Discovery of electron (Thomson, cathode rays), proton (Goldstein), neutron (Chadwick): Question bank

This page is a misconception minefield, on purpose. Each line below is a Question ::: Answer reveal. Read the left side, commit to an answer out loud, then reveal. Every answer is real reasoning — never a bare "yes/no" — because the goal is to fix why, not just what.

If any term feels shaky, jump back to the parent: the main note.

Before you start — the symbols and the picture

Everything on this page hinges on a small handful of letters. Let's earn each one, and draw the apparatus so the sign-and-direction traps below make sense.

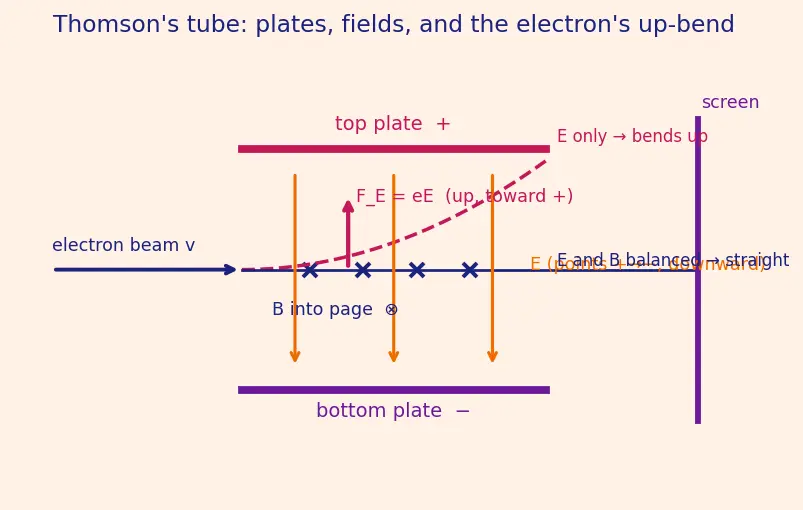

Figure — Discovery of electron (Thomson, cathode rays), proton (Goldstein), neutron (Chadwick)

Look at the figure. The beam enters from the left along the horizontal. The top plate is +, the bottom plate is –, so $E$ points downward (+→–). The electron is negative, so the electric force $F_{E} = e E$ pushes it up, toward the + plate — that upward bend is the whole reason we know cathode rays are negative. The magnetic field ⊗ (into the page) is arranged to push the electron the other way (down), so the two can be balanced.

True or false — justify

True or false: Thomson measured the mass of the electron directly.

False. His deflection formula gives only the combination

y = \frac{1}{2} \frac{e E}{m} \frac{L ^{2}}{v ^{2}}

, which rearranges to ==

e / m

== — a bigger

e

and a bigger

m

produce the same deflection, so the two can't be separated. Mass came later by combining

e / m

with Millikan's measured charge

e

m = e \div (e / m)

True or false: cathode rays are made of the atoms of the gas inside the tube.

False. If they were, the measured

e / m = \frac{2 y v ^{2}}{E L ^{2}}

would shift whenever the gas (hence the mass

m

) changed — but experiment gives the same

1.758 \times 1 0^{11}

C/kg for every gas and electrode. That constancy means one universal particle, the electron, not the gas.

True or false: the light paddle-wheel spinning in the beam proves the rays are charged.

False. The wheel turns because the beam delivers momentum on impact: each particle of mass

m

and speed

v

carries

p = m v

and transfers a torque the way thrown pebbles turn a mill, not the way weightless light "pressure" would (which is far too feeble to spin a visible vane). So the wheel proves the rays have mass; charge is proved separately by the upward bend toward the + plate.

True or false: canal rays travel in the same direction as cathode rays.

False. In the same field

E

(pointing +→–), a positive ion feels a force along

E

while the negative electron feels it against

E

. Opposite charges ⇒ opposite forces ⇒ the positive canal rays drift toward the cathode and shoot through its holes, opposite to the electrons.

True or false: the

e / m

of canal rays is a universal constant just like the electron's.

False. For canal rays the moving object is the gas ion, so its

m

is that atom's mass; feed the same

\frac{2 y v ^{2}}{E L ^{2}}

formula and

e / m

comes out different for every gas. There is no single "positive particle from the electrode."

True or false: a neutron is simply a proton and an electron bound together.

False. Charges cancel (

+ e

and

- e

) and masses roughly add, which is the seductive part — but the neutron is a fundamental, independent particle. It was needed precisely because charge alone (protons + electrons) could balance the charge ledger yet still leave the mass ledger short.

True or false: because the neutron is uncharged, Chadwick detected it by watching it bend in a magnetic field.

False. The magnetic force is

F_{B} = q v B

; with charge

q = 0

that force is zero, so the neutron goes perfectly straight — which is exactly how Chadwick knew it was neutral. He detected it indirectly, from the recoiling protons it kicked out of paraffin.

True or false: increasing the gas pressure in the tube makes cathode rays appear more strongly.

False. Cathode rays need very low pressure (

\sim 1 0^{- 4}

atm). At high pressure the electrons collide with crowded gas molecules within a millimetre and never build a clean beam; only when the tube is nearly evacuated does the stream travel the full length.

Spot the error

"Thomson balanced the electric and magnetic forces to find

e / m

." — find the error.

Balancing

e E = e v B

makes the charge

e

cancel, leaving

v = E / B

— a pure speed, not

e / m

. That step deliberately removes

e / m

; you recover

e / m

only in the second step, deflecting with

E

alone so

y

depends on

e / m

"Canal rays give the largest

e / m

with hydrogen because hydrogen ions carry the most charge." — find the error.

Not the most charge — the least mass. In

e / m

the mass sits in the denominator, so the smallest

m

gives the largest ratio, and the hydrogen ion (a bare proton) is the lightest positive particle possible.

"Helium weighs 4 units, and it has 4 protons, so mass and charge agree." — find the error.

Helium has 2 protons (charge +2), not 4. The extra ~2 mass units come from 2 neutrons. Mixing up proton count with mass number is exactly the confusion the neutron was discovered to resolve.

"Goldstein discovered the proton by knocking it out of the metal electrode." — find the error.

The positive ions come from the gas atoms being ionised by fast electrons, not from the electrode. That's why the ray's

e / m

tracks the gas identity, not the electrode metal.

"The reaction is

_{4}^{9} Be +_{2}^{4} He \to_{6}^{12} C +_{1}^{1} p

." — find the error.

The emitted particle is a neutron

_{0}^{1} n

(charge 0), not a proton. Check the bottom (charge) numbers:

4 + 2 = 6

must equal

6 + (?)

, so the last particle must carry charge

0

"Because the electron's mass is tiny, it contributes most of the atom's mass." — find the error.

Backwards. The electron is about 1/1836 of a proton, so it contributes almost nothing to mass. Nearly all the atom's mass is protons + neutrons in the nucleus.

Why questions

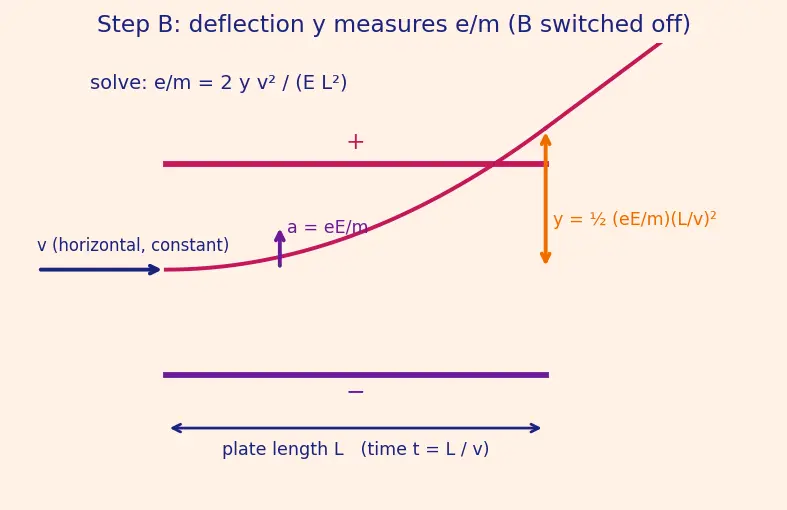

Why did Thomson need two separate steps (balance, then deflect) instead of one measurement?

A single deflection gives one equation,

y = \frac{1}{2} \frac{e E}{m} \frac{L ^{2}}{v ^{2}}

, but two unknowns,

v

and

e / m

. The balance step supplies a second equation,

v = E / B

, so with two equations and two unknowns you can finally solve for

e / m

Why is the cathode-ray

e / m

the same for a gold electrode and an aluminium electrode?

Because the moving particles are electrons, a universal constituent of all matter, with a fixed

e

and

m

. The measured

\frac{2 y v ^{2}}{E L ^{2}}

therefore comes out identical; the electrode metal never enters the formula.

Why was a perforated cathode essential to Goldstein's discovery?

Positive rays are driven toward the cathode by the field; a solid cathode would simply stop them. The holes (canals) let the rays pass straight through and glow behind the cathode where they can be seen and studied.

Why does a neutral particle penetrate matter so deeply compared with a charged one?

A charged particle feels

F = q E

from the electric field of every atom it passes, losing energy at each one. A neutral particle has

q = 0

, so

F = 0

from those fields; it loses no energy until it makes a direct nuclear hit, hence deep penetration.

Why can't the neutron be discovered by the same deflection trick that revealed electrons and protons?

Both deflection forces scale with charge:

F_{E} = q E

and

F_{B} = q v B

. Put

q = 0

and both are zero, so the neutron cannot be steered — its discovery had to come from collisions (the protons it ejects) instead of bending.

Why does swapping hydrogen for neon change the canal-ray

e / m

but leave the cathode-ray

e / m

untouched?

The canal-ray formula's

m

is the ion's mass, so Ne⁺ (mass ≈ 20 units vs H⁺'s ≈ 1) makes

e / m \approx 20 \times

smaller. The cathode-ray formula's

m

is always the electron's mass, unaffected by which gas fills the tube.

Edge cases

What happens to the beam in Thomson's tube if you switch both

E

and

B

off entirely?

With

E = 0

and

B = 0

, both

F_{E}

and

F_{B}

vanish, so there is no sideways force — the electrons travel straight and hit the screen dead centre, casting the sharp shadow that first hinted they behave like rays.

If the applied voltage is very low (or zero), do cathode rays still stream?

No. Low voltage means a small

E

, too weak to accelerate electrons enough to ionise the gas and sustain the discharge; the glow only ignites past a threshold voltage.

For a hydrogen discharge tube, why is the canal-ray particle also the smallest possible positive unit?

Removing hydrogen's single electron leaves a bare proton, whose mass ≈ 1 unit. No positive ion can be lighter, because every other atom drags along a heavier nucleus — so

e / m

is maximal for hydrogen.

Consider a hypothetical particle with charge

+ e

but the same mass as an electron. What would its

e / m

be relative to a proton's?

Its

e / m = e / m_{e}

, while the proton's is

e / m_{p}

with

m_{p} \approx 1836 m_{e}

. Dividing,

(e / m_{e}) \div (e / m_{p}) = m_{p} / m_{e} \approx 1836

, so about 1836 times larger — the same reason the light electron shows such a huge

e / m

If atomic charge already balanced (protons = electrons) before 1932, why was anything still "missing"?

Count helium: 2 protons + 2 electrons balances the charge ledger, yet those 2 protons weigh only ~2 units while helium weighs ~4. The extra ~2 mass units carry no charge, so a neutral massive particle — the neutron — had to fill the gap.

Two isotopes of the same element are put in a canal-ray tube. Do they give the same

e / m

No. Same charge

e

, but different masses (different neutron counts) put different

m

in the denominator, so the heavier isotope gives a smaller

e / m

— exactly how positive-ray analysis first revealed isotopes.

Connections

Millikan Oil Drop Experiment — the charge $e$ that turns Thomson's ratio into a mass.
Charge to Mass Ratio — the general balance-then-deflect technique behind these traps.
Thomson Plum Pudding Model — the first picture built once the electron was pinned down.
Rutherford Nuclear Model — where protons and neutrons actually sit.
Isotopes and Mass Number — the neutron's job, and the last edge-case above.
