Mass budgets — dry mass, wet mass, margin: Visual walkthrough

Step 1 — The two masses, drawn as a stack

WHAT. A spacecraft is a stack of two things: the part that stays and the part that leaves. The part that stays is the dry mass $m_{dry}$ — structure, payload, empty tanks. The part that leaves is the propellant $m_{prop}$ — it turns into exhaust and flies out the back. Together they are the wet mass:

$whole stack, kg m_{wet} = stays behind, kg m_{dry} + gets thrown out, kg m_{prop}$

WHY. Before we can talk about penalties, we must agree on what "mass" we mean at each moment. The rocket equation cares about the ratio of these masses, so we draw them separately from line one.

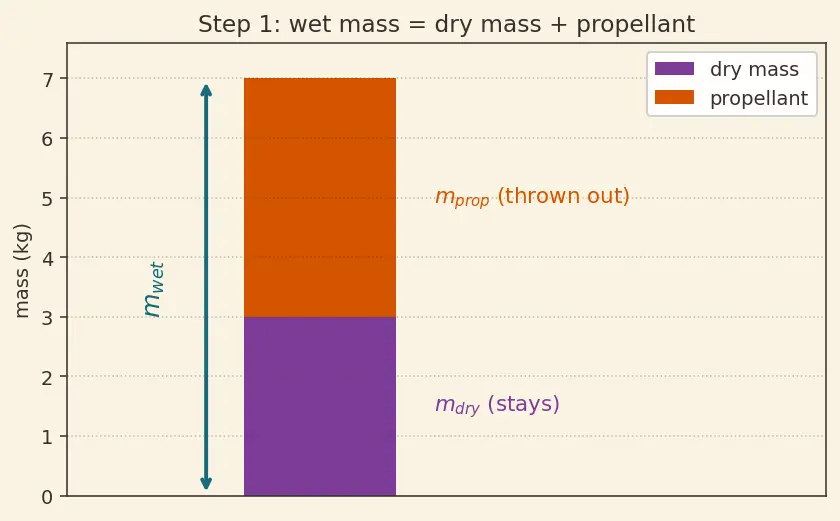

PICTURE. In the figure the tall bar is $m_{wet}$ at launch. The plum block at the bottom is $m_{dry}$ (never changes). The orange block on top is the propellant that will be burned away.

Figure — Mass budgets — dry mass, wet mass, margin

Step 2 — The engine's one honest number: exhaust speed

WHAT. A rocket engine throws mass backward. The one number that describes how good it is at this is the exhaust velocity $v_{e}$ — the speed (metres per second) at which gas leaves the nozzle. Engineers often quote specific impulse $I_{s p}$ (in seconds) instead; the two are tied by

$exhaust speed, m/s v_{e} = specific impulse, s I_{s p} \times 9.81 m/s^{2} g_{0}$

WHY. We need $v_{e}$ because it is the conversion rate between propellant thrown out and speed gained. A tool question: what single quantity lets us convert "kilograms burned" into "km/s gained"? Answer: $v_{e}$ . High $v_{e}$ means each kilogram buys more speed. See Specific Impulse and Specific Impulse.

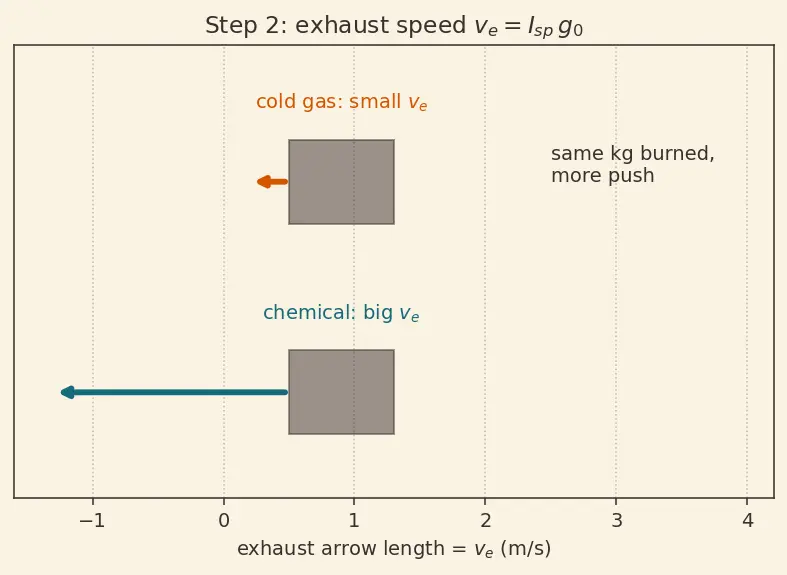

PICTURE. Two engines side by side: a weak cold-gas thruster (short orange exhaust arrow, small $v_{e}$ ) and a strong chemical engine (long teal arrow, big $v_{e}$ ). Same kilogram burned, very different push.

Step 3 — The rocket equation, and why a logarithm shows up

WHAT. Burning propellant changes the ship's speed. The relationship — the Tsiolkovsky rocket equation — is:

$speed gained, m/s Δ V = exhaust speed v_{e} \cdot natural log ln mass ratio (before / after) \frac{m _{wet}}{m _{dry}}$

WHY a logarithm? As the ship burns fuel it gets lighter, so each later kilogram of exhaust pushes a smaller ship harder. The push per kilogram keeps rising as mass shrinks. When you add up a "gain that is proportional to how much mass is left," the running total is exactly a natural logarithm — $ln$ is the tool that answers "what accumulates when the rate is one-over-the-remaining-amount?" That is why $ln$ , and not multiplication, appears. Full derivation: Tsiolkovsky Rocket Equation.

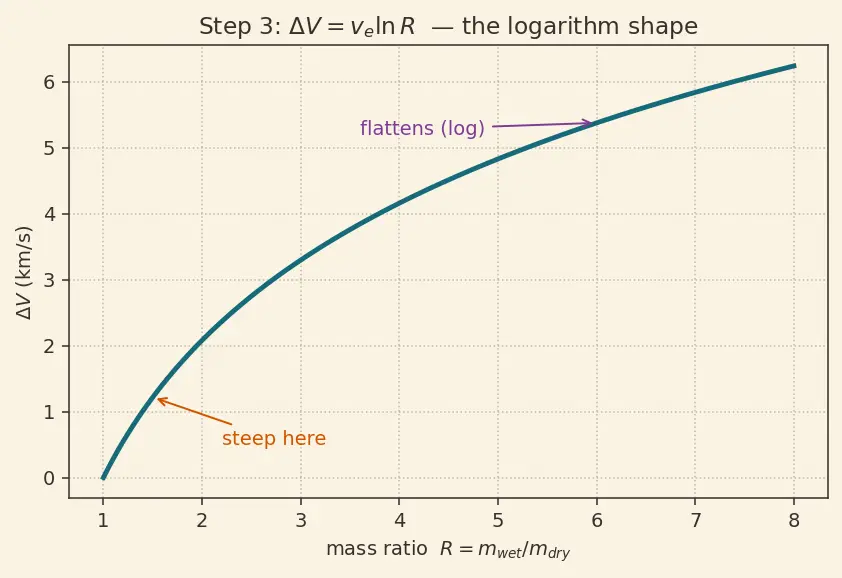

PICTURE. A curve of $Δ V$ against the mass ratio $m_{wet} / m_{dry}$ . It rises steeply at first, then flattens — the tell-tale shape of a logarithm. Doubling the ratio does not double the speed.

Step 4 — Invert it: how much fuel does a required $Δ V$ demand?

WHAT. A mission tells you the $Δ V$ it needs (Mission ΔV Budget). We must find the mass ratio that delivers it. Undo the logarithm by raising $e$ to both sides. The tool here is the exponential $e^{(\cdot)}$ because it is the exact inverse of $ln$ — it answers "which number has this logarithm?"

$Δ V = v_{e} ln R ⟹ \frac{Δ V}{v _{e}} = ln R ⟹ R = the mass ratio you must build e^{Δ V / v_{e}}$

So the wet mass a fixed mission needs is:

$launch mass m_{wet} = stays m_{dry} \cdot R, the multiplier e^{Δ V / v_{e}}$

WHY. This is the pivot of the whole page. Wet mass is proportional to dry mass, with the exponential $R$ as the proportionality constant. If dry mass grows, wet mass grows by the same factor $R$ .

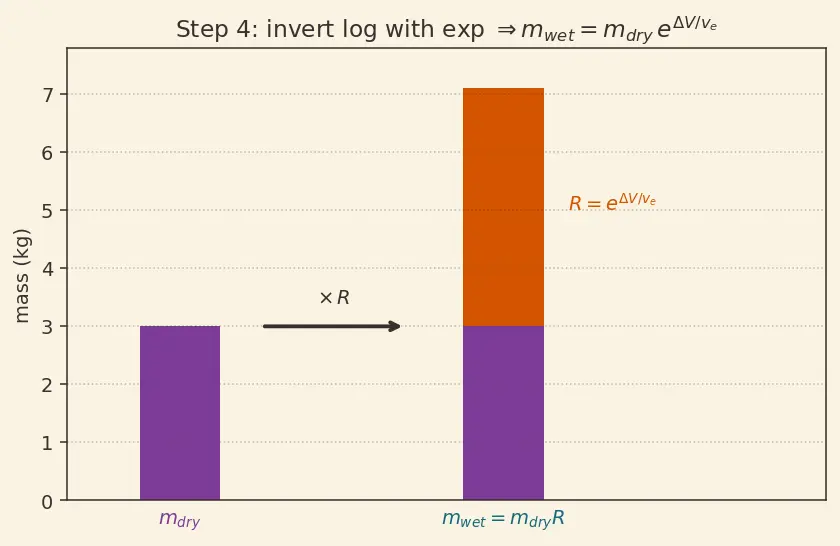

PICTURE. The dry-mass block, multiplied by the tall exponential factor $R$ , stretches up into the full wet-mass bar. The taller the $Δ V / v_{e}$ , the taller the multiplier.

Step 5 — Nudge the dry mass and watch the fuel jump

WHAT. Suppose your dry-mass estimate grows by a small amount $Δ m_{dry}$ (a heavier harness, a late star tracker). The $Δ V$ requirement is fixed, so the mass ratio $R$ is fixed. New wet mass just scales:

$m_{wet,new} = (m_{dry} + Δ m_{dry}) \cdot R$

Now compute the extra propellant. Propellant is always wet minus dry, both old and new:

$Δ m_{prop} = new propellant [(m_{dry} + Δ m_{dry}) R - (m_{dry} + Δ m_{dry})] - old propellant [m_{dry} R - m_{dry}]$

WHY. We subtract dry from wet twice because dry mass itself grew — the fuel penalty is only the extra fuel beyond carrying the extra dry kilo. Collect the $Δ m_{dry}$ terms:

$Δ m_{prop} = Δ m_{dry} (R - 1) = Δ m_{dry} (e^{Δ V / v_{e}} - 1)$

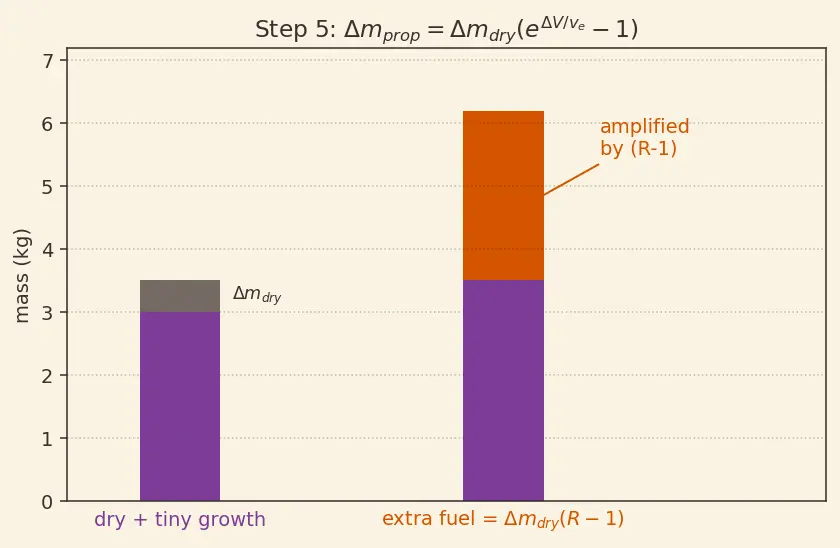

PICTURE. A thin sliver $Δ m_{dry}$ added to the dry block; the exponential multiplier turns it into a much taller orange sliver of extra fuel. The " $- 1$ " removes the extra dry kilo itself, leaving pure propellant penalty.

Step 6 — Reading the penalty across all missions (every regime)

WHAT. The penalty factor $e^{Δ V / v_{e}} - 1$ depends only on the ratio $Δ V / v_{e}$ . Let us sweep it across every regime so no case surprises you.

Regime	$Δ V$	$v_{e}$	$Δ V / v_{e}$	penalty $e^{x} - 1$
Degenerate: no burn	$0$	any	$0$	$0$
LEO drag make-up	$0.05$	$2.5$	$0.02$	$0.02$
GEO insertion	$1.5$	$3.0$	$0.5$	$0.65$
Mars transfer	$6$	$3.0$	$2.0$	$6.4$
Deep interplanetary	$10$	$3.5$	$2.86$	$16.4$

WHY / the edge cases.

$Δ V = 0$ (no manoeuvre): $e^{0} - 1 = 0$ . A satellite that never fires its engine pays zero penalty — extra dry mass is just extra dry mass. The formula degrades gracefully.
Small $Δ V / v_{e}$ : for tiny $x$ , $e^{x} - 1 \approx x$ . The penalty is nearly linear and small — a station-keeping CubeSat barely feels it.
Large $Δ V / v_{e}$ : the exponential runs away. This is why deep-space missions guard every gram.

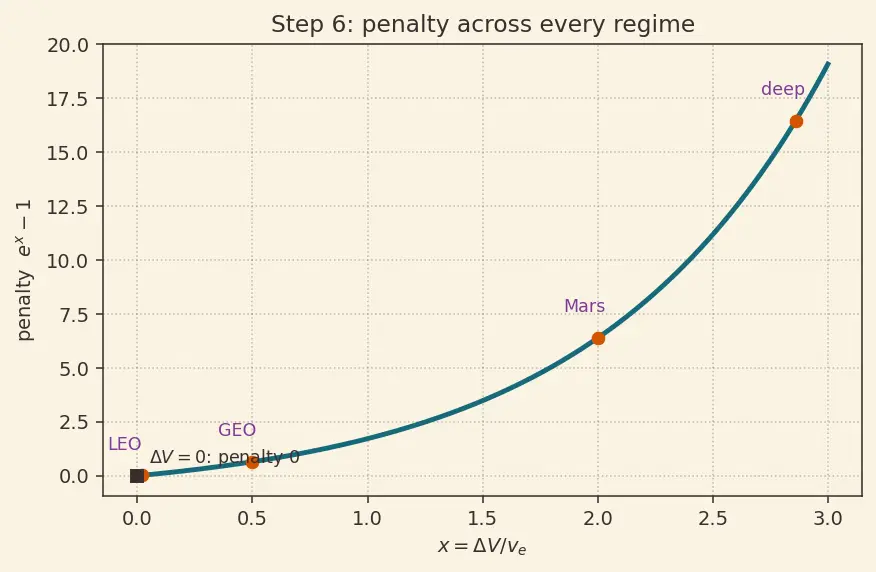

PICTURE. The penalty curve $e^{x} - 1$ against $x = Δ V / v_{e}$ , with the five regimes marked. Flat and forgiving near the origin, exploding to the right.

Step 7 — The same picture in reverse: a burn reduces mass

WHAT. Everything above builds launch mass. In flight, firing the engine does the opposite — mass shrinks. From $Δ V = v_{e} ln (m_{i} / m_{f})$ :

$m_{f} = \frac{m _{i}}{e ^{Δ V / v_{e}}} = \frac{m _{i}}{R}$

WHY divide, not multiply? The heavier initial mass $m_{i}$ sits on top inside the log; the lighter final mass $m_{f}$ sits on the bottom. Solving for $m_{f}$ puts $R$ in the denominator — a burn divides the mass by the ratio. (Example 3 of the parent: $45000/2.37 = 19030$ kg.)

PICTURE. The launch bar (tall) shrinks by dividing by $R$ down to the post-burn bar; the removed orange chunk is the propellant consumed.

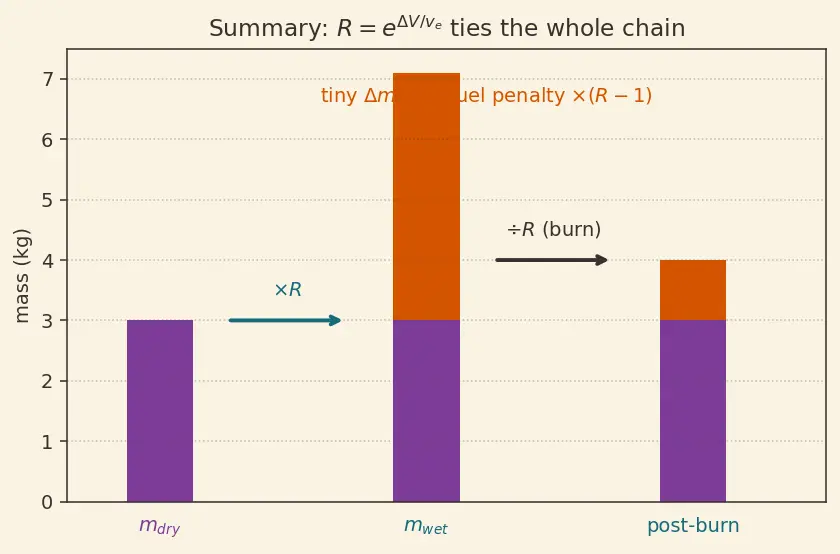

The one-picture summary

Everything on this page is one chain: dry mass → multiply by $R = e^{Δ V / v_{e}}$ → wet mass, and a wiggle in dry mass is amplified by $(R - 1)$ into a fuel penalty.

Recall Feynman retelling — say it back in plain words

A spacecraft is two piles: the pile that stays (dry) and the pile that gets thrown out the back (fuel). An engine has one honest number, its exhaust speed $v_{e}$ — how fast it flings that fuel. The faster it flings, the more speed each kilogram buys.

But here is the twist: as the ship burns fuel it gets lighter, so late fuel pushes a lighter ship harder. Adding up that ever-rising benefit is exactly what a logarithm does — that is why $ln$ lives in the rocket equation.

Turn it inside-out with the exponential (the log's undo button) and you learn the mass ratio $R = e^{Δ V / v_{e}}$ you must build: wet mass is dry mass times $R$ . So if dry mass creeps up by one kilo, wet mass creeps up by $R$ kilos — and after subtracting the one kilo of dry itself, the extra fuel is $(R - 1)$ kilos. On a Mars trip $R - 1$ is about $6.4$ , so one clumsy kilo of structure costs six-and-a-half kilos of propellant. That is the whole reason mass margin is sacred.

Two sanity checks: if you never fire the engine ( $Δ V = 0$ ), $R = 1$ and the penalty is zero — extra mass is just extra mass. And in flight, a burn does the reverse: it divides your mass by $R$ , throwing the difference out as exhaust.

Recall Quick self-test

Why does $ln$ appear in the rocket equation? ::: Because as fuel burns the ship lightens, so the speed gained per kilogram rises like one-over-the-remaining-mass, and $ln$ is the running total of exactly that. One extra kg of dry mass costs how many kg of propellant? ::: $e^{Δ V / v_{e}} - 1$ kg. What is the penalty when $Δ V = 0$ ? ::: Zero — $e^{0} - 1 = 0$ . A flight burn changes mass how? ::: Divides the mass by $R = e^{Δ V / v_{e}}$ .
