Mass budgets — dry mass, wet mass, margin: Question bank

Before the cards, four pictures fix every symbol these questions lean on. Come back to them whenever a card feels abstract.

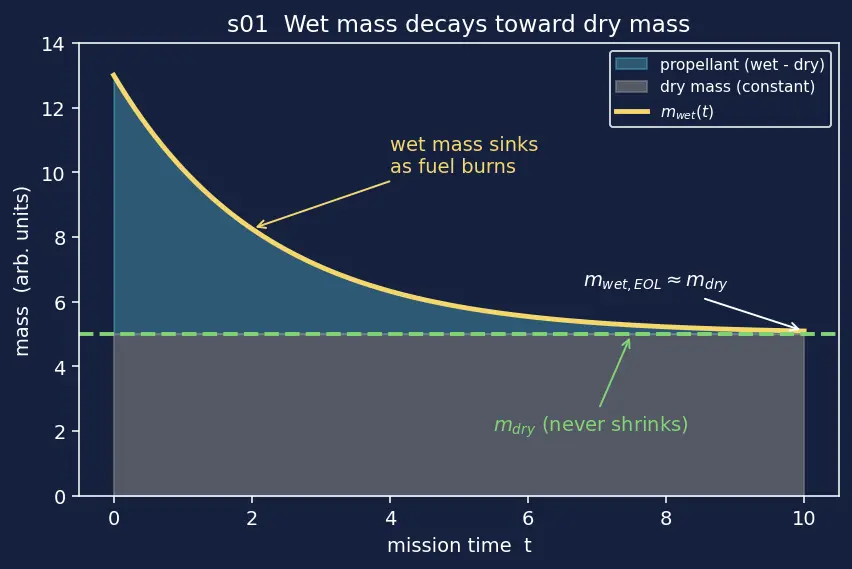

The one-glance variable map

Every quantity in this bank lives in one of two stacks: what stays (dry) and what gets spent (wet minus dry). The figure below stacks them so you can see the split.

Figure — Mass budgets — dry mass, wet mass, margin

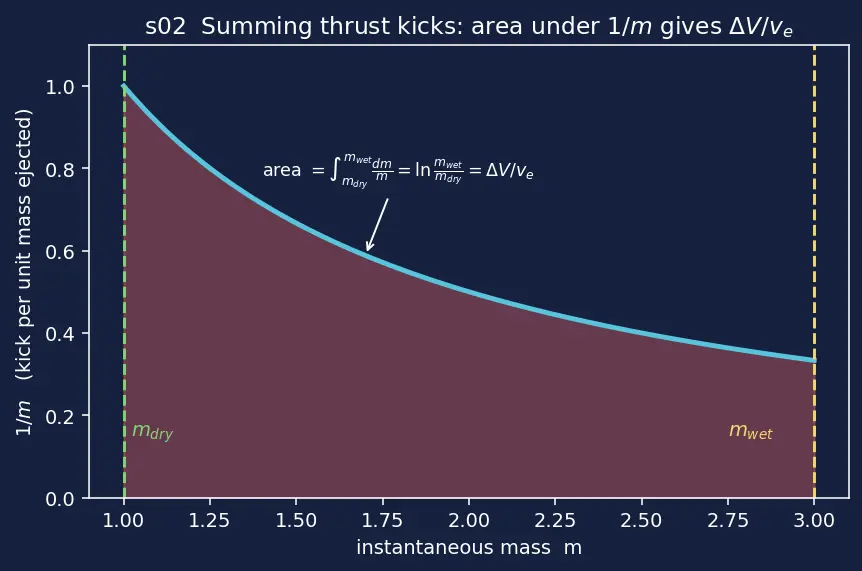

Where the rocket equation comes from — a visual proof

The relation $m_{wet} = m_{dry} e^{Δ V / v_{e}}$ is invoked all over this deck, so here is why it is true, in one picture. A rocket only speeds up by throwing mass backward: each little slug of propellant $d m$ ejected at speed $v_{e}$ pushes the ship forward by $d V = - v_{e} d m / m$ (momentum conservation — thrust equals mass-flow times exhaust speed).

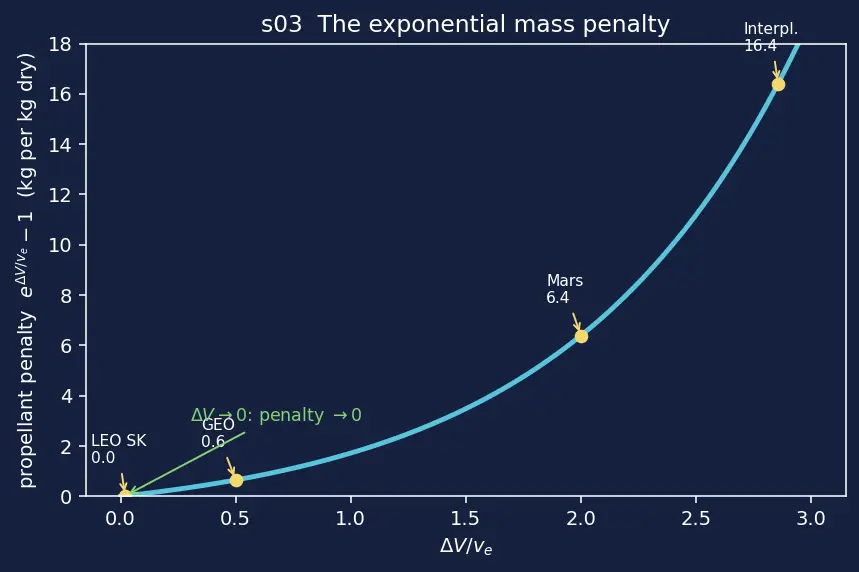

The exponential penalty curve

The whole "1 kg dry costs many kg fuel" story is one curve: the penalty $e^{Δ V / v_{e}} - 1$ plotted against the ratio $Δ V / v_{e}$ . Read it before answering the WHY and edge-case cards.

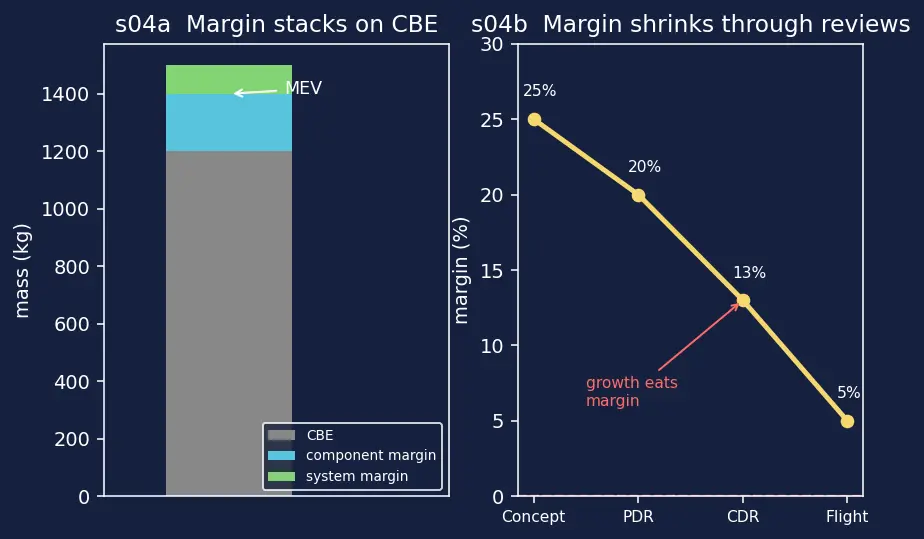

How margin stacks — and shrinks

CBE, MEV and system margin are three layers, not three separate numbers. The left bars show the stack; the right panel shows the same reserve shrinking as a review cycle eats into it.

True or false — justify

TF1. "Wet mass is a fixed number you can look up once for the whole mission."

False — wet mass is a function of time

m_{wet} (t)

; it is maximum at launch and falls toward dry mass as propellant burns (figure s01). The rocket equation needs the instantaneous value.

TF2. "If two spacecraft have the same dry mass, they need the same propellant."

False — propellant depends on the required

Δ V

and the exhaust velocity

v_{e}

through

m_{wet} = m_{dry} e^{Δ V / v_{e}}

; identical dry mass with a bigger mission

Δ V

demands exponentially more fuel. See Tsiolkovsky Rocket Equation.

TF3. "At end of life the wet mass essentially equals the dry mass."

True — by design almost all propellant is spent, so

m_{wet, EOL} \approx m_{dry}

apart from small unusable residuals trapped in tanks and lines.

TF4. "Empty propellant tanks belong to dry mass."

True — the tank hardware stays with the vehicle forever and is never burned, so it is counted in dry mass; only the fluid inside is propellant. This is a classic bookkeeping trap.

TF5. "A 5% margin on flight hardware is more dangerous than 20% margin in early design."

False — the tighter percentage is appropriate because late in the program masses are measured, not estimated, so uncertainty has shrunk. Margin should track the remaining unknown, not stay constant.

TF6. "Because propellant is consumed, it doesn't count toward launch mass limits."

False — at liftoff every kilogram of propellant is physically on the vehicle, so it counts fully against launcher capacity; consumption happens after the mass has already been lifted.

TF7. "Pressurant gas is negligible and can be ignored in a wet-mass budget."

False — pressurant (e.g. helium) is a real consumable listed in

m_{wet}

; ignoring it is a small but systematic under-estimate that erodes margin. See Propellant Management.

TF8. "Adding dry mass and adding propellant hurt the budget equally."

False — one kilogram of dry mass must itself be carried through every burn, so it costs an extra

(e^{Δ V / v_{e}} - 1)

kg of propellant on top of itself; adding pure propellant only costs that one kilogram.

Spot the error

SE1. "The CBE already includes component margins, so MEV = CBE."

Wrong — CBE (Current Best Estimate) has no margin; MEV (Maximum Expected Value) is CBE plus component-level margins (figure s04). They are only equal in the impossible case of zero uncertainty.

SE2. "We have 300 kg of margin, so let's fit a heavier camera we've been wanting."

Wrong — margin is insurance against unknown growth, not a spending account. Historically most spacecraft grow, and burning margin on features leaves nothing when structure or harness comes in heavy.

SE3. "A burn adds

Δ V

, so the mass after a burn is

m_{i} e^{Δ V / v_{e}}

Wrong direction — a burn reduces mass, so

m_{f} = m_{i} / e^{Δ V / v_{e}}

. Multiplying would grow the ship; the final lighter mass sits in the denominator.

SE4. "Dry mass grew 50 kg but

Δ V

is unchanged, so propellant is unaffected."

Wrong — with

Δ V

fixed the mass ratio is fixed, so extra dry mass forces proportionally more propellant:

Δ m_{prop} = Δ m_{dry} (e^{Δ V / v_{e}} - 1)

. The penalty is invisible only when

Δ V \approx 0

SE5. "Payload is the mission, so it shouldn't be in the dry-mass budget."

Wrong — payload is a permanent, non-consumable part of the vehicle and is squarely inside dry mass. It never gets "spent," so it can never be wet mass.

SE6. "Margin percentage stayed the same after adding 125 kg, since we still have reserve left."

Wrong — margin is a fraction of the current mass; growth both consumes reserve and enlarges the base, so the percentage falls faster than the raw reserve suggests (e.g. 25% down to ~13%, figure s04).

SE7. "Using

v_{e} = I_{s p}

directly is fine."

Wrong — specific impulse

I_{s p}

is in seconds; you must multiply by

g_{0} = 9.81 m/s^{2}

to get exhaust velocity

v_{e} = I_{s p} g_{0}

in m/s before the rocket equation.

SE8. "The structural mass fraction is just structure mass over wet mass."

Wrong — structural mass fraction compares inert/structural mass to total and must use one consistent base; the standard forms are

σ = m_{structure} / (m_{structure} + m_{prop})

m_{dry} / m_{wet}

. Casually mixing dry and wet in numerator and denominator gives a meaningless number.

Why questions

WHY1. Why does one kilogram of dry-mass growth cost several kilograms of propellant?

Because that kilogram must be accelerated through the whole mission

Δ V

, and carrying it needs fuel, which needs more fuel — the exponential

e^{Δ V / v_{e}} - 1

(figure s03) captures this compounding.

WHY2. Why does the propellant penalty explode for high-

Δ V

missions like interplanetary transfers?

The penalty

e^{Δ V / v_{e}} - 1

grows exponentially with

Δ V / v_{e}

; large mission

Δ V

(or small

v_{e}

) pushes the exponent up steeply (figure s03), so margins matter most exactly where missions are hardest.

WHY3. Why do engineers carry mass margin at all instead of just estimating carefully?

Because many masses are genuinely unknown until hardware exists — coating thickness, harness routing, weld beads, late requirements — and ~70% of spacecraft grow, so margin is the buffer that keeps a growing design inside its budget.

WHY4. Why track wet mass over time rather than just at launch?

Because the rocket equation and thrust-to-weight ratio use the instantaneous mass; maneuver planning and remaining ΔV both depend on how much propellant is left right now.

WHY5. Why can a small navigation error turn into a lost mission through the mass budget?

An off-nominal burn spends extra propellant, shrinking the reserve for later corrections or orbit insertion; if that residual runs out (as in the Mars Climate Orbiter cautionary tale) the vehicle cannot recover.

WHY6. Why does moving mass around change the design even when total mass is unchanged?

Because layout affects center of mass and inertia; a balanced total can still break attitude control or thruster torque authority if the mass distribution shifts.

WHY7. Why is margin drawn down deliberately as the program moves through reviews?

Because each review replaces estimates with measurements, retiring uncertainty; the V-model schedules margin to shrink from ~20% at design to ~5% at flight as knowledge grows (figure s04, right panel).

Edge cases

EC1. What is the propellant penalty per kg dry mass when

Δ V \to 0

It goes to zero:

e^{0} - 1 = 0

. With no maneuver, extra dry mass costs no extra propellant — it just has to be launched, not accelerated afterward (left edge of figure s03).

EC2. What happens to required propellant as

v_{e} \to \infty

(a perfect, near-infinite-

I_{s p}

engine)?

The exponent

Δ V / v_{e} \to 0

e^{Δ V / v_{e}} \to 1

, and

m_{prop} \to 0

— an ideal high-

I_{s p}

engine needs almost no propellant, which is why electric propulsion is prized despite low thrust.

EC3. What happens in the opposite limit

v_{e} \to 0

(an almost-stationary exhaust)?

The exponent

Δ V / v_{e} \to \infty

, so

e^{Δ V / v_{e}} \to \infty

and

m_{wet} \to \infty

— a nearly motionless exhaust demands infinite propellant for any real

Δ V

, the exact mirror of EC2 and the reason slow exhaust engines are useless for big maneuvers.

EC4. Is a "zero margin" budget ever acceptable?

Only for fully measured flight hardware where every mass is known; before that, zero margin means the first surprise blows the budget, so it is essentially reckless during design.

EC5. What does a negative remaining margin signal?

The current best estimate already exceeds the allowed mass — the design is over budget and must descope payload, cut

Δ V

, or upgrade the launcher before it can fly.

EC6. If dry mass is uncertain by

\pm 50

kg on a Mars transfer (penalty factor

\approx 6.4

), how much propellant uncertainty does that imply?

About

\pm 320

kg of propellant, because each uncertain kilogram of dry mass propagates through

e^{Δ V / v_{e}} - 1 \approx 6.4

— the uncertainty is amplified, not just carried.

EC7. Can wet mass ever be less than dry mass?

No — wet mass is dry mass plus non-negative consumables, so

m_{wet} \geq m_{dry}

always, with equality only when consumables are exhausted.

Recall Two-line self-test

Propellant penalty per kg of dry mass ::: $e^{Δ V / v_{e}} - 1$ , which is zero at $Δ V = 0$ and grows exponentially with mission difficulty. CBE vs MEV ::: CBE is the no-margin sum; MEV is CBE plus component margins — they are never equal while uncertainty exists.
