Fracture mechanics — stress intensity factor K, toughness K_IC: Visual walkthrough

Step 1 — A sheet, a pull, and a word for "how hard the pulling is"

WHAT. Picture a thin flat rectangular sheet of metal — the wall of a spacecraft. We grab the top edge and the bottom edge and pull them apart, gently and evenly. Nothing dramatic yet: the sheet just stretches a tiny bit.

WHY. Before we can talk about a crack, we need one honest number for "how hard is the material being pulled here?" That number is called stress.

Think of it as pull-per-unit-of-material. A thin thread snaps under a tiny force because that force is squeezed onto a tiny area — high stress. A thick cable shrugs off the same force — low stress.

Figure — Fracture mechanics — stress intensity factor K, toughness K_IC

The red arrows show the remote stress $σ$ — "remote" meaning far from anything interesting, out at the grips where the sheet is still perfectly ordinary. Hold this picture: this even, boring $σ$ is our reference. Everything the crack does, it does on top of this.

Step 2 — Cut a slit: the pull has to detour

WHAT. Now take scissors and cut a straight slit through the middle of the sheet, running left-to-right — sideways to the pull. Keep pulling top-and-bottom as before.

WHY. A crack is a slit. To understand fracture we must understand what a slit does to that even flow of stress from Step 1.

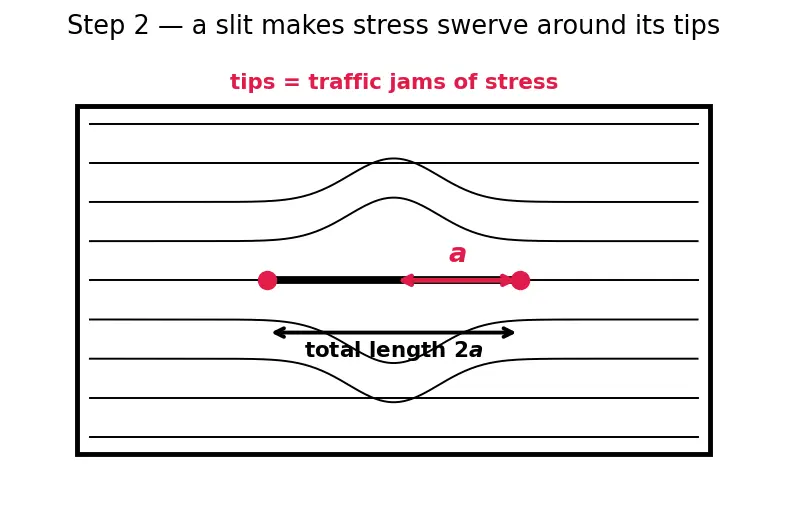

The black horizontal line is the crack, with total length $2 a$ .
The letter $a$ (red) is the half-length — the distance from the centre of the crack to one tip. We measure from the centre because the crack is symmetric; each tip sits a distance $a$ from the middle.
The curved lines are the stress flow lines crowding around each tip.

This "crowding" is the whole story. Our job is to put a number on it.

Step 3 — Zoom into one tip: the same shape appears every time

WHAT. Put a magnifying glass right on the right-hand tip and zoom in until the tip fills the view. Set up a tiny local map: measure $r$ = distance out from the tip, and $θ$ = the angle swung up from the crack line.

WHY. We zoom because the miracle of fracture mechanics lives here: no matter how the crack was made or how big the sheet is, the pattern of stress right around any Mode-I tip is always the same shape. Only its loudness changes. If we can capture that one universal shape, we capture every crack at once.

The red dot is the tip. The red arrow labelled $r$ points to a sample nearby point; the red arc labelled $θ$ is the angle it makes with the crack line. Elasticity theory (the maths of how solids stretch) solves for the stress that opens the crack — call it $σ_{y}$ , the up-down pull at that point — and gives:

$σ_{y} (r, θ) = loudness \times how it fades \frac{K _{I}}{2 π r} \cdot the universal shape (direction only) cos \frac{θ}{2} (1 - sin \frac{θ}{2} sin \frac{3 θ}{2})$

Reading it term by term, right where each piece sits:

$σ_{y}$ — the opening stress at the point $(r, θ)$ ; this is what tries to rip bonds apart.
$\frac{1}{2 π r}$ — the fade: as you walk away from the tip ( $r$ grows) the stress dies off like one-over-root- $r$ . Walk toward the tip ( $r \to 0$ ) and it screams to infinity. That blow-up is the traffic jam of Step 2 made mathematical.
$cos \frac{θ}{2} (1 - sin \frac{θ}{2} sin \frac{3 θ}{2})$ — the shape: it only depends on direction $θ$ , not on how hard you pull. It is the same curved silhouette for every Mode-I crack in the universe.
$K_{I}$ — everything else got fixed by geometry; $K_{I}$ is the one free knob that sets the loudness. Turn it up, the whole field turns up together.

Step 4 — Naming the loudness: this is $K_{I}$

WHAT. We give the loudness knob a name and a job title.

WHY. In Step 3 every crack shares the shape. So one number distinguishes a gentle crack from a lethal one: the loudness. We must isolate it and study it on its own.

The figure shows two tips side by side with the identical shape of stress contours, but the red one is drawn twice as intense — same silhouette, bigger $K_{I}$ . That is what $K_{I}$ does: it doesn't change the pattern, it changes the volume.

So far $K_{I}$ is just a label for "how loud." Next we connect that label to things an engineer can actually measure: the pull $σ$ and the crack size $a$ .

Step 5 — Guessing the formula's skeleton with units alone

WHAT. Before any hard maths, we predict how $K_{I}$ must depend on $σ$ and $a$ using only the requirement that units match.

WHY. Units are a free lie-detector. Whatever the true formula is, both sides must carry the same physical unit. That alone nearly writes the answer.

Look again at Step 3's field: $σ_{y} = \frac{K _{I}}{2 π r} \times (shape, no units) .$ The left side $σ_{y}$ is a stress: unit $MPa$ . The $2 π r$ carries $metre$ . For the two sides to balance:

$[K_{I}] = [σ_{y}] \times [r] = MPa \times m = MPa m .$

There it is — the peculiar unit is forced. Now, what physical quantities can build $MPa m$ ?

The pull $σ$ already gives us the $MPa$ .
The crack size $a$ (a length, unit m) gives us the $m$ — but we need $m$ , so it must enter as $a$ .

Therefore the skeleton must look like $K_{I} \propto σ a .$

The red boxes trace the units cancelling: $MPa$ from $σ$ , $m$ from $a$ , multiplying to the required $MPa m$ . Units cannot fix the pure number out front — that needs the full solution — but they've handed us the entire shape of the law for free.

Step 6 — Filling in the missing number: $π$ and $Y$

WHAT. We supply the dimensionless multiplier that units couldn't see.

WHY. Units gave us $K_{I} \propto σ a$ but stayed silent on the plain number in front. The exact elasticity solution — integrating the stress right around the crack front — delivers that number: a $π$ , plus a tweak $Y$ for real (non-infinite) shapes.

The figure lays the three factors as red tiles multiplying together into $K_{I}$ . This is the equation we set out to build in the title. From a slit in a sheet, to a traffic jam of stress, to a universal shape, to a loudness knob, to a units guess, to the finished law.

Step 7 — Every case, so you never meet a surprise

WHAT. We sweep through the situations you could actually hit and confirm the formula (or its inputs) still behaves.

WHY. A rule you can only use in one lucky case is useless in engineering. Here is the full map.

The degenerate case — no crack at all ( $a = 0$ ). Set $a = 0$ : $π \cdot 0 = 0$ , so $K_{I} = 0$ . Reassuring — a flawless sheet has no stress intensity, and the formula agrees. There is no traffic jam if there is no road closure.

The runaway case ( $a$ grows). Because $K_{I} \propto a$ , doubling the crack length multiplies $K_{I}$ by $2 \approx 1.41$ , not by $2$ . Cracks get more dangerous as they grow, but slower than linearly at first — which is exactly why slow fatigue growth can be tolerated up to a point, then accelerates once $K_{I}$ climbs high.

When does it break? The formula assumes small-scale yielding — the crushed, torn zone right at the tip is tiny compared with $a$ . If a soft, very ductile metal forms a huge plastic blob at the tip, $K$ alone stops describing things and you graduate to the J-integral. And if the loading isn't a straight pull but a shear, you're in Mode II or III, not Mode I — a different subscript, a different $K$ .

Four mini-panels: centre crack ( $a$ = half), edge crack ( $a$ = full, $Y = 1.12$ ), the flawless $a = 0$ sheet with a flat calm stress field, and the $a$ growth curve bending upward. The red element in each flags the one thing that changed.

The one-picture summary

Read the flow left to right: remote pull $σ$ → slit of half-length $a$ → stress crowds the tip, fading as $1/ r$ → loudness captured by $K_{I}$ → units force $σ a$ → exact solution adds $π$ and shape factor $Y$ → the finished law in red: $K_{I} = σ π a Y .$

Recall Feynman retelling — say it back in plain words

I take a sheet and pull on it evenly; that even pull is $σ$ . I cut a slit; the pull can't cross empty space, so it swerves around the two sharp tips and piles up there — a traffic jam of force. If I zoom right into a tip, the piled-up stress always makes the same shape, just louder or quieter depending on the crack. I name that loudness $K_{I}$ . To find $K_{I}$ I don't even need the hard maths first — I just demand the units match, and units alone tell me $K_{I}$ has to be the pull times the square root of the crack size. The full solution then fills in the leftover plain number, which turns out to be $π$ times a shape factor $Y$ that adjusts for real edges. So $K_{I} = σ π a Y$ . A no-crack sheet gives $K_{I} = 0$ ; a bigger crack raises $K_{I}$ like $a$ ; a centre crack uses half the length, an edge crack uses the whole length and a $Y$ of $1.12$ . That one number, $K_{I}$ , is what I later compare against the material's toughness $K_{I C}$ to decide whether the crack kills us.

Recall Quick checks

What does $a$ mean for a centre crack? ::: The half-length — half the total visible slit. Why must $K_{I}$ carry the unit $MPa m$ ? ::: Because in $σ_{y} = K_{I} / 2 π r$ , matching a stress (MPa) times $r$ ( $m$ ) forces it. What is $K_{I}$ when $a = 0$ ? ::: Zero — no crack, no stress intensity. If crack length doubles, $K_{I}$ multiplies by what? ::: $2 \approx 1.41$ , since $K_{I} \propto a$ . What does the factor $Y$ correct for? ::: Real boundaries/shape; $Y = 1$ for an ideal centre crack, $\approx 1.12$ for an edge crack.
