Foundations — Fracture mechanics — stress intensity factor K, toughness K_IC

Before we can read a single formula from the parent topic, we must earn every symbol it throws at us. This page assumes you have seen nothing. We build each idea from a picture, then show why the topic cannot live without it.

1. Stress $\sigma$ — "how hard is the material being pulled, per unit area?"

Why divide by area? Imagine pulling a thick rope and a thin thread with the same force. The thread feels the force much more intensely because that same force is crammed into a tiny cross-section. Stress captures that intensity — it is force concentration by area.

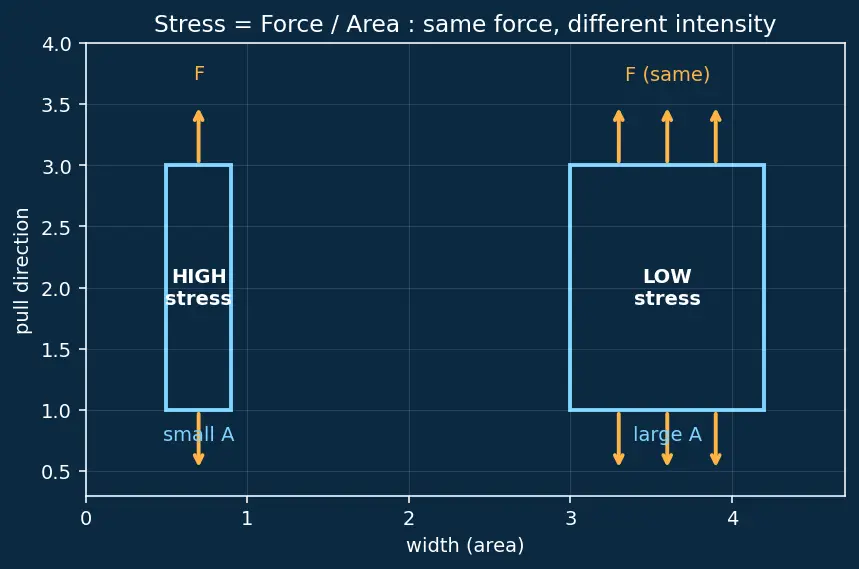

Look at the figure: the same force $F$ (amber arrows) pulls on two bars. The narrow bar has small area $A$, so the arrows are packed tight → high stress. The wide bar spreads them out → low stress.

• Units: force is in newtons (N), area in square metres (m²), so stress is ${\text{N/m}}^2$, which we call a pascal (Pa). Spacecraft stresses are millions of pascals, so we use $\text{MPa}$ (mega-pascal $=10^6$ Pa).
• Why the topic needs it: every fracture formula begins with the "remote applied stress" $\sigma$ — the overall pull on the whole part, before the crack does its magnifying trick.

2. Crack length $a$ — "how deep does the flaw go?"

Why the factor-of-two difference? Look at the figure. A centre crack has two tips, one at each end — the maths treats it as symmetric, so the natural measure is the distance from the middle to one tip, which is half the visible length. An edge crack has only one tip inside the material, so $a$ is the whole thing.

• Units: metres (m). Watch out — millimetres must be converted: $2\text{ mm}=0.002\text{ m}$.
• Why the topic needs it: the danger of a crack grows with its size. A bigger $a$ means a bigger magnifier. This is the geometry input to the danger score we build in section 6.

3. Square root ​ and $\pi$ — the two "shape leftovers"

Why does a square root appear in fracture? It comes from the way stress weakens with distance as you walk away from the crack tip — the stress falls off like $1/\sqrt{r}$ (we meet $r$ next). That ​ is baked into the crack's stress field, so it survives into the danger score.

Why $\pi$ in a crack formula? A real crack tip is not infinitely sharp — the exact elasticity solution wraps the stress around an elliptical front, and integrating around that ellipse leaves a factor of $\pi$ behind. You do not have to derive it; just carry it.

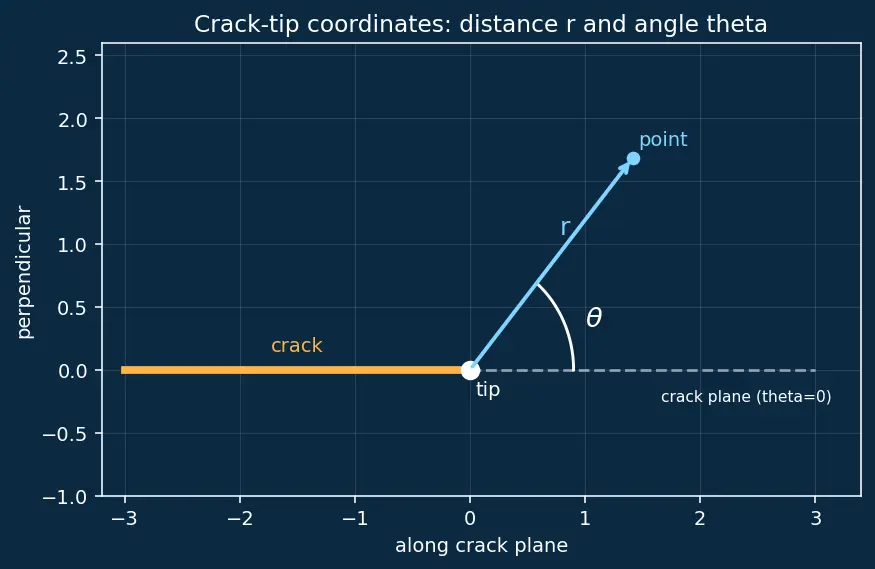

4. Distance $r$ and angle $\theta$ — "polar coordinates at the crack tip"

Why not ordinary left–right / up–down coordinates? Because the stress field is circular in character — it fans out from a single point (the tip). Describing it by "how far out ($r$) and at what angle ($\theta$)" is the natural language, exactly as a lighthouse beam is described by distance and bearing, not by a grid.

• $\theta =0$ points straight ahead along the crack plane — this is where stress is highest and where the crack wants to grow.
• $r\to 0$ means "right at the tip", where the maths says stress blows up to infinity (the $1/\sqrt{r}$ singularity).
• Why the topic needs it: the parent note describes the stress field with one more symbol, ${\sigma }_y$ — this is simply the stress (defined in section 1) measured in the direction that pulls the crack open, i.e. perpendicular to the crack plane. The parent's field formula is written entirely in terms of $r$, $\theta$ and ${\sigma }_y$; without these three the formula is unreadable.

5. The geometry factor $Y$ — "a correction for real shapes"

Why is an edge crack worse? A centre crack is held closed by material on both sides. An edge crack has material on only one side, so nothing balances the pull — it opens more easily. $Y$ packages all such geometric effects into a single multiplier so the core formula stays simple.

6. The stress intensity factor $K_I$ — the star of the show

Read it as a product of three things we now understand:

• $\sigma$ — how hard the whole part is pulled,
• $\sqrt{\pi a}$ — how big the crack is (with its shape leftovers),
• $Y$ — the correction for real geometry.

Why these units? $K=\text{stress}\times \sqrt{\text{length}}=\text{MPa}\sqrt{\text{m}}$. That odd unit is the fingerprint of $K$ — if your answer is not in $\text{MPa}\sqrt{\text{m}}$, something is wrong. See Stress concentration factors for the closely related idea of a stress multiplier at a rounded notch.

7. Fracture toughness $K_{IC}$ — the material's breaking point

The whole subject collapses to one comparison:

$K_I$ is what your loading and crack produce; $K_{IC}$ is what the material can survive. When production meets or exceeds survival, the crack wins. This is the heart of Damage tolerance philosophy and connects to the Griffith energy criterion, which reaches the same threshold through energy rather than stress.

8. Fracture modes — the three ways to load a crack

Why bother naming three? Because a crack responds very differently to each. Spacecraft almost always suffer Mode I (pressure and tension pull cracks open), which is why the toughness we care about is $K_{IC}$ and not $K_{IIC}$ or $K_{IIIC}$. When several act together, we combine them into one effective value $K_{\text{eff}}=\sqrt{K_I^2+K_{II}^2+K_{III}^2}$.

How the foundations feed the topic

The related vault tools all branch off this comparison: Fatigue crack growth (Paris law) tells you how fast $a$ grows over time, Non-destructive testing (NDT) tells you the smallest $a$ you can find, and the J-integral extends the idea to materials that deform too much for simple $K$.

Equipment checklist

Cover the answer and test yourself — you are ready for the parent note only if each is instant.
