Intuition The ONE core ideaA rocket is a thin metal tube that must not break while an engine shoves it from below and the wind slaps it from the side. Everything in this topic is just bookkeeping of force spread over area (stress) and how fast that force wiggles (frequency) — so we can check the tube survives with room to spare.
Before you can read the parent note, you need a small kit of ideas. Each one below gives you: plain meaning → the picture → why the topic needs it. They are ordered so each rung stands on the one before it. Nothing is used before it is built.
F push or a pull . Measured in newtons (N) . One newton is roughly the weight of a small apple sitting in your hand.
Draw an arrow. The length of the arrow is how hard the push is; the direction the arrow points is which way it pushes. That arrow is the force.
The engine's thrust is one such arrow (pointing up). A gust of wind is another arrow (pointing sideways). The whole topic is about arrows and what they do to metal.
m a Mass m how much stuff there is (kilograms, kg). Acceleration a how fast the speed is changing (metres per second, every second — m/s 2
Intuition Why the topic needs thisThe engine accelerates the whole rocket upward. But the metal at the bottom must push all the mass above it upward too. To push mass m a F = ma squeezes the lower structure.
Definition Gravitational accelerationg g ≈ 9.81 m/s 2 m g
n single dimensionless number that bundles gravity and engine acceleration together: g + a = n g n
Sit in a chair: you feel n = 1 n = 6 six kilograms pressing down. Engineers say "the payload sees 6 g" — that "6" is n
Why quote n a n g + a = n g
This is the most important idea on the page. Look at the figure.
Definition Cross-sectional areaA slice the tube straight across and look at the ring of metal you cut through, the amount of metal-face you see is the area A m 2

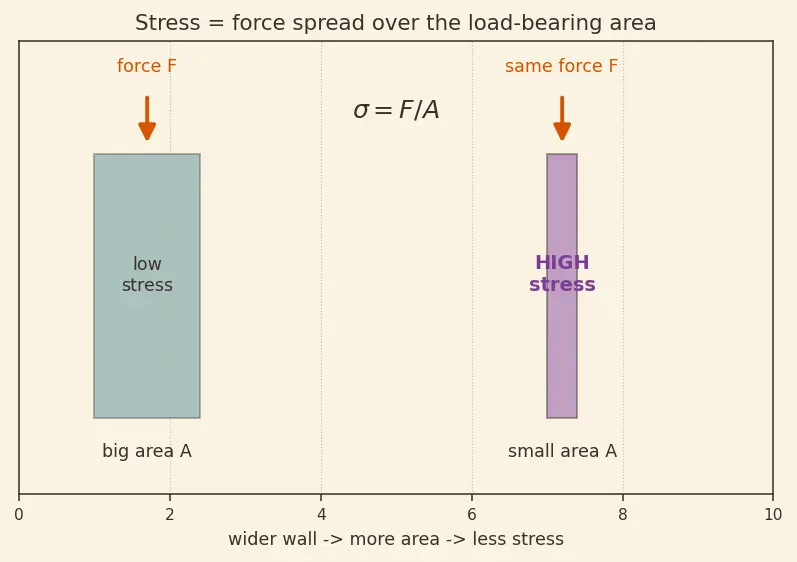

σ Force divided by the area carrying it : σ = F / A = N/m 2 megapascal (MPa) .
Intuition Why divide by area?Same push through a thick wall vs. a thin wall: the thin wall is closer to breaking. Materials don't care about total force — they care about force per unit of face . A thumbtack works because a small force through a tiny point-area makes huge stress. Stress is the number that decides "does the metal survive?"
Take a rubber band. Pull the ends apart → it stretches → that's tension (positive stretching). Push the ends together → it shortens and wants to buckle → that's compression .
Thrust squeezes the rocket: compression . When we bend the tube, one side stretches (tension) and the opposite side squeezes (compression) at the very same moment.
The topic needs both signs because the worst fibre is the one where two compressions add up .
Definition Young's modulusE stiffness number for a material: how much stress it takes to produce a given stretch. Steel has big E E
Why the topic needs it: to derive the bending formula, we say "a fibre that stretches more is under more stress," and Hooke's law is the exact rule connecting stretch to stress.

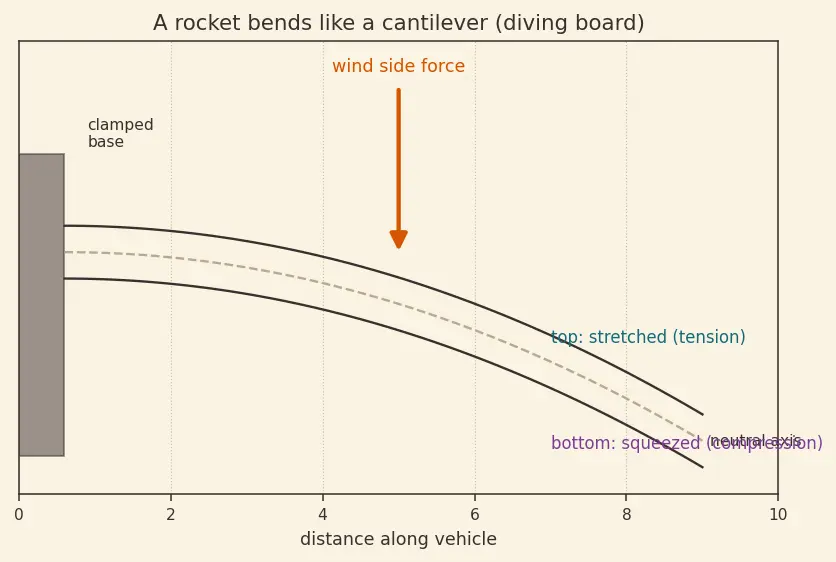

A beam held firm at one end and free at the other — like a diving board, or a broomstick you grip at one end and push in the middle.
Intuition Why a rocket is oneThe rocket is long and slender. When wind pushes its side, it bows exactly like a diving board with someone standing on the tip. The reader must picture this to understand "bending."
Definition Bending momentM twisting/bending effort at a slice, equal to force times its lever-arm (distance). Units: newton-metres (N⋅m base feels a huge bending effort because the lever arm is long.
Definition Neutral axis, distancey c middle line neither stretches nor squeezes — that's the neutral axis . A fibre a distance y farthest fibre sits at distance c

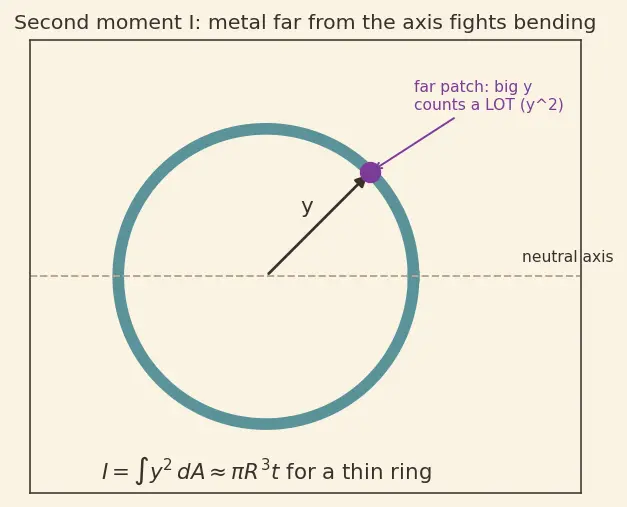

Definition Second moment of areaI how far the material sits from the neutral axis : I = ∫ y 2 d A y lot (squared!); material near the middle barely helps.
Intuition The picture — why the integral sign appears∫ … d A d A y 2 sum over the shape . That summing-of-many-tiny-pieces is exactly what an integral is.
This is why an I-beam puts metal in the top and bottom flanges (far out) and why a thin rocket ring is efficient: nearly all its metal sits at radius R I ≈ π R 3 t
f ω Frequency f hertz , Hz). Angular frequency ω = 2 π f
k c Stiffness k = how hard a spring pushes back per metre of stretch (N/m). Damping c = friction that bleeds energy out, slowly killing the wiggle.
Definition Natural frequencyf n ω n wiggles at all by itself when you pluck it. ω n = k / m

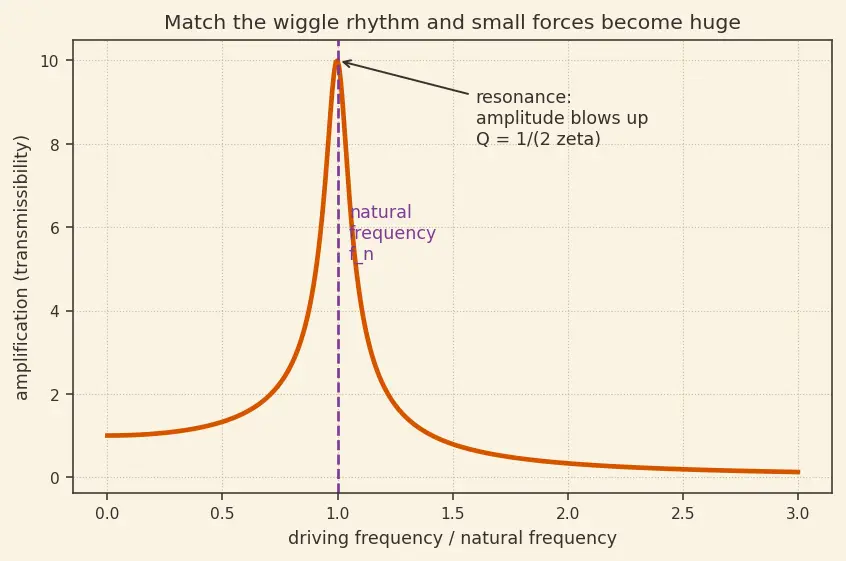

Intuition Resonance — the dangerPush a child's swing at just the right rhythm and small pushes build a huge swing. That is resonance : when the pushing frequency matches f n f n away from the launch vehicle's shaking.
ζ Q ζ = c / ( 2 k m ) how quickly wiggles die . Its partner Q = 1/ ( 2 ζ ) amplifies the force. Low damping (tiny ζ Q
Flexure sigma equals Mc over I
Distance y and outer fibre c
Test yourself — reveal only after you answer aloud.
What is stress, in words and units? Force divided by the area carrying it; pascals (Pa = N/m²), often MPa.
Why divide force by area at all? Materials break based on force per unit face , not total force — a thin wall fails where a thick one survives.
What does the load factor n Gravity and engine acceleration, via g + a = n g
What is a cantilever, and why is a rocket one? A beam fixed at one end, free at the other; a slender rocket bows like a diving board when wind pushes its side.
What is the neutral axis, and where is the outer fibre c The middle line that neither stretches nor squeezes; c
What does I = ∫ y 2 d A How far material sits from the neutral axis; squaring means far-out metal counts far more, so shape (not just amount) decides stiffness.
State Hooke's law and name each symbol. σ = E ε
What is natural frequency and what makes it high? The frequency a part wiggles at when plucked,
ω n = k / m ; stiffer (big
k ) or lighter (small
m ) → higher.
Why is low damping ζ Q = 1/ ( 2 ζ ) ζ Q
