Structural loads — axial (thrust), bending (wind shear), dynamic (vibration, acoustics, shock)

1. Axial load — thrust

HOW to derive the axial force at a station. Consider cutting the rocket at height $x$ . Everything above the cut has mass $m(x)$ and is being accelerated upward at $a$ . Free-body of that upper chunk:

$F_{\text{axial}}(x) - m(x)\,g = m(x)\,a$

Solve for the internal force the structure at $x$ must transmit:

$\boxed{F_{\text{axial}}(x) = m(x)\,(g + a)}$

2. Bending load — wind shear ("max-Q" / gust)

HOW bending stress arises. A transverse distributed load $w$ (N/m) over the vehicle gives a bending moment $M(x)$ . The flexure formula (derived from geometry of bending, below) is:

$\sigma_{\text{bend}} = \frac{M\,c}{I}$

Derivation of $\sigma = Mc/I$ from first principles. When a beam bends, a fiber a distance $y$ from the neutral axis stretches by strain $\varepsilon = y/R$ (radius of curvature $R$ ). Hooke: $\sigma = E\varepsilon = Ey/R$ . The internal moment is the sum of stress×lever-arm over the area:

$M = \int y\,\sigma\, dA = \frac{E}{R}\int y^2 dA = \frac{E}{R} I, \qquad I \equiv \int y^2\, dA.$

So $E/R = M/I$ , and substituting into $\sigma = Ey/R$ gives $\sigma = My/I$ ; the maximum is at the outer fiber $y=c$ :

$\boxed{\sigma_{\text{bend}} = \frac{M c}{I}}$

Worked example Bending stress from a gust

A thin cylinder shell: radius $R=1\ \text{m}$ , wall $t=5\ \text{mm}$ . Its second moment of area is $I=\pi R^3 t = \pi (1)^3(0.005)=0.0157\ \text{m}^4$ , outer fiber $c=R=1\ \text{m}$ . A gust makes bending moment $M=8\times10^5\ \text{N·m}$ .

Step: $\sigma_{\text{bend}} = Mc/I = 8\times10^5 \times 1 / 0.0157 = 50.9\ \text{MPa}$ . Why $I=\pi R^3 t$ ? For a thin ring, all material sits ~distance $R$ from the axis, so $\int y^2 dA \approx R^2 (2\pi R t)/...$ — actually integrating $y=R\sin\theta$ gives $\pi R^3 t$ .

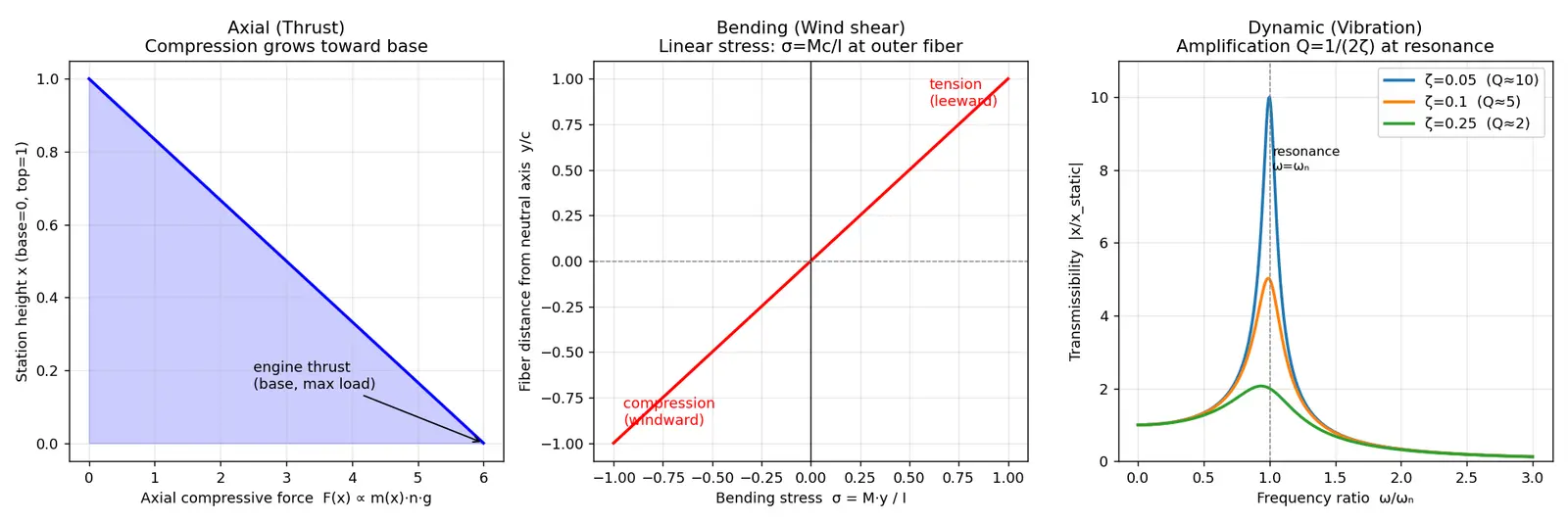

Figure — Structural loads — axial (thrust), bending (wind shear), dynamic (vibration, acoustics, shock)

3. Dynamic loads — vibration, acoustics, shock

HOW we model a structure as a spring–mass. Single degree of freedom:

$m\ddot{x} + c\dot{x} + kx = F(t), \qquad \omega_n = \sqrt{k/m}\ \ (\text{rad/s}), \quad f_n = \frac{1}{2\pi}\sqrt{\frac{k}{m}}$

Why $\omega_n=\sqrt{k/m}$ ? Set $F=0$ , $c=0$ : $m\ddot x = -kx$ is SHM whose angular frequency is $\sqrt{k/m}$ by matching $\ddot x = -\omega^2 x$ .

Common mistakes (Steel-man → Fix)

Feynman

Recall Explain to a 12-year-old

Imagine a soda can. Push down on top with your thumb = thrust squeezing it (axial). Bend it sideways = wind pushing on the tall rocket (bending). Now flick it fast so it hums — if you flick at just the right speed it rattles like crazy: that's vibration/resonance. A sudden whack with a spoon = shock. Rocket engineers make the can strong enough for the thumb + the bend at the same time, and they make sure it hums at a speed the rocket never reaches so it doesn't rattle apart.

Active recall

Axial load factor

n

relates

a

and

g

how?

g+a = n g

, so

n=1+a/g

(dimensionless "g's").

Formula for axial force at station

x

F_{\text{axial}}(x)=m(x)(g+a)=m(x)\,n g

Why does axial compression grow toward the base?

More mass sits above lower stations, so more inertial force must be transmitted.

Flexure formula and its terms?

\sigma=Mc/I

;

M

=bending moment,

c

=distance to outer fiber,

I=\int y^2 dA

Derive

\sigma=Mc/I

start?

\varepsilon=y/R\Rightarrow\sigma=Ey/R

;

M=\int y\sigma dA=EI/R

; eliminate

R

\sigma=My/I

I

for a thin cylindrical shell?

I=\pi R^3 t

Worst-case combined stress at max-Q?

\sigma_{\text{total}}=F/A + Mc/I

(they add on the compressive fiber).

Natural frequency of SDOF?

f_n=\frac{1}{2\pi}\sqrt{k/m}

Resonant magnification factor

Q

Q=1/(2\zeta)

; typical spacecraft

Q\approx10

–

25

The three dynamic load types?

Vibration, Acoustics, Shock.

Which dynamic load dominates large lightweight panels?

Acoustics (pressure waves).

Which load type mainly damages electronics not structure?

Shock (pyro separation transients).

Miles' equation for RMS g response?

g_{\text{RMS}}=\sqrt{\frac{\pi}{2}f_n Q W}

; design to

3\sigma

Why is "just make it stiffer" not always safer for vibration?

Stiffness raises

f_n

; helpful only if it moves you away from the excitation band, not into a PSD peak.

Connections

Rocket Equation & Thrust — source of the axial load.
Max-Q and Dynamic Pressure — when bending peaks.
Beam Bending & Second Moment of Area — origin of $\sigma=Mc/I$ .
Modal Analysis & Natural Frequencies — computing $f_n$ .
Random Vibration & PSD — where Miles' equation lives.
Factor of Safety & Margins of Safety — turning stress into a pass/fail.
Pyrotechnic Separation Systems — the shock source.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek rocket basically ek patli metal ki can hai jo fuel se bhari hui hai, aur usko launch ke time bahut saari forces jhelni padti hain. Yeh loads do family me aate hain. Pehli family static/ quasi-static hai: axial (thrust) jisme engine niche se push karta hai to nichla structure dab jaata hai (compression), aur yeh compression base ki taraf zyada hoti hai kyun ki upar zyada mass baithi hoti hai — formula simple: $F=m(x)\,n g$ . Doosra bending (wind shear) hai: jab rocket upar jaate hue hawa ke gust se takrata hai to woh ek lambi cantilever beam ki tarah mud jaata hai, aur stress aata hai $\sigma=Mc/I$ se — ek side stretch, doosri side compress.

Ab yaad rakhna sabse critical point max-Q hota hai, jahan thrust ki compression aur bending ki compression ek saath same fiber pe add hoti hai: $\sigma_{total}=F/A + Mc/I$ . Isi point pe structure design karte hain, kyunki yahi worst case hai. Bahut students galti karte hain ki inhe alag alag jodte hain — nahi, max-Q pe dono simultaneously lagti hain.

Teesri family dynamic loads hai: vibration, acoustics, shock. Yahan sirf force ka size nahi, balki frequency matter karti hai. Agar bahar ki driving frequency structure ki natural frequency $f_n=\frac{1}{2\pi}\sqrt{k/m}$ se match kar gayi to resonance ho jaata hai aur amplitude $Q=1/(2\zeta)$ guna badh jaata hai — spacecraft me $Q$ around 10-25 hota hai, matlab force 10-25 guna! Isliye design rule yeh hai ki spacecraft ki first natural frequency ko launch vehicle ki required minimum se upar rakho (frequency separation). Ek common galatfehmi: "part ko bas stiff bana do" — lekin stiffness $f_n$ ko badhati hai, jo tab hi accha hai jab woh aapko excitation band se door le jaaye, warna aur kharab. Acoustics bade halke panels (solar panel, antenna) ke liye khatarnaak, aur shock (pyro separation) mainly electronics ko todta hai, structure ko nahi.
