Foundations — Aerobraking — gradual orbit lowering using atmospheric drag

This page assumes you have seen nothing. Every letter, every curve, every ratio the parent note throws at you is built here from the ground up, in the order it becomes needed.

0. The picture we keep returning to

Before any symbol, fix the scene in your mind.

This figure is fully labelled — treat it as the map for the whole page. Trace the call-outs:

• the planet sits at the off-centre dot marked focus (§1);
• the moving spacecraft square rides the purple oval — its distance to the focus is $r$ (§2);
• the near point (mint) is periapsis, distance $r_p$; the far point (butter) is apoapsis, distance $r_a$ (§3);
• the dashed line through both is the long axis, whose half-length is $a$ (§4);
• the gap between the focus and the geometric centre of the oval is what eccentricity $e$ measures (§5).

Keep this picture open; every symbol below is a label on some part of it.

1. The ellipse — what an orbit's shape actually is

2. $r$ — distance from the planet's centre

Picture a rubber band stretched from the planet's centre to the craft. Its length is $r$. When the craft is at the near point, $r$ is small; at the far point, $r$ is big.

Why do we need it? Because everything physical — how hard gravity pulls, how fast you move, how thick the air is — depends only on how far out you are, i.e. on $r$.

3. $r_p$ and $r_a$ — the two named distances

The small subscript letter is just a name tag: $p$ = peri (near), $a$ = apo (far). These are the two coloured dots in the figure. The whole topic is: air near $r_p$ shaves speed, and $r_a$ falls in response.

4. $a$ — the semi-major axis (the orbit's "size")

Look at figure s02: the long axis runs straight through both end dots. Its total length is $r_p+r_a$. Half of that is $a$:

This rearranges to the parent's line $2a=r_p+r_a$. Everything hinges on it: if $r_p$ stays fixed and $a$ shrinks, then $r_a$ must shrink too — that is the mechanism in one equation.

5. $e$ — eccentricity (the orbit's "squashedness")

Where $r_p=a(1-e)$ and $r_a=a(1+e)$ actually come from. Look at figure s04. Call the geometric centre of the ellipse $O$ and the focus (planet) $F$. By the definition of an ellipse, the focus sits a distance $c$ off-centre, and eccentricity is defined as that offset measured in units of $a$: $e=\frac{c}{a}⟹c=ae.$

Now walk along the long axis, which has half-length $a$ on each side of the centre $O$:

• To reach the near end from the focus $F$, you go from $O$ out to the near end (distance $a$) but you started already shifted toward it by $c$, so the leftover distance is $a-c=a-ae=a(1-e)$. That is $r_p$.
• To reach the far end, you must cross the whole half-axis $a$ plus the offset $c$ you sat behind: $a+c=a+ae=a(1+e)$. That is $r_a$.

Add them: $r_p+r_a=2a$ — the $c$ cancels, matching §4. Subtract them: $r_a-r_p=2ae$, so the difference between the two ends is exactly what $e$ measures. As aerobraking proceeds, $r_a$ drops toward $r_p$, that difference shrinks, so $e\to 0$: the orbit circularizes. That is the goal stated as a number.

6. $v$ — speed, and why it isn't constant

$v_p$ is just "$v$ evaluated at periapsis" — the same name-tag trick as $r_p$.

7. $G$, $M$, and $\mu =GM$ — the planet's gravitational strength

Two ingredients set how hard a planet pulls, so meet them first.

Why bundle them? Because the craft's motion never cares about $G$ and $M$ separately — only their product ever appears. Writing $\mu$ once saves carrying two symbols forever. Bigger $\mu$ = stronger pull = faster orbits. Mars has $M\approx 6.4\times 10^{23}\text{kg}$, giving $\mu =GM\approx 4.28\times 10^{13}{\text{m}}^3/{\text{s}}^2$.

8. $\epsilon$ — specific orbital energy (one number for the whole orbit)

It has two parts:

• $\frac{v^2}{2}$ is kinetic energy per kg — energy of moving. Faster = more.
• $-\frac{\mu }{r}$ is gravitational energy per kg — the depth of the "pit" you sit in. It's negative because you're trapped in the pit; getting free costs energy.

9. Linking energy to size: $\epsilon =-\frac{\mu }{2a}$ (derived)

Here two ideas meet: the energy number $\epsilon$ (§8) and the size number $a$ (§4). We prove they are locked together — and see exactly where the factor of $2$ is born.

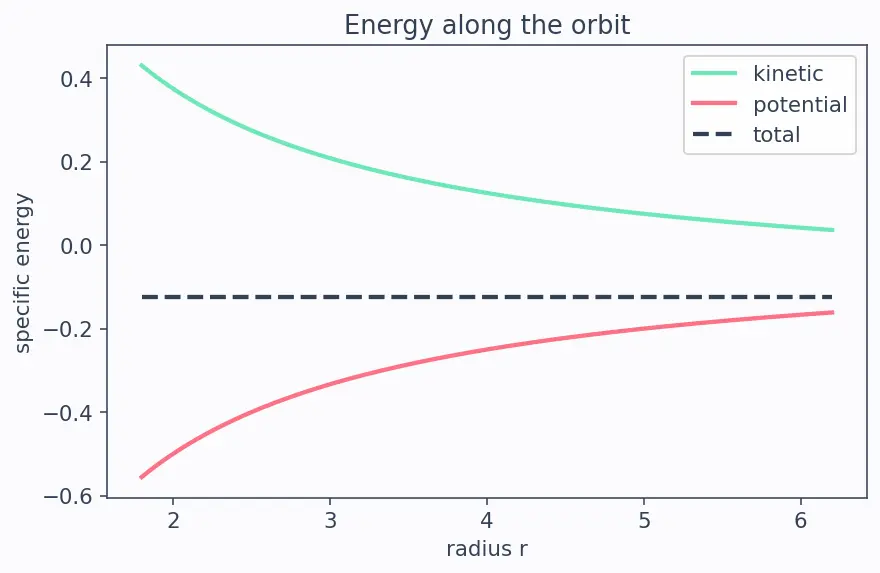

The trick: $\epsilon$ is the same at every point of the orbit, so evaluate it at the two easiest points. Figure s05 shows the energy trade-off along the oval: kinetic (mint) is tall at periapsis and short at apoapsis, gravitational depth (coral) does the opposite, and their sum (the dashed line) is flat. Because the sum is flat, we may compute it wherever the algebra is kindest — the two ends, where all the motion is sideways.

Step 1 — write $\epsilon$ at each end. Using $r_p=a(1-e)$ and $r_a=a(1+e)$ from §5: $\epsilon =\frac{1}{2}{v}_p^2-\frac{\mu }{a(1-e)}=\frac{1}{2}{v}_a^2-\frac{\mu }{a(1+e)}.$

Step 2 — bring in one more conserved quantity. At the two ends the velocity is purely sideways, so the "swept area rate" (angular momentum per kg) is simply distance × speed, and it too is conserved: $r_p{v}_p=r_a{v}_a⟹v_a=v_p\frac{1-e}{1+e}.$

Step 3 — set the two $\epsilon$ expressions equal and solve. Substituting $v_a$ and simplifying (the algebra collapses because the $e$-factors cancel in pairs) gives the periapsis speed $v_p^2=\frac{\mu }{a}\frac{1+e}{1-e}.$

Step 4 — put it back into $\epsilon$. $\epsilon =\frac{1}{2}\cdot \frac{\mu }{a}\frac{1+e}{1-e}-\frac{\mu }{a(1-e)}=\frac{\mu }{a(1-e)}\left[\frac{1}{2}(1+e)-1\right]=\frac{\mu }{a(1-e)}\cdot \frac{e-1}{2}.$

The bracket produces $\frac{e-1}{2}$ — there is your factor of $2$, straight from the $\frac{1}{2}$ in the kinetic energy $\frac{1}{2}{v}^2$. The $(1-e)$ cancels the $(e-1)$ (up to a sign): $\boxed{\epsilon =-\frac{\mu }{2a}}$

This last figure shows the number line of $\epsilon$: zero at the top (barely escaping), diving downward as orbits get tighter. Aerobraking walks you down this line.

10. The exponential $e^x$ — why fuel is precious

The parent's motivation uses $e^{\Delta v/v_e}$. Time to earn that symbol.

11. $\Delta$ — "a small change in", and $\Delta t$

A negative $\Delta v$ means "speed went down" — exactly what drag does. The chain of the topic reads: $\Delta v<0\Rightarrow \Delta \epsilon <0\Rightarrow \Delta a<0\Rightarrow \Delta r_a<0$. Each arrow is one small step, and $\Delta$ is the word for "small step."

12. $R$, $h$, $\rho$ and the density fall-off $\rho ={\rho }_0{e}^{-h/H}$

More in Atmospheric Drag and Scale Height.

13. Drag deceleration $a_D=\frac{\rho v^2{C}_{D}A}{2m}$

How it all feeds the topic

The map below is read top to bottom, and here is the plain-words tour of it so you never have to decode the boxes:

• Ellipse shape → gives the two special ends, the near and far points ($r_p$, $r_a$).
• The distance $r$ is what those two points are specific values of.
• The two ends together fix the semi-major axis $a$ (their average) and the eccentricity $e$ (their difference).
• $a$ plus the planet's pull $\mu =GM$ and the specific energy $\epsilon$ (built from speed $v$) combine into the key link $\epsilon =-\mu /2a$.
• The change symbol $\Delta$ applied to that link is the braking mechanism: a small speed loss shrinks the orbit.
• On the physical side, planet radius $R$ and altitude $h$ set the air density $\rho$ (via scale height $H$), which with speed $v$ makes the drag deceleration $a_D$ that drives the mechanism.
• Separately, the exponential $e^x$ explains why fuel is costly, which is why we bother aerobraking at all.
• All arrows converge on the aerobraking topic.

Where to go next

• Vis-Viva Equation — turns $\epsilon =-\mu /2a$ into the speed-anywhere formula the parent boxes.
• Orbital Energy and Semi-major Axis — the $\epsilon \leftrightarrow a$ link in full.
• Hohmann Transfer and Aerocapture — cousin manoeuvres that reuse these same symbols.
