Visual walkthrough — Reentry corridor — angle of attack constraints

---

Step 1 — A dot, a speed, and an arrow

WHAT. Picture a capsule as a single dot high above the ground. It is moving. We draw its motion as an arrow — call the arrow's length the speed $V$ (how many metres it covers each second). The direction the arrow points is the direction of travel.

Now draw a flat dashed line through the dot: the local horizontal (the direction "sideways", parallel to the ground far below). The angle between the arrow and that flat line is the flight path angle $\gamma$ (Greek letter "gamma"). Coming down, the arrow tilts below the horizontal, so we agree to call $\gamma$ negative on descent.

WHY these two things first? Everything else — how hard the air brakes you, whether you skip — depends only on how fast you come in ($V$) and at what tilt ($\gamma$). Those are the only two knobs the corridor cares about. So we name them before anything else.

PICTURE. The lavender arrow is $V$; the coral wedge is $\gamma$, opening downward from the dashed horizon.

---

Step 2 — Air as a wall of tiny balls (dynamic pressure)

WHAT. Zoom into the front of the capsule. The air is not empty — it is a crowd of tiny balls (molecules) with density $\rho$ (Greek "rho": kilograms of air per cubic metre). As the capsule rushes forward at speed $V$, it sweeps up these balls and knocks them out of the way. Each ball it hits pushes back. Add up all those little pushes over the vehicle's frontal area $A$, and you get one big backward shove.

The strength of that shove per unit area is the dynamic pressure: $q=\underset{\text{bookkeeping}}{\underbrace{\frac{1}{2}}}\underset{\text{how many balls}}{\underbrace{\rho }}\underset{\text{how hard each hit}}{\underbrace{V^2}}$

WHY the $V^2$ (and not just $V$)? Two reasons multiply. Go twice as fast and (1) you sweep up twice as many balls per second, and (2) you hit each ball twice as hard. Two × two = four, and four is $2^2$. That double-counting of speed is exactly why speed enters squared — this is the tool that says "danger grows with the square of speed."

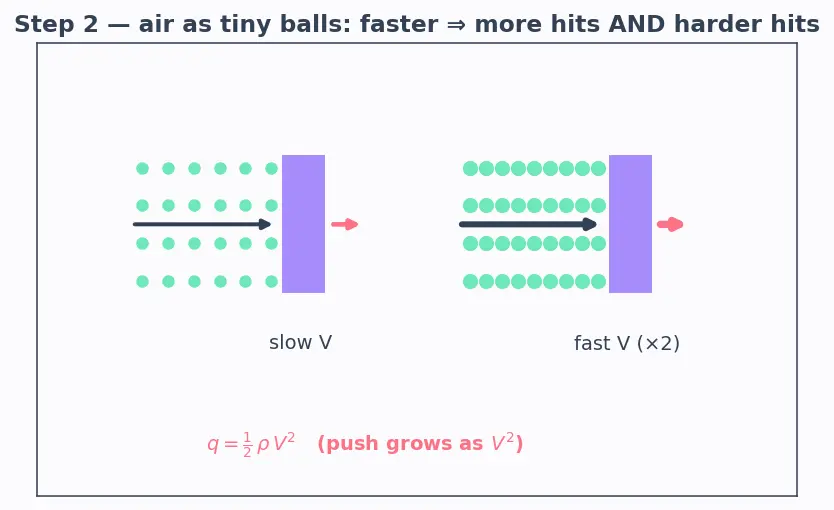

PICTURE. Mint balls stream at the capsule; the faster arrow on the right piles up more, harder impacts — the coral push-back grows.

---

Step 3 — Tilting the vehicle: the angle of attack

WHAT. The capsule has a body axis — its own symmetry line, like the spine of an arrow. The air, though, comes from wherever the velocity arrow points. The angle between the body axis and the oncoming air is the angle of attack $\alpha$ (Greek "alpha"). It is the crew's/computer's steering knob: tilt the nose, and you change $\alpha$.

Why does tilting matter? A tilted body deflects the air stream more to one side, so the air pushes back more sideways — more lift. To a first approximation lift grows straight in proportion to the tilt: $C_L\approx \underset{\text{lift per radian of tilt}}{\underbrace{C_{L\alpha }}}\alpha$ But tilting also makes the body a wider obstacle, so drag grows too — and it grows faster, as the square of the lift: $C_D\approx \underset{\text{drag at zero tilt}}{\underbrace{C_{D0}}}+\underset{\text{extra drag from lifting}}{\underbrace{k{C}_L^2}}$

WHY this pair of shapes? Deflecting air sideways (lift) is cheap at small tilt but the wasted energy left in the swirling wake (the "$k{C}_L^2$" induced drag) climbs as the square. So you get diminishing returns — a hint that there's a sweet spot coming.

PICTURE. Same velocity arrow (mint), body axis tilted off it; the gap between them is $\alpha$. Lift (butter) points across the flow, drag (coral) points back along it.

---

Step 4 — The steering gain $L/D$ and its peak

WHAT. Divide lift by drag. This ratio $L/D$ is the steering gain: how much sideways bend you buy per unit of braking. Substitute the two shapes from Step 3: $\frac{L}{D}=\frac{C_L}{C_D}=\frac{C_{L\alpha }\alpha }{C_{D0}+k{C}_{L\alpha }^2{\alpha }^2}$ Look at the shape of this as $\alpha$ grows: the top grows straight (linear in $\alpha$), the bottom grows curved (an ${\alpha }^2$ term). At tiny $\alpha$ the top wins and $L/D$ climbs; at big $\alpha$ the bottom's square wins and $L/D$ falls. In between there must be a highest point.

WHY find the peak with a derivative? The derivative $\frac{d(L/D)}{d\alpha }$ measures the slope of the $L/D$ curve. At the very top of a hill the slope is momentarily flat — zero. So "set the derivative to zero" is just the algebra way of asking "where is the top of the hill?" Doing that (quotient rule, then simplify) collapses to one clean condition: $C_{D0}-k{C}_{L\alpha }^2{\alpha }^2=0\Rightarrow \boxed{{\alpha }_{\text{opt}}=\frac{1}{C_{L\alpha }}\sqrt{\frac{C_{D0}}{k}}}$ and the height of that peak is ${\left(\frac{L}{D}\right)}_{\max }=\frac{1}{2\sqrt{k{C}_{D0}}}.$

The condition $C_{D0}=k{C}_{L\alpha }^2{\alpha }^2$ has a lovely meaning: the peak sits exactly where the fixed drag ($C_{D0}$) equals the lift-induced drag. Balance of the two drags = best steering.

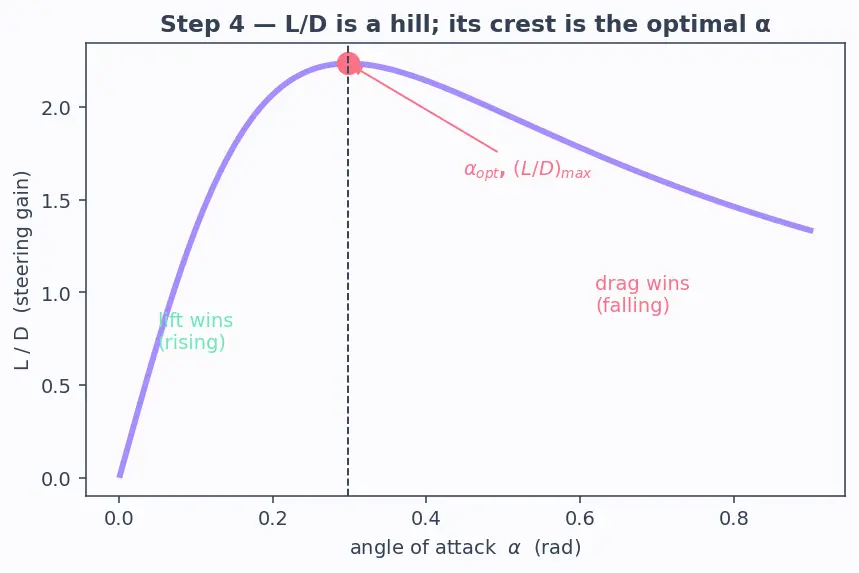

PICTURE. The $L/D$-versus-$\alpha$ hill: rising lavender line at left, falling at right, coral dot marking ${\alpha }_{\text{opt}}$ at the crest.

---

Step 5 — Splitting Newton's law along and across the path

WHAT. Now put the dot back on its trajectory and ask: how do $V$ and $\gamma$ change moment to moment? Newton says force = mass × acceleration. We split the forces into two directions: along the velocity arrow, and perpendicular to it.

Along the arrow (what speeds you up or slows you down): $m\frac{dV}{dt}=\underset{\text{air braking}}{\underbrace{-D}}\underset{\text{gravity along path}}{\underbrace{-mg\sin \gamma }}$ Perpendicular to the arrow (what bends the path): $mV\frac{d\gamma }{dt}=\underset{\text{up-part of lift}}{\underbrace{L\cos \sigma }}\underset{\text{gravity pulling down}}{\underbrace{-mg\cos \gamma }}\underset{\text{going-fast lift}}{\underbrace{+\frac{m{V}^2}{R+h}\cos \gamma }}$

Reading each symbol. $m$ = mass, $g$ = gravity strength, $h$ = height, $R$ = Earth radius. The term $\frac{dV}{dt}$ is "how fast speed changes" (your deceleration when negative); $\frac{d\gamma }{dt}$ is "how fast the tilt changes" (does the path curve up or down?). $\sigma$ (Greek "sigma") is the bank angle — how far you've rolled the vehicle; it decides how much of the lift points genuinely up ($L\cos \sigma$) versus sideways. See Bank Angle Modulation and Guidance.

WHY split into two directions? Because the two directions do two independent jobs: the along-track equation controls your heating and g-load (through $D$), the cross-track equation controls whether you skip out or dive in (through the sign of $d\gamma /dt$). Two equations, two dangers.

PICTURE. The velocity arrow with forces resolved: coral drag straight back, butter lift split into an up-component and a sideways one by the bank angle $\sigma$.

---

Step 6 — The steep wall: undershoot (too much braking)

WHAT. Dive steeply and $\rho$ (air density) rockets up as you drop, because the atmosphere thickens exponentially: $\rho ={\rho }_0{e}^{-h/H}$, where $H$ is the scale height (the drop in altitude that makes the air $e\approx 2.718$ times denser). See Exponential Atmosphere Model. Drag $D\propto \rho V^2$ then spikes. The Allen–Eggers Ballistic Reentry analysis shows the peak deceleration is ${\left|\frac{dV}{dt}\right|}_{\max }\approx \frac{V_E^2|\sin {\gamma }_E|}{2eH}.$

Reading it. $V_E^2$: danger with the square of entry speed (Step 2's lesson returns). $|\sin {\gamma }_E|$: dive twice as steeply, roughly double the spike. $H$ in the denominator: a thicker (larger-$H$) atmosphere spreads the braking over more height, softening the peak; $e=2.718$ is the fixed number where the "density-up, speed-down" product peaks.

WHY this is a wall. Set the right side equal to the crew/structure g-limit. Any steeper ${\gamma }_E$ pushes the spike over the limit — bones break, heat shield fails (Aerodynamic Heating and Stanton Number). That fixes the maximum allowed steepness $|{\gamma }_E|$: the undershoot boundary.

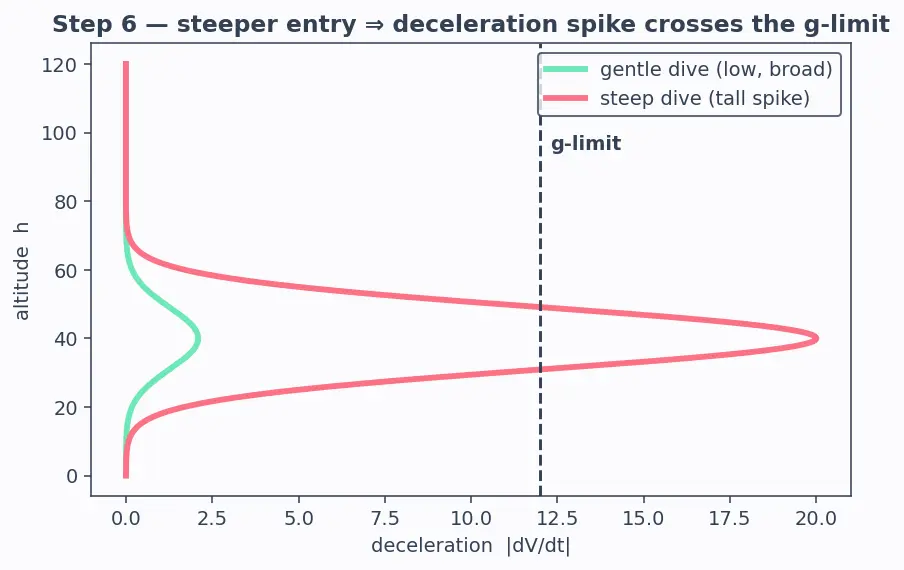

PICTURE. Two dives — a gentle one (mint) with a low, broad g-hump; a steep one (coral) with a tall, narrow spike crossing the dashed g-limit.

---

Step 7 — The shallow ceiling: overshoot (skip-out)

WHAT. Now come in too flat. In the cross-track equation the up-part of lift $L\cos \sigma$ overpowers gravity's pull, so $d\gamma /dt>0$ — the path curves upward. The capsule climbs back into thin air, loses its brake, and skips off the atmosphere like a stone off a pond. That is the overshoot boundary: the shallowest entry that still gets captured.

WHY lift is both villain and hero. Too much upward lift causes the skip; but lift pointed downward cures it. Roll to bank angle $\sigma \to 180^{\circ }$ so $\cos \sigma \to -1$: now $L\cos \sigma$ is negative, it points down, and it forces $d\gamma /dt<0$ — the "commit to entry" manoeuvre. Because a bigger $L/D$ lets you both pull out of a steep dive and push into a shallow one, more lift widens the whole band: $\Delta {\gamma }_{\text{corridor}}\propto \frac{L}{D}.$

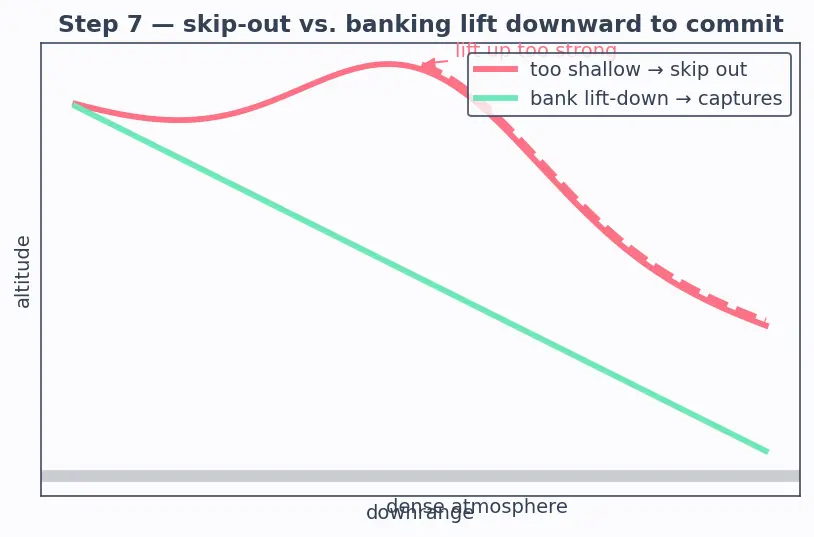

PICTURE. A shallow arrow skipping back out (coral, dashed rebound) versus the same shallow entry banked lift-down (mint) that hooks safely into the atmosphere.

---

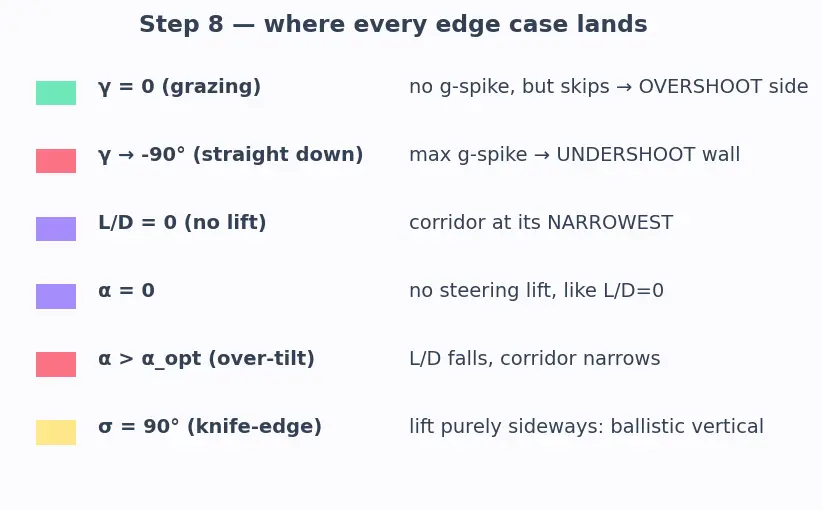

Step 8 — Degenerate & edge cases (never get surprised)

WHAT / WHY, one line each, so no scenario ambushes you:

• ${\gamma }_E=0$ (grazing entry). $\sin {\gamma }_E=0$, so the Step-6 spike vanishes but $\cos {\gamma }_E=1$ makes the up-lift maximal — you almost certainly skip. Zero steepness sits outside the corridor on the overshoot side.
• ${\gamma }_E\to -90^{\circ }$ (straight down). $|\sin {\gamma }_E|\to 1$, the g-spike is maximal — deep inside the undershoot wall. Fatal.
• $L/D=0$ (a pure ballistic capsule, no lift). $\Delta {\gamma }_{\text{corridor}}\to$ its narrowest: you can only hit one thin band of ${\gamma }_E$. Ties to Terminal Velocity and Ballistic Coefficient and Allen–Eggers Ballistic Reentry.
• $\alpha =0$. $C_L\approx 0$, so no steering lift at all — same narrow corridor as $L/D=0$.
• $\alpha >{\alpha }_{\text{opt}}$ (over-tilt / stall). $L/D$ falls (Step 4's downslope): corridor narrows, heating worsens. More tilt is not more safety.
• $\sigma =90^{\circ }$ (knife-edge bank). $\cos \sigma =0$: lift is purely sideways, contributing nothing up or down — the vehicle behaves ballistically in the vertical plane.

---

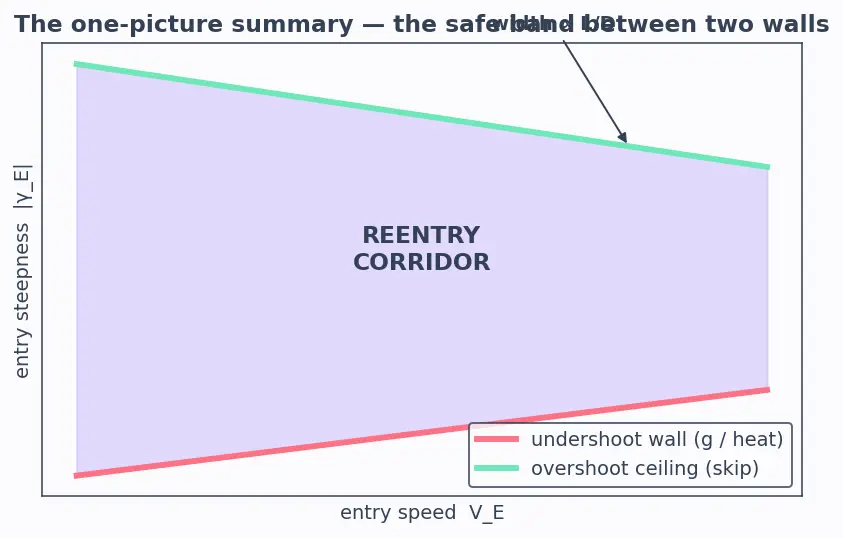

The one-picture summary

Everything above lives in one diagram: entry speed $V_E$ across, entry steepness $|{\gamma }_E|$ up. The steep wall (undershoot, from Step 6's g/heat limit) blocks the bottom; the shallow ceiling (overshoot, from Step 7's skip limit) blocks the top. The safe band between them is the reentry corridor, and its width grows with $L/D$ — the steering gain you tuned with $\alpha$ back in Step 4.

Recall Feynman retelling — say it back in plain words

A capsule is a dot with a speed arrow tilted below the horizon (Step 1). Air is a crowd of tiny balls; hitting them makes a push that grows as speed squared (Step 2). Tilting the capsule (angle of attack) turns some of that push sideways into lift, but over-tilting wastes it as extra drag (Step 3), so there's a sweet-spot tilt where steering-per-brake, $L/D$, peaks (Step 4). Splitting Newton's law two ways: the along-path part controls braking (heat and g), the across-path part controls whether you dive or skip, with bank angle $\sigma$ deciding how much lift points up (Step 5). Dive too steep and the density spike overloads the crew — the steep wall (Step 6). Come in too flat and lift bounces you back to space — the shallow ceiling (Step 7); roll lift downward to commit. The corridor is the safe band between those two, and cranking up $L/D$ pries it wider (Steps 7–9). Every edge — grazing, vertical, no-lift, over-tilt, knife-edge bank — sits predictably on one side or the other (Step 8).

Recall Quick self-test

Why does danger scale with $V^2$, not $V$? ::: You sweep up twice the air and hit each bit twice as hard — two effects of speed multiply. What does setting $d(L/D)/d\alpha =0$ find? ::: The top of the $L/D$ hill (flat slope), i.e. the optimal angle of attack. Which boundary does a steep entry threaten? ::: The undershoot (g-load / heating) wall. How do you stop a skip-out? ::: Roll to $\sigma \approx 180^{\circ }$ so lift points down and forces $\dot{\gamma }<0$. What happens to corridor width as $L/D\to 0$? ::: It shrinks to its narrowest — a pure ballistic capsule has almost no margin.

---
