Reentry corridor — angle of attack constraints: Foundations

Before you can read a single equation on the Reentry corridor — angle of attack constraints page, you need the vocabulary. This page assumes you have seen nothing. We build each symbol from a picture, then say why the topic needs it.

1 — What is an angle, and why "horizontal"?

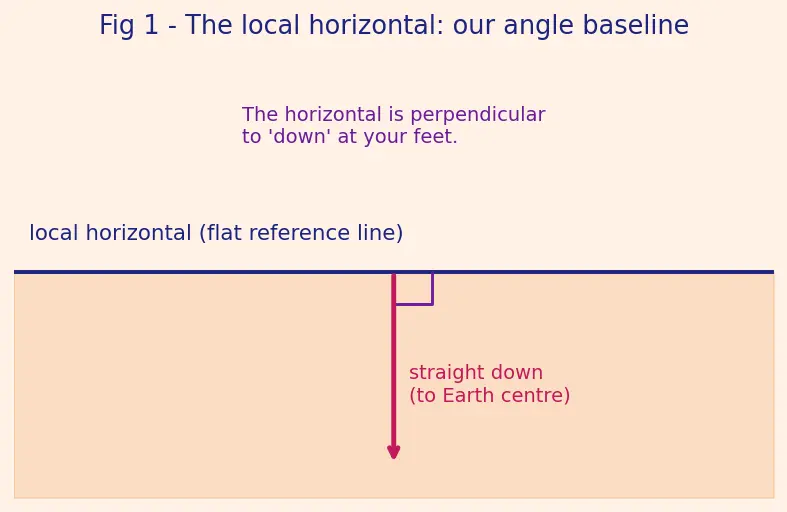

Everything here is measured relative to the local horizontal — an imaginary flat line tangent to the ground beneath you, like the surface of a calm sea at your feet.

Figure — Reentry corridor — angle of attack constraints

Why the topic needs it. "Too steep" and "too shallow" are meaningless without a baseline. The horizontal is that baseline.

2 — The velocity vector $V$ and $V$

A vector is an arrow: it has a length (how much) and a direction (which way).

Why the topic needs it. The oncoming air hits the vehicle along $V$ . Both the steering angles and the braking force are built on this one arrow.

3 — Flight path angle $γ$ (gamma) — how steeply you dive

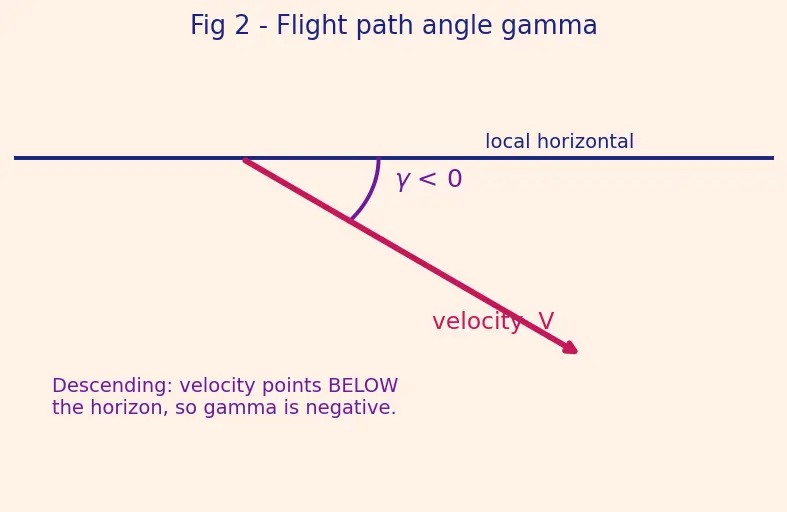

Now put the velocity arrow next to the horizontal line. The angle between them is $γ$ .

Case check — all signs of $γ$ :

$γ = - 6 0^{\circ}$ → nearly straight down → dangerous undershoot (too steep).
$γ = - 6. 5^{\circ}$ → gentle dive → the Apollo value, near the middle of the corridor.
$γ = - 0. 5^{\circ}$ → almost level → overshoot risk, you may skip off.
$γ = 0$ or $γ > 0$ → you are not entering at all.

4 — Angle of attack $α$ (alpha) and bank angle $σ$ (sigma)

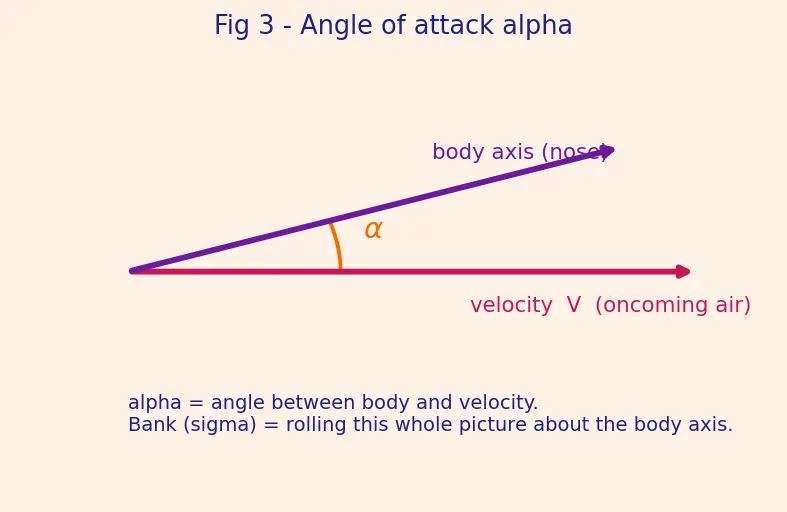

The vehicle is not a point — it has a body axis, an arrow drawn nose-to-tail through its middle.

Why the topic needs them. $α$ decides how big the air forces are; $σ$ decides which way lift points. Together they are the only steering the vehicle has once its engines are off.

5 — Air density $ρ$ and the exponential atmosphere

$ρ$ (the Greek letter "rho") is the mass of air packed into each cubic metre — thick at sea level, almost vacuum high up.

See Exponential Atmosphere Model for the full derivation. The number $e$ appears again in the peak-deceleration formula $\frac{V _{E}^{2} s i n γ _{E}}{2 eH}$ — it is not a coincidence: it falls straight out of this exponential.

Why the topic needs it. Density controls the brake force. Too much $ρ$ too fast → burn. Too little → bounce. The whole corridor is a fight with this one exponential.

6 — Dynamic pressure $q$ and the force formulas

Now combine speed and density. When air of density $ρ$ streams at you at speed $V$ , it presses on you with a dynamic pressure:

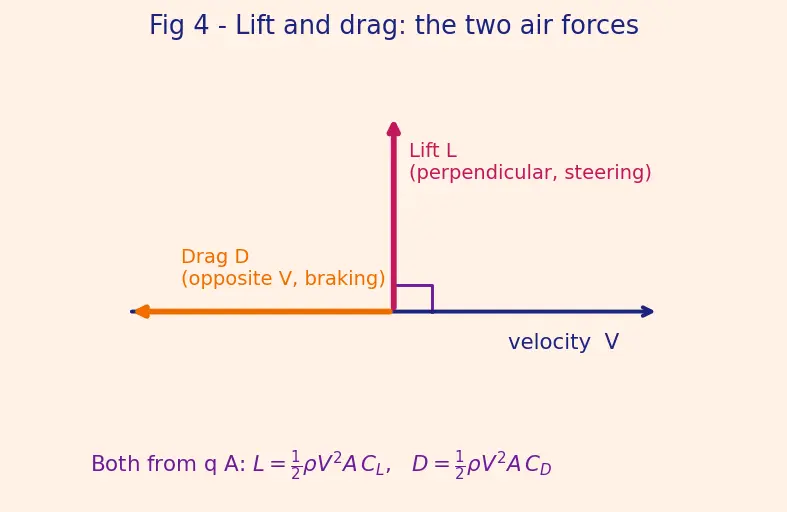

From $q$ we build the two air forces, using a reference area $A$ (the vehicle's frontal size) and two shape numbers $C_{L}, C_{D}$ :

Why the topic needs it. Every boundary of the corridor — heating, g-load, skip-out — is really a statement about $L$ and $D$ , which are just $q A$ times a coefficient.

Local horizontal ::: flat reference line at your position; all angles measured from it.
$γ$ (flight path angle) ::: angle of velocity below the horizon; negative when descending.
$γ_{E}$ ::: that angle at the moment of entry — the number the corridor bounds.
$α$ (angle of attack) ::: angle between body axis and velocity; the main steering knob.
$σ$ (bank angle) ::: roll that tilts the lift arrow up/down/sideways.
$ρ$ (density) and $H$ (scale height) ::: air thickness and how fast it thins with height, $ρ = ρ_{0} e^{- h / H}$ .
$q$ (dynamic pressure) ::: $\frac{1}{2} ρ V^{2}$ ; the "ramming pressure" of oncoming air.
$L, D, C_{L}, C_{D}$ ::: lift (sideways), drag (braking), and their tilt-dependent coefficients.
$L / D$ ::: steering per braking; large value = wide corridor.
$m, g, h, R, t, e$ ::: mass, gravity, altitude, Earth radius, time, and the constant $2.718 \dots$

Ready? Then go read Reentry corridor — angle of attack constraints and its Hinglish twin यहाँ →.
