Foundations — Static stability — weather-cocking tendency

This page assumes you have seen nothing. We will collect every symbol and idea the parent note leans on, define each in plain words, draw it, and say why the topic needs it — building each on the last.

1. Position along the rocket — measuring "how far from the nose"

Before we can talk about which point is in front of which, we need a ruler.

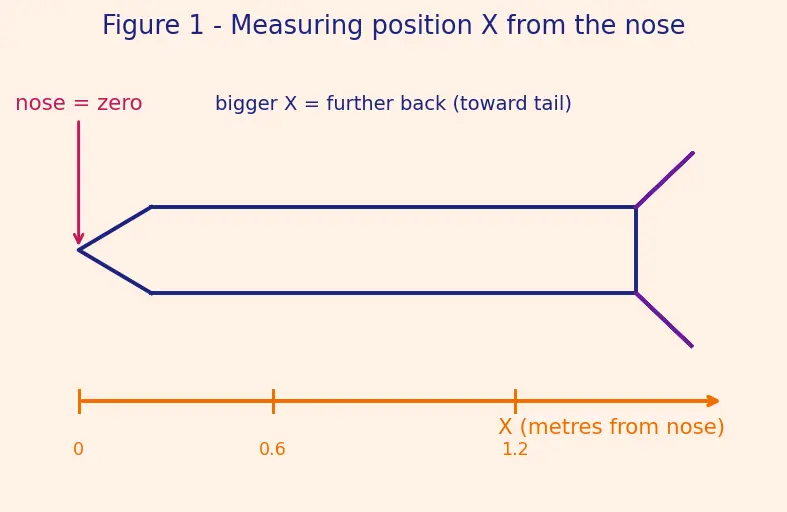

Picture: a straight arrow drawn from the nose tip pointing to the tail — this is the $X$-axis. Every special point on the rocket is just a tick mark on it.

Why the topic needs it: the whole stability question is "is one point behind another?" To answer "behind", you need a direction of measurement. We pick nose = 0, tail = large so "behind" simply means "bigger $X$".

2. Two special points: where mass acts, where air pushes

Picture: the rocket on its $X$-ruler with two dots — one labelled CG (the balance point), one labelled CP (the air-grab point). The core question of the whole topic is literally: which dot has the bigger $X$?

Why the topic needs them: stability is decided by the order of these two points. Nothing else in the parent note makes sense until CG and CP are separate ideas.

See Centre of Mass and Centre of Pressure for how each is actually located.

3. The lever arm $\ell$ — turning two positions into one number

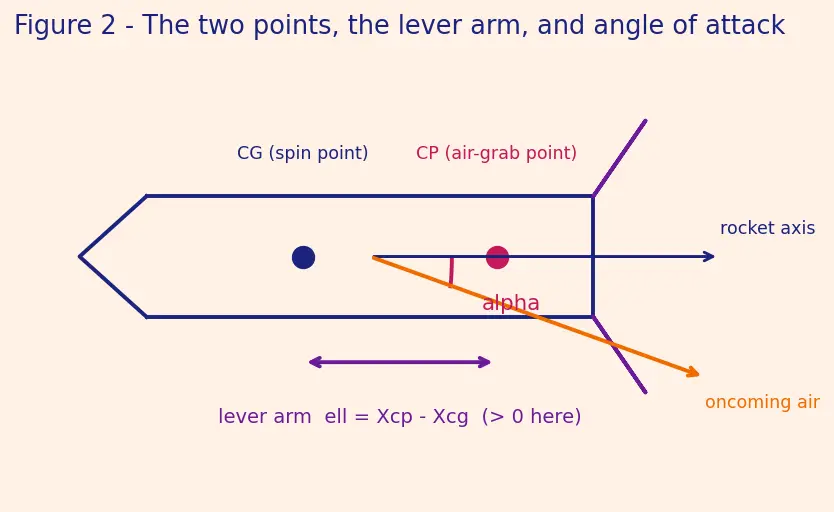

Picture: the gap between the two dots from §2, drawn as a little segment with an arrow. If the CP-dot is to the right (bigger $X$) of the CG-dot, that gap is positive.

Why the topic needs it: a lever arm is the "handle length" of a twist. A force far from the pivot twists strongly; a force at the pivot twists not at all. To measure the twist that straightens the rocket, we need this distance.

4. Angle of attack $\alpha$ — how "sideways" the flight is

Picture: the rocket axis as one arrow, the airflow as a second arrow hitting the nose at a small wedge angle; the wedge is $\alpha$.

• $\alpha =0$ → flying perfectly straight into the air, no sideways push.
• Small $\alpha$ (a gust nudges the nose) → a little sideways push appears.
• The bigger $\alpha$, the harder the air shoves sideways.

Why the topic needs it — and why an angle rather than a distance: a disturbance to a pointing object is naturally a rotation, and rotations are measured in angles. Static stability asks: "after a small $\alpha$ appears, does the rocket push $\alpha$ back to zero?" So $\alpha$ is the disturbance itself.

More in Angle of Attack and Aerodynamic Forces.

Radians vs degrees — the unit $\alpha$ hides in

Why the topic needs it: the force formula multiplies $\alpha$ by a slope $C_{N_{\alpha }}$ that is "per radian". Feed it degrees and the answer is wrong by a factor of $57.3$. The parent's Example 2 converts $5^{\circ }\to 0.0873$ rad for exactly this reason.

5. The air's strength: density $\rho$, speed $V$, dynamic pressure $q$

Picture: wind hitting your palm out of a car window. Denser air (bigger $\rho$) or faster air (bigger $V$) hits harder — and it grows with $V^2$, so doubling the speed quadruples the punch.

Why the topic needs it, and why the $V^2$: every aerodynamic force starts from $q$. It squares $V$ because faster air brings more molecules per second (one factor of $V$) each carrying more momentum (another factor of $V$). See Dynamic Pressure and Aerodynamic Coefficients.

6. Reference area $A$ and the normal-force slope $C_{N_{\alpha }}$

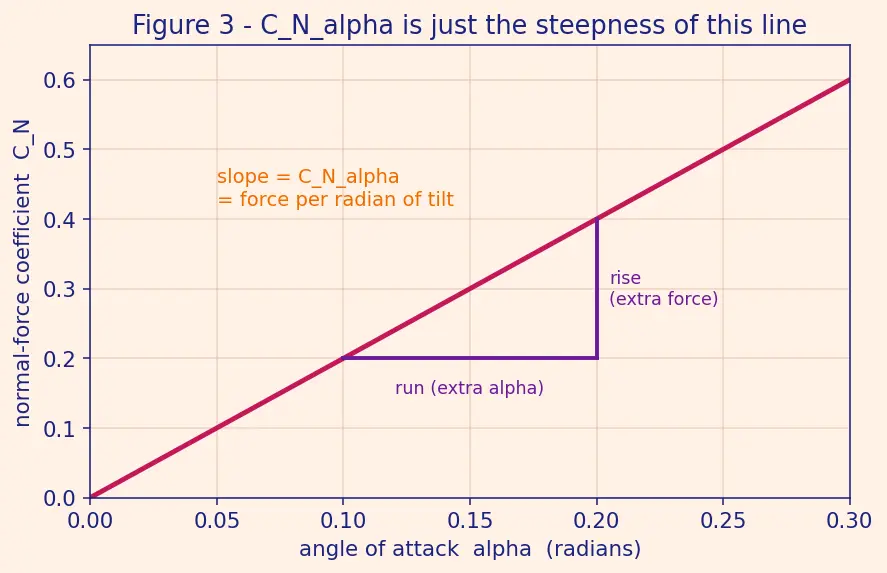

So for small tilts, force-coefficient $\approx$ slope $\times$ tilt: $C_N\approx C_{N_{\alpha }}\alpha$.

Why the topic needs it: it is the single number linking "how tilted" to "how much push", so the fins' effectiveness lives here. See Dynamic Pressure and Aerodynamic Coefficients and Fin Design and Sizing.

7. Normal force $N$, torque/moment $M$, and the crucial minus sign

• $\ell >0$ (CP behind CG): $M$ opposes $\alpha$ → stable.
• $\ell <0$ (CP ahead of CG): $M$ adds to $\alpha$ → unstable.

The stability test in one line: $\frac{dM}{d\alpha }<0⟺\ell >0$.

8. Static Margin — comparing rockets fairly

Why divide by $d$: raw $\ell$ in metres can't compare a pencil rocket to a telephone-pole rocket. Measuring the gap in its own diameters gives one universal number: aim for 1 to 2 calibers. See Barrowman Equations for CP location for finding $X_{cp}$ and Fin Design and Sizing for setting it.

How the foundations feed the topic

The chain reads: measure positions → find the two points → get the lever arm; separately, the air (density, speed, area, slope) plus the tilt makes the force; force times lever arm gives the twist; the twist's sign is stability. This all rolls into the parent topic. Next steps build on it: Dynamic Stability and Oscillation Damping, Thrust Vectoring vs Passive Stability.

Equipment checklist
