Real gas effects — dissociation, recombination: Foundations

This page assumes you know nothing about the notation in the parent topic. We build every symbol, one at a time, each earning the next. By the end you should be able to read the parent note without ever meeting an unexplained squiggle.

0 — What is a molecule, and what is a "bond"?

Before any symbol, the picture. A molecule is a small group of atoms held together by chemical bonds — think of atoms as balls and a bond as a stiff spring joining two balls.

Figure — Real gas effects — dissociation, recombination

The Greek letter $Δ$ ("delta") always means "change in" or "amount of". $H$ stands for enthalpy — for us, simply "heat content at constant pressure". So $Δ H_{d}$ = "heat needed to break the bonds".

1 — Temperature $T$ and the "wildness" of collisions

The picture: molecules are bouncing balls. Cold = gentle bumps. Hot = smashing into each other. When a smash is harder than the bond's spring can survive, the molecule breaks. That is why heat causes dissociation.

$T_{0}$ = a reference / starting temperature (e.g. before combustion).
$T_{c}$ = the chamber temperature, the temperature reached inside the combustion chamber.

The little letter written low ("subscript") is just a label. $T_{c}$ is not $T$ times $c$ — it is "the $T$ that belongs to the chamber."

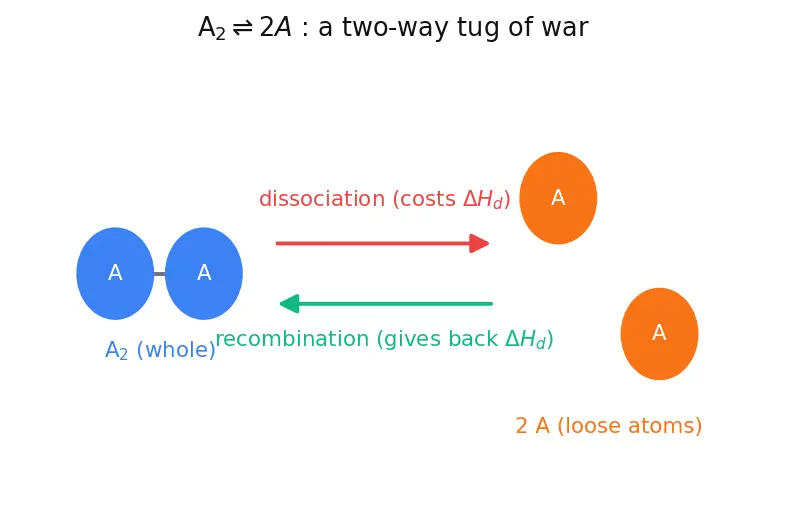

2 — Dissociation and recombination as a two-way arrow

Now we can name the two events.

We write both at once with a double arrow $⇌$ : $A_{2} ⇌ 2 A$

Read it plainly: " $A_{2}$ " is a molecule made of two identical atoms A stuck together. The top arrow ( $\to$ ) is breaking apart into two loose atoms. The bottom arrow ( $\leftarrow$ ) is them sticking back. The number 2 in front of A means "two of them". Nothing is created or destroyed — atoms are just re-arranged.

3 — Degree of dissociation $α$ : one number for "how broken?"

We need a single dial from 0 (nothing broken) to 1 (everything broken).

The picture: a jar of 100 molecules. If 10 have split, $α = 10/100 = 0.10$ . Cover all cases:

$α = 0$ → nothing dissociated (cold gas, or bonds too strong). Behaves like an ordinary gas.
$α = 1$ → everything torn to atoms (extreme heat).
$0 < α < 1$ → the real, in-between situation inside a rocket.

Why the topic needs it: $α$ is the one knob that ties temperature, pressure and energy together. Every "lever" in the parent note is really "how does something change $α$ ?"

4 — Counting particles: moles $n$ and molar mass $M$

Picture: $n$ is a headcount; $M$ is the average weight per head.

Here is the subtle point the whole topic leans on. When one molecule $A_{2}$ splits into two atoms A, the total mass is unchanged but the number of particles goes up (1 → 2). So the average weight per particle — the molar mass $M$ — goes down.

This is why later the exhaust can actually get faster: lighter gas squirts out more easily.

5 — Specific heat $c_{p}$ and the enthalpy balance

The bar in $\overset{c}{ˉ}_{p}$ just means "averaged" over the temperature range (since $c_{p}$ itself drifts with temperature in a real gas).

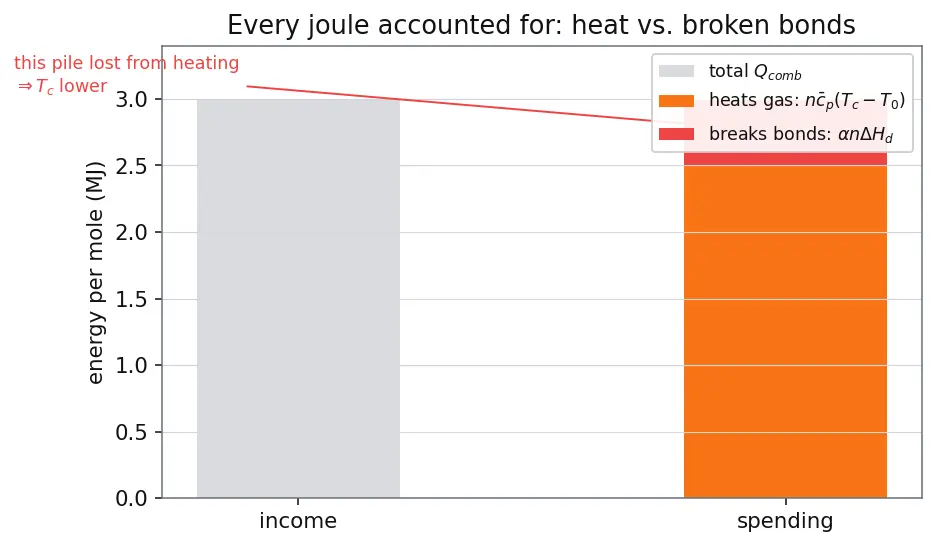

Now we can read the parent's core energy equation. It says: the heat from burning is split into two piles — $Q_{co mb} = pile 1: heats the gas n \overset{c}{ˉ}_{p} (T_{c} - T_{0}) + pile 2: breaks bonds α n Δ H_{d}$

Symbol by symbol:

$Q_{co mb}$ = total heat released by combustion (our income).
$(T_{c} - T_{0})$ = the temperature rise, "how much hotter we got."
$n \overset{c}{ˉ}_{p} (T_{c} - T_{0})$ = heat that actually raised temperature (headcount × heat-per-degree × degrees).
$α n Δ H_{d}$ = heat stolen to break bonds (fraction broken × headcount × cost per bond).

6 — Pressure $p$ and the equilibrium constant $K_{p}$

We need a rule that predicts how much breaks apart at a given $T$ and $p$ . That rule is the equilibrium constant $K_{p}$ .

You do not need to derive $K_{p}$ here — that is the job of Chemical Equilibrium and Kp. You only need to read it as: "big $K_{p}$ → equilibrium favours the broken (right) side."

The key qualitative fact, from Le Chatelier's Principle:

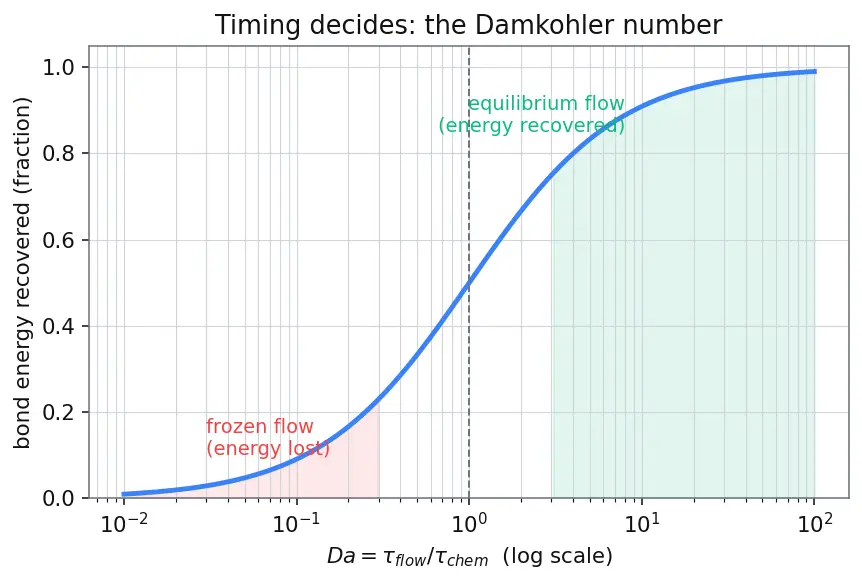

7 — Two timescales: flow time, chemistry time, and the Damköhler number

The last idea is about timing. As gas rushes down the nozzle it cools; cooling wants the pieces to recombine. But recombination is not instant — do the pieces have time to re-stick before they leave?

Compare them with a single ratio — the Damköhler Number: $D a = \frac{τ _{f l o w}}{τ _{c h e m}}$

Cover both extremes:

$D a ≫ 1$ (flow slow, chemistry fast) → plenty of time → pieces fully recombine → equilibrium flow, energy recovered.
$D a ≪ 1$ (flow fast, chemistry slow) → no time → pieces stay broken → frozen flow, energy lost.
$D a \approx 1$ → the messy real case, in between.

That single ratio decides whether the stolen bond energy comes back as thrust.

Prerequisite map

Everything on the left feeds the one box on the right: how dissociation and recombination change the rocket's exhaust.

Equipment checklist

Cover the right side; say the answer aloud before revealing.

What does the symbol

Δ H_{d}

mean and per what amount is it measured?

The energy to break bonds (bond dissociation enthalpy), measured per mole of molecules broken.

What is the difference between

T_{0}

and

T_{c}

T_{0}

is a reference/starting temperature;

T_{c}

is the temperature reached inside the combustion chamber.

Why do we use a double arrow

⇌

instead of

\to

Because breaking and re-forming happen simultaneously — it is a two-way balance, not a one-way finish.

In words, what is

α

and what range can it take?

The degree of dissociation, the fraction of molecules that have broken apart;

0 \leq α \leq 1

When a molecule splits into two atoms, does the molar mass

M

go up or down, and why?

Down — same total mass but more particles, so lower average mass per particle.

Q_{co mb} = n \overset{c}{ˉ}_{p} (T_{c} - T_{0}) + α n Δ H_{d}

, what does each of the two piles represent?

First pile = heat that raised the gas temperature; second pile = heat stolen to break bonds.

What does the bar in

\overset{c}{ˉ}_{p}

signify?

An average value of the specific heat over the temperature range.

What does

K_{p}

tell you, and what does it depend on?

The balance point of the reaction (how much broken vs. whole); it depends only on temperature.

Which way does raising pressure

p

push

α

, and by which principle?

It lowers

α

(suppresses dissociation), by Le Chatelier's principle.

What are

τ_{f l o w}

and

τ_{c h e m}

Residence time of gas in the nozzle, and the time the recombination reaction takes.

D a ≫ 1

, is the flow frozen or in equilibrium?

Equilibrium — chemistry is fast enough to keep up, so bond energy is recovered.

D a ≪ 1

, what happens to the bond energy?

It stays locked in broken bonds (frozen flow) and is lost as thrust.
