Optimum expansion — P_e = P_a for maximum thrust: Question bank

This page is a misconception minefield. Every item below targets a specific way students get $P_{e} = P_{a}$ wrong. Read the question, cover the answer, and say your reasoning out loud before revealing. If your reason differs from the answer even when your yes/no matches — that's a trap you fell into.

New here? Build the concept first on the parent note: the derivation, and lean on Thrust equation derivation, Isentropic flow relations, and Nozzle expansion ratio for the machinery.

Symbols you'll need on this page

Before any trap, here is every symbol used below, in plain words and units. Nothing on this page uses a letter that isn't listed here first.

Definition The cast of characters

$P_{e}$ = exit pressure — the gas pressure at the very mouth (exit plane) of the nozzle, in pascals (Pa). Look at the red exit plane in the figure below.
$P_{a}$ = ambient pressure — the pressure of the surrounding air pushing back on that same plane (Pa). Falls as you climb: ~1 bar at sea level, ~0 in space.
$P_{0}$ = chamber (stagnation) pressure — the high pressure inside the combustion chamber before the gas starts moving (Pa).
$v_{e}$ = exhaust velocity — how fast the gas leaves the exit plane (m/s).
$A_{e}$ = exit area — the area of the nozzle mouth (m²).
$A^{*}$ = throat area — the area at the narrowest point of the nozzle (m²), where the flow reaches the speed of sound.
$\overset{m}{˙}$ = mass flow rate — kilograms of exhaust leaving per second (kg/s). The dot means "per second."
$ρ_{e}$ = exit density — mass of gas per cubic metre at the exit (kg/m³).
$ε$ = expansion (area) ratio — how much wider the mouth is than the throat, $ε = A_{e} / A^{*}$ . A pure number, defined fully in the next callout.

Figure — Optimum expansion — P_e = P_a for maximum thrust

Intuition Where does Euler's relation

$ρ_{e} v_{e} d v_{e} = - d P_{e}$ come from? Take a thin slab of gas of area $A_{e}$ and thickness $d x$ moving at speed $v_{e}$ . Newton's second law on that slab: the net pressure force pushing it, $- A_{e} d P_{e}$ (higher pressure behind, lower ahead), equals its mass $ρ_{e} A_{e} d x$ times acceleration $d v_{e} / d t$ . Since $d x / d t = v_{e}$ , the $A_{e}$ and $d t$ cancel and you're left with $ρ_{e} v_{e} d v_{e} = - d P_{e} .$ Multiply by $A_{e}$ and use $\overset{m}{˙} = ρ_{e} v_{e} A_{e}$ : this becomes $\overset{m}{˙} d v_{e} = - A_{e} d P_{e}$ . Why it matters: when you differentiate the thrust, this term exactly cancels the $+ A_{e} d P_{e}$ from the pressure term, leaving only $(P_{e} - P_{a}) d A_{e}$ — which can only vanish at $P_{e} = P_{a}$ . That single cancellation is the whole derivation. The force-balance on the slab is sketched below.

True or false — justify

Setting

P_{e} = P_{a}

always gives the largest possible exhaust velocity

v_{e}

False — a lower

P_{e}

(a longer nozzle) always gives a larger

v_{e}

by the isentropic velocity law (see the rising curve in s02). Optimum expansion maximizes thrust, which balances that extra velocity against the pressure-force loss, not raw velocity.

At the optimum condition, all the thrust comes from the momentum term

\overset{m}{˙} v_{e}

True — because the pressure term

(P_{e} - P_{a}) A_{e}

vanishes when

P_{e} = P_{a}

, leaving

F = \overset{m}{˙} v_{e}

exactly.

A nozzle designed for sea level is over-expanded once it climbs into thin air.

False — it is under-expanded at altitude. As the rocket rises,

P_{a}

drops below the fixed

P_{e}

, so

P_{e} > P_{a}

, which is the under-expanded regime.

P_{e} > P_{a}

the pressure term subtracts from thrust because the atmosphere pushes back.

False — by the sign convention

(P_{e} - P_{a})

, when

P_{e} > P_{a}

the term is positive and adds to thrust; the exhaust pressure pushes the exit rim outward more than the atmosphere pushes back.

For a fixed nozzle, thrust is highest in vacuum.

True — vacuum means

P_{a} = 0

, so the pressure term

(P_{e} - 0) A_{e}

is as large as it can be for that geometry, and no atmosphere resists the exhaust.

Over-expansion is dangerous mainly because thrust drops a little.

False — the real hazard is flow separation inside the nozzle: the exhaust peels off the wall unevenly, causing side-loads and vibration that can break the nozzle, not just a small thrust loss. See Supersonic flow separation.

The optimum expansion ratio

ε

depends only on the chamber conditions.

False — it also depends on the ambient pressure you're targeting, since optimum means

P_{e} = P_{a}

and the ratio

P_{0} / P_{e}

fixes

ε

. Different altitudes ⇒ different optimum

ε

Two engines with the same

\overset{m}{˙}

and

P_{e} = P_{a}

must produce identical thrust.

False — thrust also depends on

v_{e}

, which depends on how far the gas expanded (

P_{0} / P_{e}

). Same

P_{e}

but different chamber pressure gives different

v_{e}

and different thrust.

Spot the error

"To maximize thrust, take

\frac{d F}{d P _{e}} = 0

holding

v_{e}

and

A_{e}

constant, giving no useful condition."

The error is holding

v_{e}

and

A_{e}

fixed — they are locked to

P_{e}

through the geometry

ε

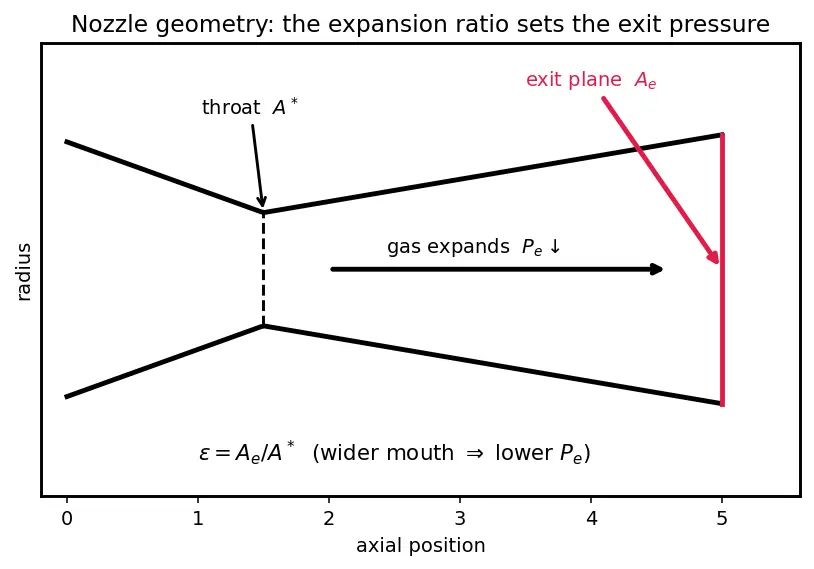

(figure s01). Along the isentrope they must vary together, and doing so correctly yields

P_{e} = P_{a}

"Since

F = \overset{m}{˙} v_{e} + (P_{e} - P_{a}) A_{e}

, just make

P_{e}

huge to maximize the pressure term."

You cannot make

P_{e}

huge independently; raising

P_{e}

means a shorter nozzle (smaller

ε

), which gives a smaller

v_{e}

. The two terms trade off, and the peak is at

P_{e} = P_{a}

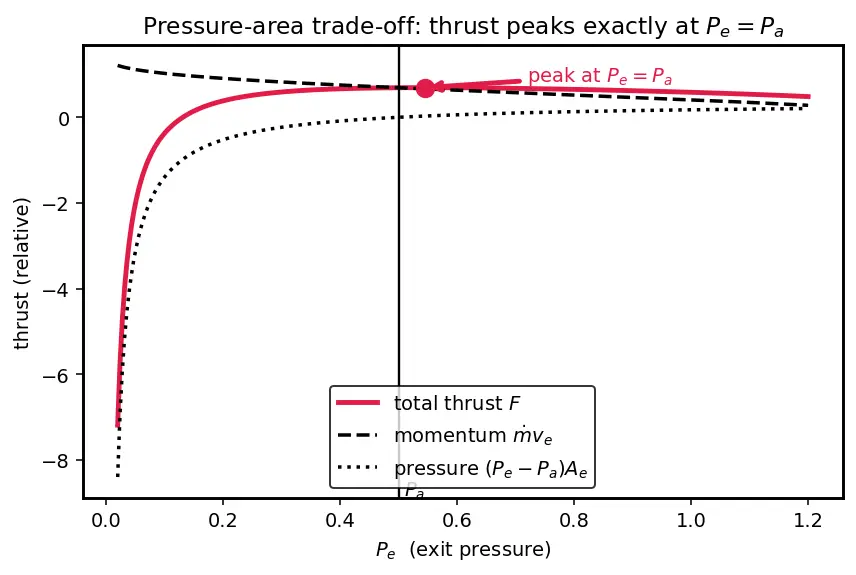

(figure s03).

"At optimum,

\frac{d A _{e}}{d P _{e}} = 0

, so the surviving term vanishes."

Wrong reason.

\frac{d A _{e}}{d P _{e}}

is not zero — opening the nozzle genuinely changes area. The term

(P_{e} - P_{a}) \frac{d A _{e}}{d P _{e}}

vanishes because the other factor,

(P_{e} - P_{a})

, is zero.

"In the derivation, the momentum term and the whole pressure term cancel, so thrust is flat everywhere."

Only the

A_{e} d P_{e}

piece of the pressure term cancels the momentum change (via Euler's relation, s04). The leftover piece

(P_{e} - P_{a}) d A_{e}

does not cancel — that's exactly the term that pins the optimum.

"Under-expanded means the nozzle is too long, so the gas over-expands."

Reversed. Under-expanded = nozzle too short; the gas exits still at

P_{e} > P_{a}

and finishes expanding outside. Over-expanded (too long) is the

P_{e} < P_{a}

case.

"The pressure force acts on the throat area

A^{*}

, so we should use

A^{*}

in the thrust equation."

The exit-plane pressure imbalance acts over the exit area

A_{e}

, not the throat. The throat only fixes the choked mass flow

\overset{m}{˙}

"At

P_{e} = P_{a}

the exhaust stops accelerating the moment it leaves, so it's the most efficient."

The efficiency claim is right but the mechanism is garbled. It's optimal because the net pressure force on the exit plane is zero, so no thrust is being spent fighting a pressure mismatch — not because the gas "stops accelerating."

Why questions

Why can we treat

P_{e}

as the design parameter in the derivation even though it isn't independently adjustable?

Because

P_{e}

is a one-to-one label for the geometry: each expansion ratio

ε = A_{e} / A^{*}

produces exactly one exit pressure (figure s01). Parametrizing by

P_{e}

(while letting

A_{e}

v_{e}

follow along the isentrope) is just relabeling the choice of nozzle length.

Why does the momentum-thrust gain from a lower

P_{e}

not simply keep winning forever?

Because to get a lower

P_{e}

you keep enlarging

A_{e}

, and once

P_{e}

drops below

P_{a}

the pressure term

(P_{e} - P_{a}) A_{e}

goes negative and grows in magnitude, eating the velocity gains. The trade-off peaks exactly at

P_{e} = P_{a}

(figure s03).

Why does a rocket often use different engines or nozzles for different stages?

Lower stages fly in thick air (high

P_{a}

) needing modest

ε

; upper stages fly in near-vacuum (low

P_{a}

) needing large

ε

. No single fixed geometry is optimal across that range. See Rocket staging and Altitude compensation.

Why is Euler's relation

ρ_{e} v_{e} d v_{e} = - d P_{e}

the key that makes the derivation collapse so cleanly?

It comes from Newton's law on a gas slab (figure s04) and converts the momentum-term derivative

\overset{m}{˙} d v_{e} / d P_{e}

into exactly

- A_{e}

, which then cancels the

+ A_{e} d P_{e}

from the product rule. That cancellation is why only

(P_{e} - P_{a}) d A_{e}

survives.

Why do we say the throat is "choked" and what does that buy us in the derivation?

At the throat the flow reaches Mach 1 and

\overset{m}{˙}

becomes fixed by chamber conditions alone, independent of downstream geometry. That lets us treat

\overset{m}{˙}

as constant while we vary the nozzle to optimize.

Why does a vacuum-optimized nozzle perform badly at sea level?

It has a very low design

P_{e}

(large

ε

), so at sea level

P_{e} ≪ P_{a}

: strongly over-expanded, with a large negative pressure term and risk of flow separation. See Specific impulse for how this hurts efficiency.

Edge cases

In a perfect vacuum (

P_{a} = 0

), can the optimum condition

P_{e} = P_{a}

ever be truly met?

No — reaching

P_{e} = 0

requires an infinitely long nozzle (infinite

ε

). Real vacuum engines just use very large expansion ratios to make

P_{e}

small, accepting a tiny positive pressure term.

What happens to the thrust equation exactly at

P_{e} = P_{a}

The pressure term is identically zero, so

F = \overset{m}{˙} v_{e}

cleanly. This is the single point where "geometry" and "atmosphere" are in perfect balance.

At sea level with a strongly over-expanded nozzle, what physical event limits how bad things get?

Flow separation: the exhaust detaches from the walls partway down, effectively shortening the nozzle to a self-selected, less-over-expanded exit. It's damaging but it prevents the full theoretical pressure penalty. See Supersonic flow separation.

If the ambient pressure could somehow rise above the chamber pressure, what would the "optimum" mean?

It becomes meaningless — with

P_{a} > P_{0}

the flow won't even choke or exit supersonically; there's no expansion nozzle behaviour to optimize. Optimum expansion assumes

P_{0} > P_{a}

with a choked throat.

For a nozzle that is exactly optimally expanded, what happens to the thrust the instant the rocket rises 1 metre higher?

It immediately becomes slightly under-expanded (

P_{a}

dropped), so a positive pressure term appears — thrust actually rises with altitude for a fixed nozzle past its optimum point.

What is the "optimum" for a nozzle whose exit pressure equals ambient at only one altitude — is it optimal at all others?

No. It is optimal at exactly that one altitude; below it the nozzle is over-expanded, above it under-expanded. This single-point matching is the core motivation for Altitude compensation.

If two competing designs give the same thrust at your target altitude — one slightly under-expanded, one at

P_{e} = P_{a}

— which is genuinely optimal?

The

P_{e} = P_{a}

design, by definition, sits at the peak of the thrust-versus-

ε

curve; a design giving equal thrust while under-expanded is on the rising side and is not at the true maximum for that altitude.
