Foundations — Optimum expansion — P_e = P_a for maximum thrust

This page assumes you know nothing. Every letter in the parent note is unpacked below, each one built on the ones before it. Read top to bottom.

0. The four base measuring sticks

Before any physics symbol, we need the rulers everything is measured against. These four are the internationally agreed base units — you will meet all of them below.

The picture. Think of four labelled measuring tapes on the wall — one for how long, one for how heavy, one for how many ticks, one for how hot. Every symbol later is just some combination of these four.

Why the topic needs them. Area is metres $\times$ metres, speed is metres per second, mass flow is kilograms per second, temperature is in kelvin. If these rulers were undefined, none of the later symbols would have meaning.

1. Force $F$ and the newton

We define force first, because pressure (next section) is built from it.

The picture. Flick a $1\text{kg}$ water bottle across a smooth table; the strength of your flick is measured in newtons.

Why the topic needs it. Everything the rocket does is a force — the pressures push, the exhaust recoils. And thrust (the whole point of the topic) is a force.

2. Area $A$ and exit area $A_e$

The picture. Look straight down the throat of a rocket bell. The bright circle you see at the very end is the exit; its size is $A_e$.

Why the topic needs it. A push spread over a big surface is different from the same push on a tiny surface. To turn a "push-per-area" back into a total force you multiply by the area — which is exactly why the term $(P_e-P_a)A_e$ (introduced later) has an $A_e$ in it.

3. Pressure — the invisible push

Now that both force $F$ (section 1) and area $A$ (section 2) are defined, we can safely write the formula for pressure.

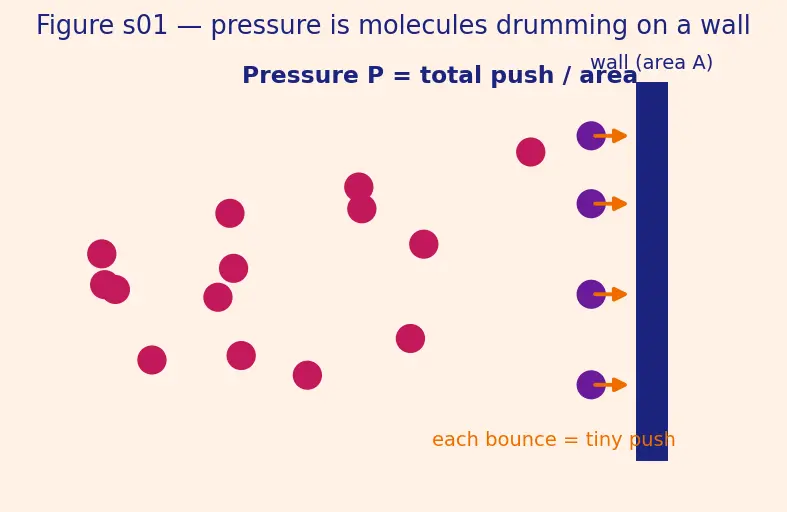

The picture. Imagine millions of tiny gas molecules zipping around inside a box, drumming on the walls. Each bounce is a tiny shove. Add up all those shoves on one square metre of wall — that total push-per-area is the pressure.

Why the topic needs it. The whole story is a contest between two pressures: the gas leaving the nozzle at pressure $P_e$, and the outside air at pressure $P_a$. Everything below compares these two numbers.

4. The two pressures in the topic: $P_e$ and $P_a$

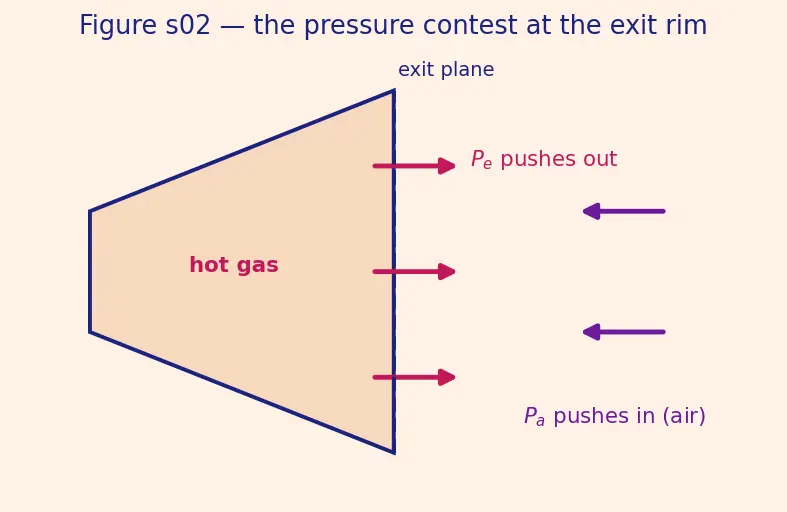

The picture. Stand at the nozzle rim. From inside, hot gas presses out ($P_e$). From outside, air presses in ($P_a$). Whoever pushes harder "wins" a little bit of extra or missing thrust.

Why the topic needs it. The entire result of the chapter is the single line $P_e=P_a$. You cannot read that line until you know these are two different pushes at the same place.

5. Thrust — the rocket's forward force

The picture. Every time you throw something backward, you recoil forward — like stepping off a skateboard. The rocket throws gas backward; the recoil forward is thrust.

Why the topic needs it. The goal of the whole topic is to make thrust as big as possible. "Optimum expansion" simply means the nozzle setting that maximises this forward force $F$.

6. Mass flow rate $\dot{m}$

The picture. Imagine a checkpoint at the nozzle mouth counting the mass of gas that passes it every second, like water gushing through a pipe measured in litres-per-second.

Why the topic needs it. Thrust from thrown-away gas is (mass thrown per second) $\times$ (how fast it's thrown). That is the $\dot{m}{v}_e$ term — the biggest part of thrust.

7. Exhaust velocity $v_e$

The picture. A single gas molecule at the exit plane, blurred by speed, tearing out of the bell at thousands of metres per second.

Why the topic needs it. Faster exhaust = more recoil. The topic's punchline is that at optimum expansion, all the engine's energy has gone into making $v_e$ large, and none is wasted on a pressure mismatch.

8. Putting it together: the thrust equation

Now every symbol in the parent's central formula is defined, so we can read it:

Read the second term with signs:

• If $P_e>P_a$: gas pushes harder than air → the term is positive, adds thrust.
• If $P_e=P_a$: the pushes cancel → the term is zero.
• If $P_e<P_a$: air pushes harder → the term is negative, steals thrust.

This is why the topic hunts for the middle case. (The full "why zero is the peak" is proved in Thrust equation derivation.)

9. The chamber conditions: $P_0$ and $T_0$

The picture. A sealed furnace of burning fuel: extremely hot ($T_0$, in kelvin), extremely high-pressure ($P_0$), barely moving. This is the reservoir the nozzle draws from.

Why the topic needs it — how $P_0,T_0$ become $P_e$ and $v_e$. As the gas rushes down the widening nozzle it cools and its pressure drops while its speed climbs — heat energy is traded for motion. Concretely, the further the gas expands, the lower $P_e$ falls and the higher $v_e$ climbs, following a fixed rule called the isentropic (constant-entropy) relations. In words: high starting $P_0$ and $T_0$ = a bigger "energy bank" to convert, so a well-expanded nozzle turns them into a large $v_e$ and a small $P_e$. You do not need the algebra here; just hold the chain $P_0,T_0\to \text{expansion}\to \text{lower }{P}_e,\text{higher }{v}_e$.

10. Two Greek helpers: $\gamma$ and $\epsilon$

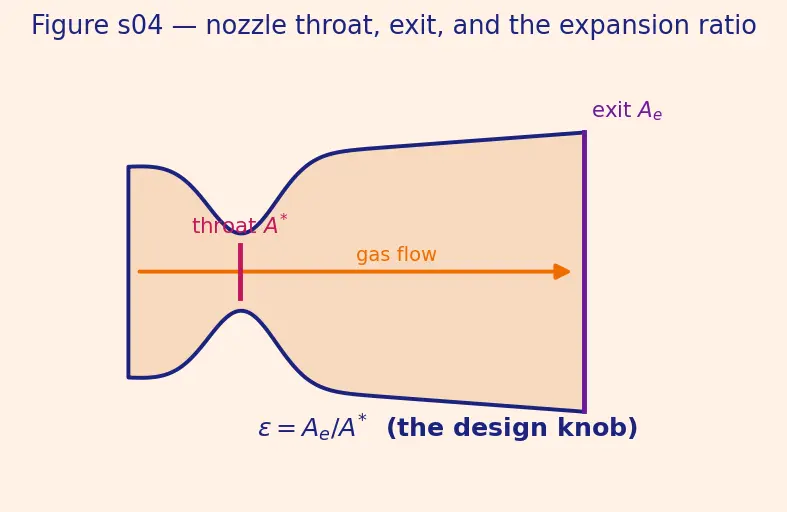

The picture. The nozzle is an hourglass laid on its side: gas squeezes through the thin waist ($A^{\ast }$) and then flares out to the wide exit ($A_e$). A big $\epsilon$ means a long, dramatically flaring bell.

Why the topic needs it. $\epsilon$ is the one knob the designer actually turns. Choosing $\epsilon$ fixes $P_e$, $v_e$, and $A_e$ all at once (through the isentropic relations from section 9). So "pick the nozzle for optimum thrust" really means "pick the right $\epsilon$". More on the geometry in Nozzle expansion ratio.

11. The "dot-on-top" and "d-something" notation

We already met the dot ($\dot{m}$ = "per second"). The last piece of notation is the letter d used in $\frac{dF}{d{P}_e}$.

The picture. Plot thrust $F$ up the page and $P_e$ across it. The curve rises, reaches a hilltop, then falls. At the very top of the hill the slope is flat — that flat point ($\frac{dF}{d{P}_e}=0$) is the maximum thrust, and it lands exactly at $P_e=P_a$.

Why the topic needs it. "Maximum" in mathematics = "flat slope". Setting this slope to zero is how the parent note proves $P_e=P_a$ is best rather than just asserting it.
