Visual walkthrough — Chamber-to-exit relation - all quantities as f(M_e, γ)

---

The words we will use (all defined before we compute)

The whole journey is one lump raised to different powers. Here is the skeleton of every result so you know where we are heading before we build each piece:

---

Step 1 — The energy bargain: speed is bought with heat

WHAT. A packet of gas carries thermal energy (its warmth) and kinetic energy (its motion). As it races down the nozzle it speeds up — but energy cannot appear from nowhere. So the extra motion must be paid for out of the warmth.

WHY this tool. We use energy conservation because it is the only law that connects a still hot state to a fast cold state without us knowing anything about the messy middle. The bookkeeping quantity is enthalpy $h$ — the gas's usable heat content. For an ideal gas $h=c_{p}T$, where $c_p$ is the heat capacity (how many joules warm one kilogram by one kelvin).

PICTURE. Look at the bucket diagram: the total energy bucket $h_0$ (the chamber, all warmth, no motion) empties into two smaller buckets at the exit — leftover warmth $h_e$ and new motion $\frac{1}{2}{V}_e^2$.

$$\underset{\begin{array}{c}\text{total energy}\\ \text{(chamber, still)}\end{array}}{\underbrace{c_p{T}_0}}=\underset{\begin{array}{c}\text{leftover}\\ \text{warmth}\end{array}}{\underbrace{c_p{T}_e}}+\underset{\begin{array}{c}\text{energy now}\\ \text{in motion}\end{array}}{\underbrace{\frac{V_e^2}{2}}}$$

Read it left to right: all the chamber's heat ($c_p{T}_0$) splits into the heat that survives ($c_p{T}_e$) plus the heat that became speed ($V_e^2/2$). Since the right side steals from warmth, $T_e$ must be smaller than $T_0$.

---

Step 2 — Turning "speed" into "Mach number"

WHAT. The equation above still has $V_e$ in it. We want everything in terms of $M_e$. So we swap out the raw speed for the Mach number.

WHY. $M_e$ is dimensionless and design-friendly — an engineer chooses it. Raw speed depends on temperature; Mach number bundles that dependence away. We use the two definitions we already built: $V_e=M_e{a}_e$ and $a_e=\sqrt{\gamma R{T}_e}$, so $V_e^2=M_e^2\gamma R{T}_e$.

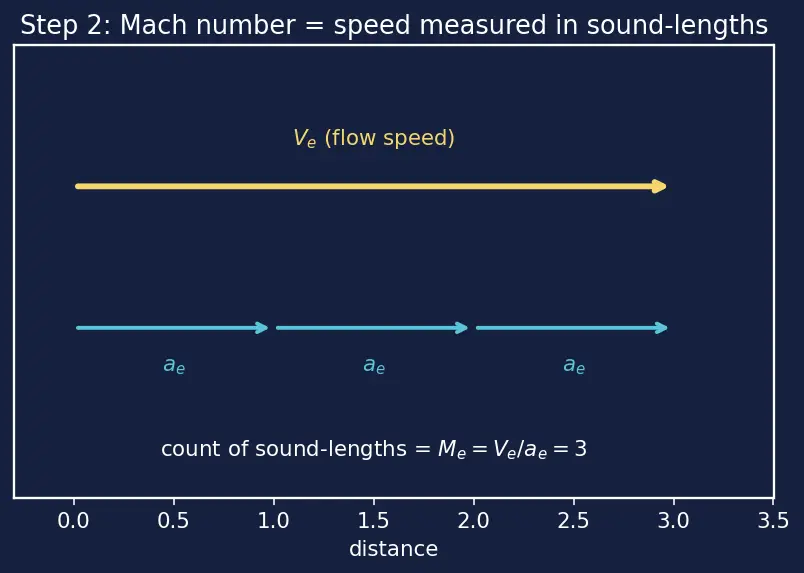

PICTURE. The figure lines up $V_e$ (the yellow arrow) against one "sound-length" $a_e$ (the blue tick). Counting how many blue ticks fit into the yellow arrow is $M_e$.

Divide the Step 1 equation by $c_p{T}_e$ and substitute. Using $c_p=\frac{\gamma R}{\gamma -1}$ (a standard identity for an ideal gas), the messy motion term collapses:

$$\frac{V_e^2}{2c_p{T}_e}=\frac{M_e^2\gamma R{T}_e}{2\cdot \frac{\gamma R}{\gamma -1}{T}_e}=\underset{\begin{array}{c}\text{the "kinetic tax"}\\ \text{on temperature}\end{array}}{\underbrace{\frac{\gamma -1}{2}{M}_e^2}}$$

Notice $\gamma R{T}_e$ on top cancels the $\gamma R{T}_e$ hiding in $c_p{T}_e$ on the bottom — the temperature vanishes, leaving only $M_e$ and $\gamma$. That cancellation is the whole magic trick.

---

Step 3 — The master temperature relation

WHAT. Put the collapsed term back. We get our first clean law.

WHY. This is the anchor equation. Everything downstream (pressure, density, velocity) is built by feeding this single expression into other physics.

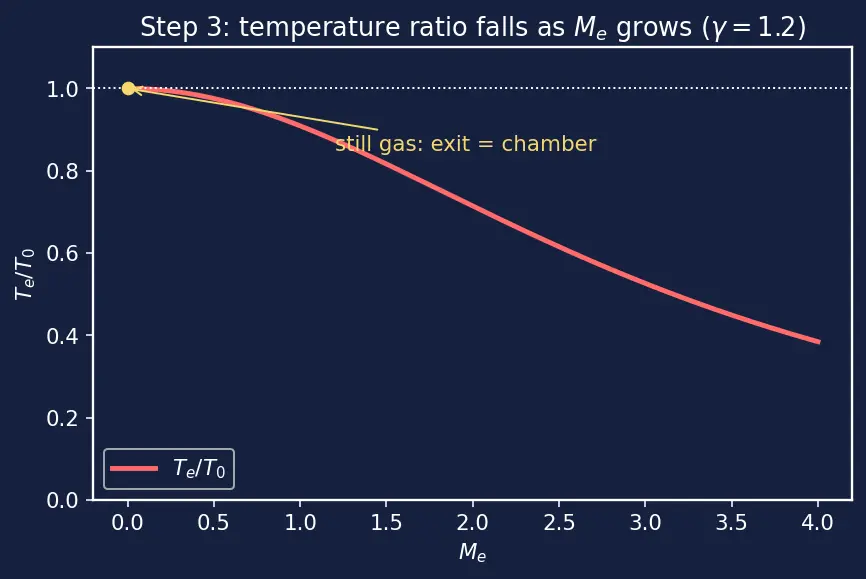

PICTURE. The curve shows $T_e/T_0$ sliding down as $M_e$ grows — steep at first, then levelling. At $M_e=0$ (gas frozen still) the ratio is $1$: exit = chamber. That is the sanity check every good formula must pass.

Call the whole bracket $\Phi \equiv 1+\frac{\gamma -1}{2}{M}_e^2$. This one lump reappears in every remaining step — spot it each time.

---

Step 4 — Pressure: the isentropic staircase

WHAT. We now find $P_e/P_0$ from $T_e/T_0$.

WHY this tool. Because the flow is isentropic (smooth, no heat leaking out, no shock jolts), temperature and pressure are locked together by the rule $\frac{P}{P_0}={\left(\frac{T}{T_0}\right)}^{\gamma /(\gamma -1)}$. This comes from combining $P{V}^{\gamma }=\text{const}$ with the ideal-gas law. We use it only because "isentropic" is guaranteed — see Isentropic Flow Relations.

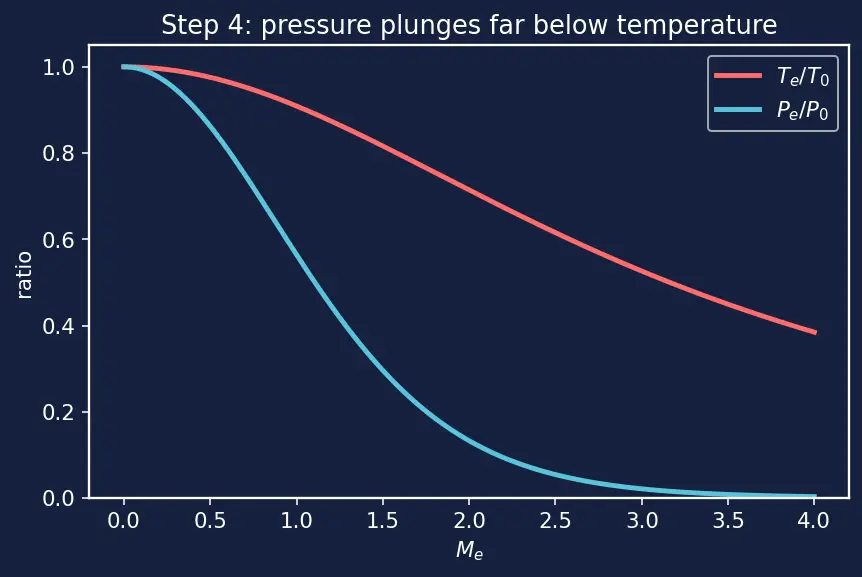

PICTURE. Two curves on one axis: temperature drops gently, pressure plunges. The pressure curve is the temperature curve raised to a big power, so a small temperature dip becomes a huge pressure dive.

$$\frac{P_e}{P_0}={\left(\frac{T_e}{T_0}\right)}^{\gamma /(\gamma -1)}=\underset{\text{same lump}}{\underbrace{\Phi }}{}^{-\gamma /(\gamma -1)}$$

---

Step 5 — Density: what's left over

WHAT. Density follows automatically — no new physics.

WHY. The ideal-gas law says $P=\rho RT$, so in ratio form $\frac{P_e}{P_0}=\frac{{\rho }_e}{{\rho }_0}\cdot \frac{T_e}{T_0}$. We already have two of the three ratios; the third falls out by division.

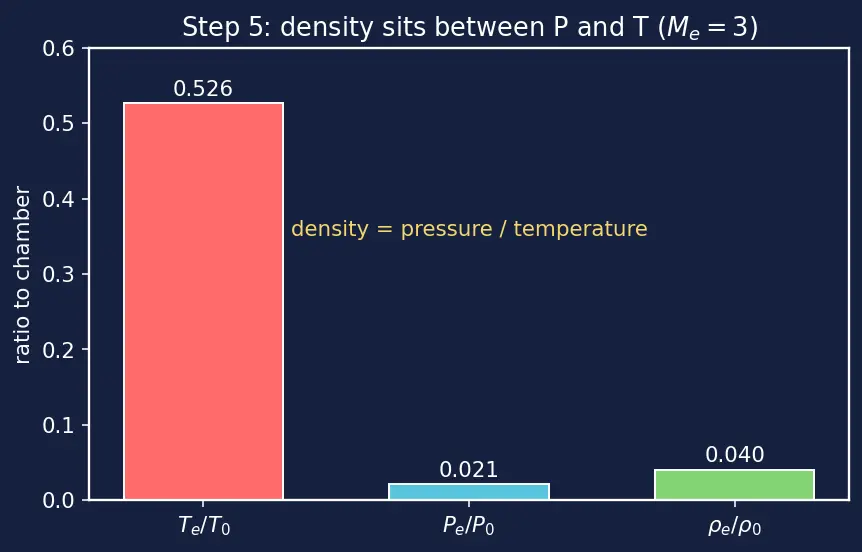

PICTURE. Three stacked bars for $M_e=3$: the pressure bar is the shortest, temperature the tallest, and density sits between — exactly the "pressure divided by temperature" arithmetic made visible.

$$\frac{{\rho }_e}{{\rho }_0}=\frac{P_e/P_0}{T_e/T_0}=\frac{{\Phi }^{-\gamma /(\gamma -1)}}{{\Phi }^{-1}}={\Phi }^{-\gamma /(\gamma -1)+1}={\Phi }^{-1/(\gamma -1)}$$

---

Step 6 — Exit velocity: cashing in the Mach number

WHAT. Turn $M_e$ back into a real speed in metres per second.

WHY. Thrust ultimately cares about how fast gas leaves, not the abstract Mach number. So we un-package $M_e=V_e/a_e$ and express $a_e$ through the chamber sound speed $a_0=\sqrt{\gamma R{T}_0}$.

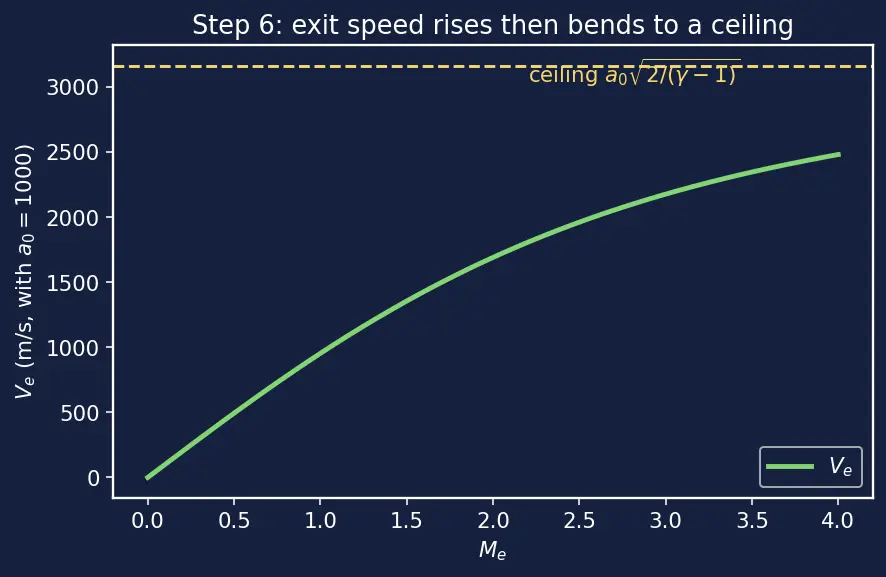

PICTURE. The velocity curve rises then bends over: fast gas needs high $M_e$, but high $M_e$ also chills the gas, which lowers the local sound speed and fights back. The ${\Phi }^{-1/2}$ factor is that pushback.

$$V_e=M_e{a}_e=M_e\sqrt{\gamma R{T}_e}=M_e\sqrt{\gamma R{T}_0}\cdot {\Phi }^{-1/2}$$

---

Step 7 — Area: the nozzle's shape is decided too

WHAT. Even the geometry — how wide the exit must be compared to the throat — is fixed by $M_e$ and $\gamma$.

WHY this tool. We use mass conservation: the same kilograms per second $\dot{m}=\rho AV$ pass every slice. So ${\rho }^{\star }{A}^{\star }{V}^{\star }={\rho }_e{A}_e{V}_e$, which rearranges to $\frac{A_e}{A^{\star }}=\frac{{\rho }^{\star }{V}^{\star }}{{\rho }_e{V}_e}$. If the gas gets thinner and faster downstream, the area must grow to keep $\dot{m}$ constant.

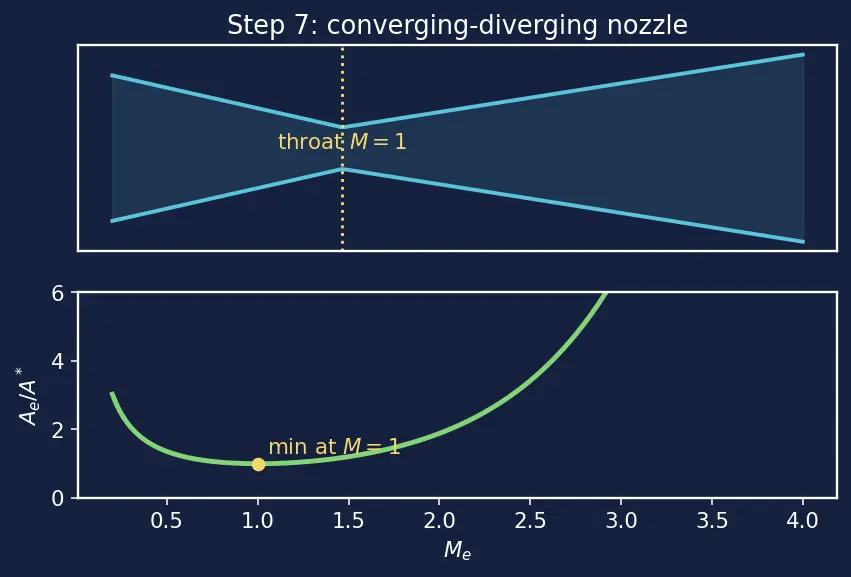

PICTURE. The nozzle outline: pinched throat ($M=1$), then flaring cone. The area-ratio curve below has a minimum at $M_e=1$ and climbs on both sides — subsonic and supersonic both need more area than the throat.

HOW the bracket and exponent appear. Write each factor relative to the chamber and let the lumps do the work:

• Density: $\frac{{\rho }^{\star }}{{\rho }_e}=\frac{{\rho }^{\star }/{\rho }_0}{{\rho }_e/{\rho }_0}=\frac{({\Phi }^{\star }{)}^{-1/(\gamma -1)}}{{\Phi }^{-1/(\gamma -1)}}={\left(\frac{\Phi }{{\Phi }^{\star }}\right)}^{1/(\gamma -1)}$.
• Speed: $V^{\star }=1\cdot a^{\star }=\sqrt{\gamma R{T}^{\star }}$ and $V_e=M_e\sqrt{\gamma R{T}_e}$, so $\frac{V^{\star }}{V_e}=\frac{1}{M_e}\sqrt{\frac{T^{\star }}{T_e}}=\frac{1}{M_e}{\left(\frac{\Phi }{{\Phi }^{\star }}\right)}^{1/2}$ (using $T^{\star }/T_0=({\Phi }^{\star }{)}^{-1}$).

Multiply the two and substitute ${\Phi }^{\star }=\frac{\gamma +1}{2}$:

$$\frac{A_e}{A^{\star }}=\frac{{\rho }^{\star }}{{\rho }_e}\cdot \frac{V^{\star }}{V_e}=\frac{1}{M_e}{\left(\frac{\Phi }{{\Phi }^{\star }}\right)}^{\frac{1}{\gamma -1}+\frac{1}{2}}=\frac{1}{M_e}{\left(\frac{2}{\gamma +1}\Phi \right)}^{\frac{\gamma +1}{2(\gamma -1)}}$$

The two half-power contributions add: $\frac{1}{\gamma -1}+\frac{1}{2}=\frac{2+(\gamma -1)}{2(\gamma -1)}=\frac{\gamma +1}{2(\gamma -1)}$ — that is where the strange exponent comes from. And $1/{\Phi }^{\star }=2/(\gamma +1)$ is the constant inside the bracket.

See Area Ratio and Mach Number for the branch structure.

---

Step 8 — The edge cases (never let the reader fall off the map)

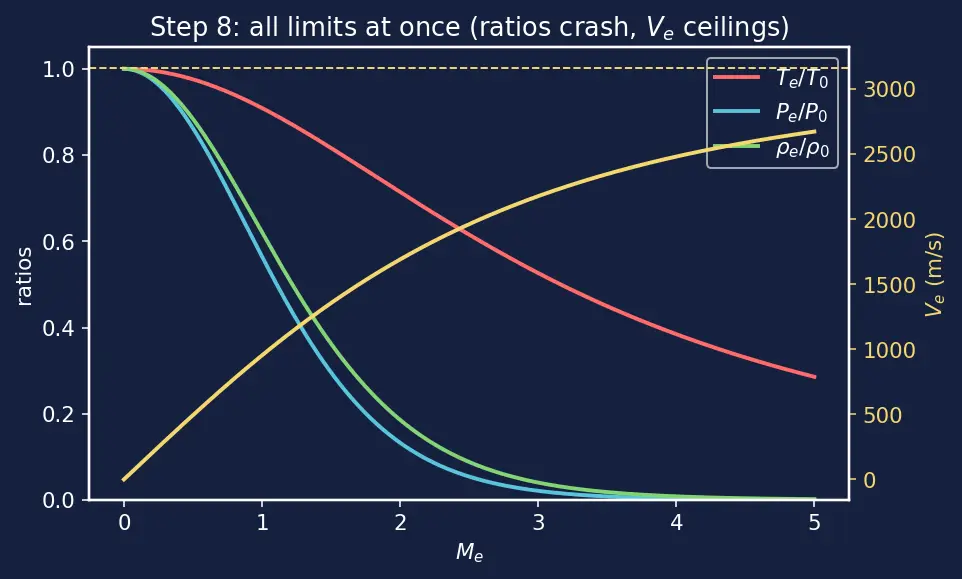

PICTURE. One chart with all three ratios ($T,P,\rho$) diving toward zero as $M_e$ grows, and the velocity curve flattening against its ceiling (dashed line). Every limit made visible at once.

---

The one-picture summary

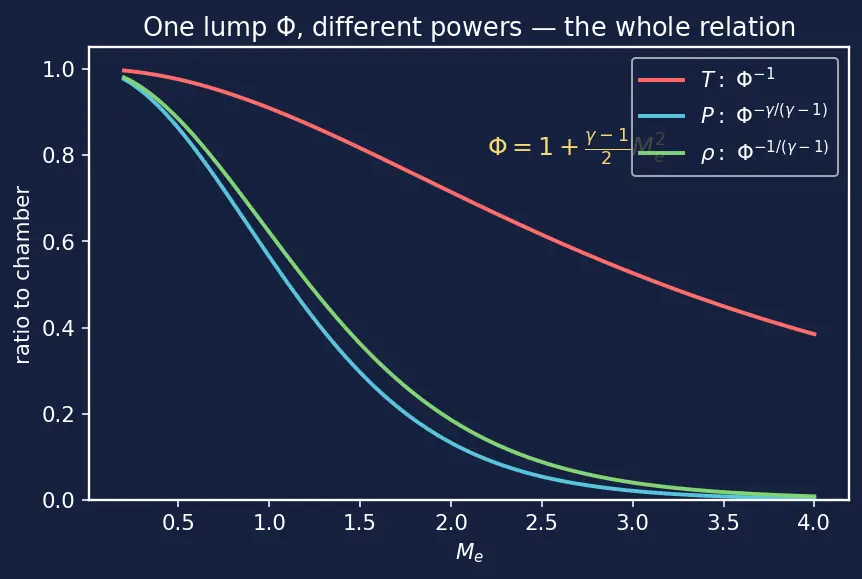

Everything on this page is one lump — $\Phi =1+\frac{\gamma -1}{2}{M}_e^2$ — raised to different powers. Choose $M_e$ and $\gamma$; the powers do the rest.

Quantity	Power on $\Phi$	Direction
$T_e/T_0$	$-1$	falls
$P_e/P_0$	$-\gamma /(\gamma -1)$	falls fastest
${\rho }_e/{\rho }_0$	$-1/(\gamma -1)$	falls
$V_e$	$M_e{a}_0\cdot {\Phi }^{-1/2}$	rises to a ceiling
$A_e/A^{\star }$	$+\frac{\gamma +1}{2(\gamma -1)}$ inside a bracket, $\times 1/M_e$	dips then rises

Recall Feynman retelling — the whole walkthrough in plain words

Picture a hot, still balloon of gas. You open a shaped hole and the gas rushes out. First law: energy is fixed, so as the gas speeds up it must cool — motion is bought with heat (Step 1). We measure the speed not in metres per second but in "how many times faster than sound," the Mach number, because that's the knob engineers turn (Step 2). Doing the algebra, temperature only depends on one lump $\Phi =1+\frac{\gamma -1}{2}{M}_e^2$ (Step 3). Because the flow is smooth and lossless, pressure is locked to temperature raised to a big power, so pressure crashes far harder than temperature (Step 4). Density is just pressure over temperature, so it thins out too (Step 5). Turn the Mach number back into real speed and you find high $M_e$ makes gas fast but also cold, and the coldness fights back, so speed hits a ceiling (Step 6). Finally, since the same mass must squeeze through every slice, the nozzle has to flare after the throat to keep up with the fast, thin gas — and comparing exit to the throat (where $M=1$, lump ${\Phi }^{\star }=\frac{\gamma +1}{2}$) is exactly what builds the bracket and its exponent (Step 7). Check the corners: still gas gives back the chamber, the throat matches itself, and infinite Mach gives zero everything but a finite top speed (Step 8). One lump, five different powers — that's the entire relation.
