Foundations — Chamber-to-exit relation - all quantities as f(M_e, γ)

This page assumes nothing. We meet each symbol the parent note throws around, give it a plain-words meaning, draw the picture it stands for, and say why the topic can't live without it. Read top to bottom — each rung of the ladder rests on the one below.

1. The scene: chamber, throat, exit

Before any symbol, picture the place everything happens in.

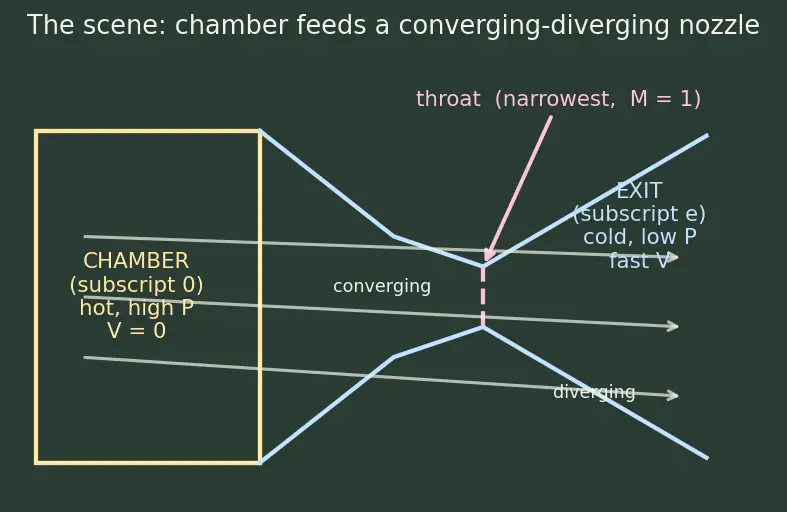

A rocket burns fuel in a fat closed pot — the chamber. Gas there is squashed, boiling hot, and barely moving. The only way out is a pipe that first squeezes (converging), pinches to a narrow throat, then flares open (diverging) to the open exit. This shape is the Converging-Diverging Nozzle.

Why do we need this picture? Every ratio in the parent — $T_e/T_0$, $P_e/P_0$ — is literally "value at the doorway divided by value in the storehouse". If you don't see the two places, the ratios are just floating letters.

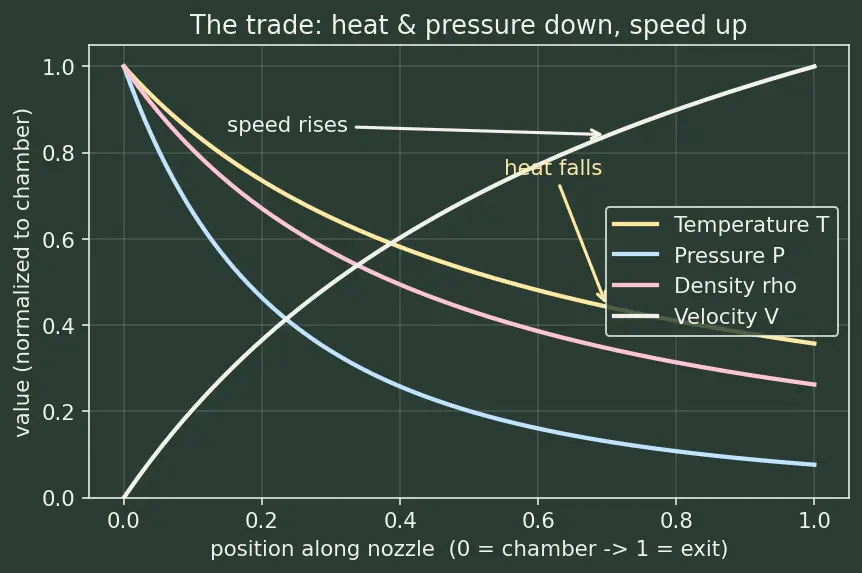

2. The gas' four vital signs: $T$, $P$, $\rho$, $V$

A parcel of gas is fully described by four measurable numbers. Meet them one at a time.

3. Two gas numbers we need first: $R$ and $\gamma$

The speed-of-sound formula in the next section uses two gas properties. Rather than spring them on you, let's earn them right here — they describe what kind of gas we have.

4. Speed of sound $a$ — the gas' own speed limit

Here is a symbol the parent uses ($a_e$, $a_0$) that we can now build from scratch, using $R$ and $\gamma$ from section 3.

Why should it have any particular formula? A sound wave is a little squeeze passing along. How fast a squeeze travels depends on two things: how stiff the gas is (how hard it pushes back when compressed) and how heavy it is (how sluggishly it responds). More stiffness ⇒ faster; more density ⇒ slower. The general law of waves is

$a=\sqrt{\frac{\text{stiffness}}{\text{density}}}=\sqrt{\frac{dP}{d\rho }}.$

Why $\gamma$ appears. A sound wave squeezes the gas so fast that no heat has time to leak — it is adiabatic. For an adiabatic squeeze of an ideal gas, the stiffness works out to $dP/d\rho =\gamma P/\rho$ (the $\gamma$ is precisely the "no heat escapes" correction). Now use the ideal-gas law $P/\rho =RT$ from section 3:

$a=\sqrt{\frac{\gamma P}{\rho }}=\sqrt{\gamma RT}.$

Why does this matter for a rocket? Because a gas behaves completely differently depending on whether it moves slower or faster than its own sound speed. Below $a$, pushes travel upstream and warn the gas ahead; above $a$, the gas outruns its own warnings — that's the supersonic world where nozzles do their magic.

5. Mach number $M$ — the master control knob

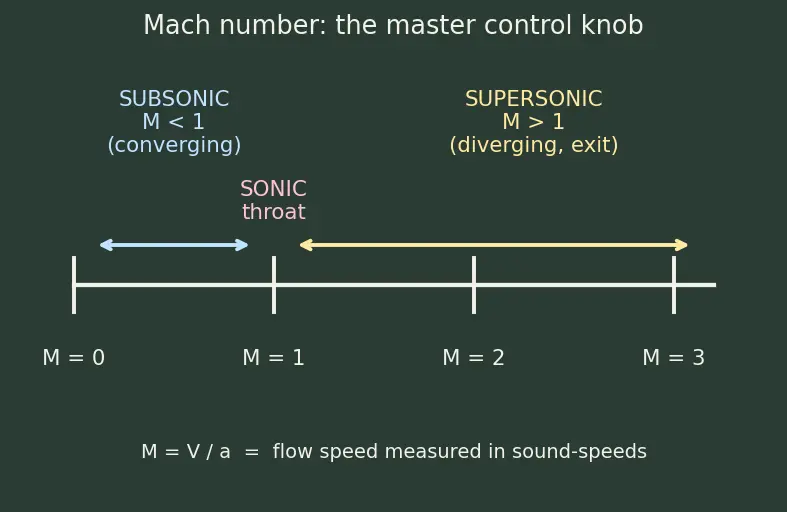

Why is $M_e$ the star of the whole topic? Look at the parent's formulas: every one is "$1+\frac{\gamma -1}{2}{M}_e^2$" raised to some power. Once you pick the exit Mach number $M_e$, that bracket is fixed, and so is every exit property. That's why the note calls $M_e$ the master control variable: set one dial, read off all the answers. See Area Ratio and Mach Number.

6. Heat helpers: $c_p$ and enthalpy $h$

The parent's very first equation uses $h$ and $c_p$. We met $c_p$ in section 3; now we connect it to the other symbols and introduce $h$.

7. Isentropic — the "no waste" rule

8. Stagnation (subscript $0$) — the "if you stopped it" state

The trickiest symbol: the subscript $0$ does not just mean "chamber". It means a reference state.

9. Throat star $A^{\ast }$ and area $A$

Why compare to the throat? Because the same mass of gas per second ($\dot{m}=\rho AV$) flows through every slice of the pipe. Where $\rho V$ is small, $A$ must be big to pass the same mass. The ratio $A_e/A^{\ast }$ then fixes the shape the nozzle must have to reach a given $M_e$ — connecting the flow numbers to real geometry (see Area Ratio and Mach Number).

Prerequisite map

Read it as: the four vital signs feed the three governing laws (energy, isentropic, ideal-gas); Mach number and $\gamma$ ride on top; all of it pours into the master relations.

Equipment checklist

Test yourself — cover the right side, answer, then reveal.
